Plan 100369GHR

Exclusive

Symmetrical Contemporary Modern Duplex House Plan with Three Bedrooms Per Unit

Heated S.F.
2,442
Units
2
Width
Depth

Floor Plan

Plan 100369GHR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 100369GHR

M-F 9am-5pm EST |

1-203-761-8500

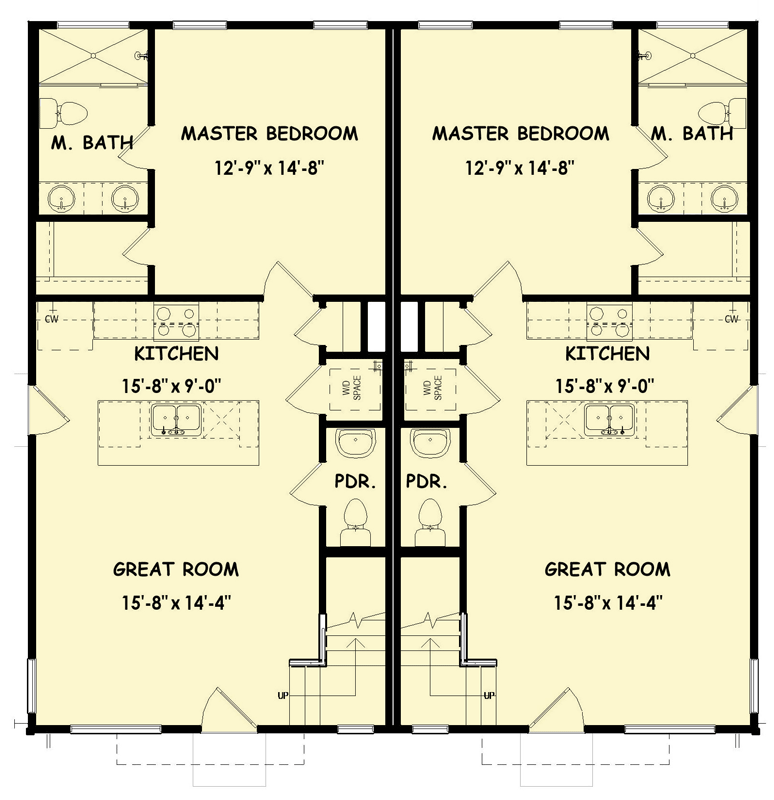

Main Level

Plan 100369GHR: Symmetrical Contemporary Modern Duplex House Plan with Three Bedrooms Per Unit - Floor Plan - Main Level - Contemporary, Modern

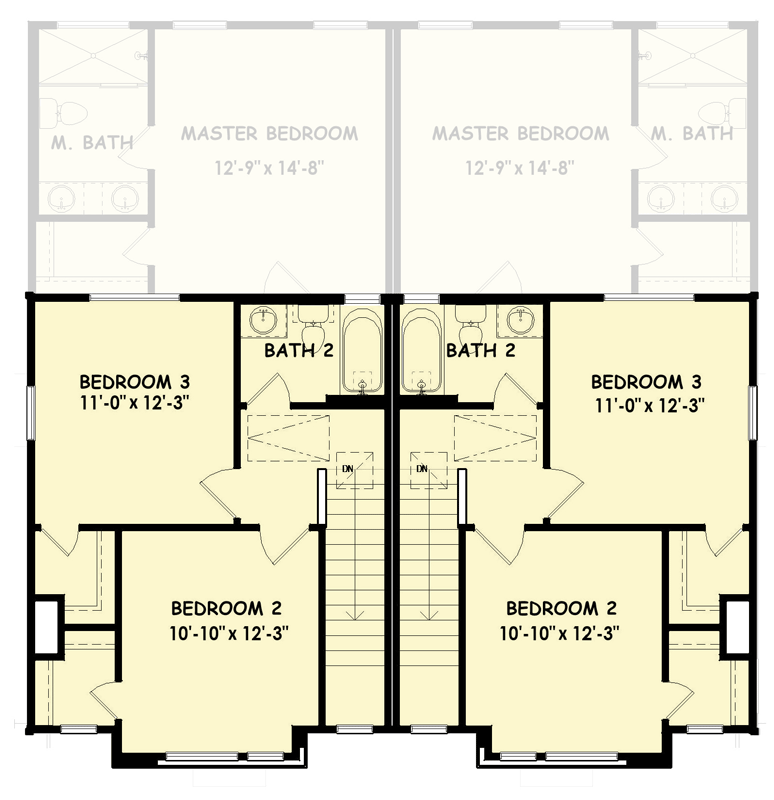

2nd Floor

Plan 100369GHR: Symmetrical Contemporary Modern Duplex House Plan with Three Bedrooms Per Unit - Floor Plan - 2nd Floor - Contemporary, Modern

Plan Details

  • This modern contemporary house plan provides 2,442 square feet of living space, thoughtfully designed with six bedrooms and four full and two half bathrooms.
  • Step inside and immediately appreciate the impressive 10-foot ceiling heights on both floors, creating an airy feel with clear sightlines and abundant natural light.
  • The kitchen serves as the home's central gathering spot, boasting a generous island and ample pantry storage, all openly connected to the main living areas.
  • The layout features a smart split-bedroom design, positioning the primary suite on the main level, while the additional bedrooms are located upstairs for family or guests.
  • A convenient drop zone and main-level laundry room are strategically placed to keep daily routines organized and maintain a tidy home environment.
  • Extend your living space outdoors with a dedicated rear area, offering a natural extension for relaxation or entertaining in the fresh air.
Unit A & B
Heated Area
1,221Sq. Ft.
777 Sq. Ft. 1st
444 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
20'width
39'depth
31'height

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

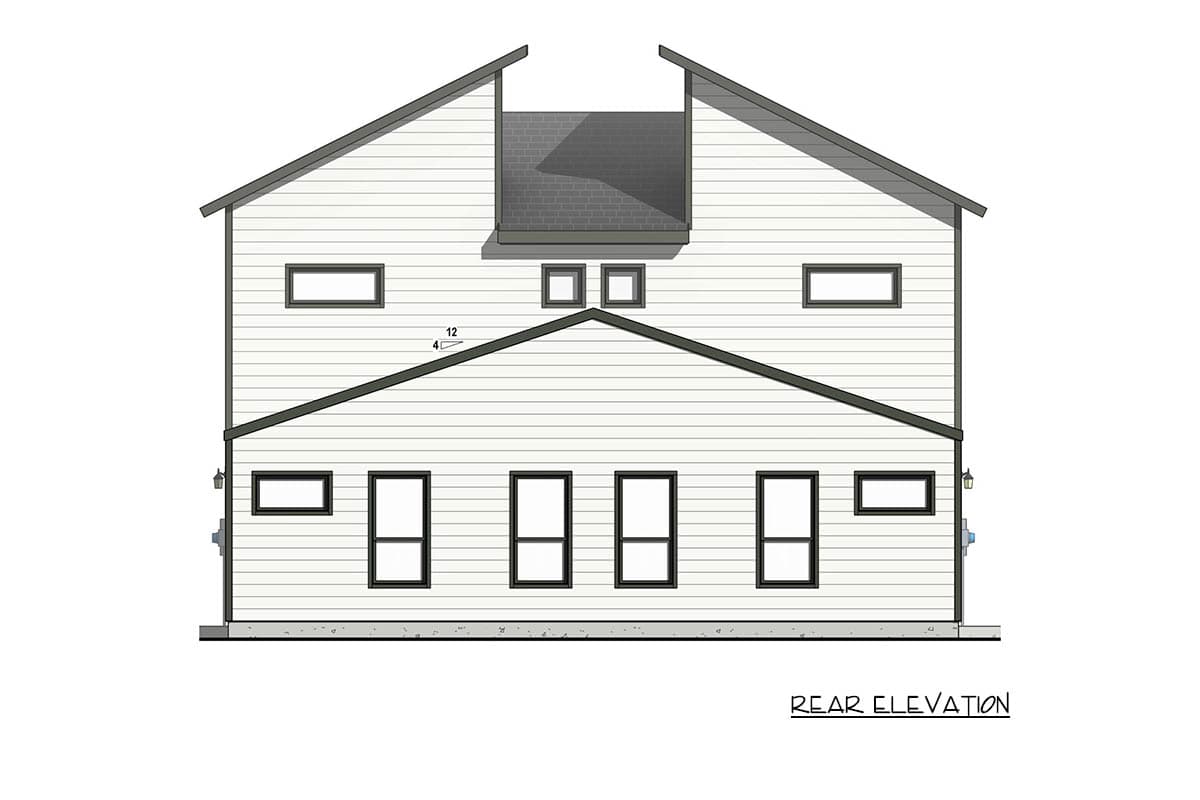

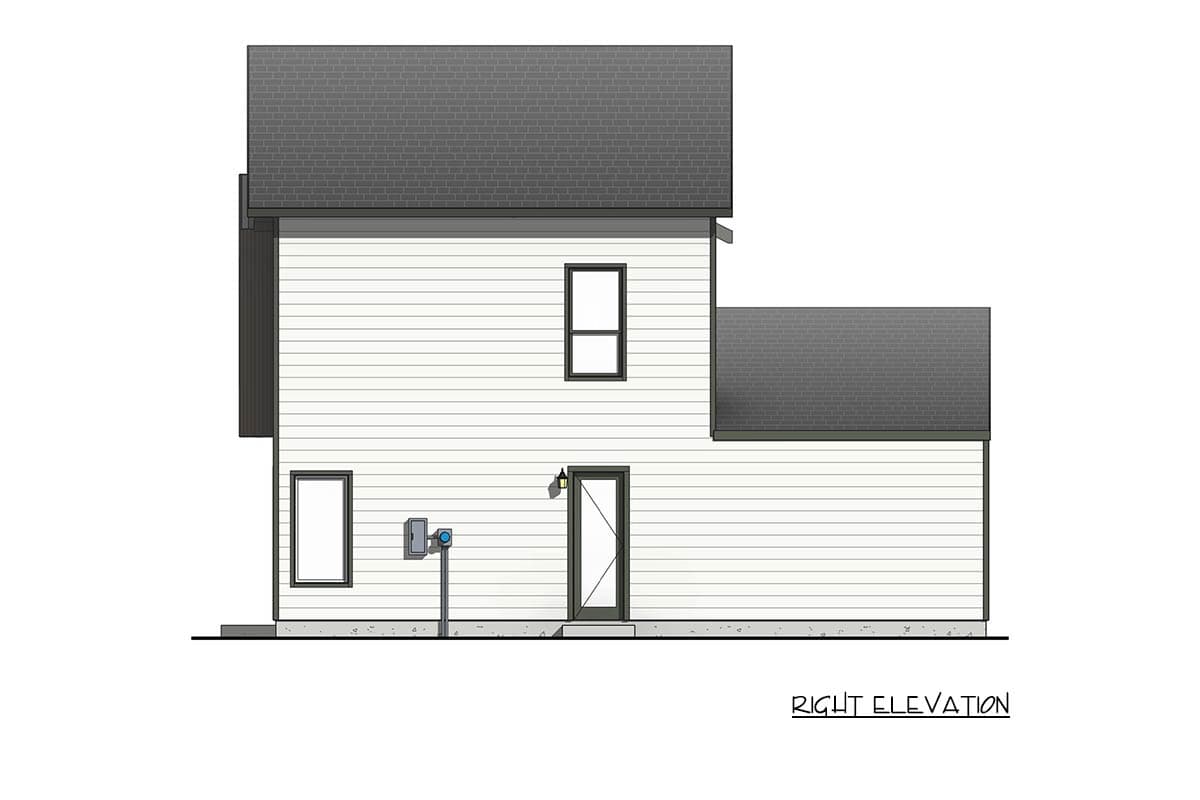

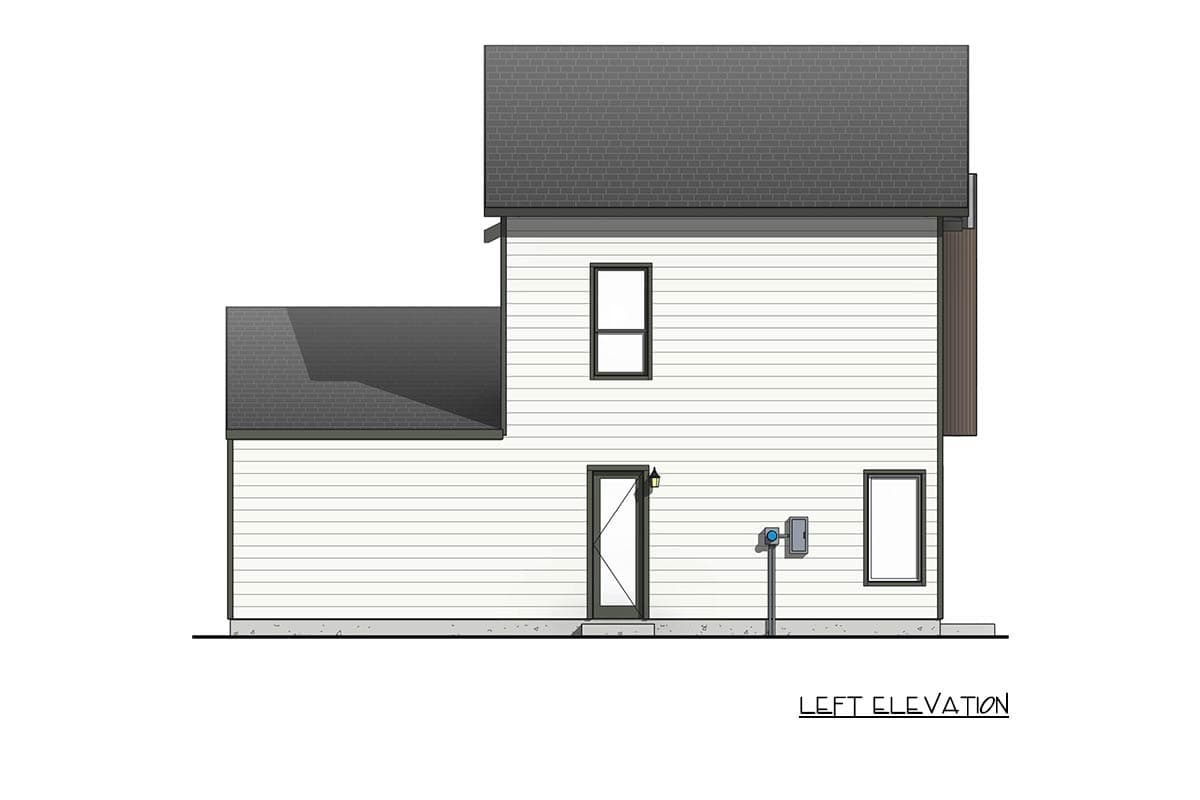

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,442 sq. ft.

1st Floor

1,554 sq. ft.

2nd Floor

888 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

39' 0"

Max Ridge Height

31' 7"

Ceiling Heights

First Floor

10' 1"

Second Floor

10' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,442 sq. ft.

1st Floor

1,554 sq. ft.

2nd Floor

888 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

39' 0"

Max Ridge Height

31' 7"

Ceiling Heights

First Floor

10' 1"

Second Floor

10' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Modern

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Exclusive
