Symmetrical Design with Full Front Porch

Plan 72266DA

  • 1,788

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The full front porch is accented by slender wooden handrails and columns. The home plan's symmetrical design and central dormer also add to the plan's bungalow effect.
  • Family gathering areas fill the main floor, circling around a central stairway. Parlor and dining room are on the right, family room and kitchen on the left. Storage closets, utilities and a small powder room are in the middle.
  • An eating bar with overhead cabinets is all that separates the kitchen and family room. Sliders brighten the family room and provide access to a covered patio.
  • Upstairs, the home plan's master suite boasts two good-sized walk-in closets, and a private bathroom with dual vanities. The front bedroom is smaller but brighter than bedroom two.
  • Access to the large bonus room is through a hallway just past the bathroom, or via a second staircase entered through the garage.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

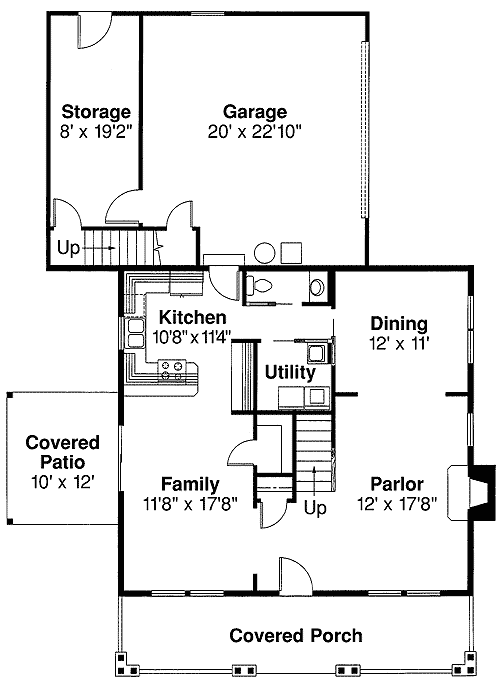

Symmetrical Design with Full Front Porch - 72266DA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

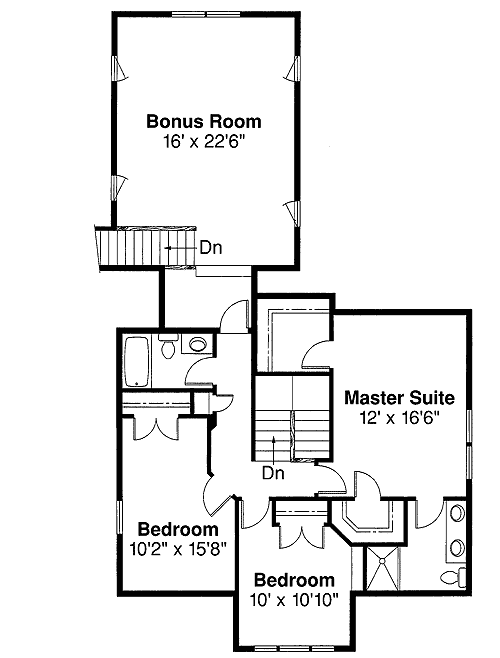

Symmetrical Design with Full Front Porch - 72266DA floor plan - 2nd Floor

Symmetrical Design with Full Front Porch

  • 1,788

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,788 sq. ft.
  • 1st Floor: 970 sq. ft.
  • 2nd Floor: 818 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 60' 0"
  • Max ridge height: 28' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 670 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Rear

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
