Plan 90242PD

Terraced Contemporary With Carport

Heated S.F.
1,392
Beds
3
Baths
1.5
Stories
2
Cars
1

Floor Plan

Plan 90242PD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 90242PD

M-F 9am-5pm EST |

1-203-761-8500

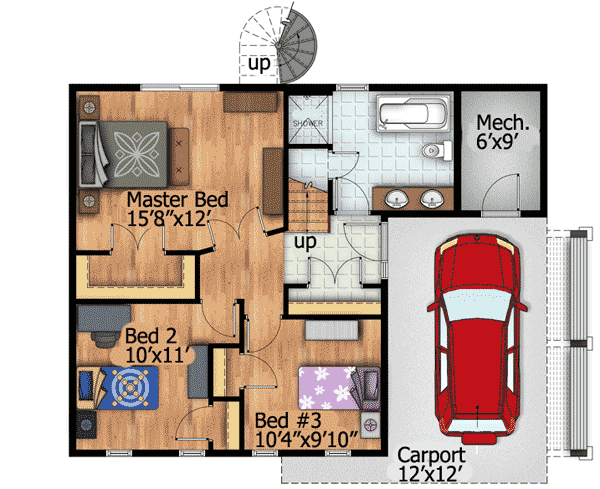

Main Level

Plan 90242PD: Terraced Contemporary With Carport - Floor Plan - Main Level - Modern

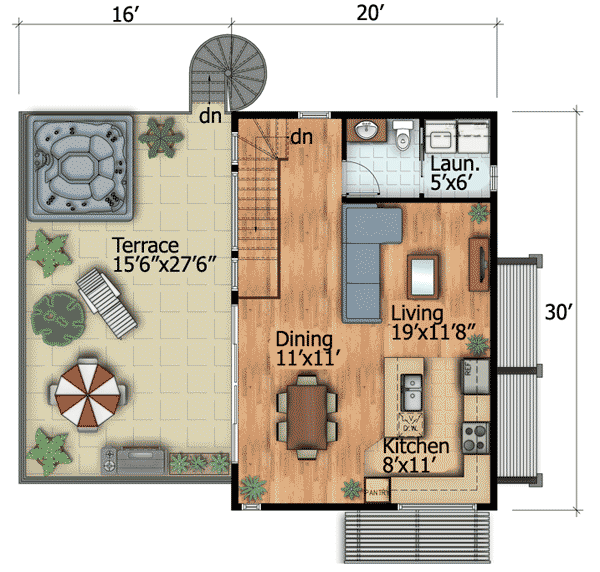

2nd Floor

Plan 90242PD: Terraced Contemporary With Carport - Floor Plan - 2nd Floor - Modern

Plan Details

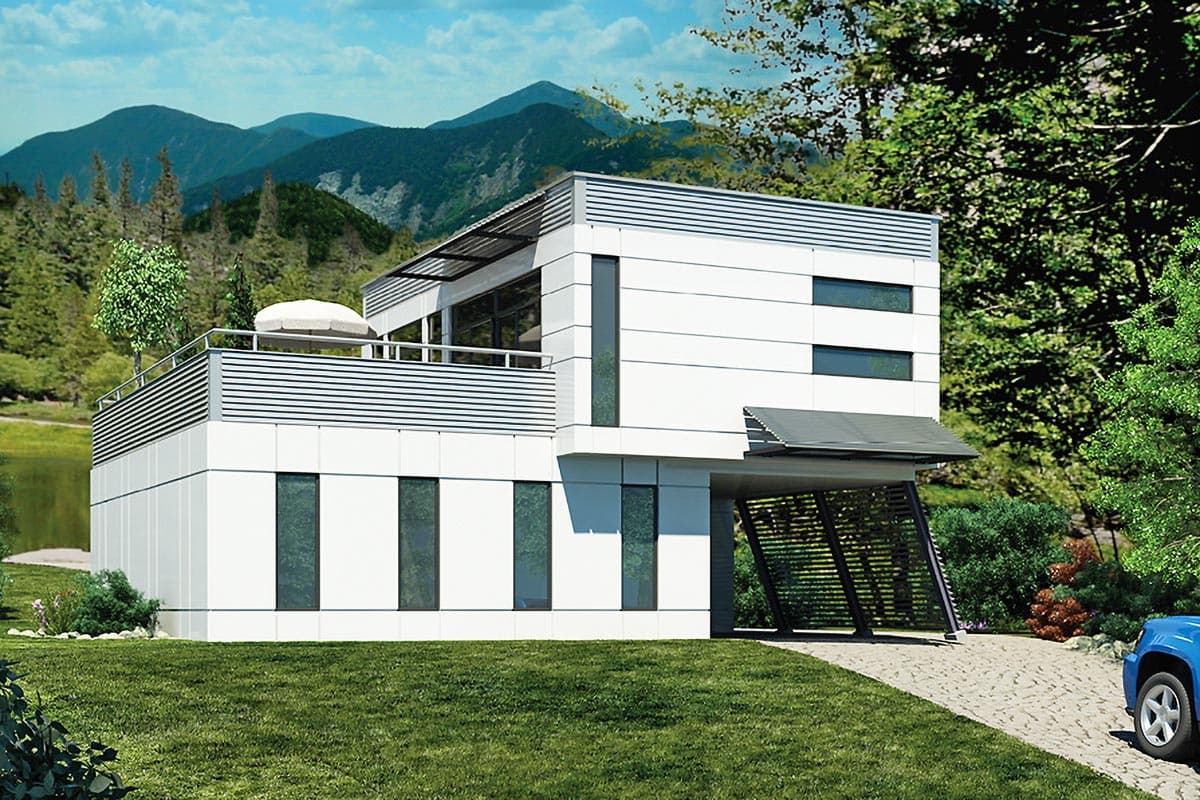

  • This striking contemporary home plan gives the appearance of a cantilevered block hovering in space. And that's how the fun begins! The overhanging portion creates a carport and the exposed plan above an open air terrace.
  • The ground floor is where you'll find the bedrooms.
  •  Stairs go to the main living floor above just off the mudroom entry.
  • The upper floor features a wide open space combining three functional areas: kitchen, dining and living rooms. Sliding doors lead to the open air terrace. And a stair there spirals down to grade.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,392 sq. ft.

1st Floor

792 sq. ft.

2nd Floor

600 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

30' 0"

Max Ridge Height

21' 6"

Garage

Type

Carport

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Modern

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,392 sq. ft.

1st Floor

792 sq. ft.

2nd Floor

600 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

30' 0"

Max Ridge Height

21' 6"

Garage

Type

Carport

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Modern

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Canadian House Plans

Metric
