Plan 57206HA

Terrific A-Frame Design Loaded With Living Spaces

Heated S.F.
865
Beds
2
Baths
1
Stories
2

Floor Plan

Plan 57206HA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 57206HA

M-F 9am-5pm EST |

1-203-761-8500

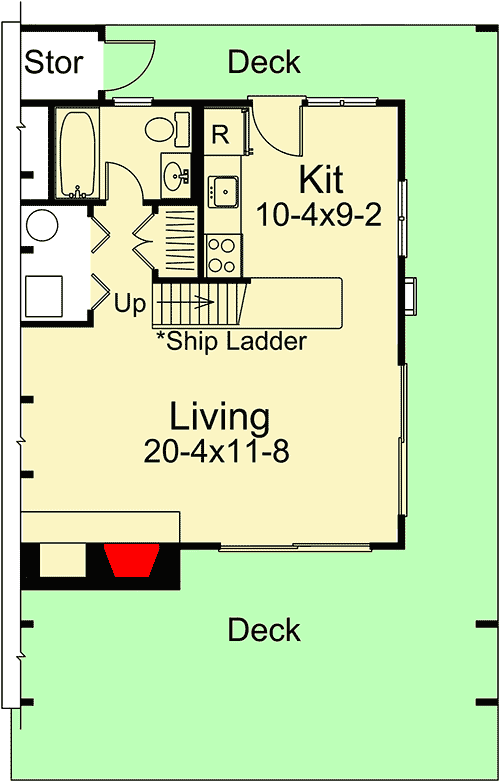

Main Level

Plan 57206HA: Terrific A-Frame Design Loaded With Living Spaces - Floor Plan - Main Level - A-Frame, Mountain, Vacation

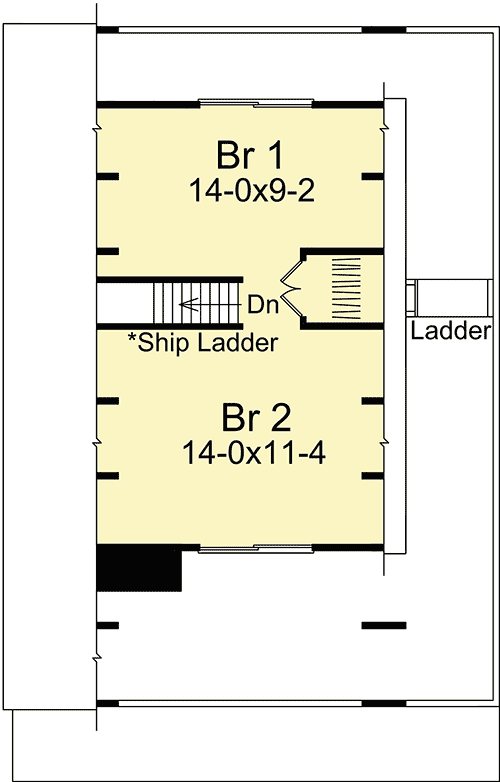

2nd Floor

Plan 57206HA: Terrific A-Frame Design Loaded With Living Spaces - Floor Plan - 2nd Floor - A-Frame, Mountain, Vacation

Plan Details

  • Central living area provides an enormous amount of space for gathering around the fireplace.
  • Outdoor ladder on wrap-around deck connects top deck with main deck.
  • Kitchen is bright and cheerful with lots of windows and access to deck.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

865 sq. ft.

1st Floor

495 sq. ft.

2nd Floor

370 sq. ft.

Porch, Front

308 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

21' 0"

Depth

24' 0"

Ceiling Heights

First Floor

8'

Second Floor

7'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

A-Frame

Mountain

Vacation

Special Features

Laundry - Main Level

Master Suite - Upstairs

Wraparound Porch

Plan Collections

Lake House Plans

Square Footage Breakdown

Total Heated Area

865 sq. ft.

1st Floor

495 sq. ft.

2nd Floor

370 sq. ft.

Porch, Front

308 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

21' 0"

Depth

24' 0"

Ceiling Heights

First Floor

8'

Second Floor

7'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

A-Frame

Mountain

Vacation

Special Features

Laundry - Main Level

Master Suite - Upstairs

Wraparound Porch

Plan Collections

Lake House Plans
