Thoughtful Split-Bedroom Home Plan with 4-Car Garage
Heated S.F.
2,786
Beds
3
Baths
2.5
Stories
1
Cars
4
What's Included
Plan Details
  • A dramatic roofline and welcoming covered front porch with columns define this thoughtful 3-bedroom home plan.
  • At the heart of this home, a vaulted family room, wraparound kitchen, and airy dining space give you complete design freedom. A kitchen island with seating for six makes entertaining a delight.
  • The secluded master suite includes access to one of two covered back decks, a generously sized walk-in closet, and a 5-piece bath with a walk-in double shower. An adjacent study offers privacy and convenience.
  • On the opposite side of the home, two additional bedrooms share a full bath.
  • The lower level offers garage space for up to four vehicles.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Thoughtful Split-Bedroom Home Plan with 4-Car Garage

  • 2,786

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 4

    Car garage

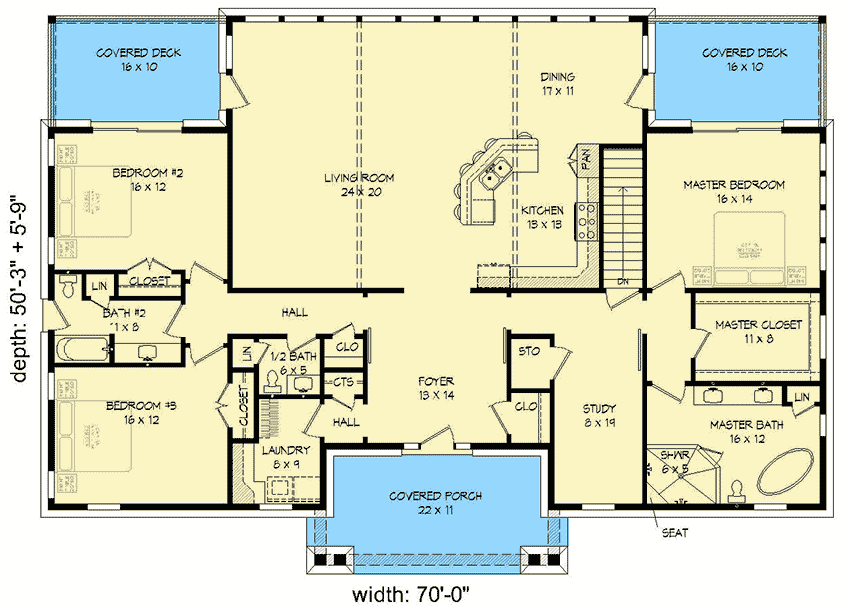

Floor Plan

  • Main Level

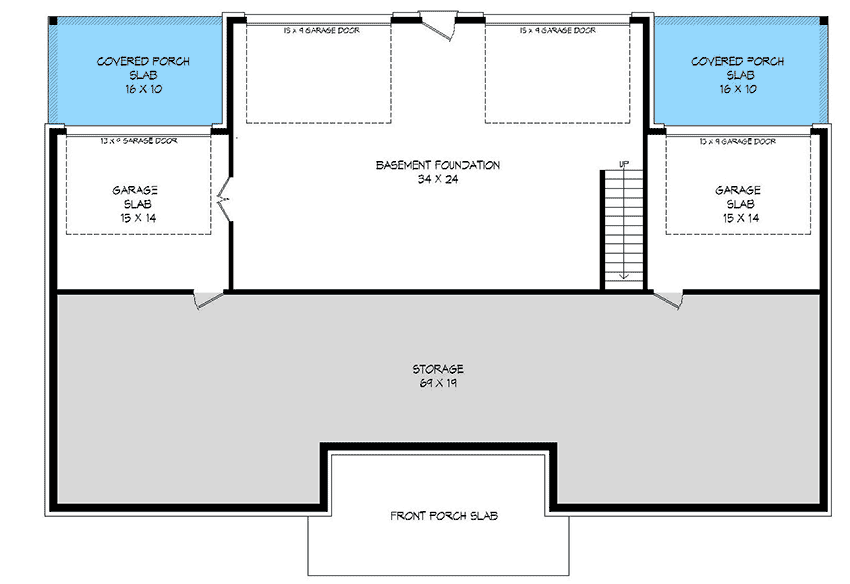

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,786 sq. ft.
  • 1st Floor: 2,786 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 56' 0"
  • Max ridge height: 24' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Drive Under
  • Area: 2786 sq. ft.
  • Count: 4 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
