Plan 57033HA
Three Atrium Balconies
Heated S.F.
2,317
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • Bracketed box windows create an exterior with country charm.
  • Massive-sized great room features a majestic atrium, fireplace, box window wall, dining balcony, and vaulted ceilings.
  • Spacious breakfast room is set in a large bay window on one side and an additional atrium balcony on another. The sundeck is also accessed from this bright room.
  • For convenience the kitchen has a large island with cooktop, walk-in pantry, and is handy to the laundry room, which connects the two car garage and living areas.
  • All three bedrooms have ample closet space. The master bedroom contains the third atrium balcony, bay window, vaulted ceiling, and five fixture bathroom.
  • 1,038 square feet of optional living area below includes a family room, wet bar, fourth bedroom, walk-in closet, and full bath.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Three Atrium Balconies

  • 2,317

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

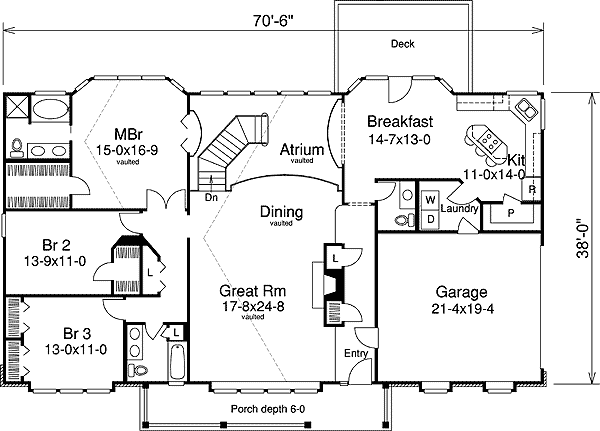

Floor Plan

  • Basement

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,317 sq. ft.
  • 1st Floor: 2,317 sq. ft.

Dimensions

  • Width: 70' 6"
  • Depth: 38' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 413 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
