Plan 280049JWD

Three Bed Country Craftsman with Included Bonus Room

Heated S.F.
2,122
Beds
3
Baths
2
Stories
1-2
Cars
3

Floor Plan

Plan 280049JWD

Main Level
Main Level
Bonus Level
Bonus Level

Plan 280049JWD

M-F 9am-5pm EST |

1-203-761-8500

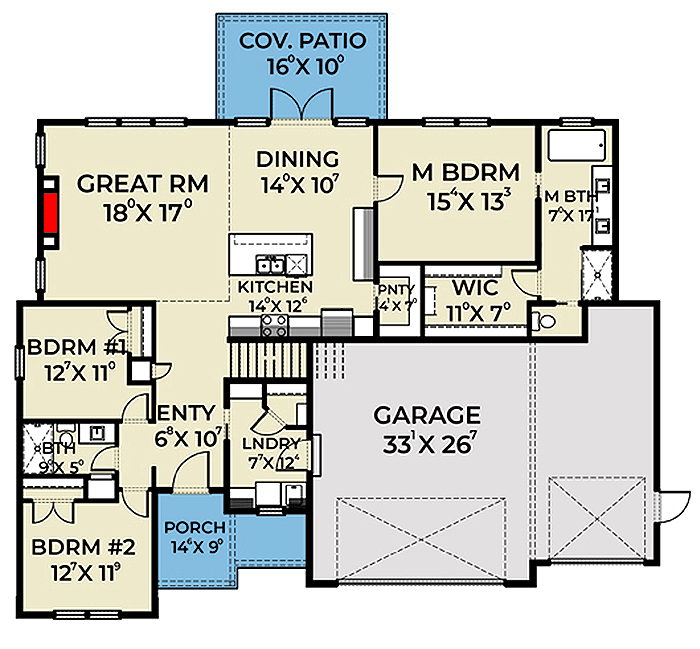

Main Level

Plan 280049JWD: Three Bed Country Craftsman with Included Bonus Room - Floor Plan - Main Level - Country, Craftsman, Ranch, Southern

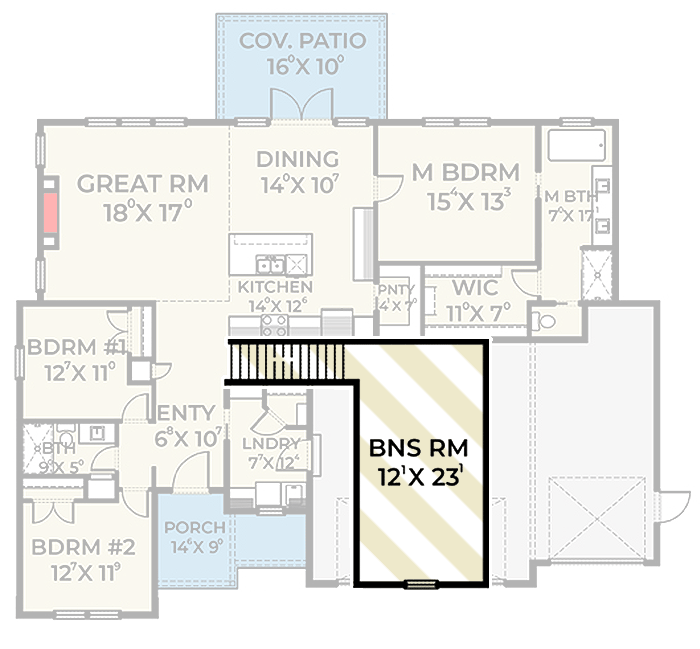

Bonus Level

Plan 280049JWD: Three Bed Country Craftsman with Included Bonus Room - Floor Plan - Bonus Level - Country, Craftsman, Ranch, Southern

Plan Details

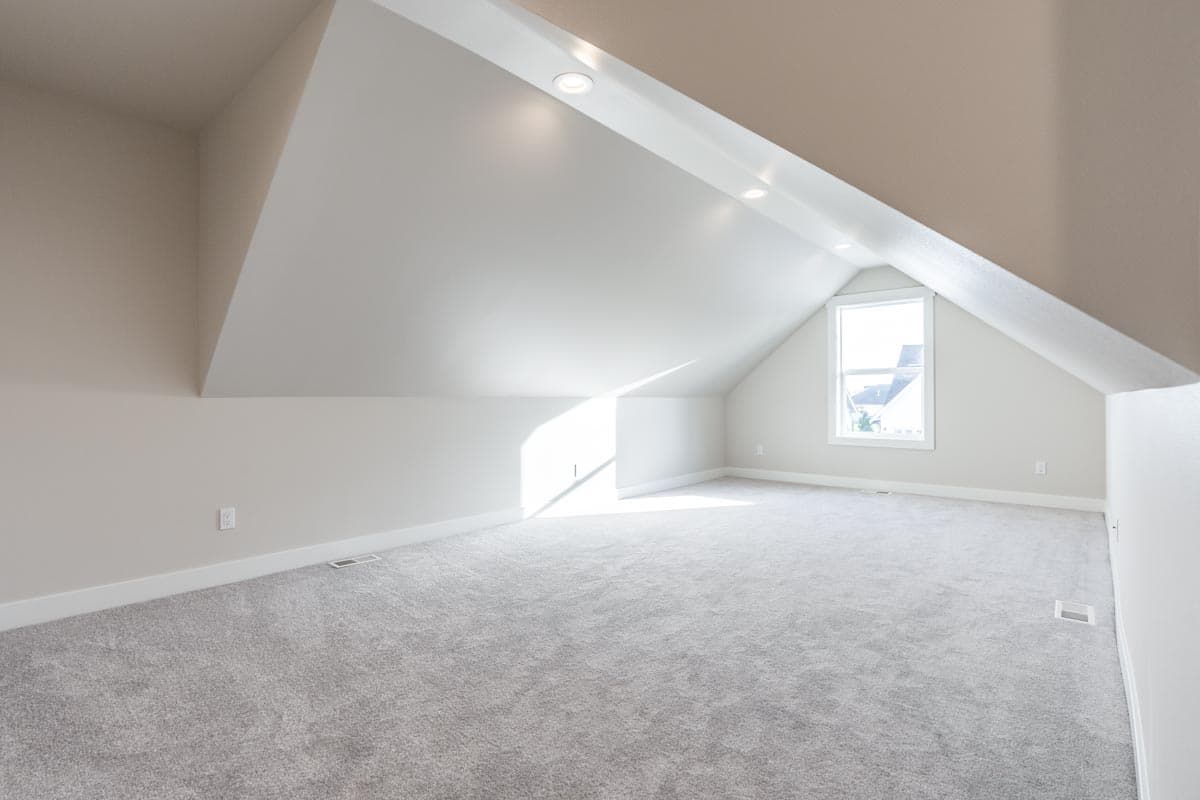

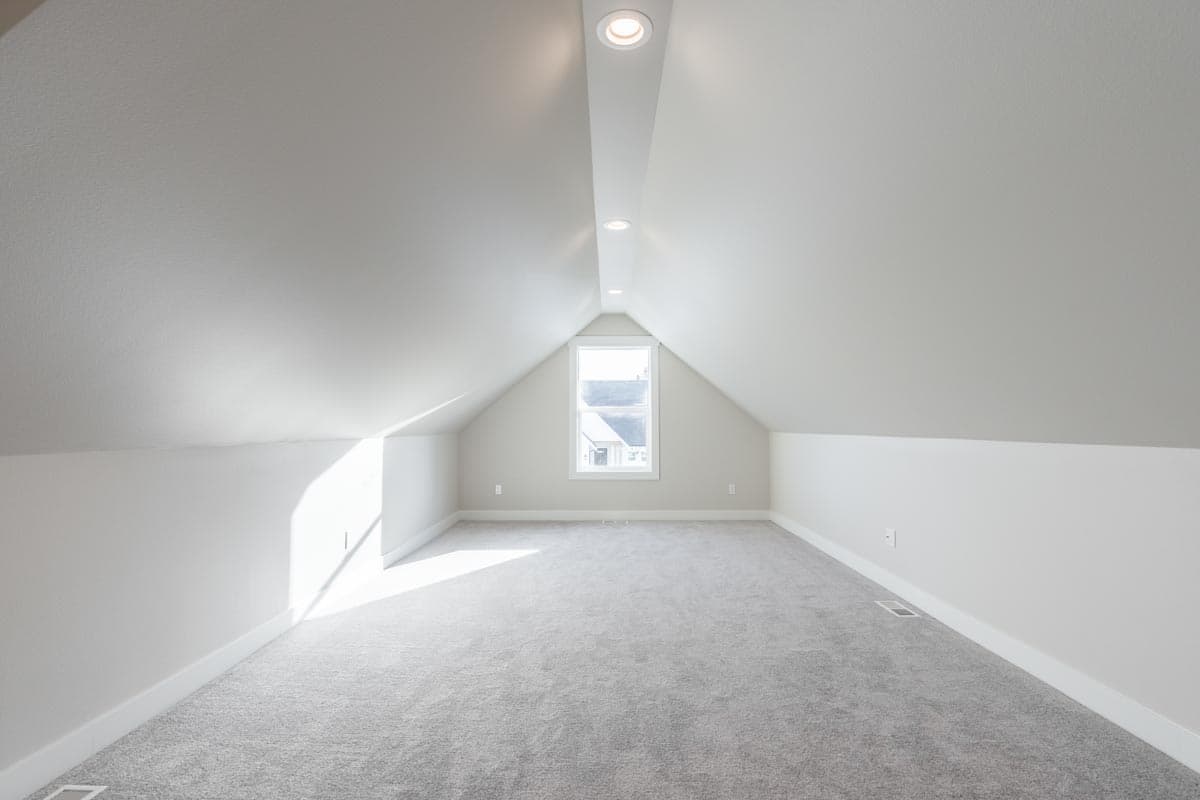

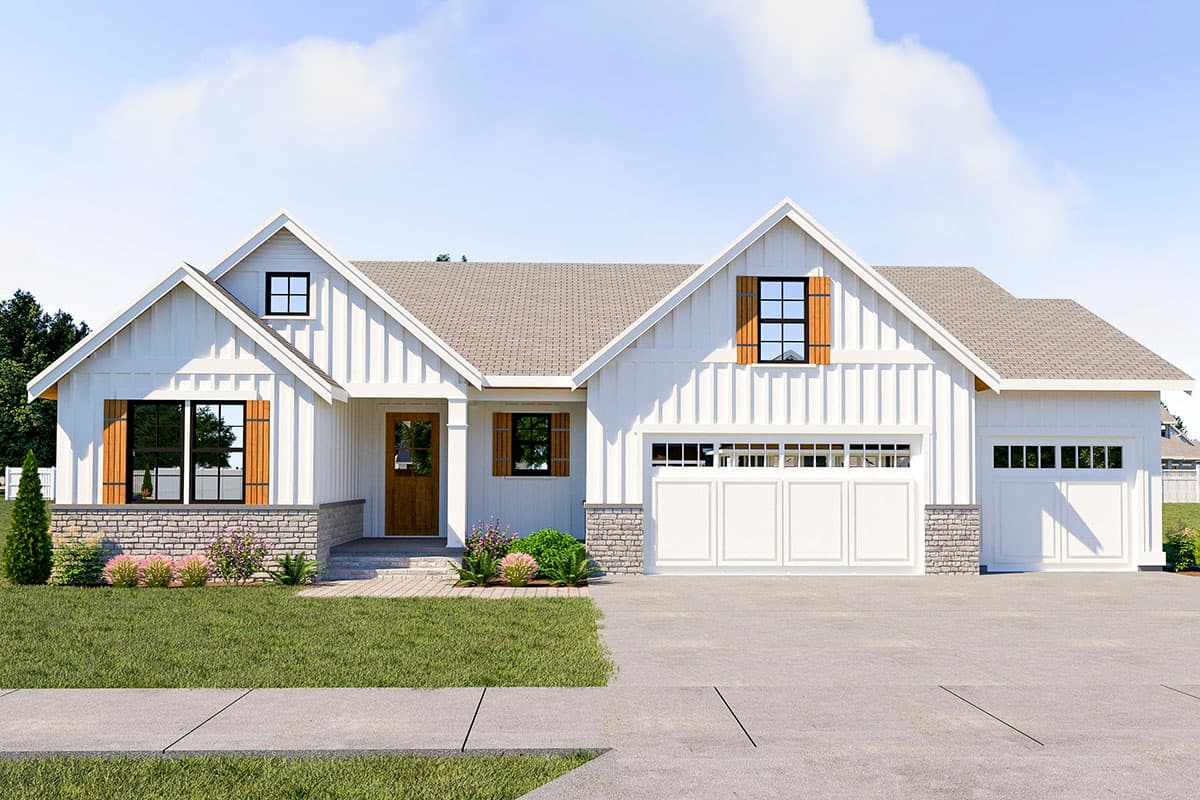

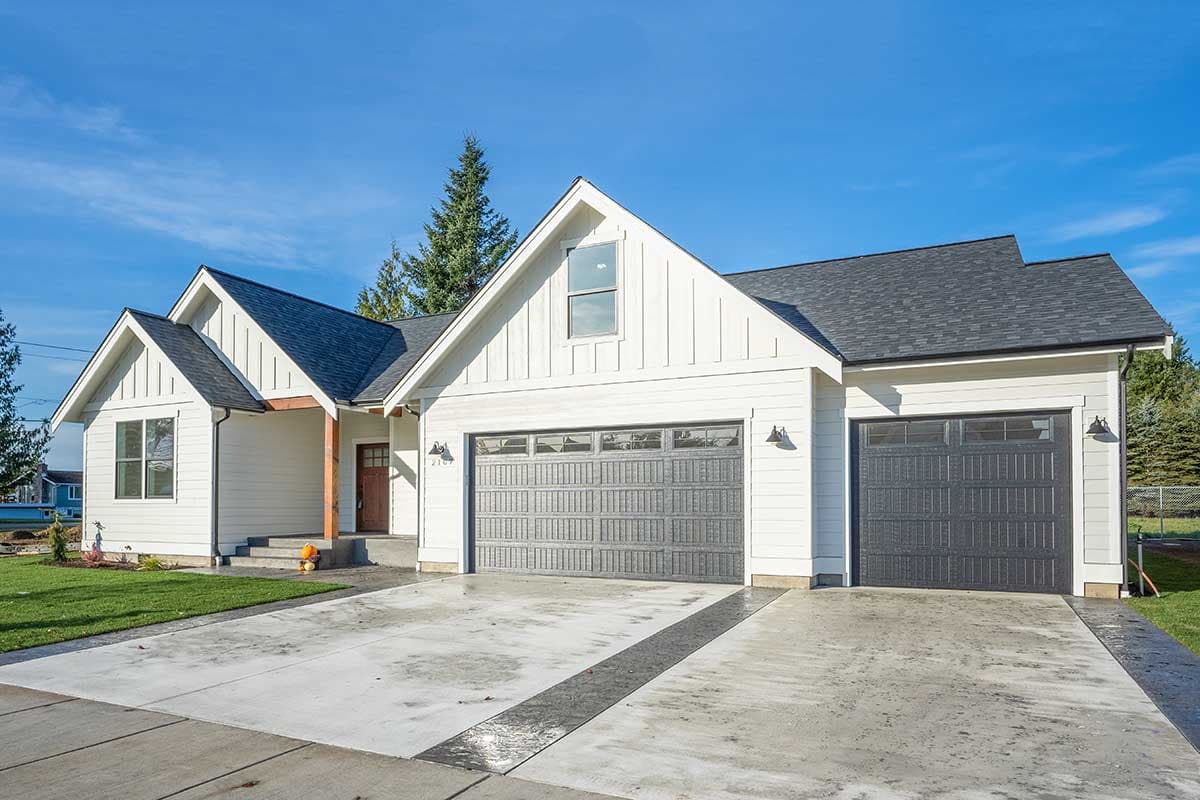

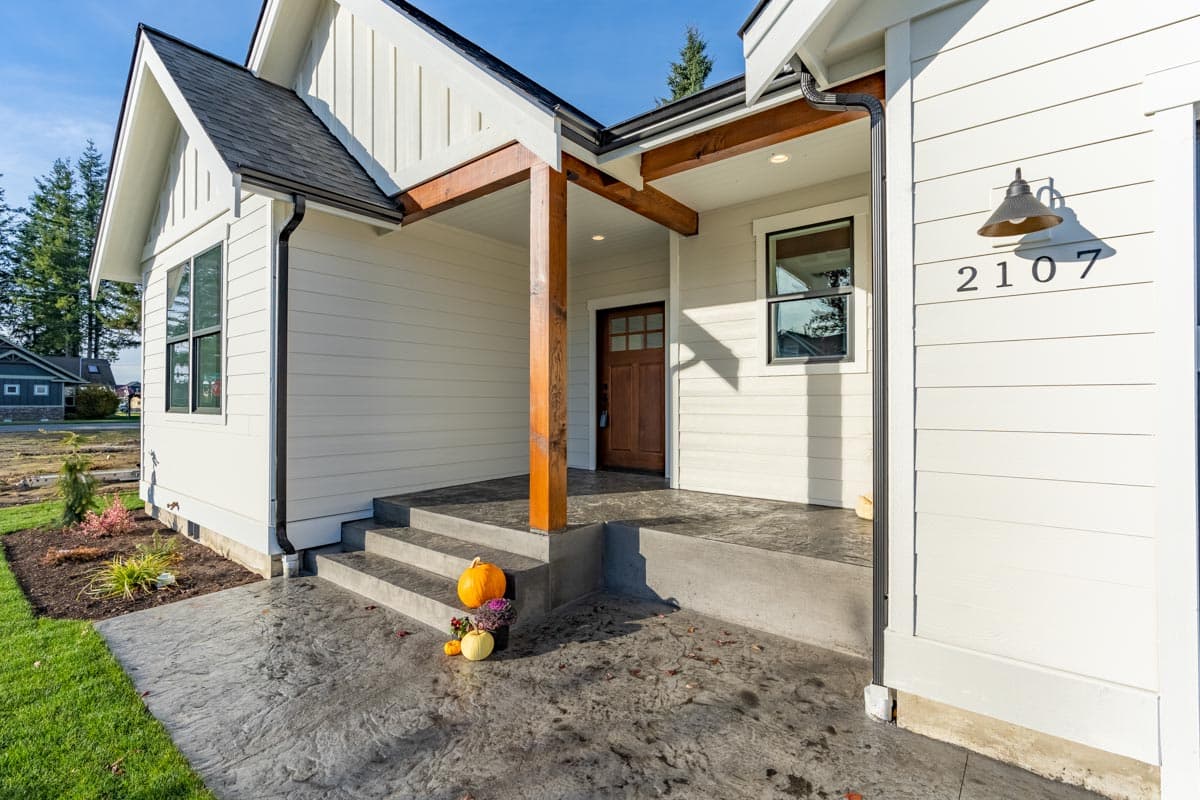

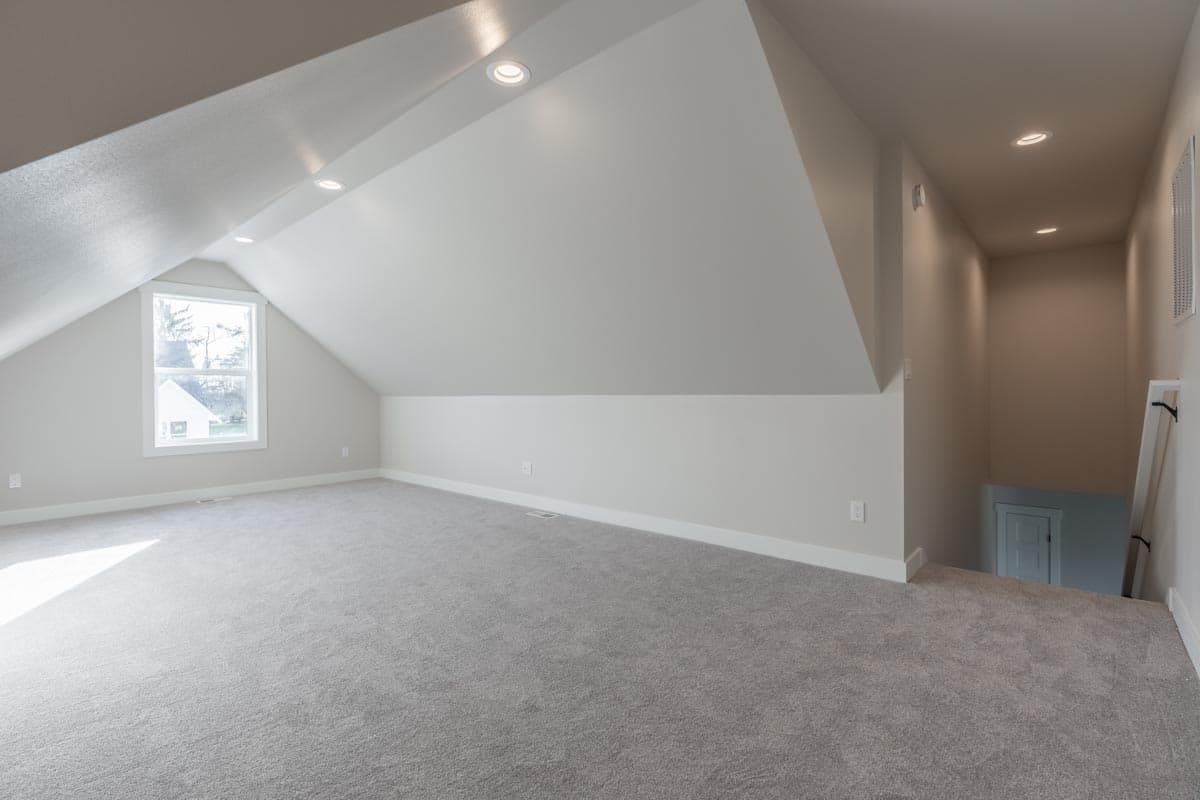

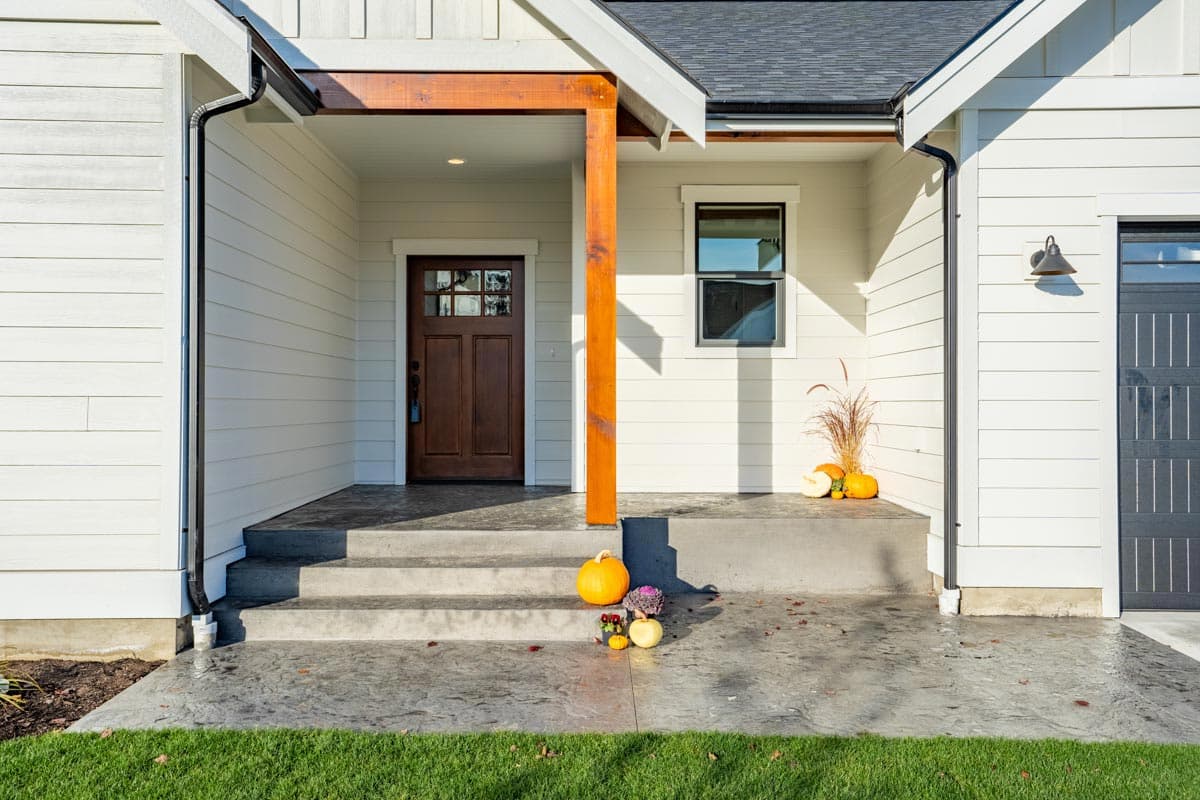

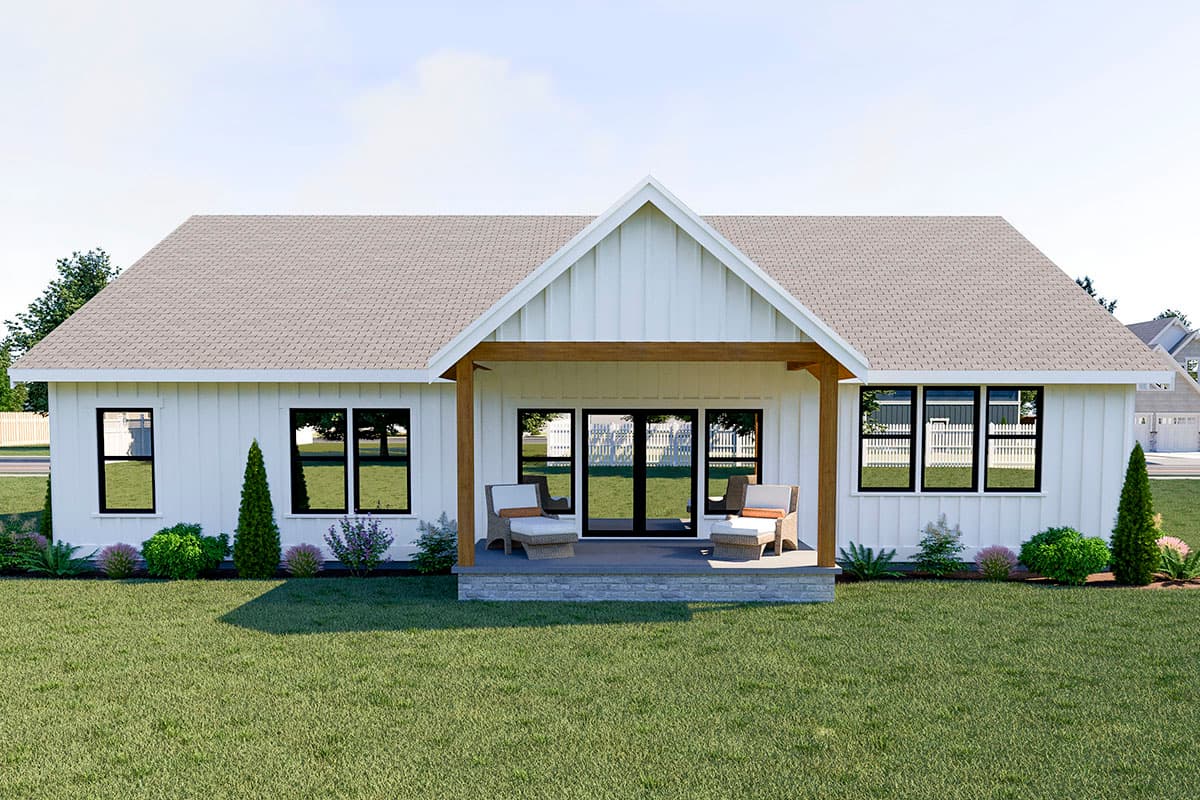

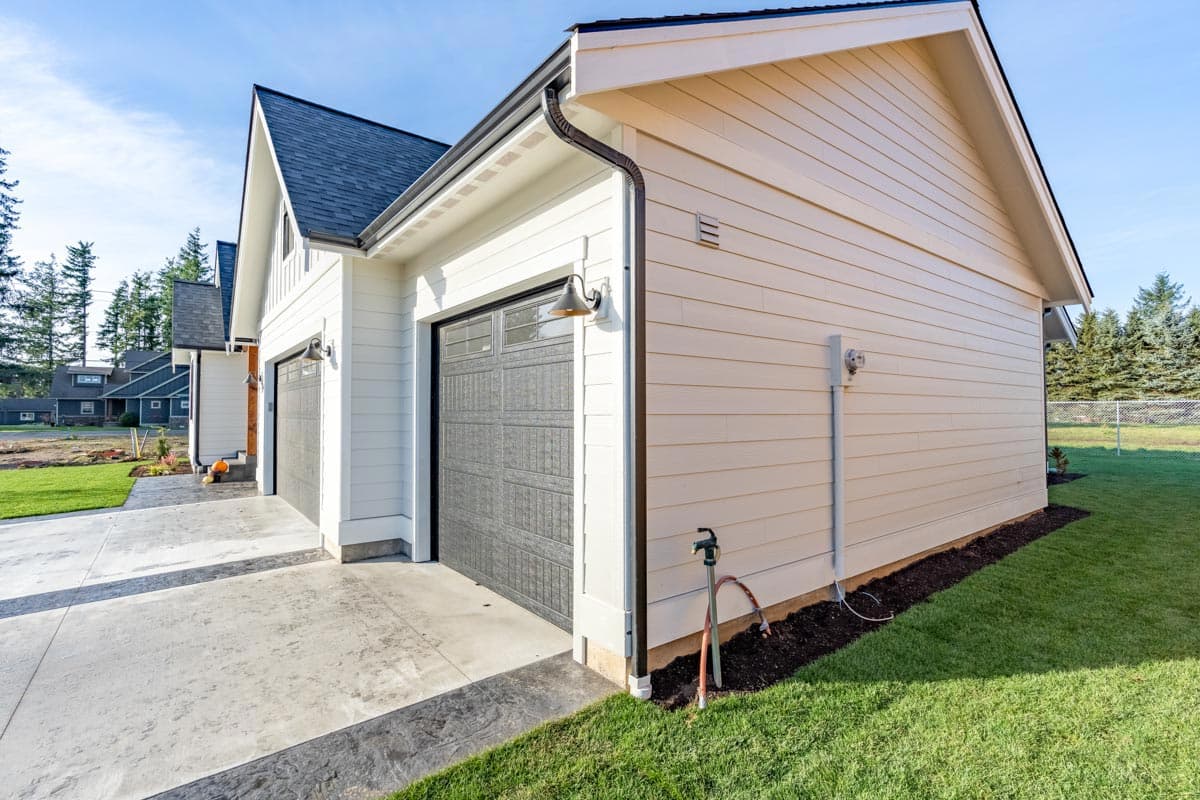

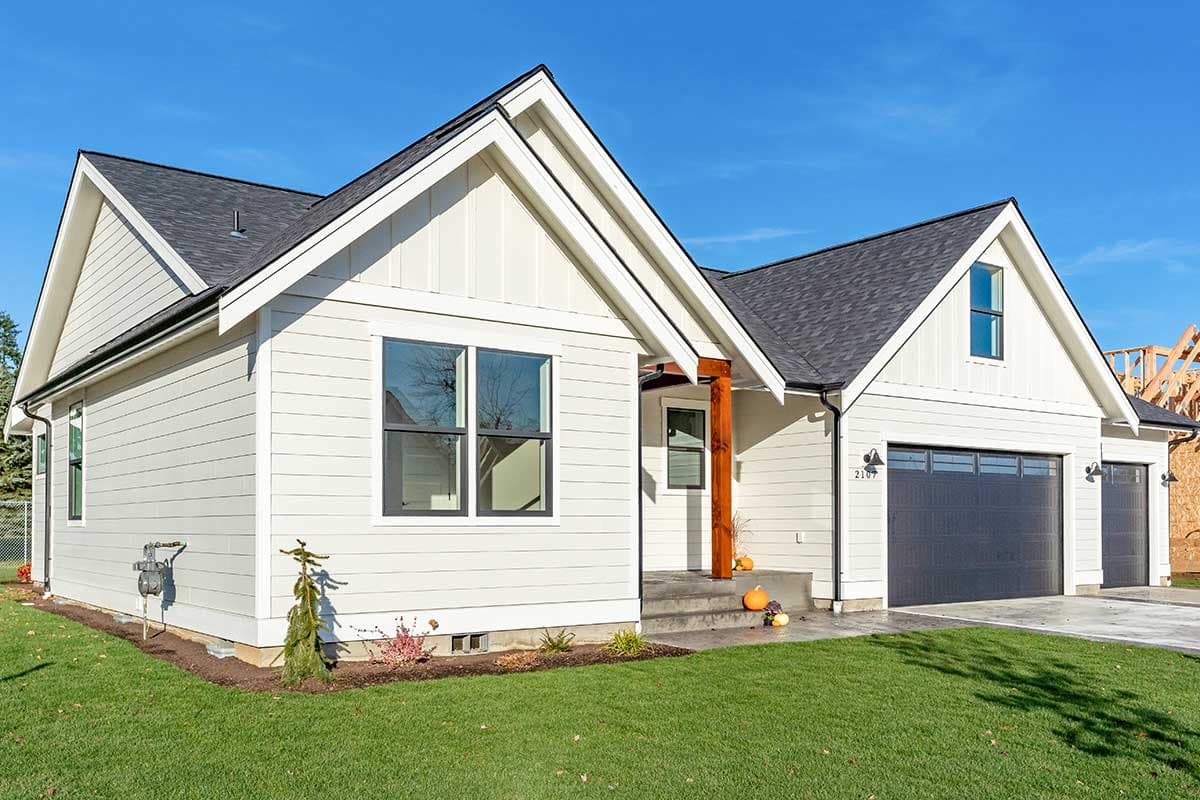

  • This 3-bedroom, country craftsman house plan, clad in board and batten siding and a stone skirt, offers an optional bonus room above the 3-car garage for added flexibility.

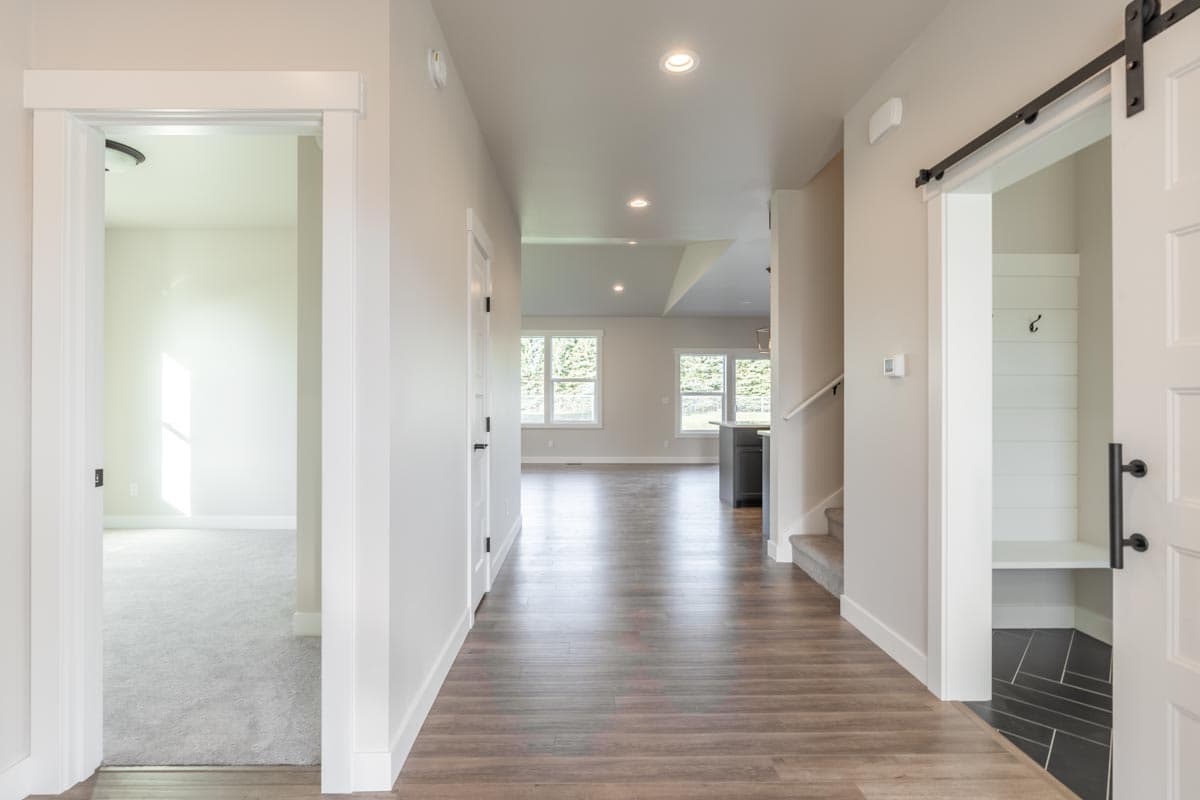

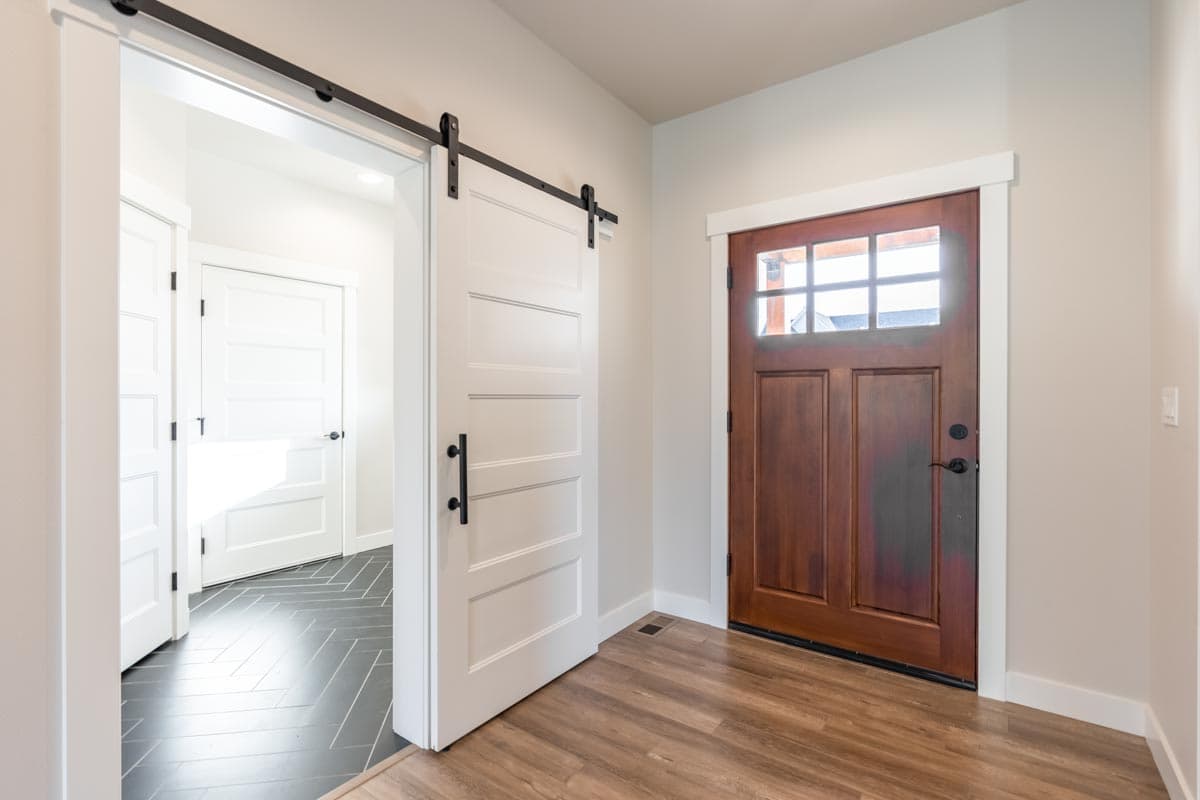

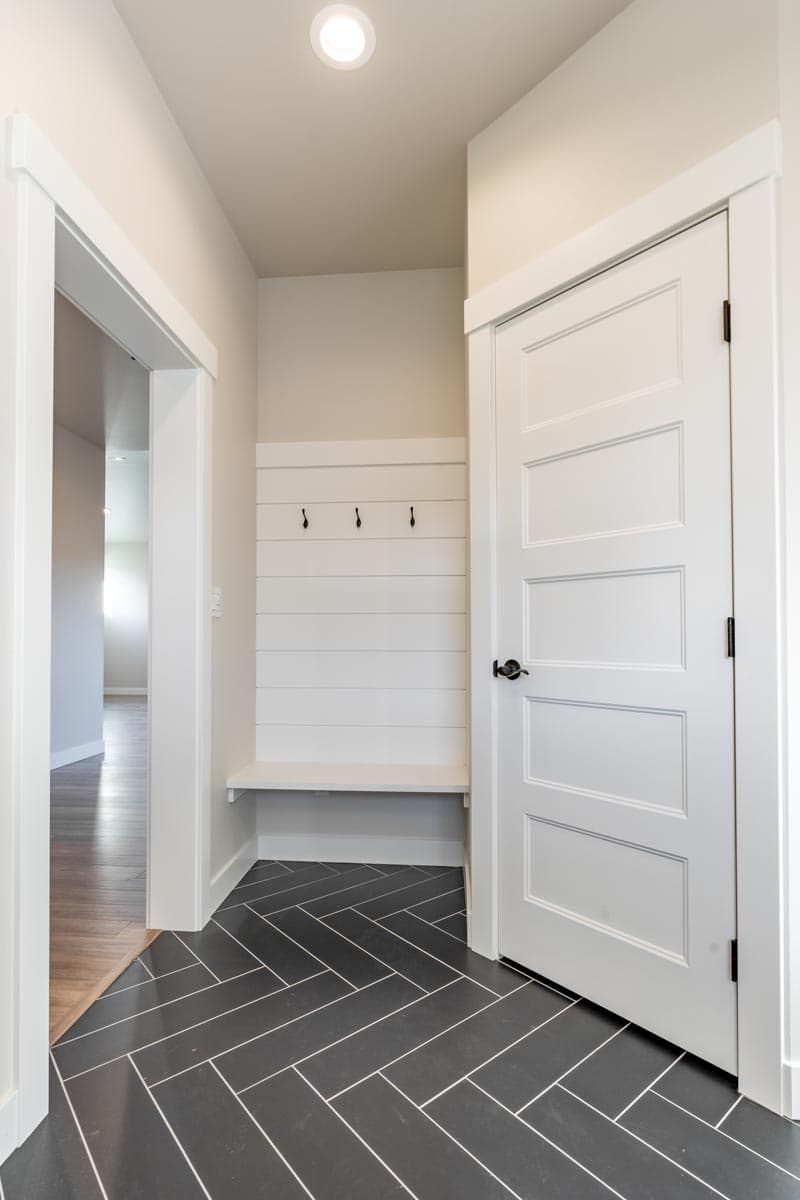

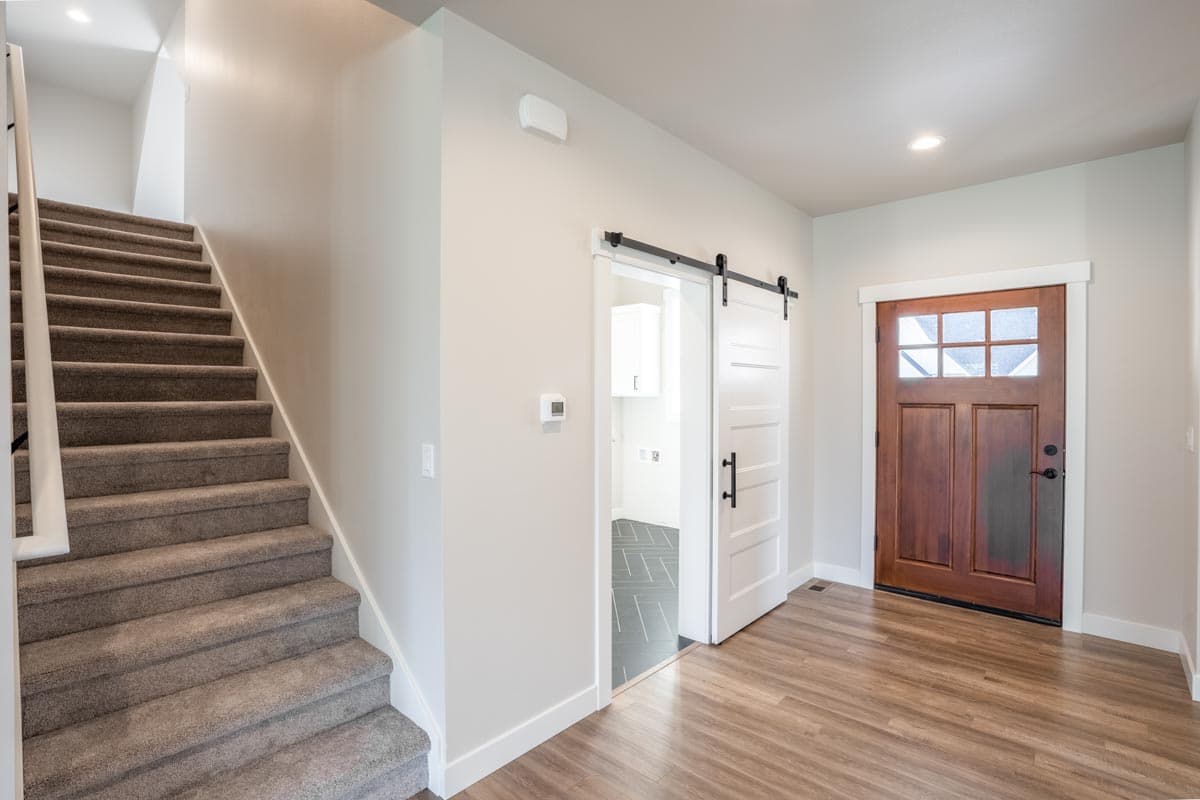

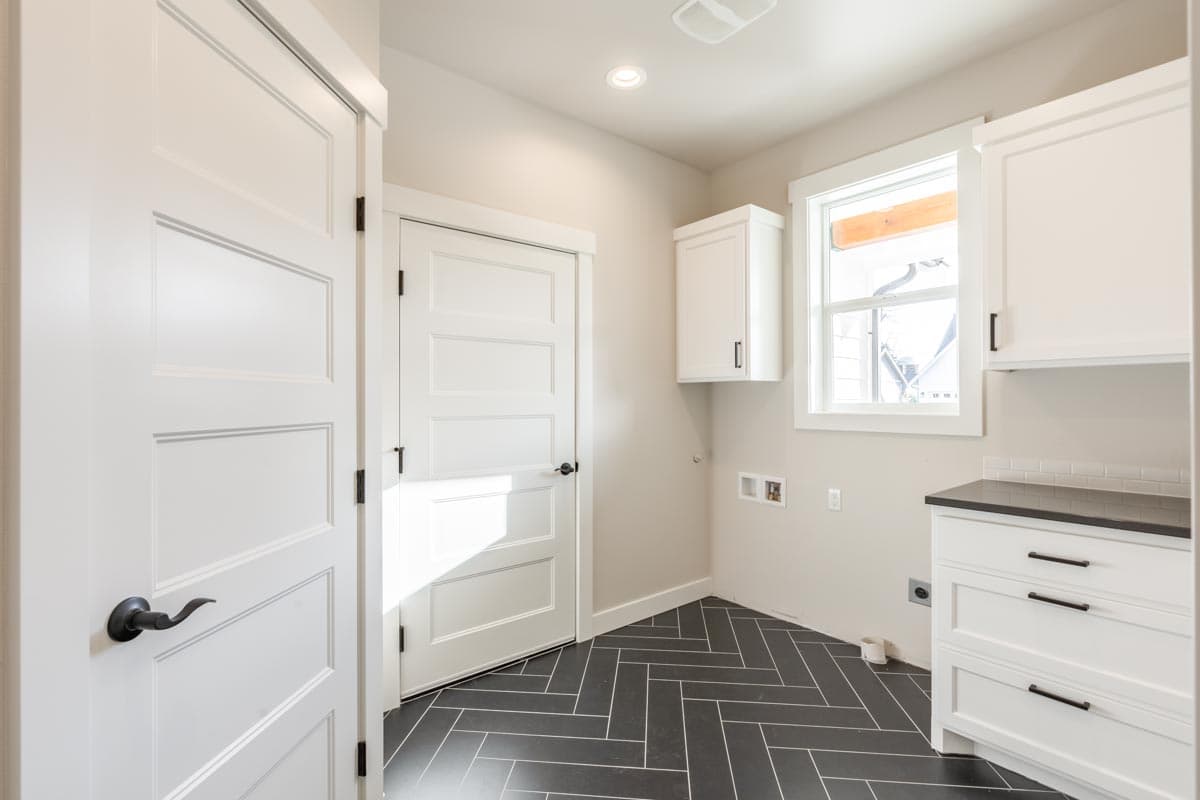

  • The close proximity between the formal and garage entries allow both to utilize the coat closet in the mudroom.

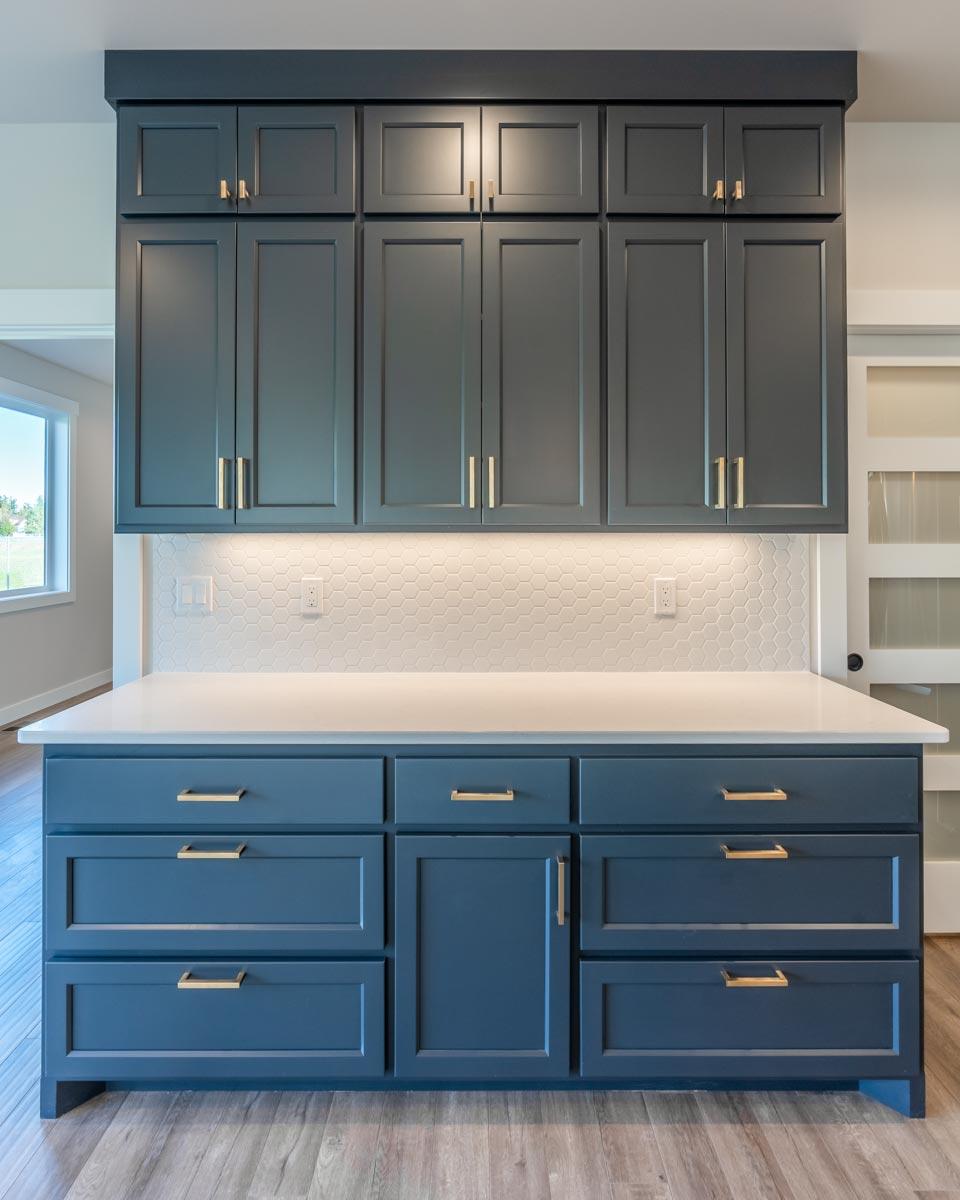

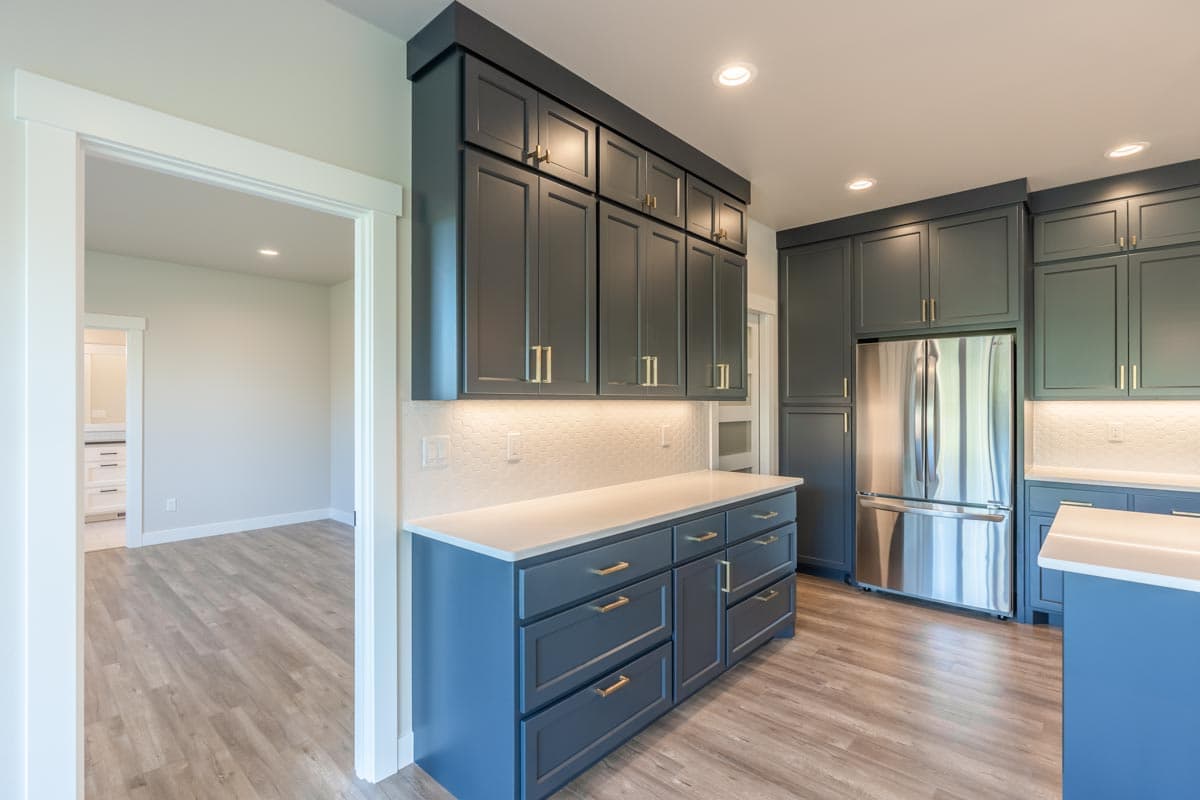

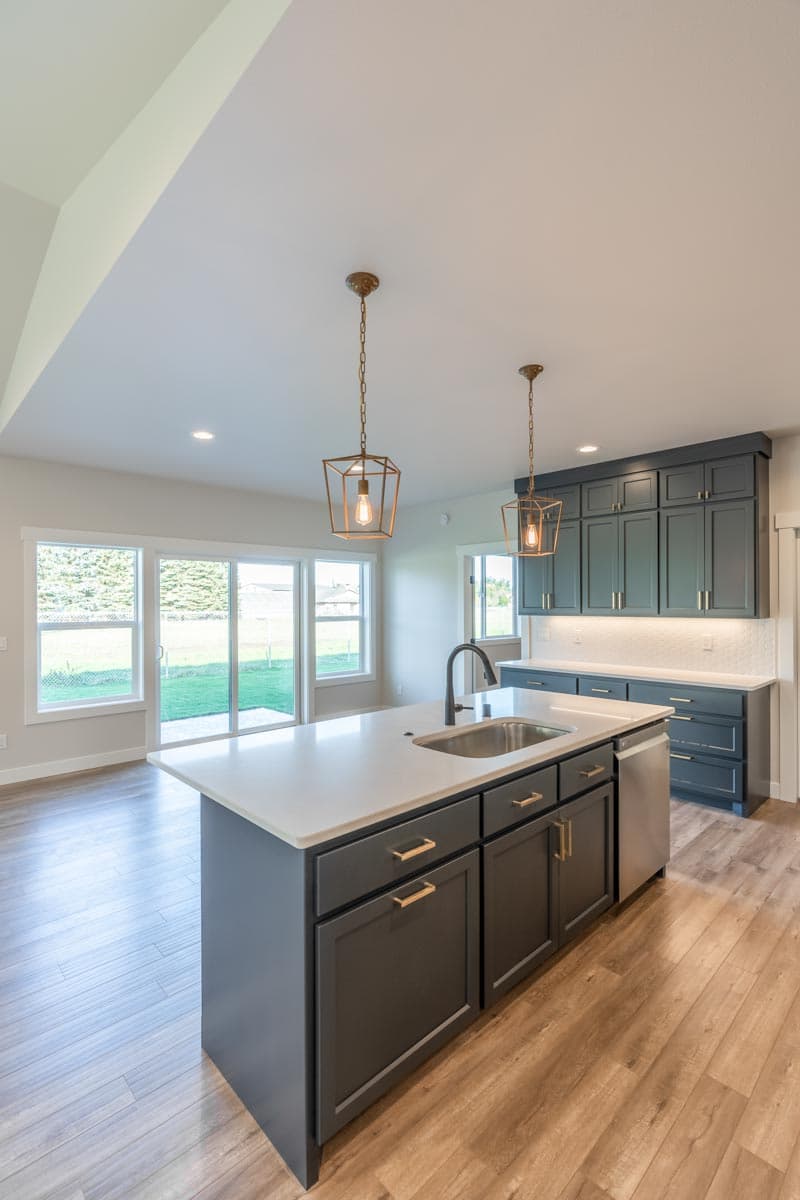

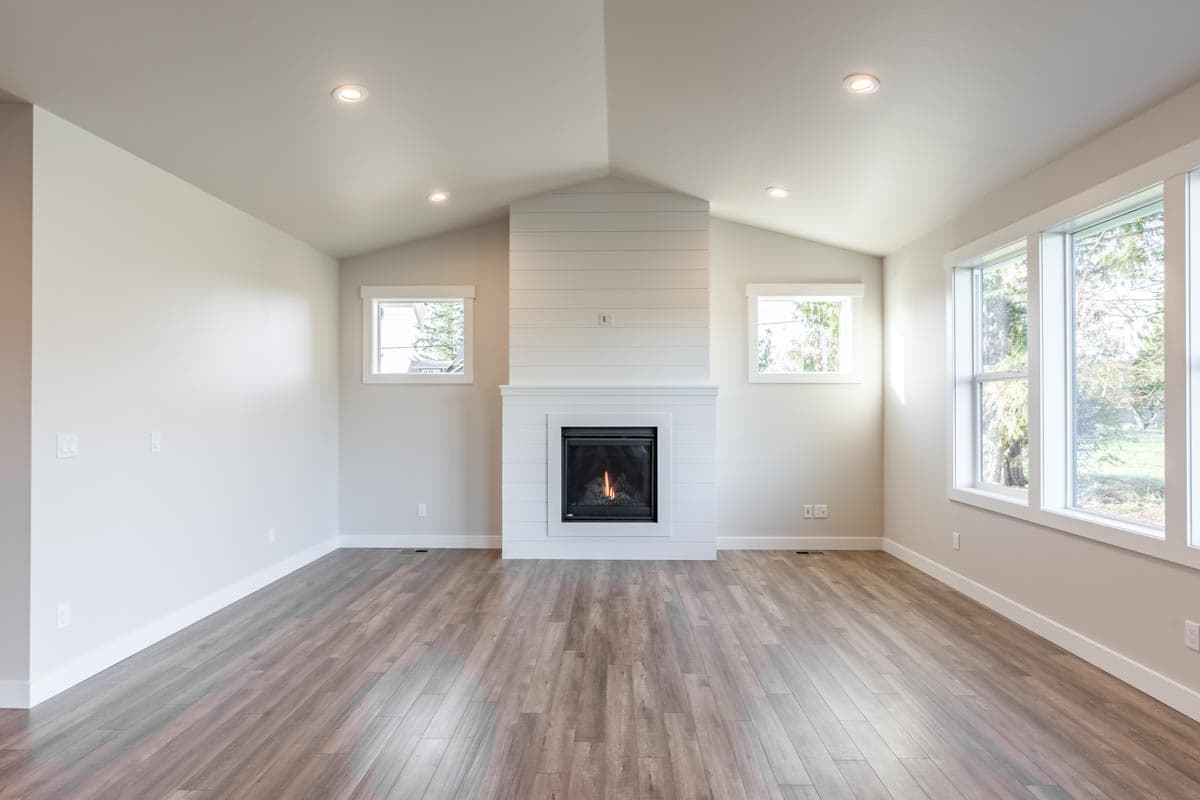

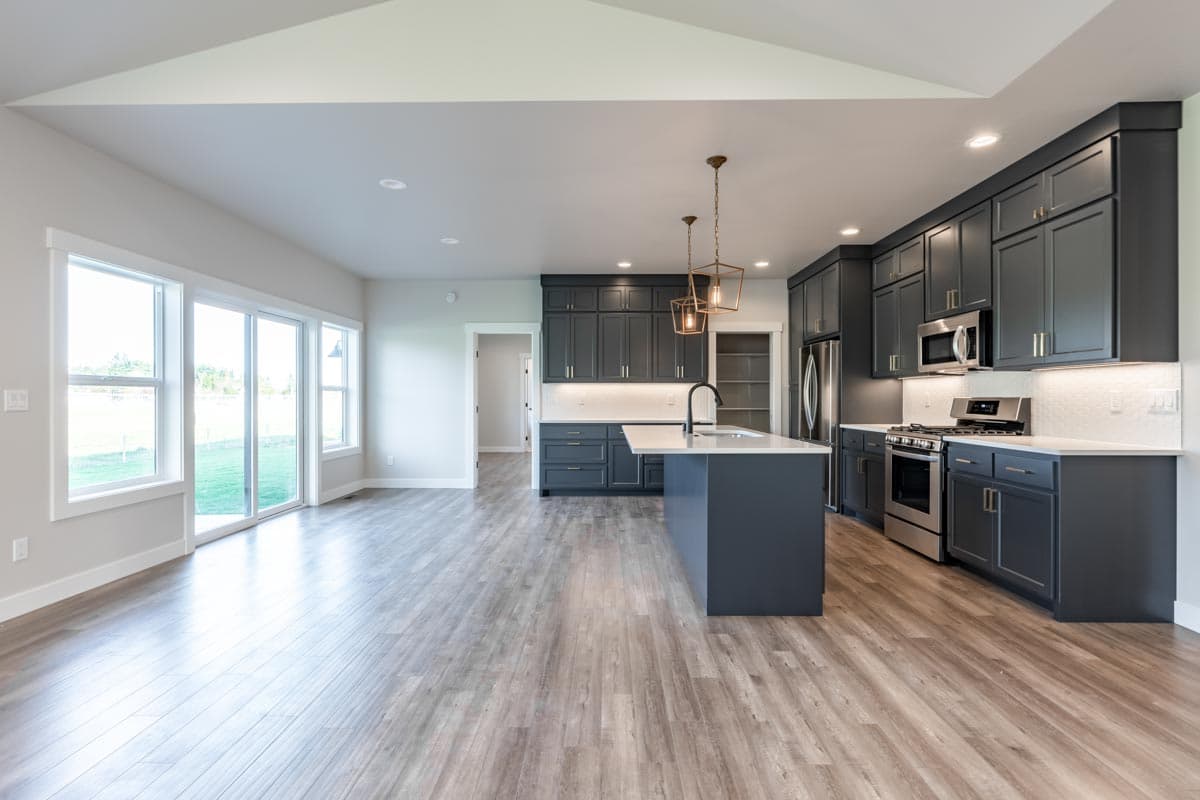

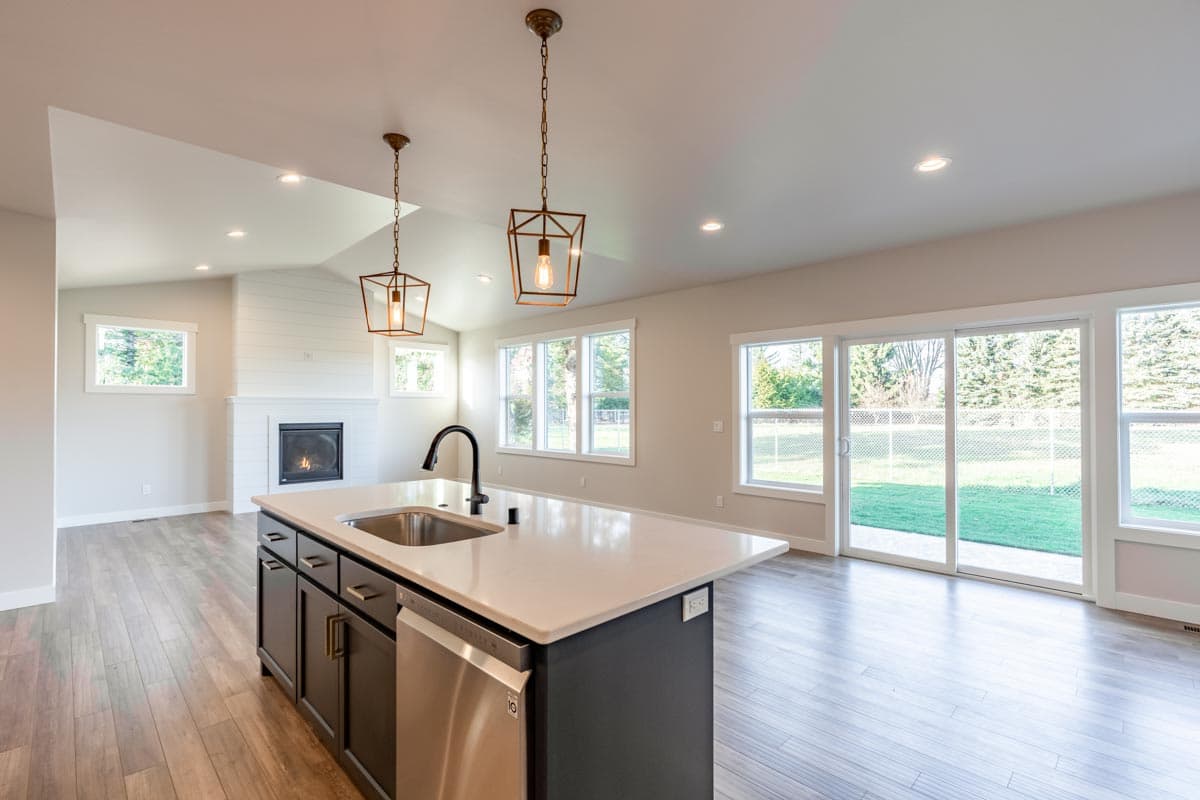

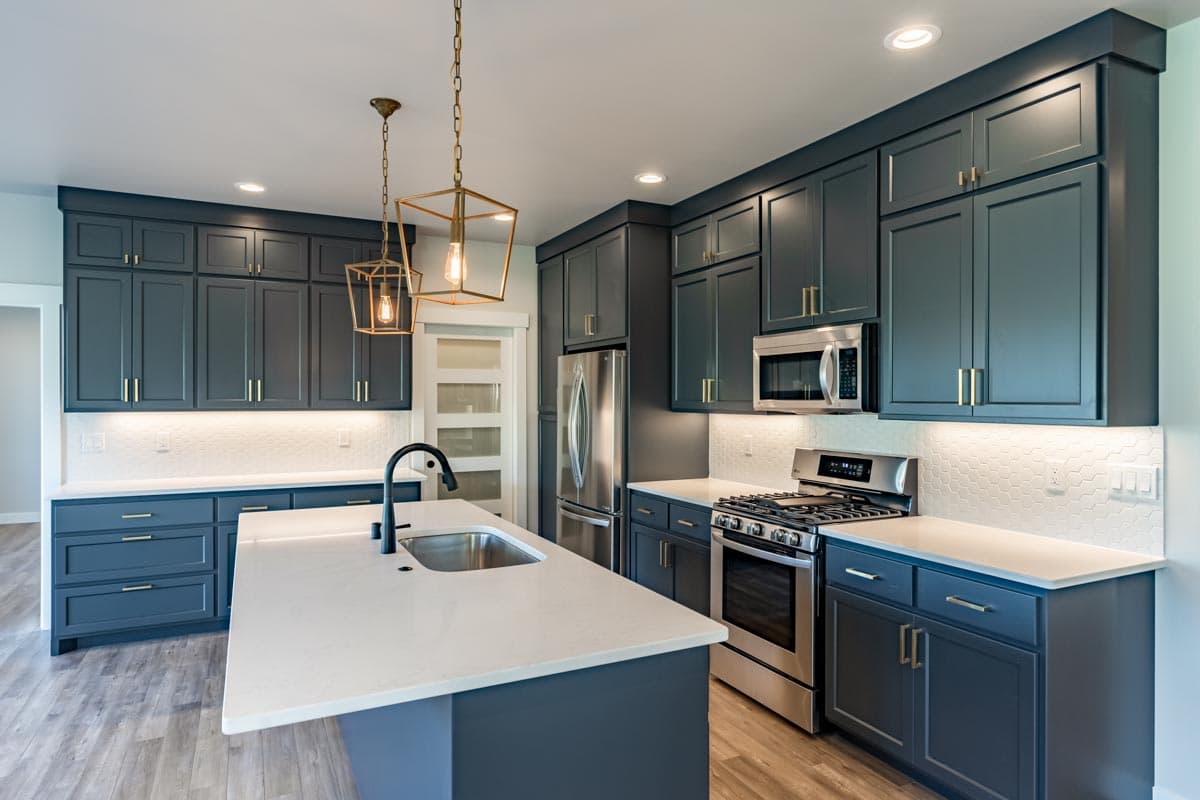

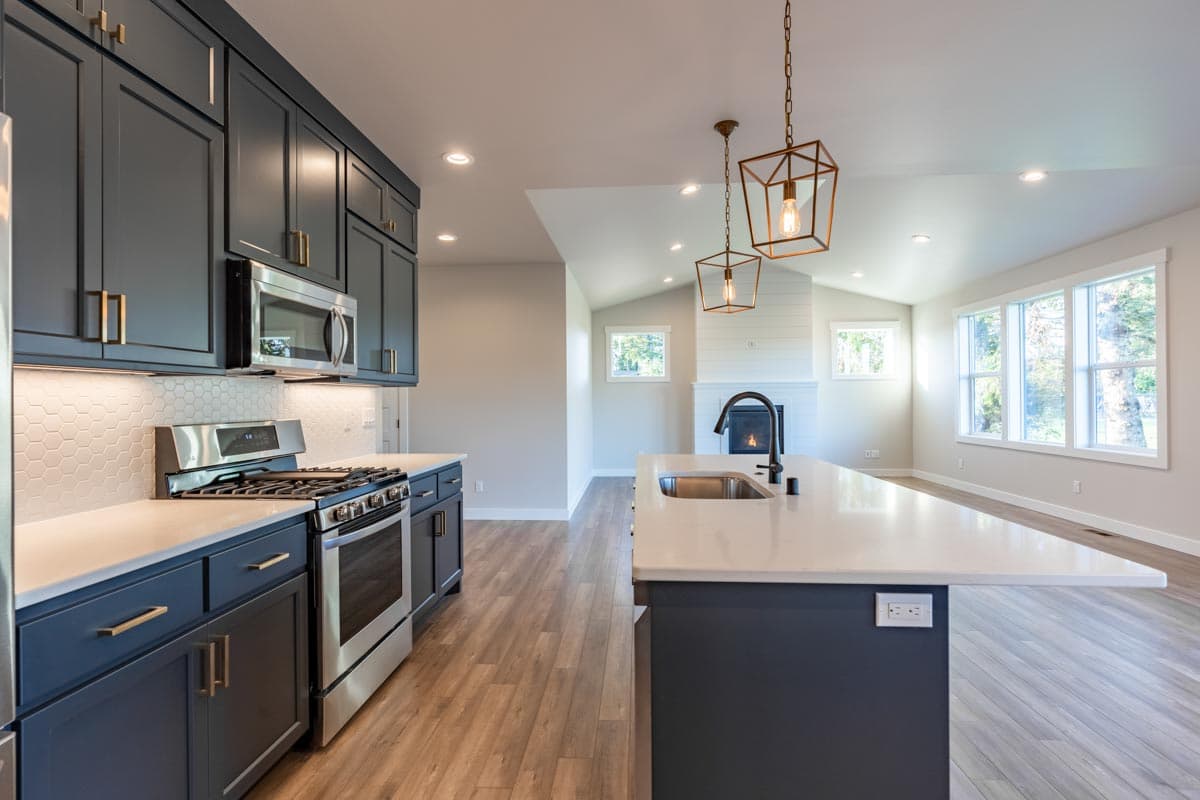

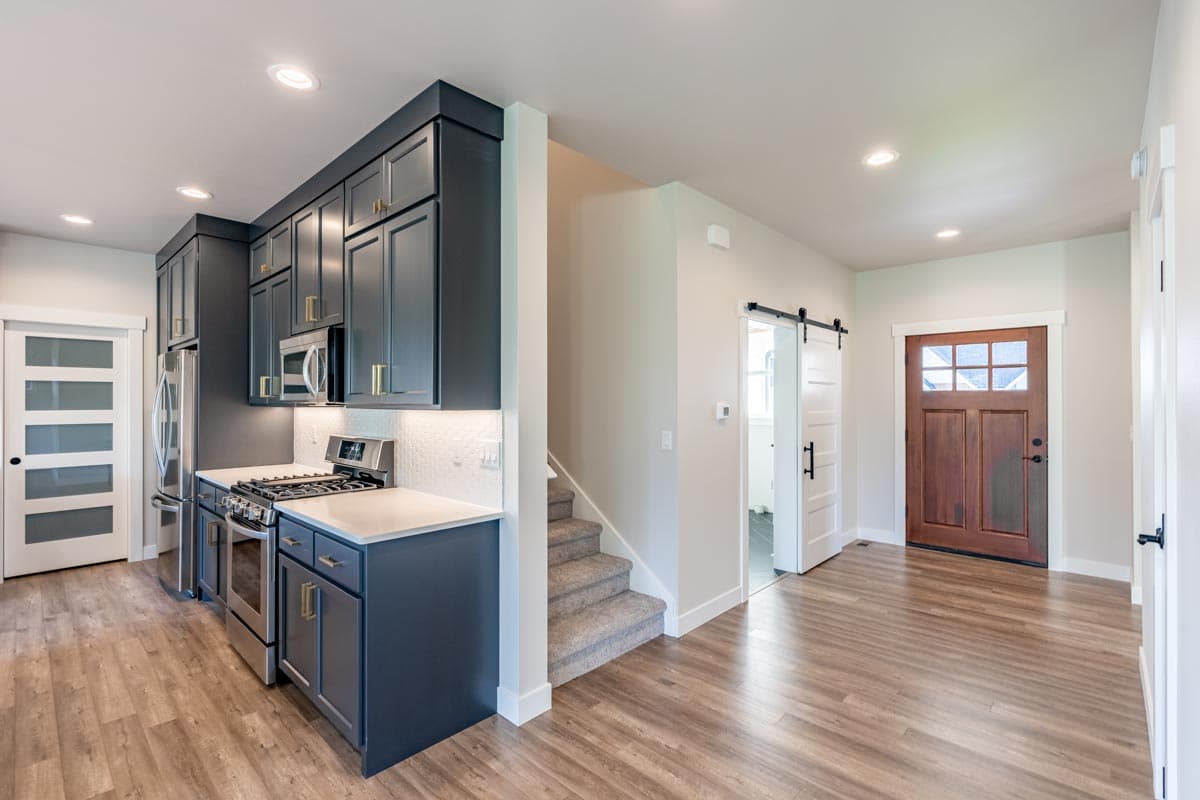

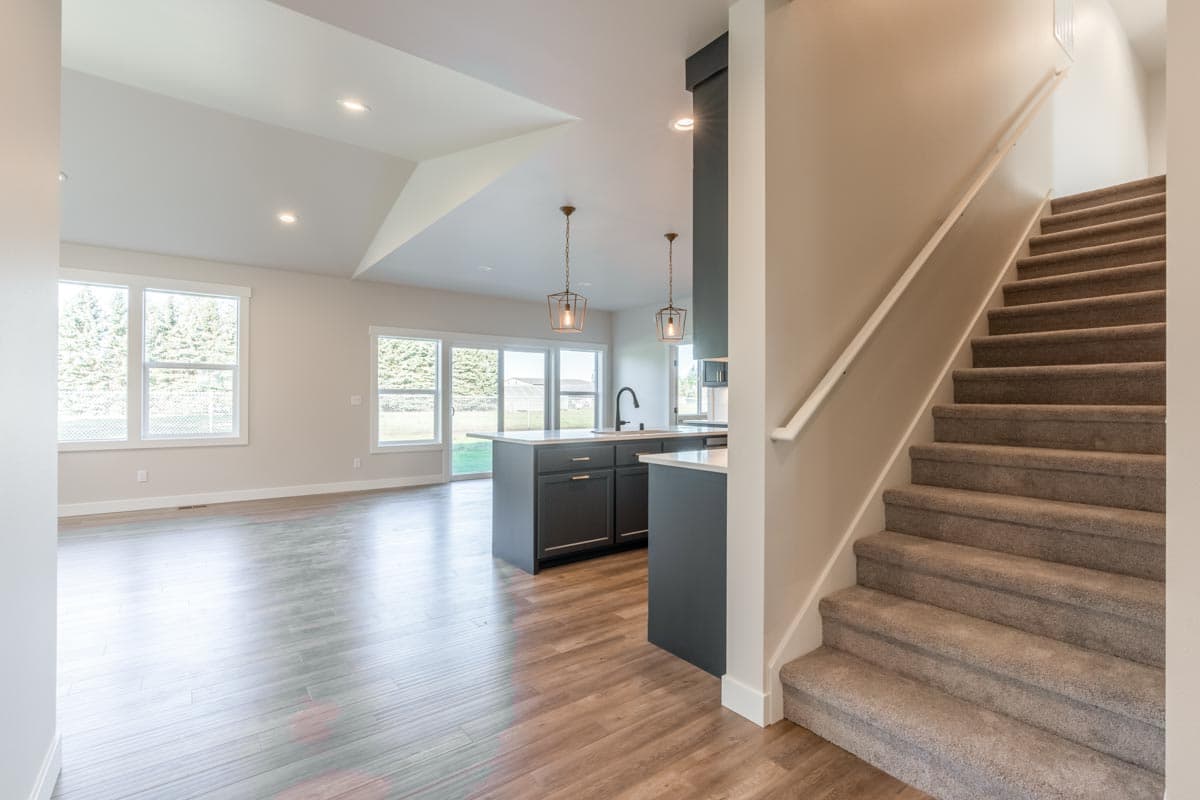

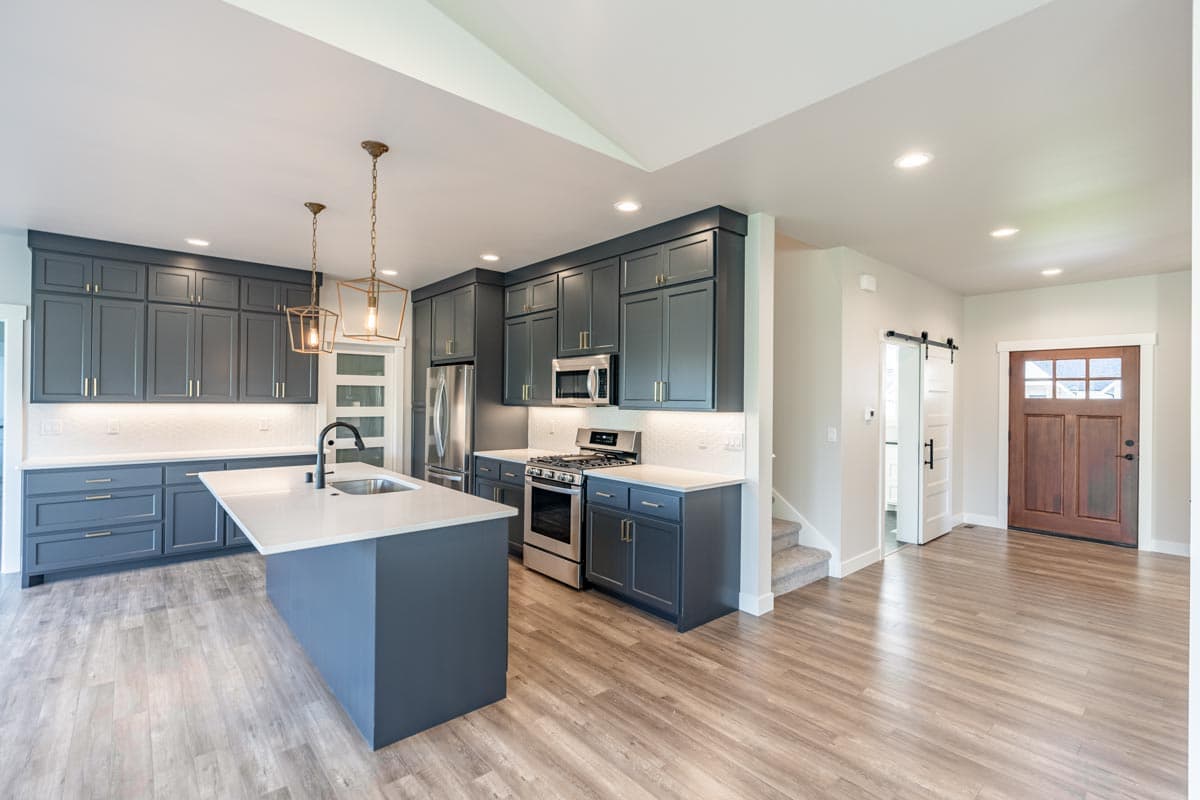

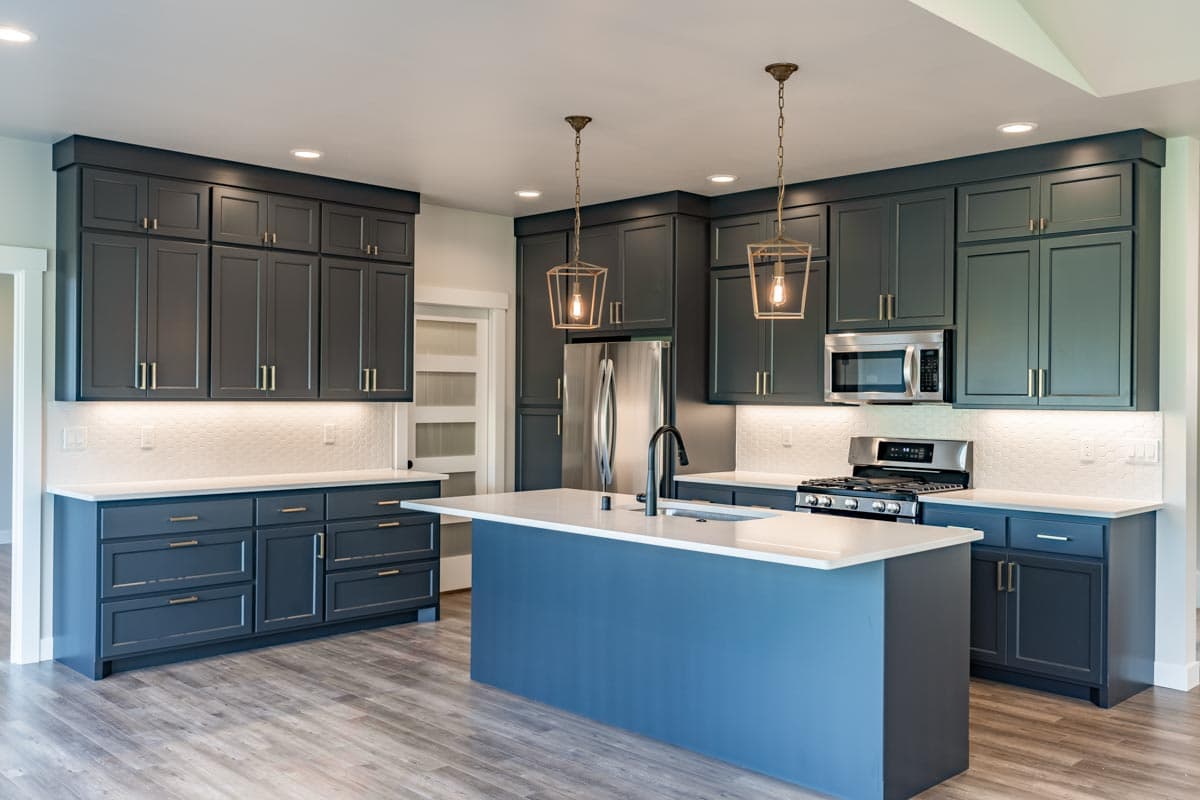

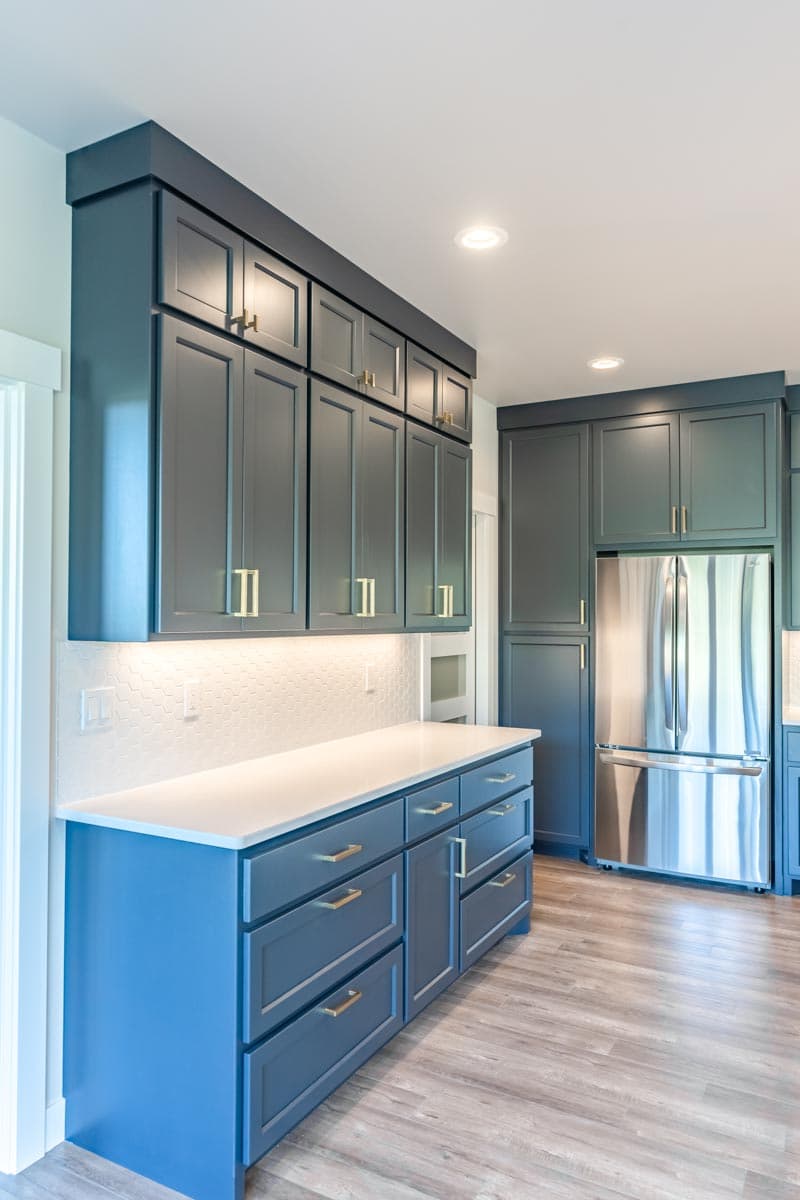

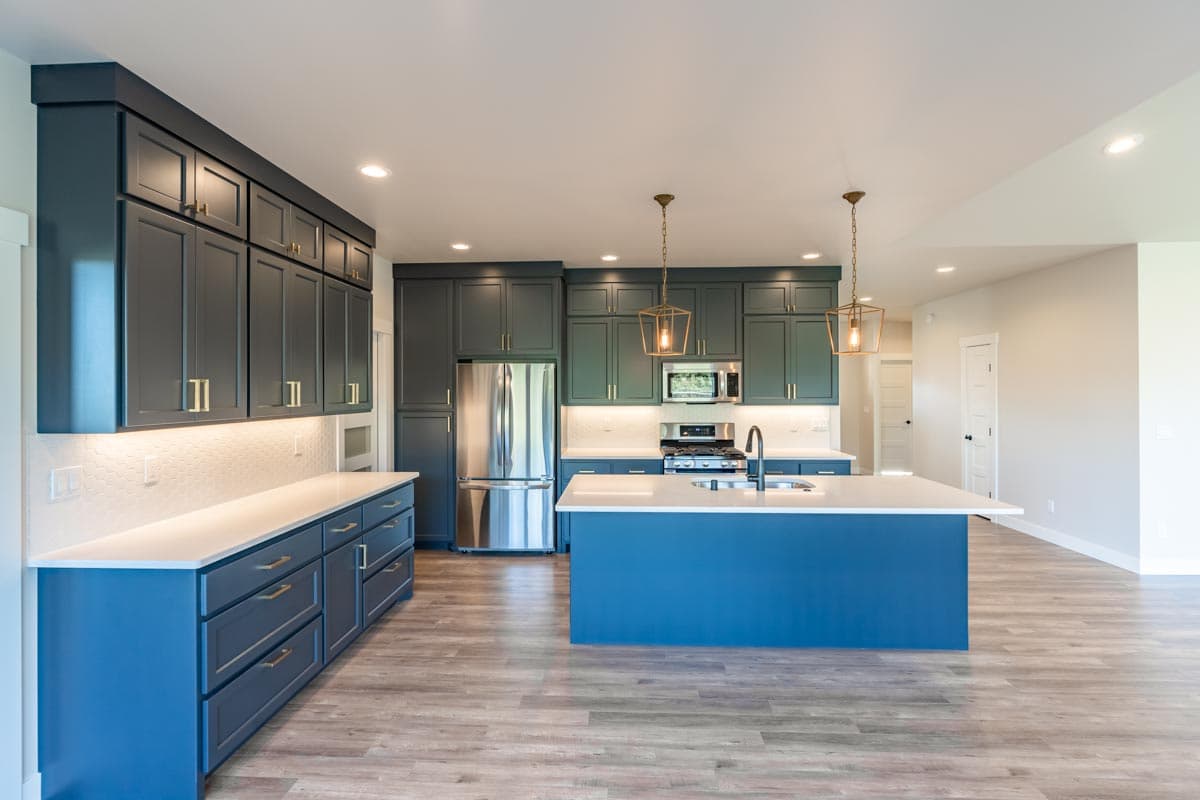

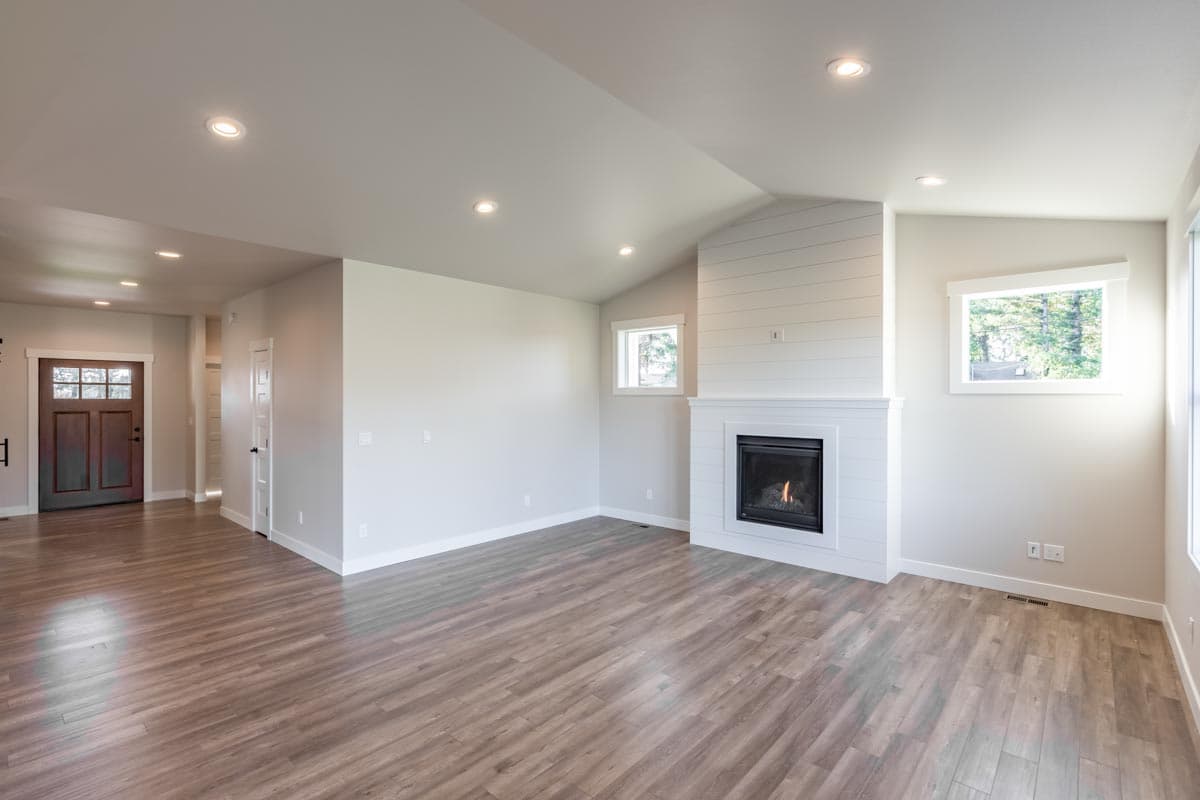

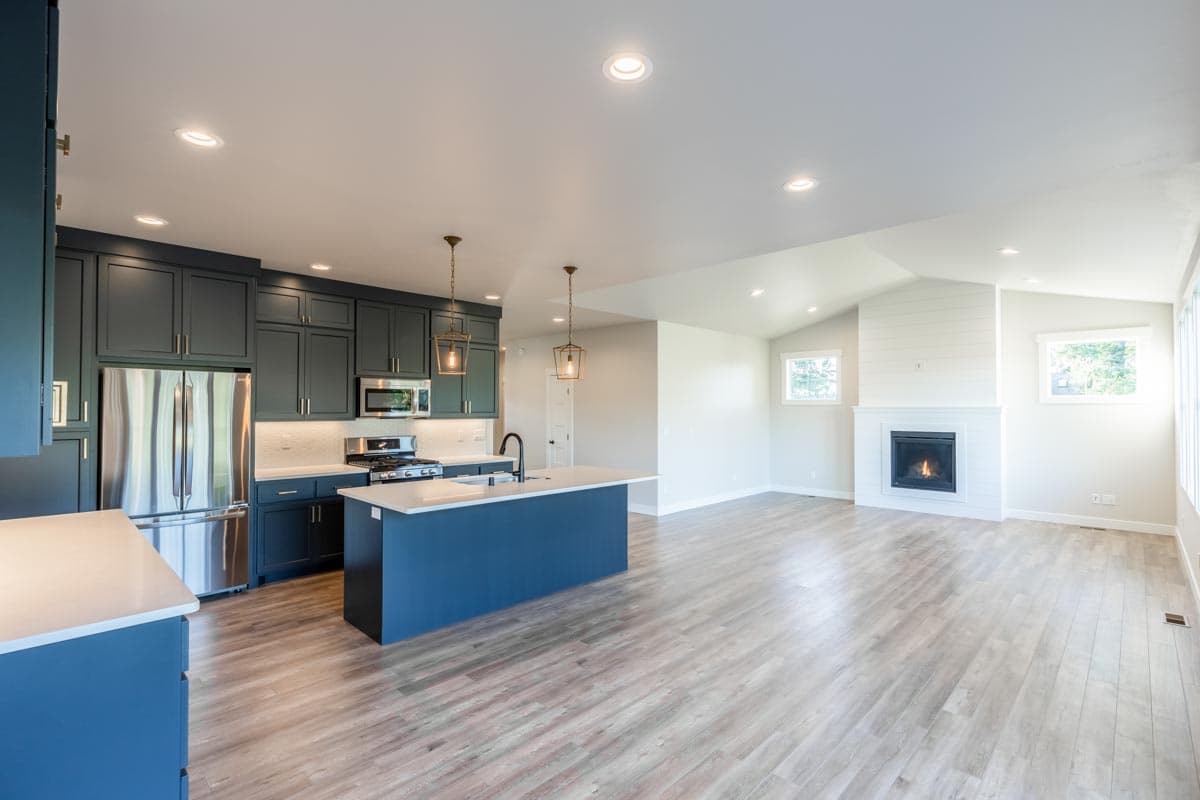

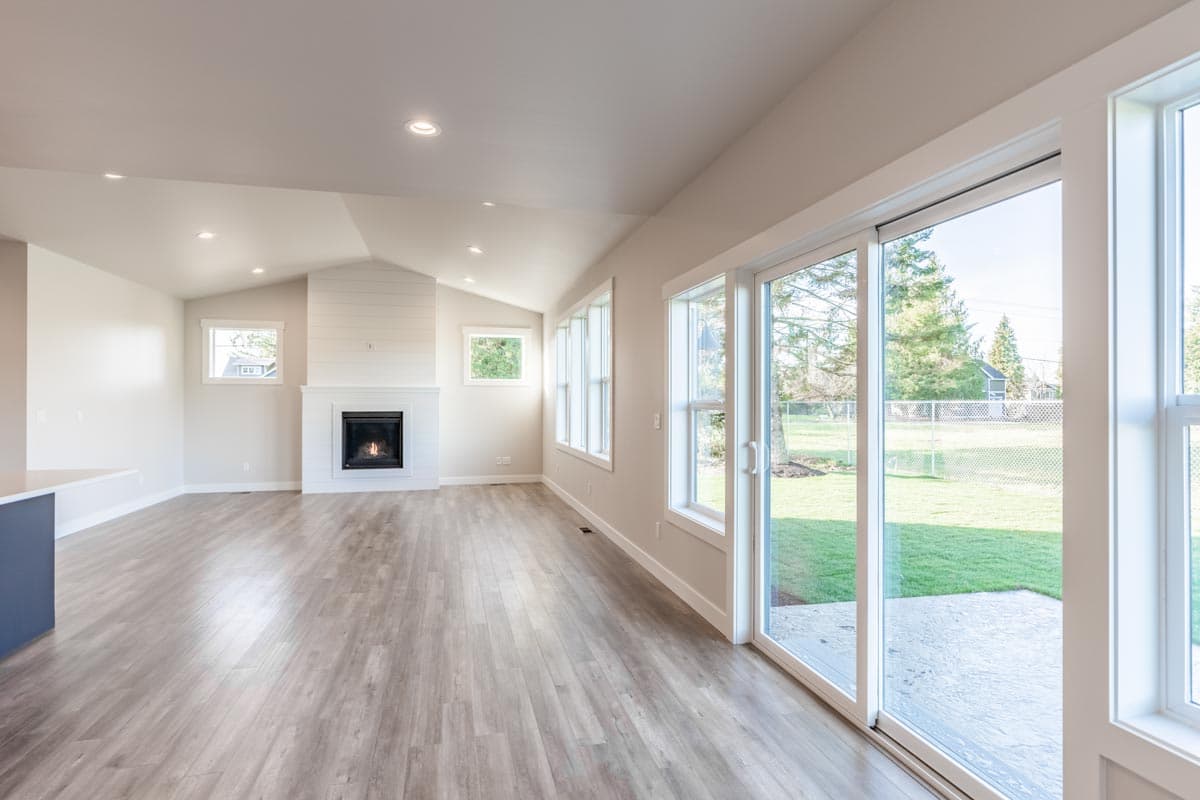

  • An open floor plan combines the great room and eat-in kitchen, where guests can find a seat at the large island or adjoining dining room.

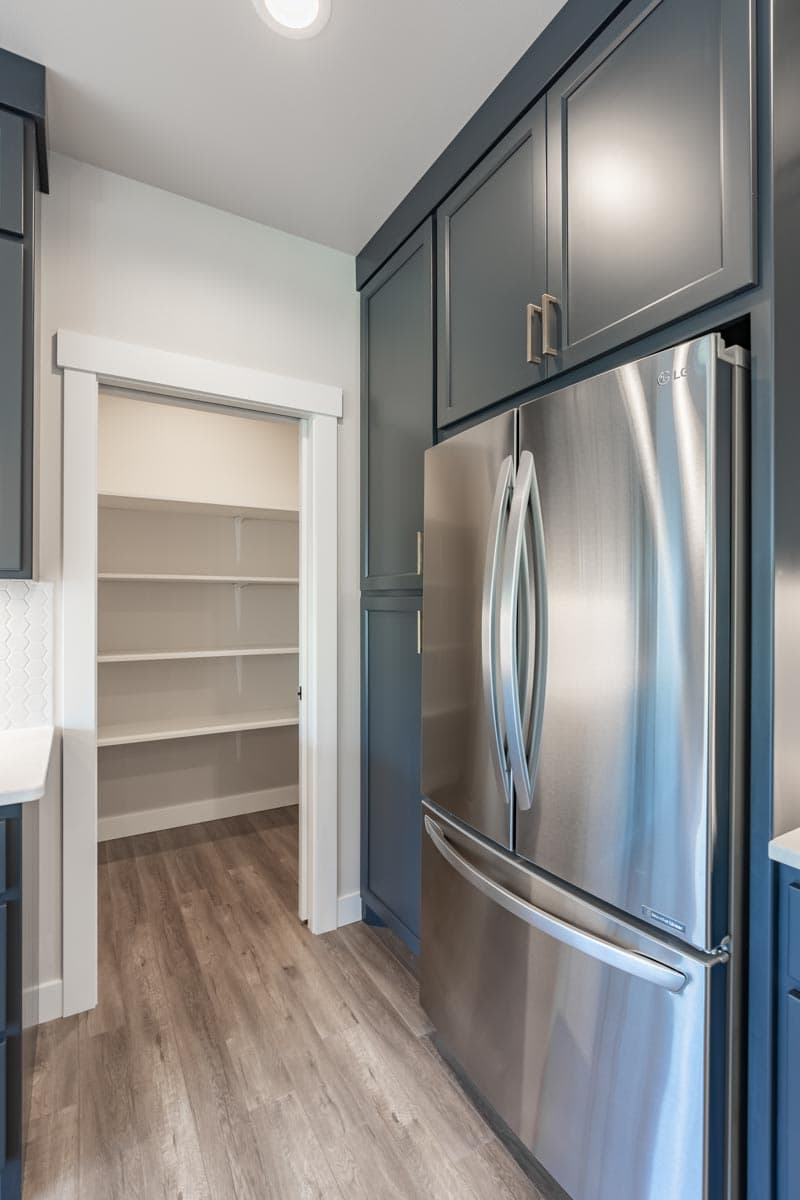

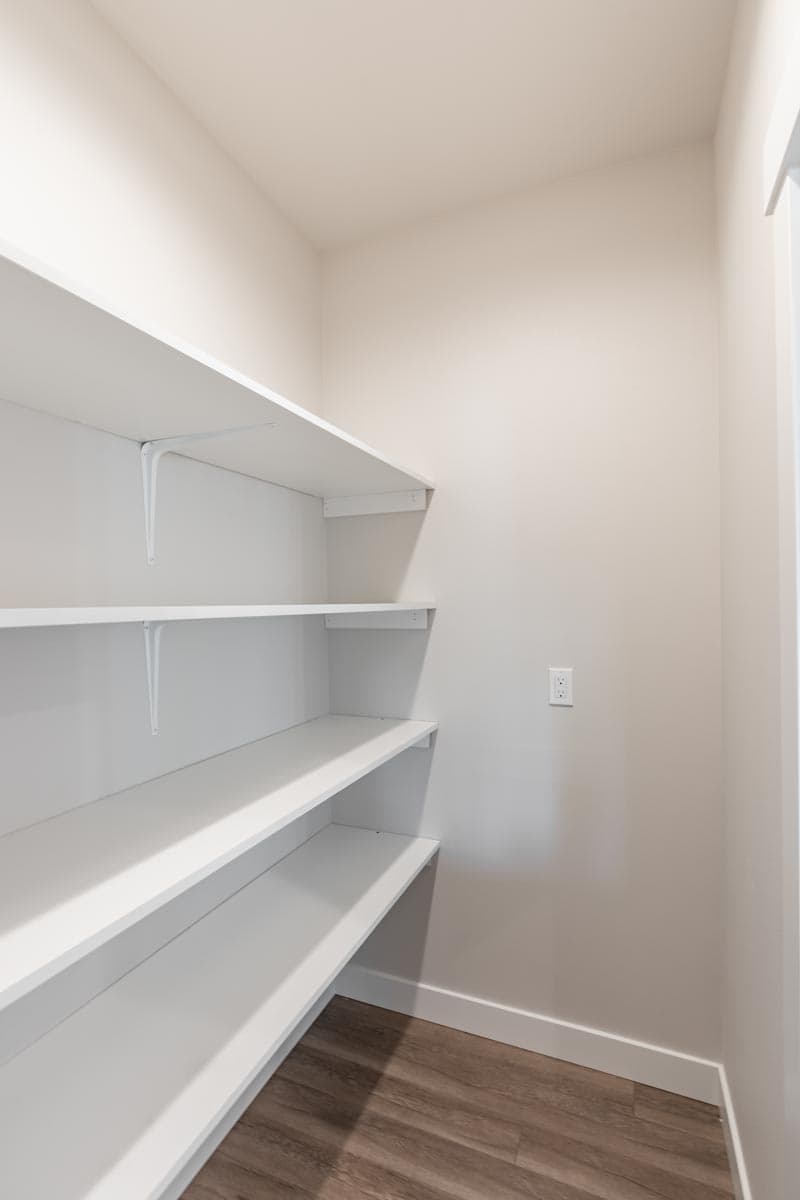

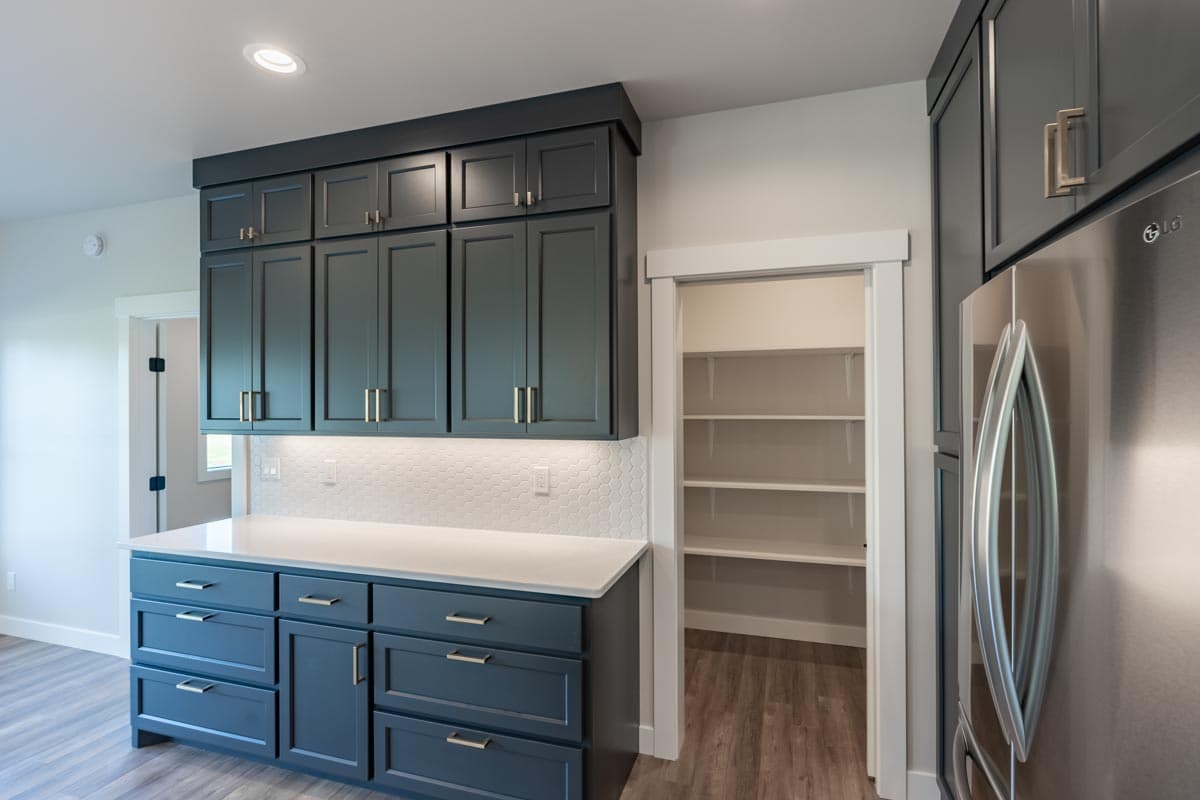

  • A pocket door reveals a sizable walk-in pantry for dry storage in the heart of the kitchen.

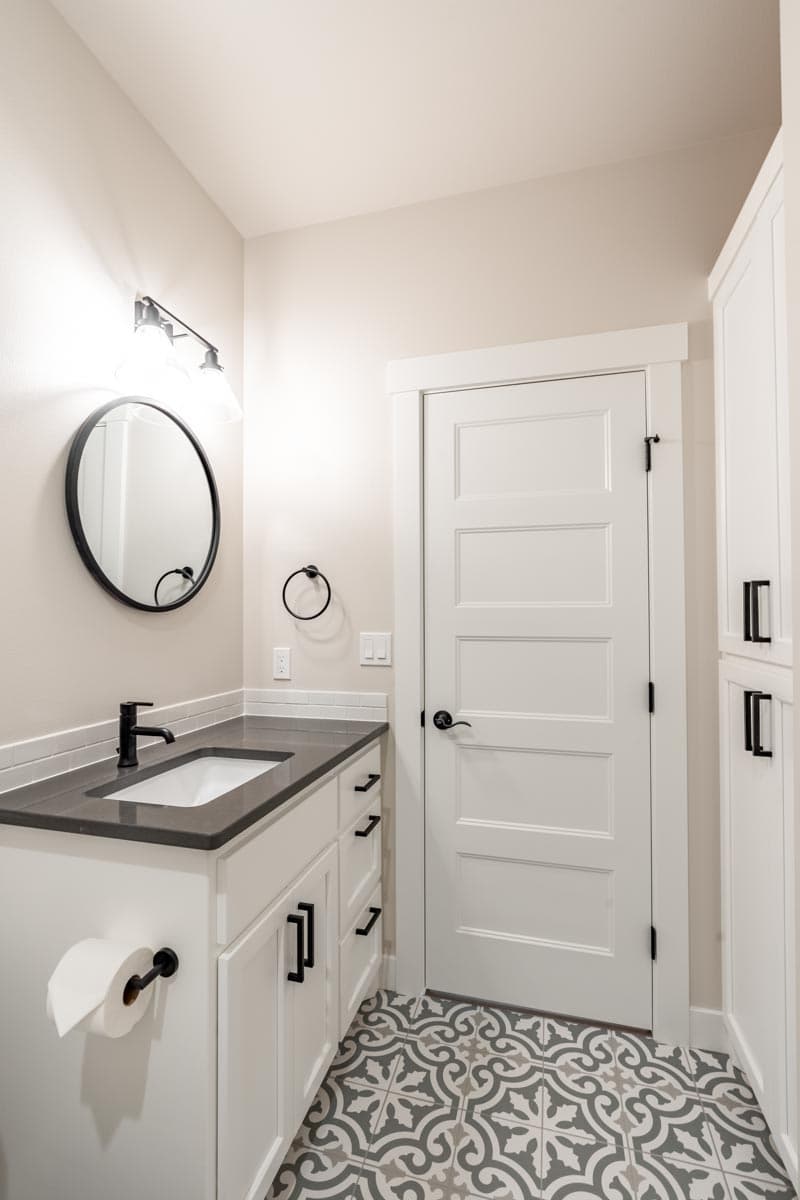

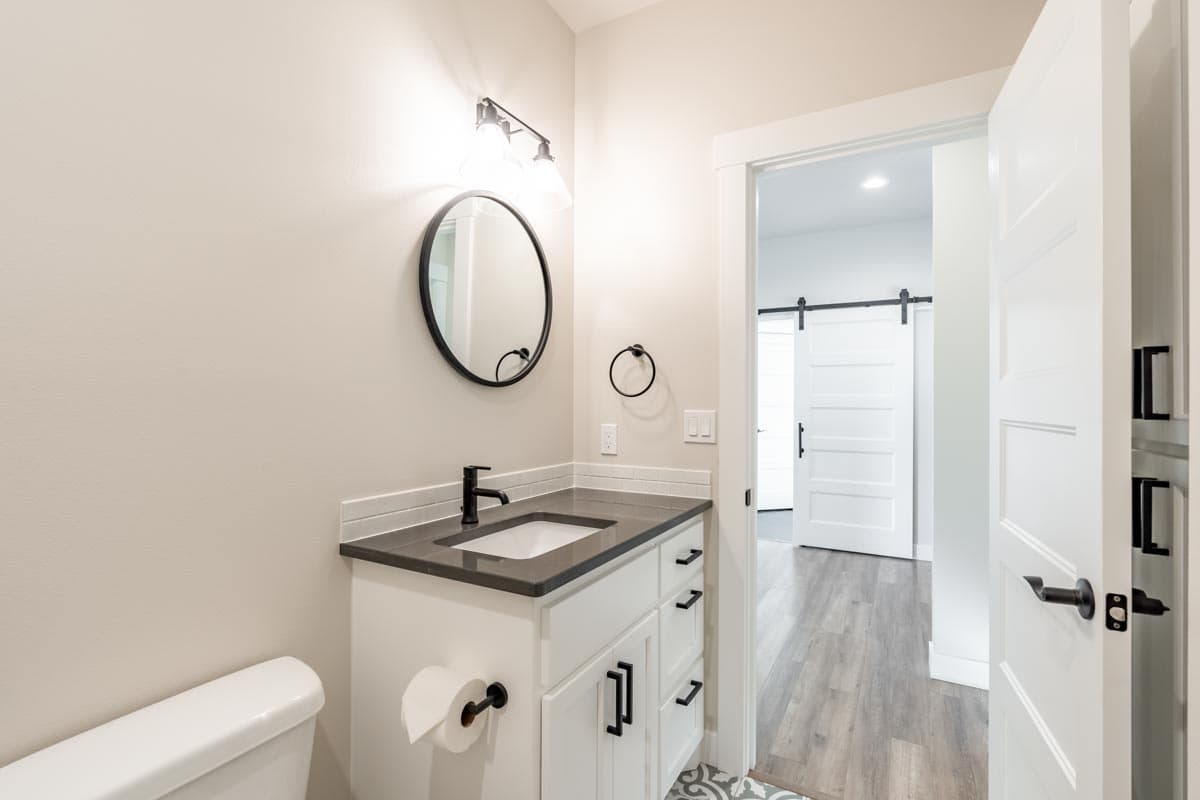

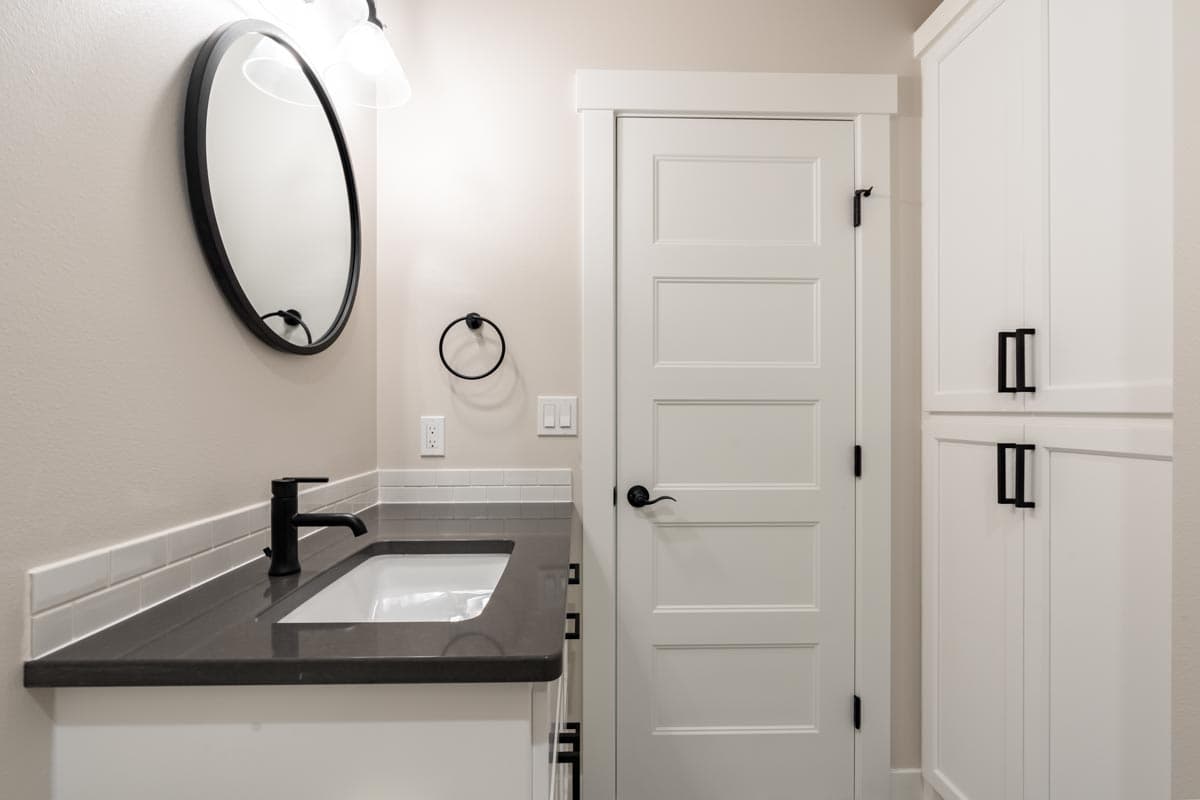

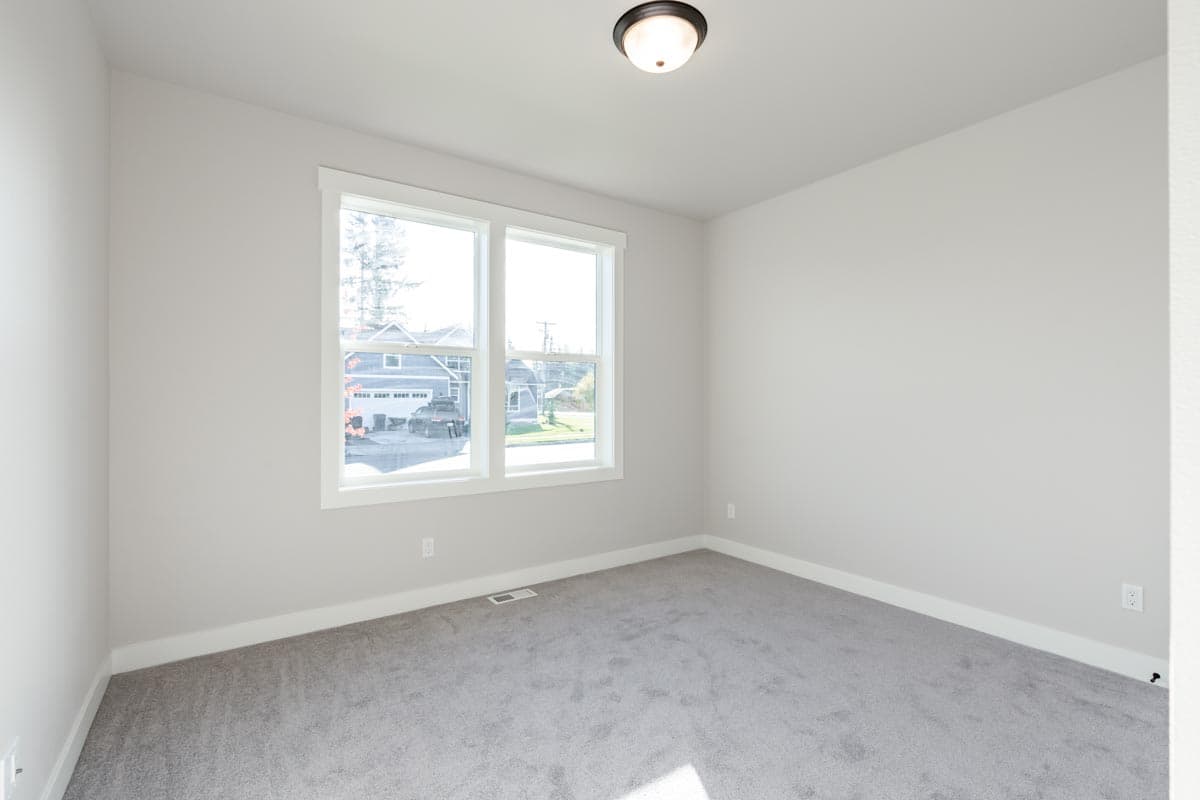

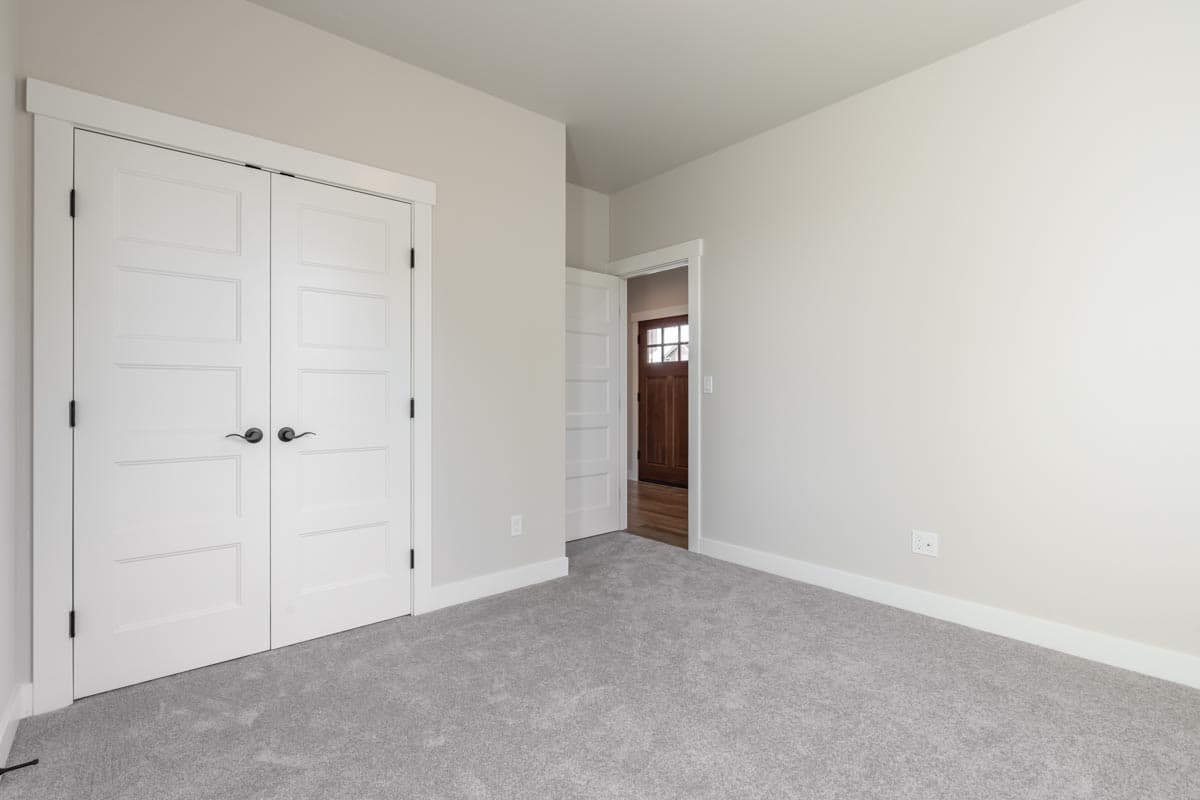

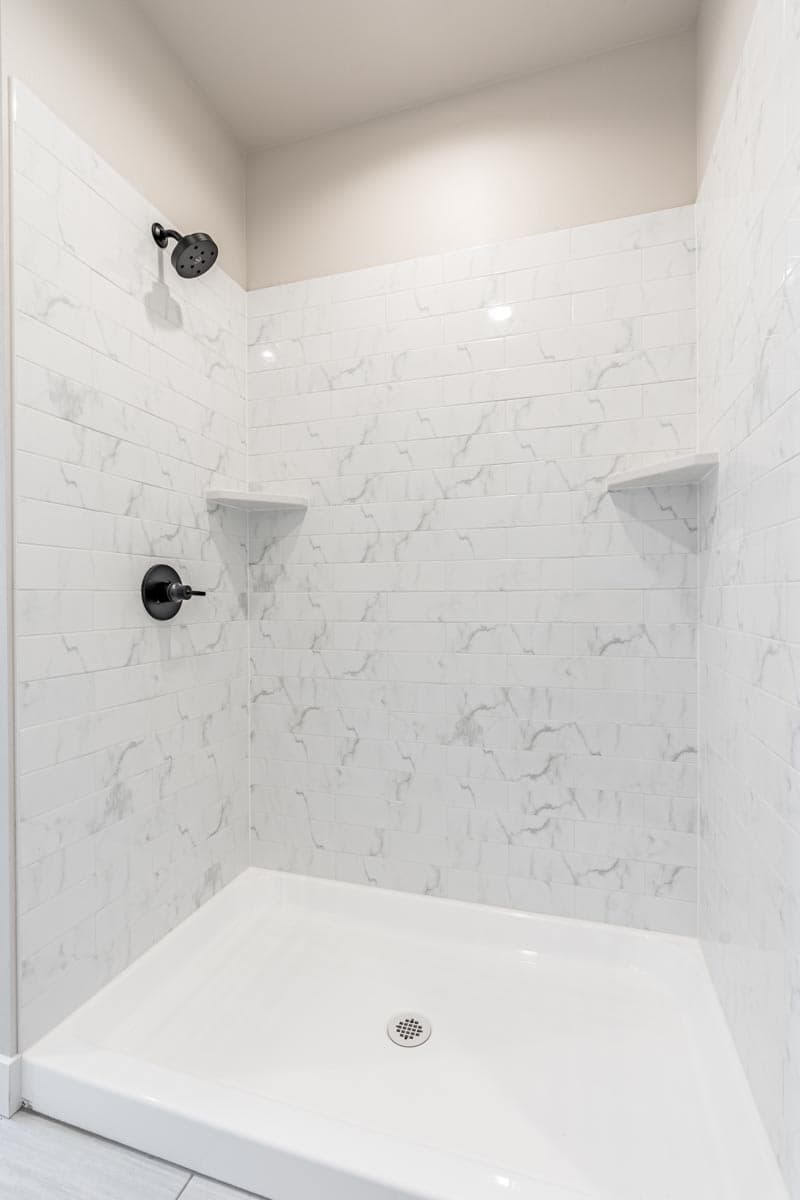

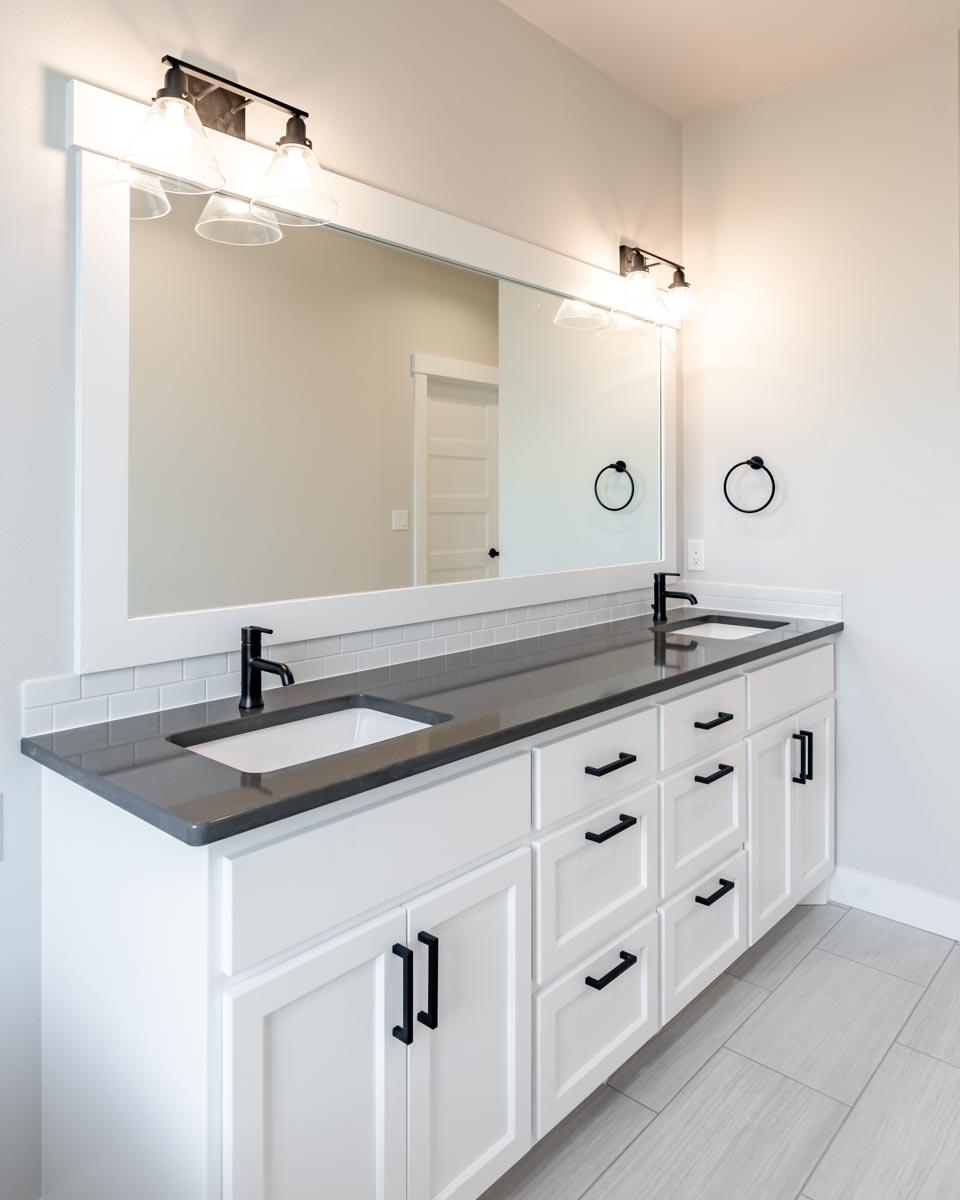

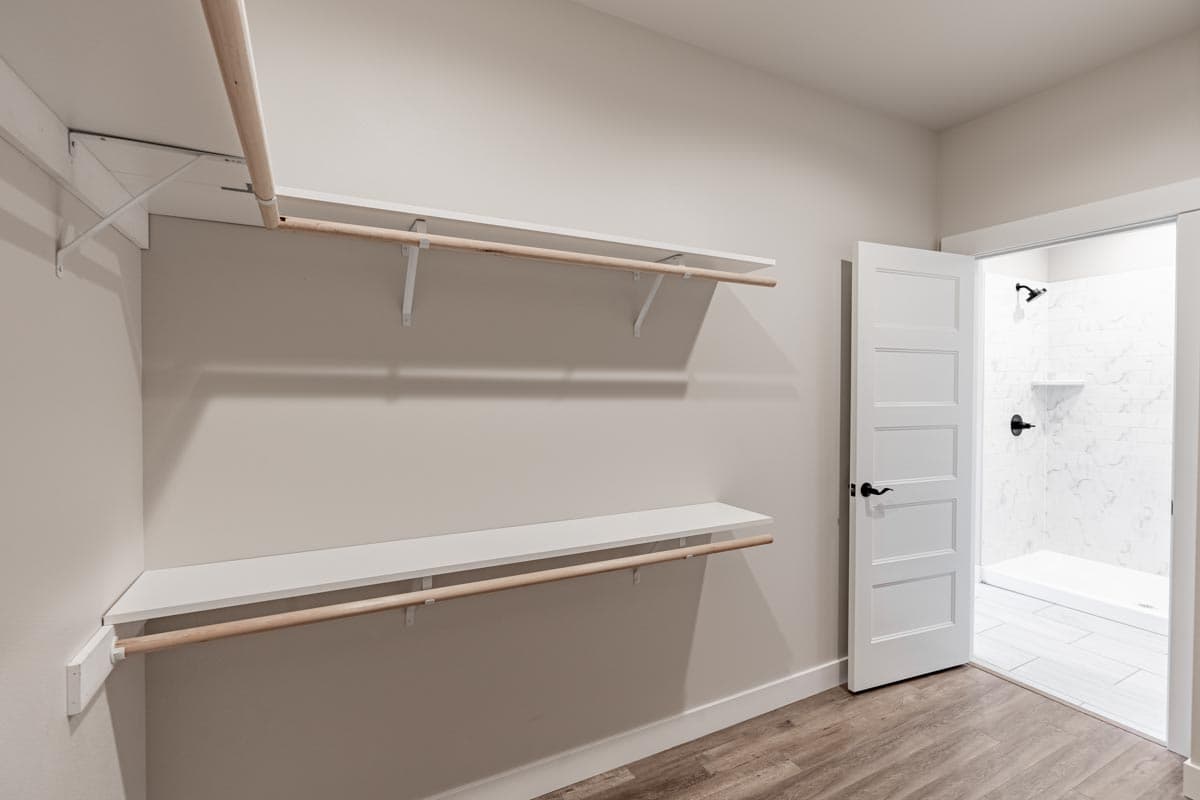

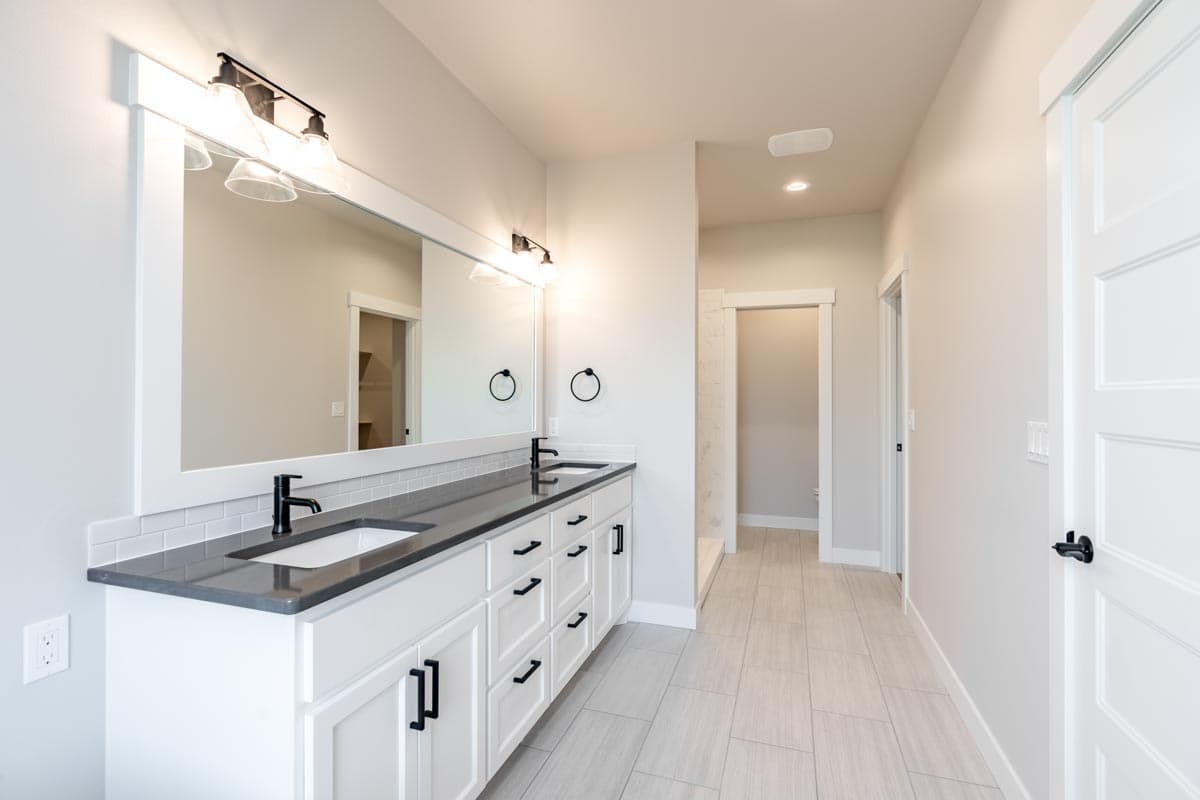

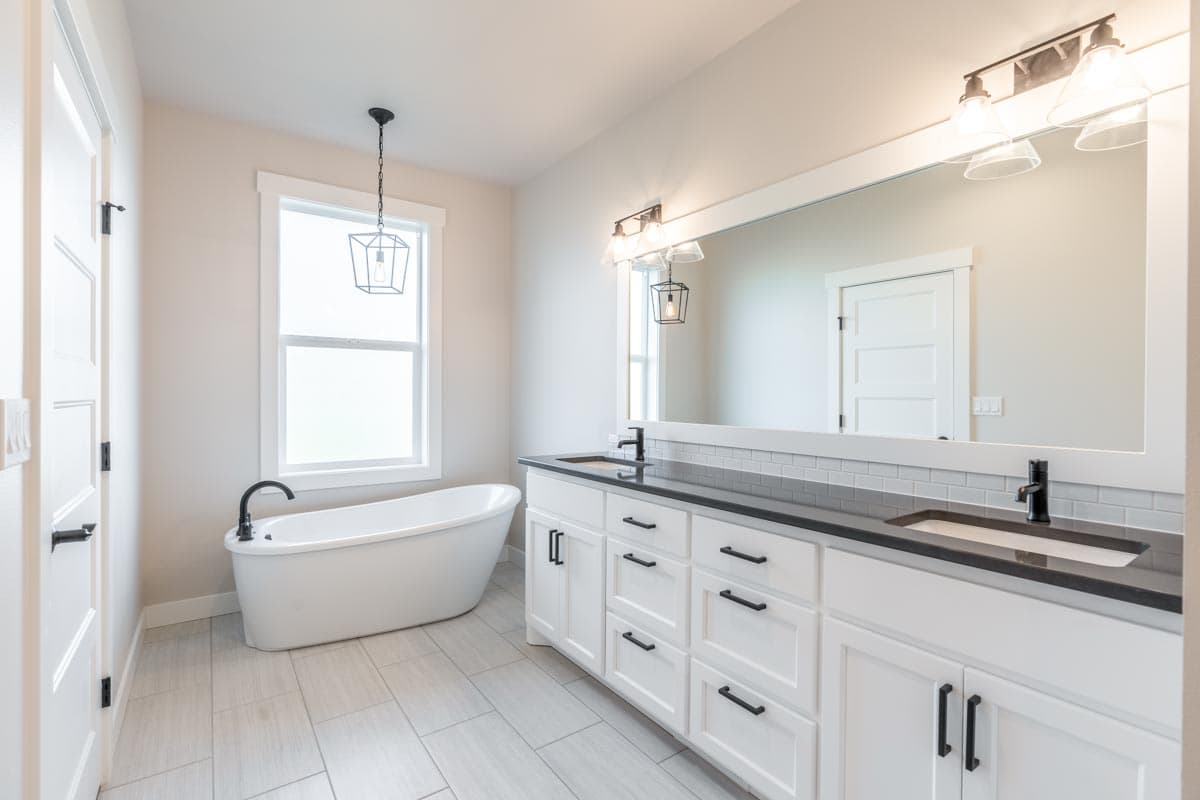

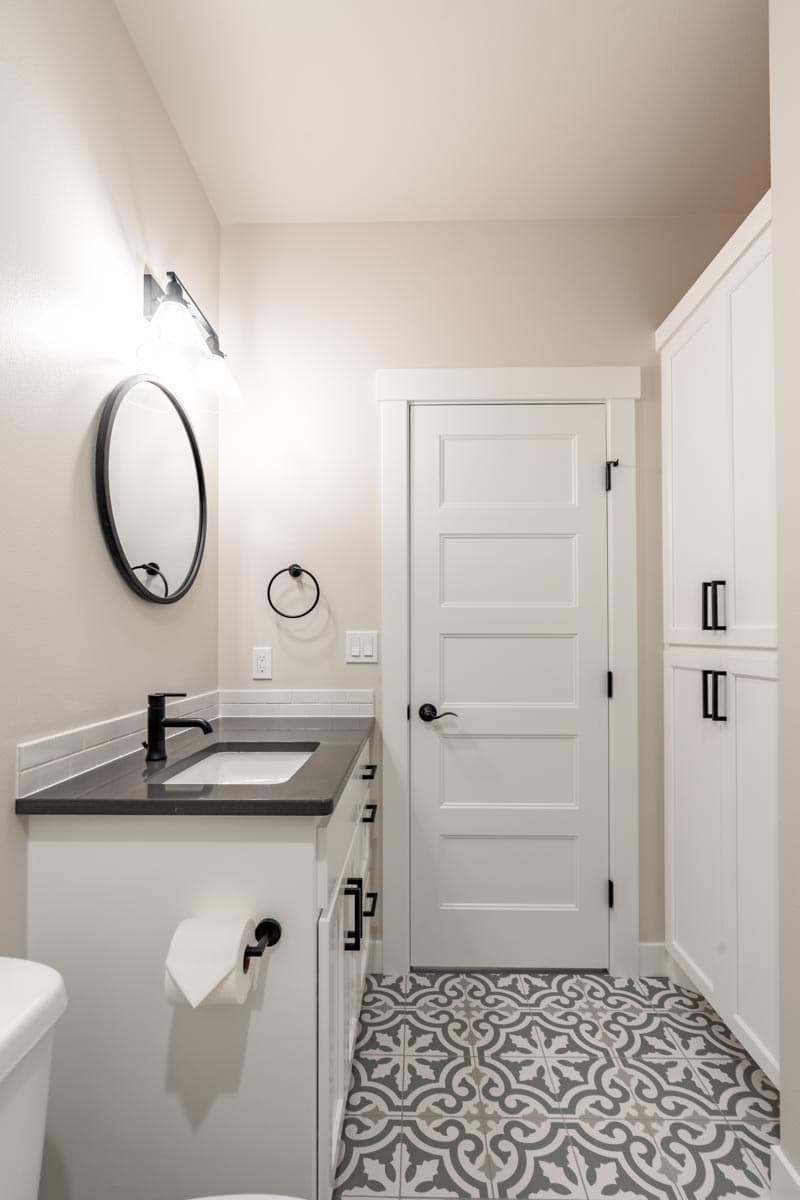

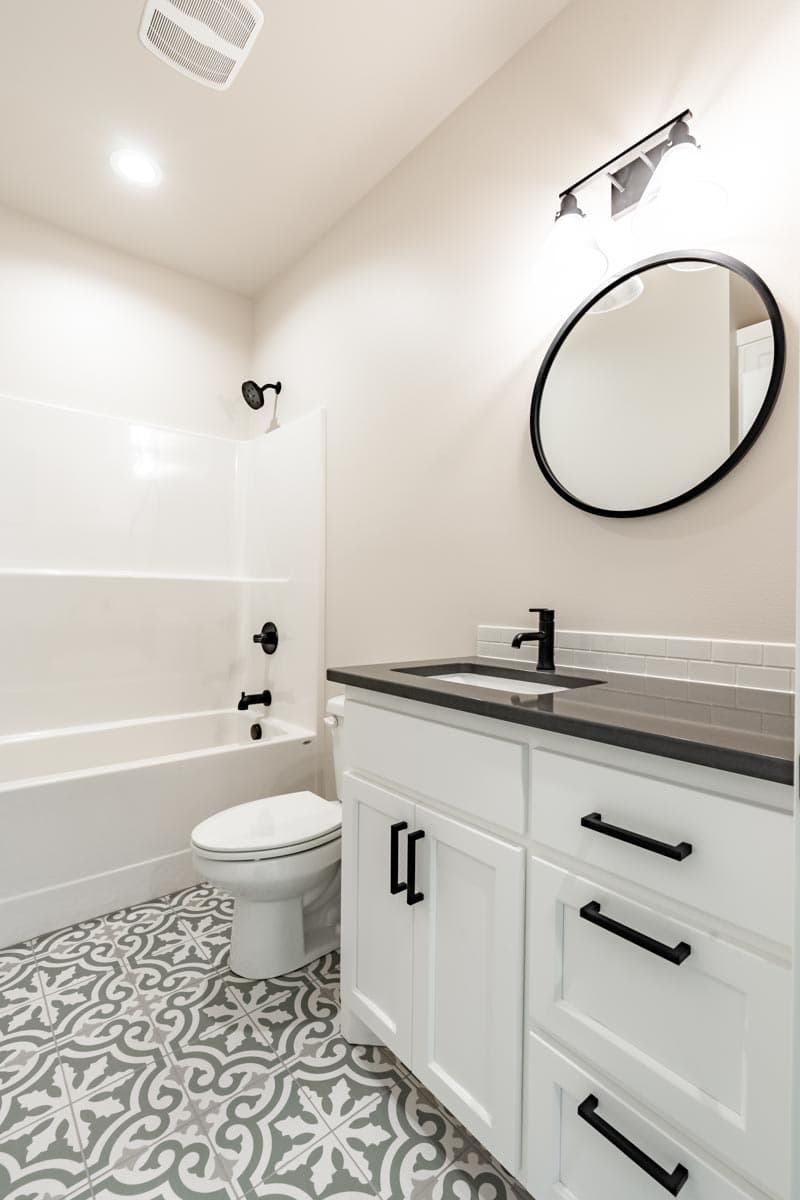

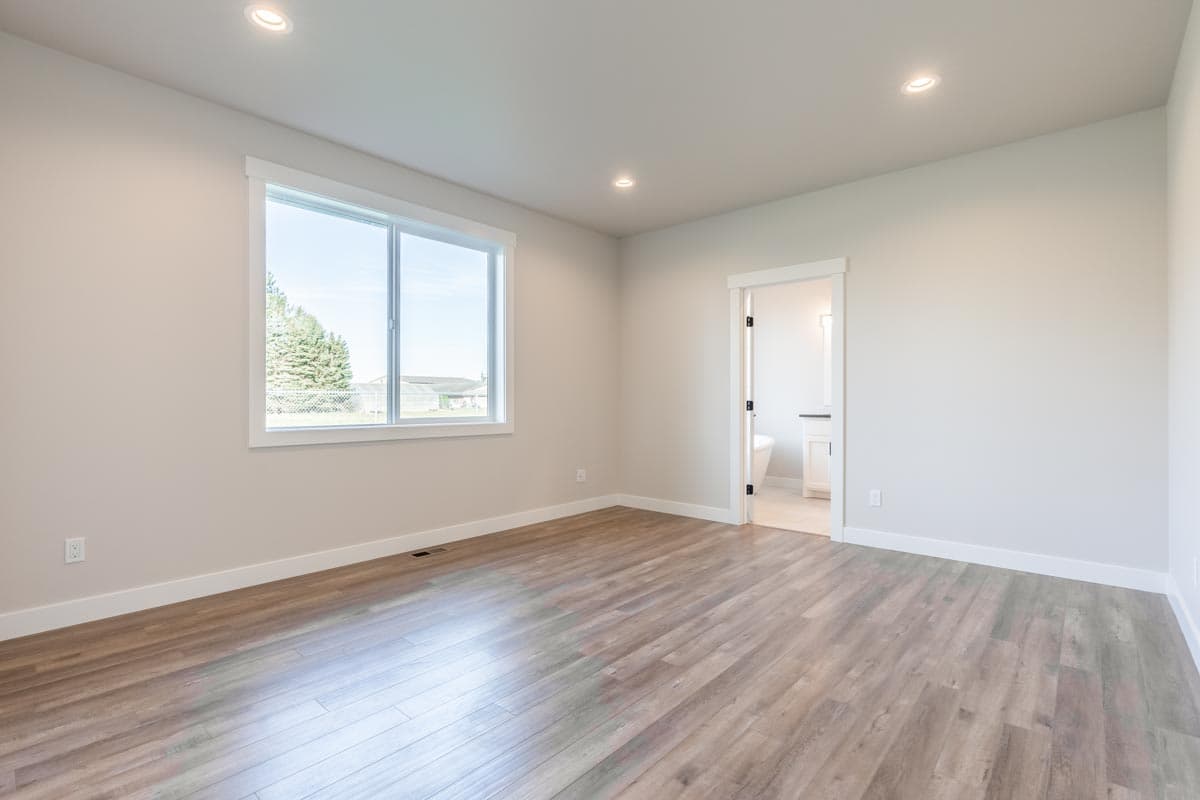

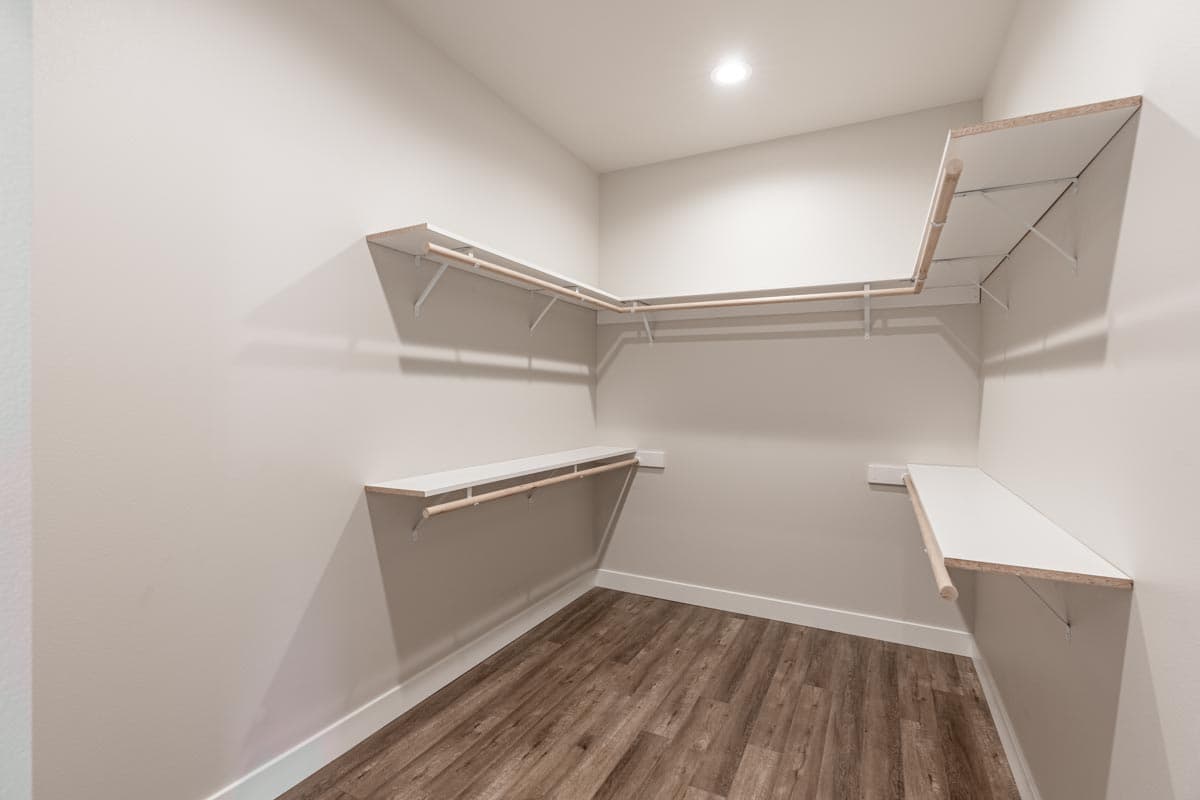

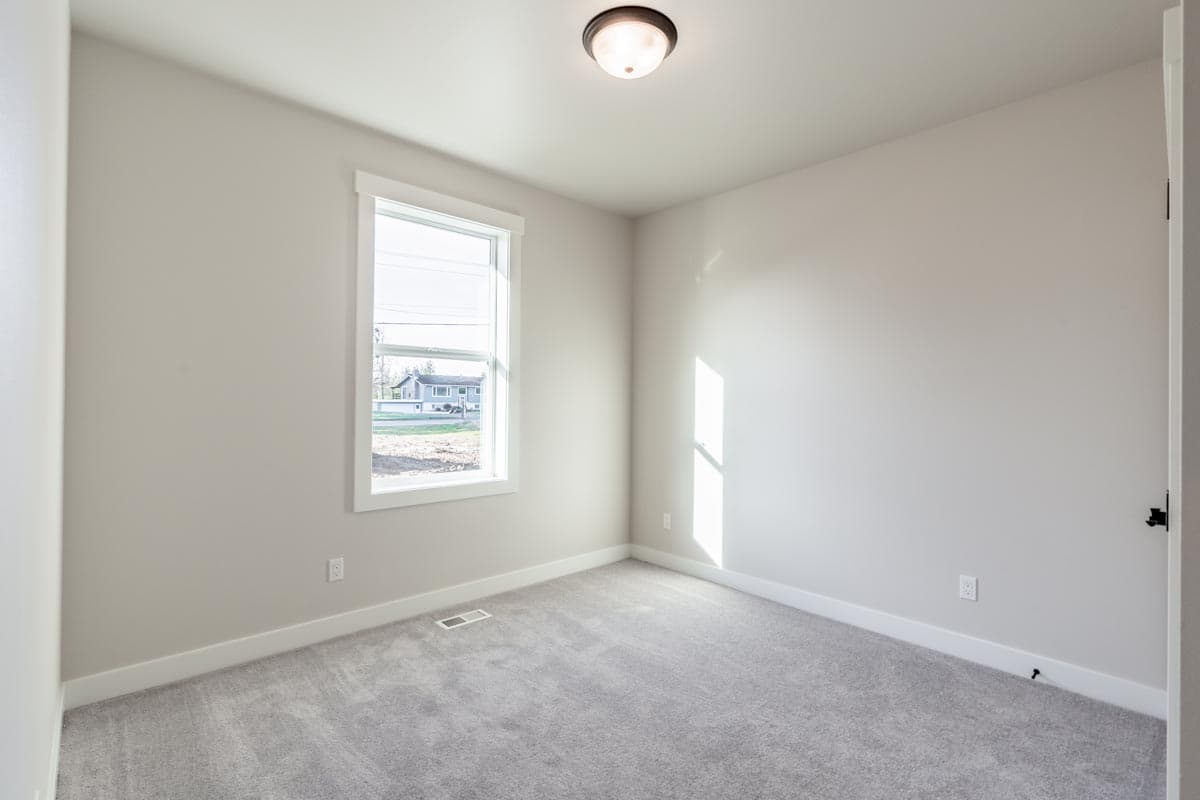

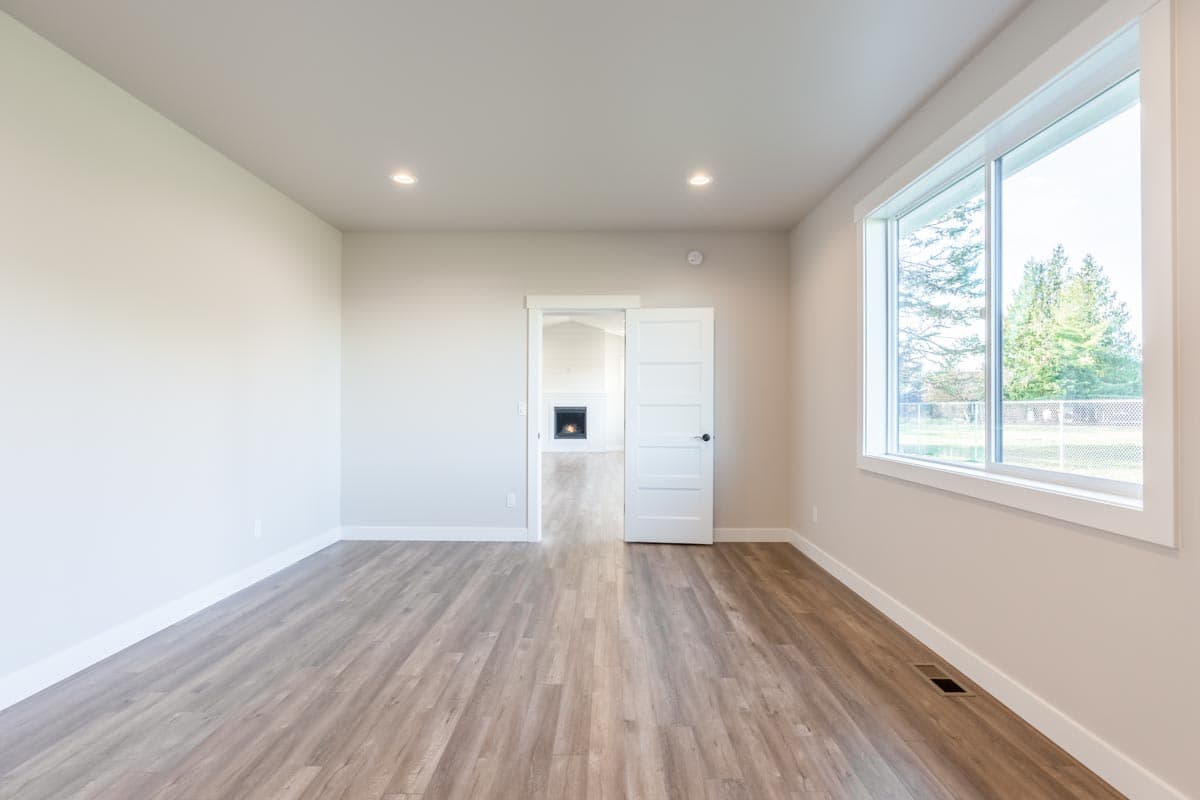

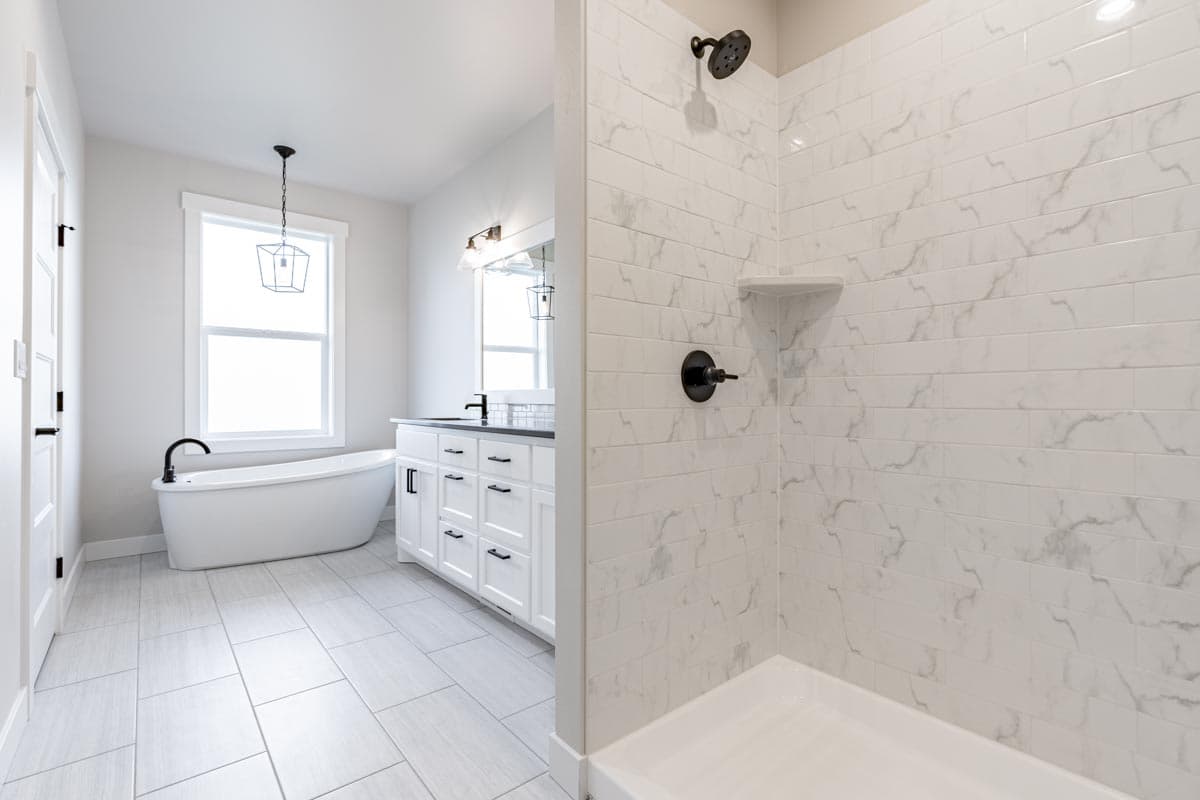

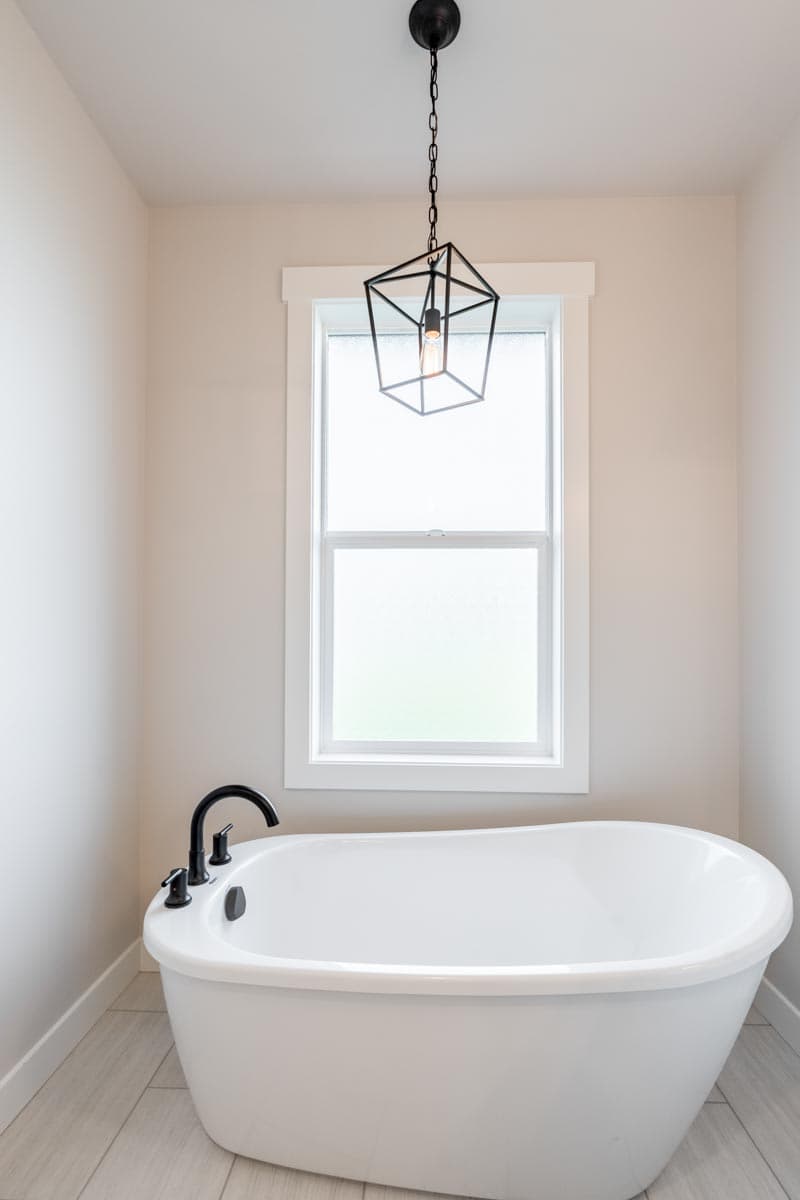

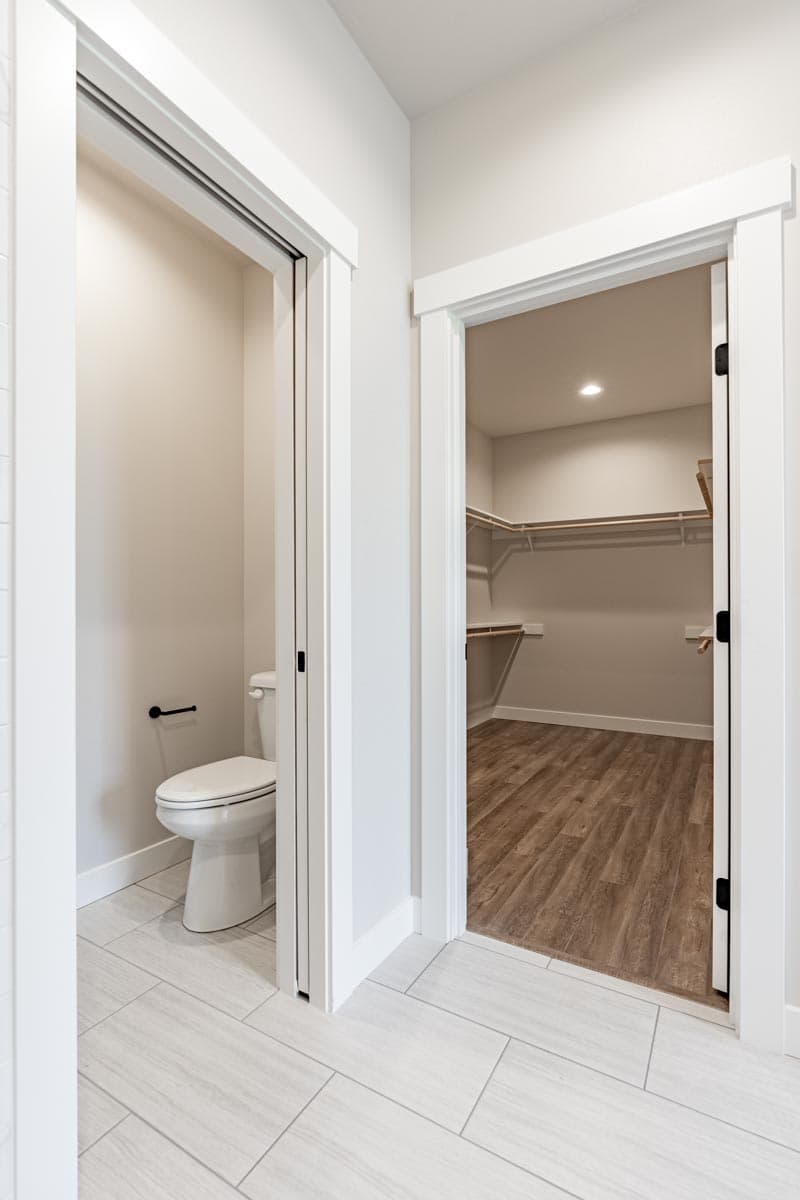

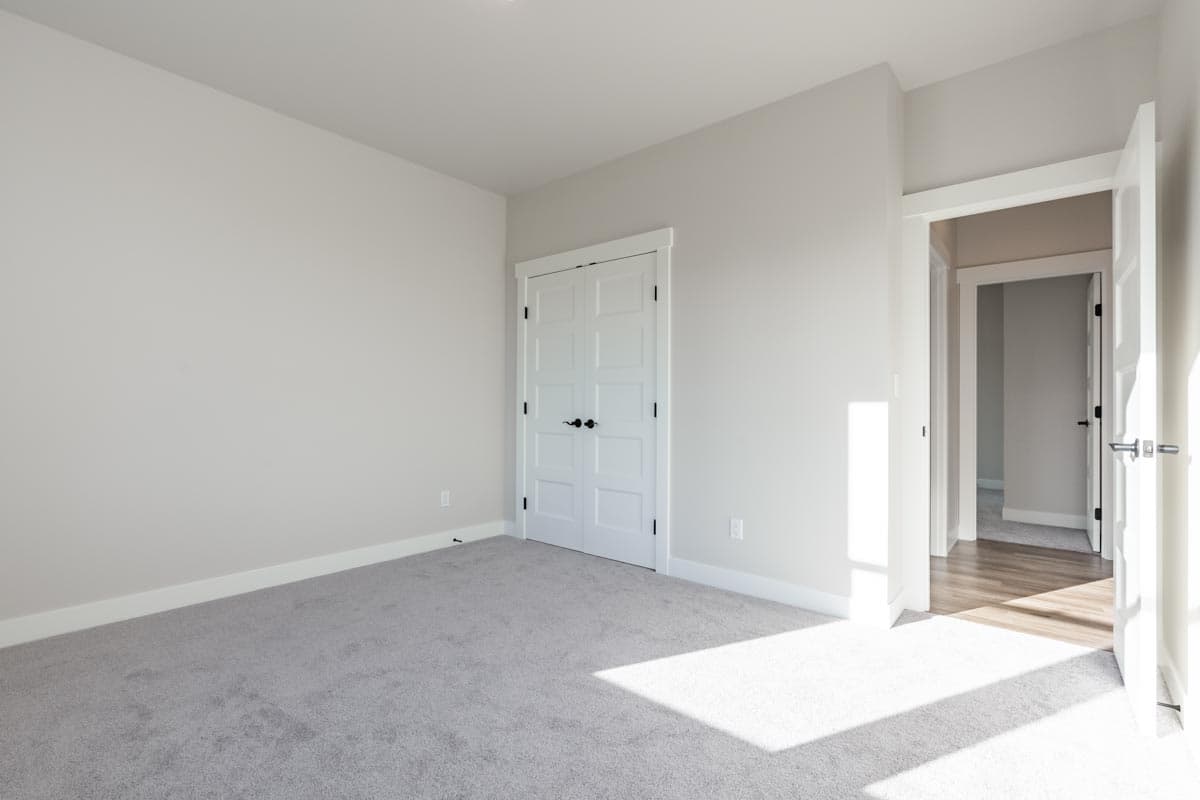

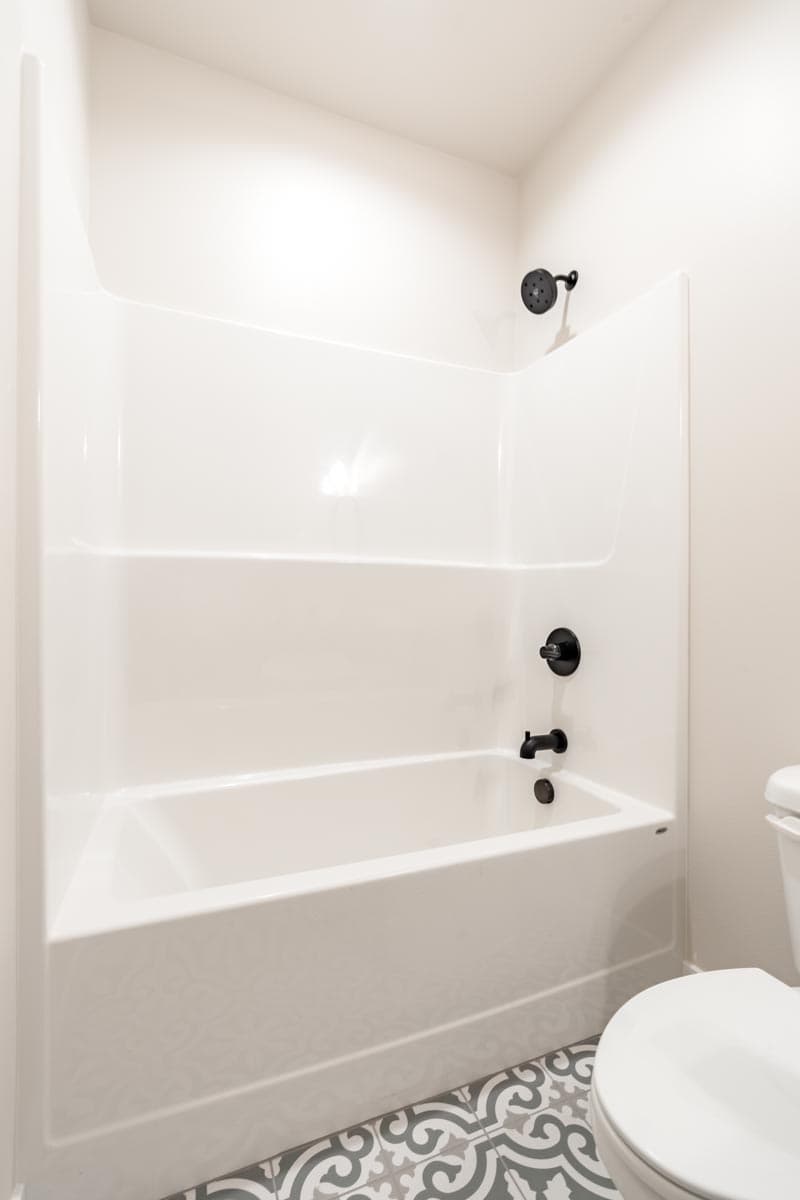

  • The privately situated master bedroom features a 5-fixture bath, with a standalone tub, and a roomy walk-in closet. A hallway off the formal entry leads to bedrooms 2 and 3, which share the hall bath.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,122 sq. ft.

1st Floor

1,792 sq. ft.

2nd Floor

330 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

48' 0"

Max Ridge Height

22' 5"

Garage

Type

Attached

Area

795 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Ranch

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry
