Plan 72748DA
Three Bed Ranch House Plan
Heated S.F.
1,753
Beds
4
Baths
3
Stories
1-2
Cars
2
What's Included
Plan Details
  • An L-shaped porch graces the front to this 3 bed ranch home plan.
  • Inside, the floor plan lets you can keep tabs on the porch and rear yard as well as any indoor activities right from the kitchen.
  • All of the bedrooms are on the left side of the home with an additional bedroom and bathroom tucked above the garage. The master bedroom has a large closet and access to the back patio.
  • An optional fireplace in the covered portion of the back patio gives you flexibility to make that space function as an outdoor entertaining space.
What's Included
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

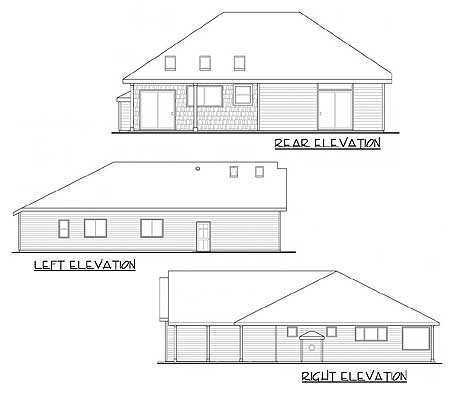

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Three Bed Ranch House Plan

  • 1,753

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

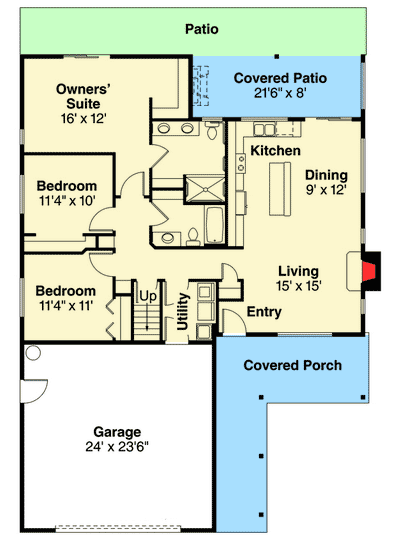

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,753 sq. ft.
  • 1st Floor: 1,443 sq. ft.
  • 2nd Floor: 310 sq. ft.

Dimensions

  • Width: 46' 0"
  • Depth: 61' 0"
  • Max ridge height: 21' 1"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 600 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6
All house plans are copyright ©2024 by the architects and designers represented on our web site
