Plan 59409ND

Three Bedroom Beauty

Heated S.F.
1,636
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59409ND

Main Level
Main Level

Plan 59409ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

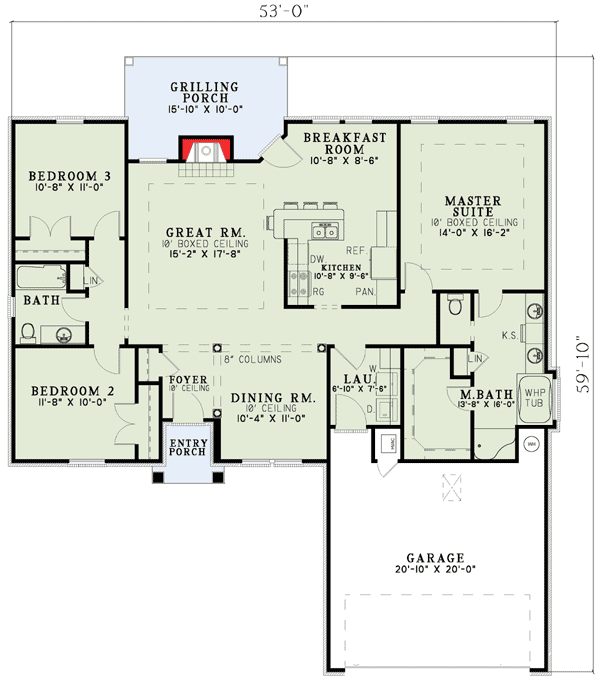

Plan 59409ND: Three Bedroom Beauty - Floor Plan - Main Level - Ranch, Southern, Traditional

Plan Details

  • This home plan features all the amenities you've come to expect in your future home. Enjoy hours of quality time in front of the fireplace in the great room with access to the formal dining room with eight-inch columns.
  • The kitchen features a snack bar open to the breakfast room with easy access to the rear grilling porch for summer barbecues.
  • The master bath affords the convenience of an expansive walk-in closet and double vanities. The whirlpool tub offers solace from the day's worries as the steam envelops you.
  • The children have the privacy of bedrooms located on the opposite side of the home with a full bath between.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,636 sq. ft.

1st Floor

1,636 sq. ft.

Porch, Combined

186 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 0"

Depth

59' 10"

Max Ridge Height

20' 9"

Garage

Type

Attached

Area

469 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,636 sq. ft.

1st Floor

1,636 sq. ft.

Porch, Combined

186 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 0"

Depth

59' 10"

Max Ridge Height

20' 9"

Garage

Type

Attached

Area

469 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
