Plan 2239SL

Three-Dormered Carriage Huose

Heated S.F.
1,240
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 2239SL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 2239SL

M-F 9am-5pm EST |

1-203-761-8500

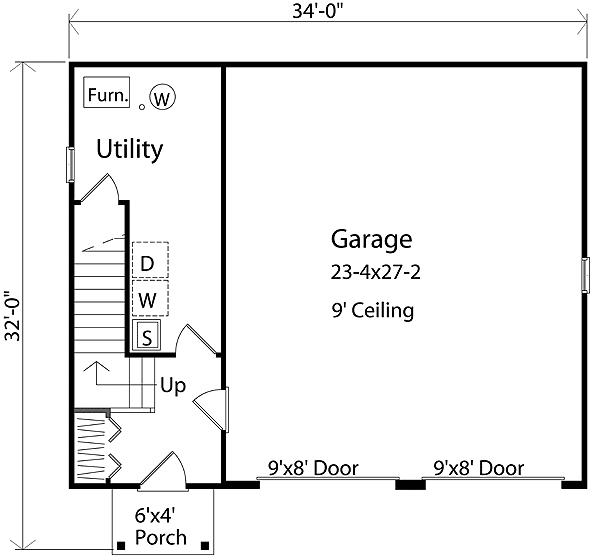

Main Level

Plan 2239SL: Three-Dormered Carriage Huose - Floor Plan - Main Level - Carriage

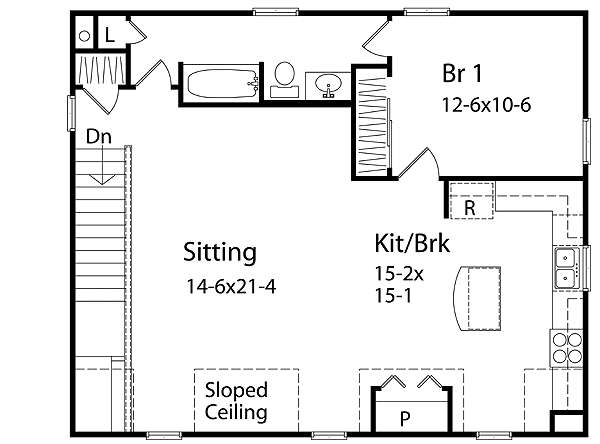

2nd Floor

Plan 2239SL: Three-Dormered Carriage Huose - Floor Plan - 2nd Floor - Carriage

Plan Details

  • This carriage house plan features storage for two cars and spacious living quarters.
  • The garage has 9' ceilings and two 9'x8' overhead doors.
  • Interior stairs lead to the kitchen/breakfast area on the upper level, complete with large pantry.
  • Dormers brighten the sitting area with natural light.
  • Both bedrooms have plenty of closet space and share a full bath.

What's Included

  • Foundation plan
  • Fully dimensioned floor plans

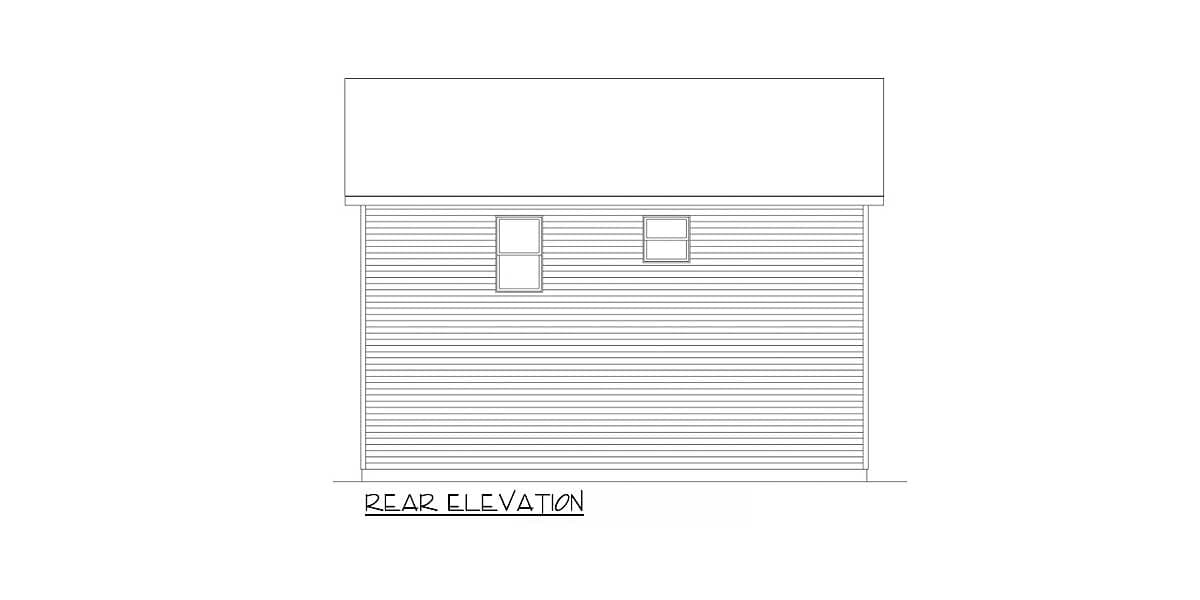

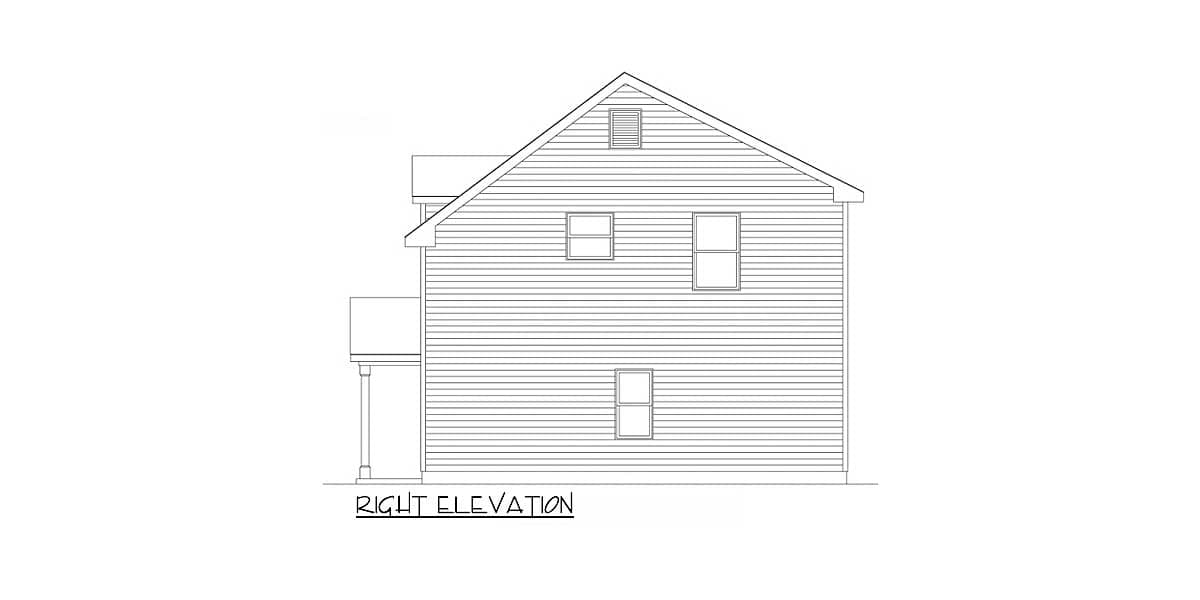

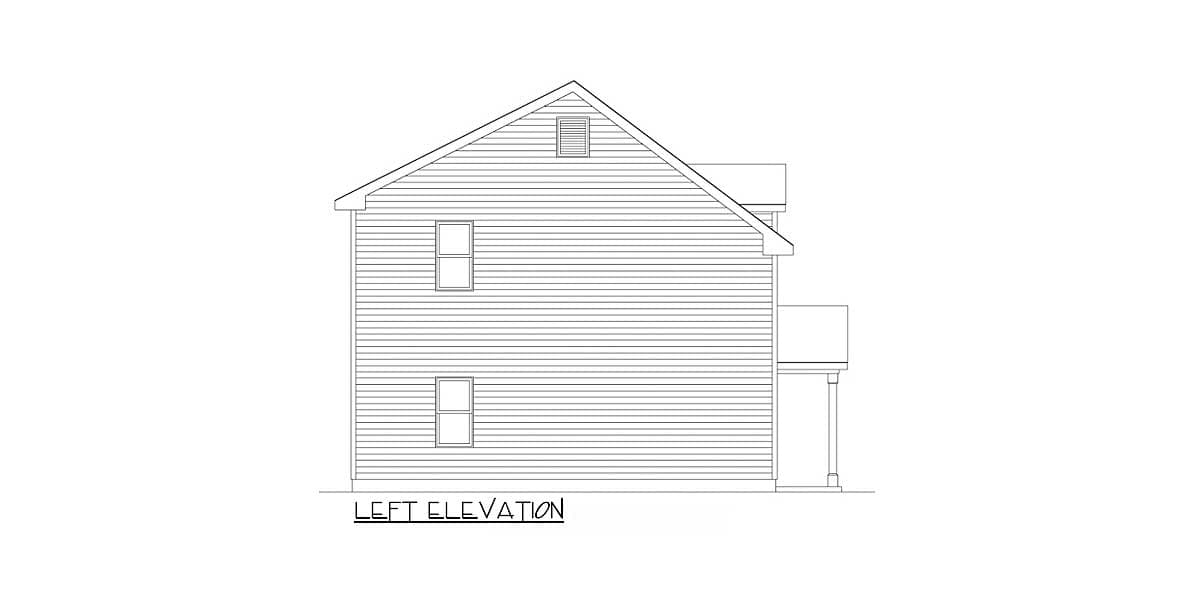

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,240 sq. ft.

1st Floor

288 sq. ft.

2nd Floor

952 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 0"

Depth

32' 0"

Max Ridge Height

27' 0"

Garage

Type

Detached

Area

630 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Carriage

Special Features

Master Suite - Upstairs
