Three Dormers New American House Plan Under 1700 Sq Ft with Bonus Room

Heated S.F.
1,664
Beds
3
Baths
2
Stories
1
Cars
2
Tour

Floor Plan

Plan 83664CRW

Main Level
Main Level
2nd Floor
2nd Floor
Optional 2-Car Front Garage (+$350)
Optional 2-Car Front Garage (+$350)

Plan 83664CRW

M-F 9am-5pm EST |

1-203-761-8500

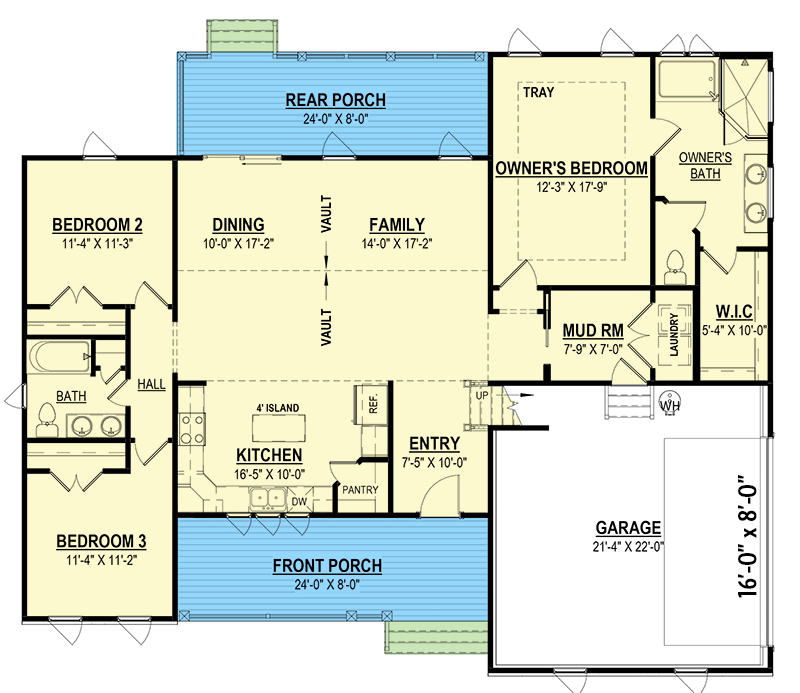

Main Level

Plan 83664CRW: Three Dormers New American House Plan Under 1700 Sq Ft with Bonus Room - Floor Plan - Main Level - New American, Ranch

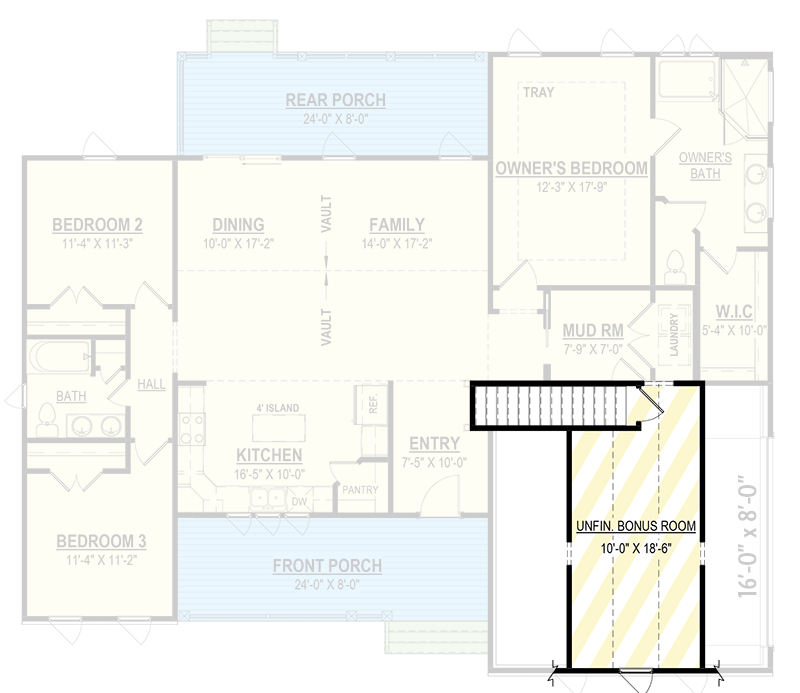

2nd Floor

Plan 83664CRW: Three Dormers New American House Plan Under 1700 Sq Ft with Bonus Room - Floor Plan - 2nd Floor - New American, Ranch

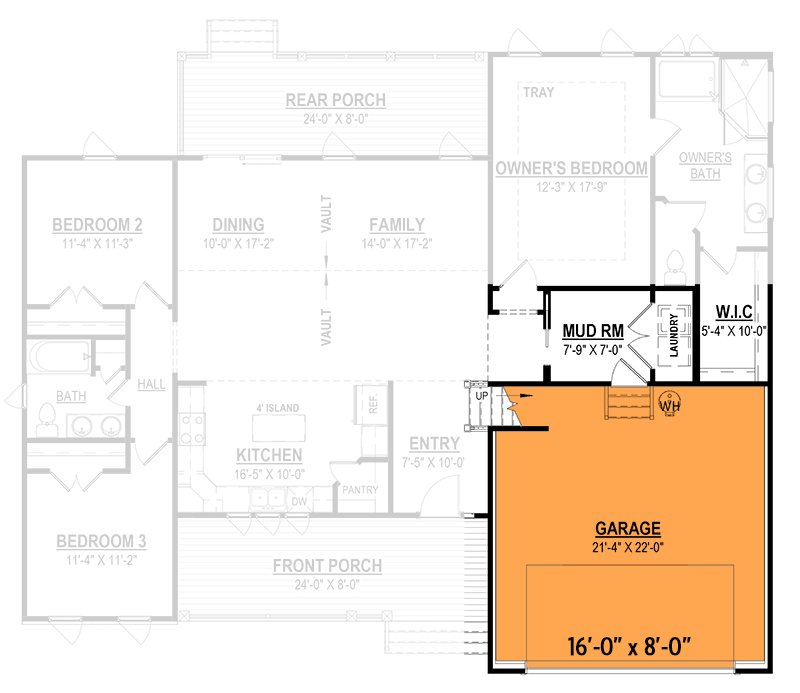

Optional 2-Car Front Garage (+$350)

Plan 83664CRW: Three Dormers New American House Plan Under 1700 Sq Ft with Bonus Room - Floor Plan - Optional 2-Car Front Garage (+$350) - New American, Ranch

Plan Details

  • Three decorative dormers sit above the front porch on this 3-bed country home plan. Inside, it gives you 1,664 square feet of heated living with a bonus room above the garage giving you expansion space.
  • The rectangular kitchen overlooks the 8'-deep porch and presents a prep island and corner pantry, while the open design allows you to move easily into the vaulted dining / family room.
  • Tucked behind the double garage, you will find the owner's bedroom with its own foyer, tray ceiling, and 5-fixture bathroom with a toilet room and walk-in closet.
  • Bedrooms 2 and 3 are across the home and are separated by a 4-fixture bathroom with a linen closet.
  • Step inside from the garage to find a mudroom with access to the laundry closet and a pocket-door leading to the heart of the home.
  • Related Plans: Get an alternate exterior with house plans 83636CRW, 83655CRW, 83654CRW, 83651CRW and 83657CRW.

What's Included

  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)
  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,664 sq. ft.

1st Floor

1,664 sq. ft.

Bonus

219 sq. ft.

Porch, Front

192 sq. ft.

Porch, Rear

192 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

58' 0"

Depth

48' 0"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

496 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

1,664 sq. ft.

1st Floor

1,664 sq. ft.

Bonus

219 sq. ft.

Porch, Front

192 sq. ft.

Porch, Rear

192 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

58' 0"

Depth

48' 0"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

496 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

New American

Ranch

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room
