Plan 9543RW
Three Levels of Luxury
Heated S.F.
10,226
Beds
4-6
Baths
1.5+ - 5.5+
Stories
2
Cars
3
What's Included
Plan Details
  • Over 10,000 square feet is spread out over three levels of luxury in this grand home plan.
  • From the wrap-around porches to the step-down great room to the functional craft room, this home is full of surprises.
  • Two large islands in the kitchen give you plenty of counter space and a huge walk-in pantry will be the chef's delight.
  • A charming play area/fort is located between the front two bedrooms on the upper level.
  • Another huge playroom will have more room for all your children's friends.
  • The master suite boasts a circular sitting room with fireplace, large spa bath and a walk-in closet divided into his and her sections.
  • The fabulous lower level is entertainment central with a huge wet bar, step-down media area with fireplace and a gaming and billiards area.
  • Two extra bedrooms lie close by, one of which could work as an in-law suite.
What's Included

The following details are included with this house plan:
  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Three Levels of Luxury

  • 10,226

    Heated s.f.

  • 4-6

    Beds

  • 1.5+ - 5.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

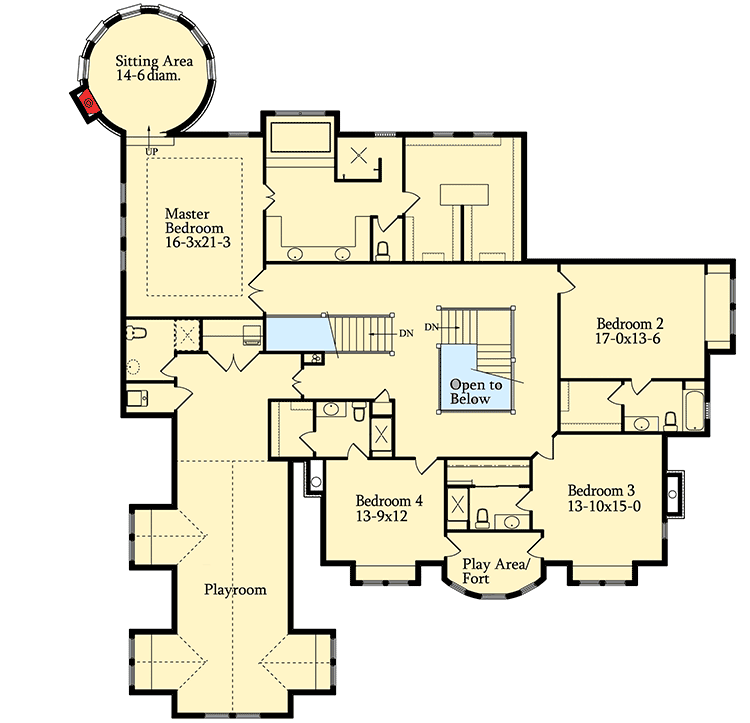

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 10,226 sq. ft.
  • Lower Level: 3,184 sq. ft.
  • 1st Floor: 3,570 sq. ft.
  • 2nd Floor: 3,472 sq. ft.

Dimensions

  • Width: 85' 0"
  • Depth: 92' 6"
  • Max ridge height: 34' 9"

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 1, 2, 3, 4, or 5
  • Half bathrooms: 2 or 3

Garage

  • Type: Attached
  • Area: 1187 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
