Plan 350126GH

Three-Story Multi-Plex House Plan with All Bedrooms Upstairs - 5586 Sq Ft

Heated S.F.
5,586
Units
4
Width
Depth

Floor Plan

Plan 350126GH

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 350126GH

M-F 9am-5pm EST |

1-203-761-8500

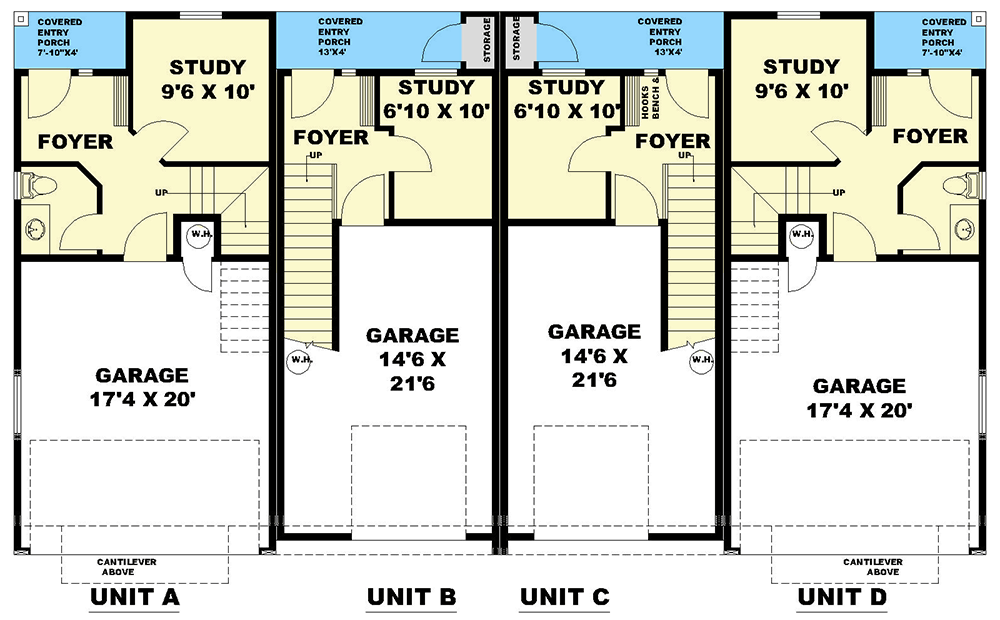

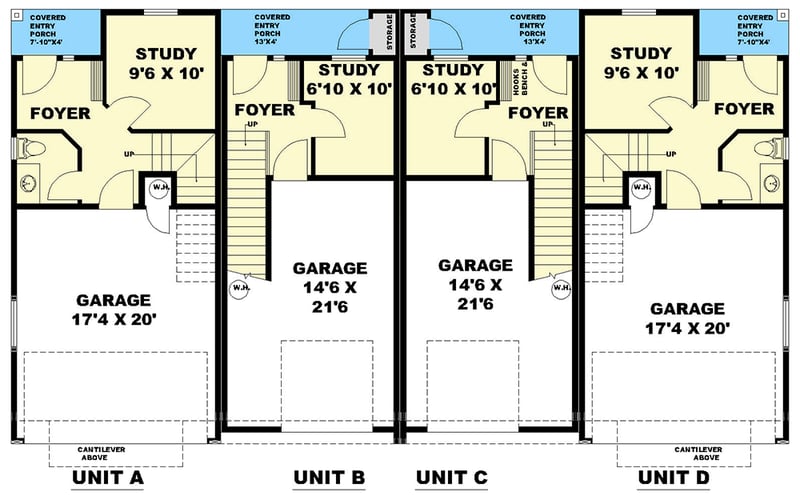

Main Level

Plan 350126GH: Three-Story Multi-Plex House Plan with All Bedrooms Upstairs - 5586 Sq Ft - Floor Plan - Main Level - New American

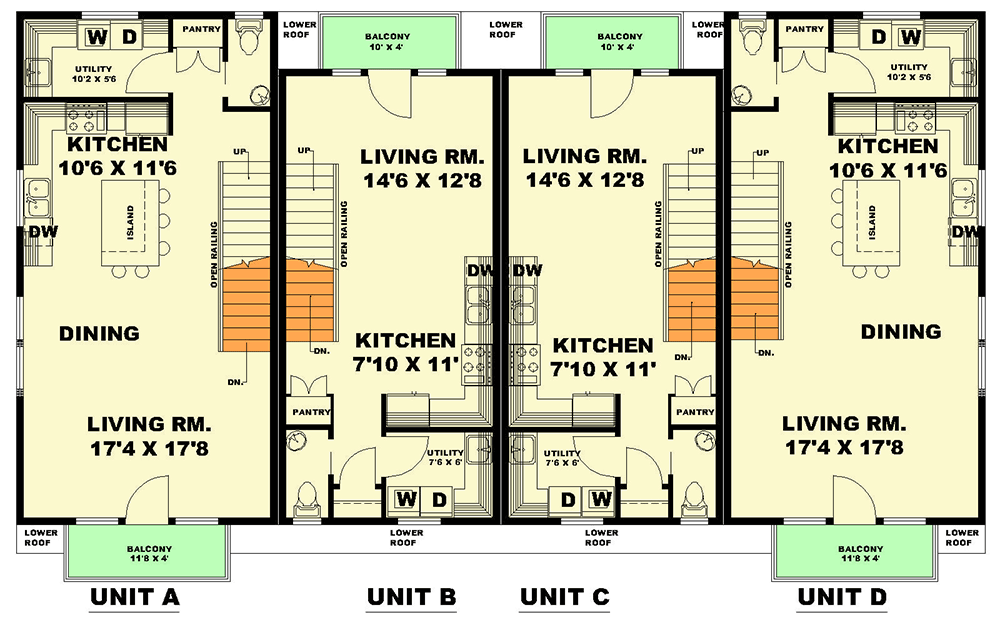

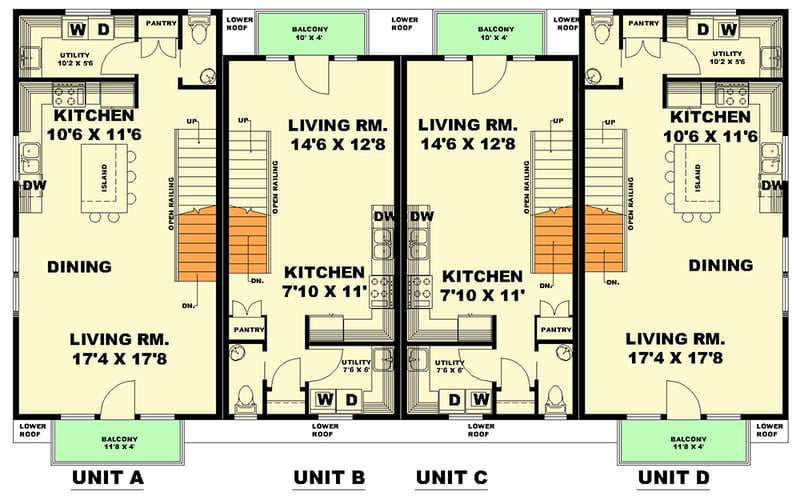

2nd Floor

Plan 350126GH: Three-Story Multi-Plex House Plan with All Bedrooms Upstairs - 5586 Sq Ft - Floor Plan - 2nd Floor - New American

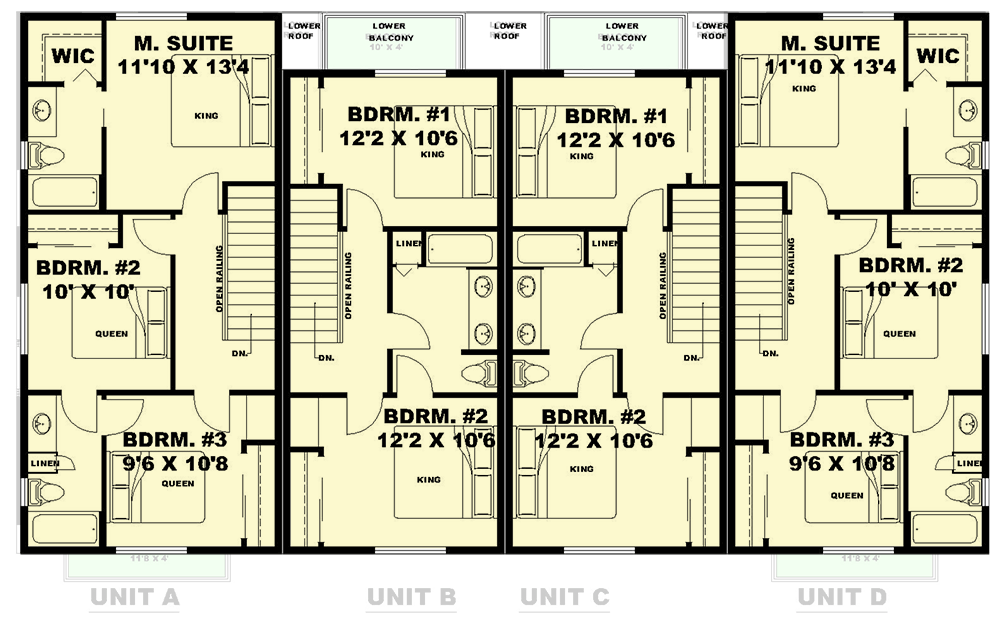

3rd Floor

Plan 350126GH: Three-Story Multi-Plex House Plan with All Bedrooms Upstairs - 5586 Sq Ft - Floor Plan - 3rd Floor - New American

Plan Details

  • This multi-plex house plan features four units. The two end units (Unit A & D) each offer 1,571 sq ft of heated living space, divided as follows: 283 sq ft on the main level, 626 sq ft on the second floor, and 662 sq ft on the third floor. Each of these units includes 3 bedrooms, 2.5 bathrooms, and a 377 square foot, 2-car garage. The two middle units (Units B & C) provide 1,222 sq ft of heated living space, with 179 sq ft on the main level, 556 sq ft on the second floor, and 487 sq ft on the third floor. Each of these units has 2 bedrooms, 1.5 bathrooms, and a 345 square foot, 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A & D
Heated Area
1,571Sq. Ft.
283 Sq. Ft. 1st
626 Sq. Ft. 2nd
662 Sq. Ft. 3rd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
377 Sq. Ft.
0
Unfinished Areas
377 Sq. Ft. Garage
Unit B & C
Heated Area
1,222Sq. Ft.
179 Sq. Ft. 1st
556 Sq. Ft. 2nd
487 Sq. Ft. 3rd
Beds
2Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
345 Sq. Ft.
0
Unfinished Areas
345 Sq. Ft. Garage

What's Included

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown
