Three-Story Northwest House Plan Ideal for a Side-sloping Lot

Plan 23743JD

  • 4,101

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

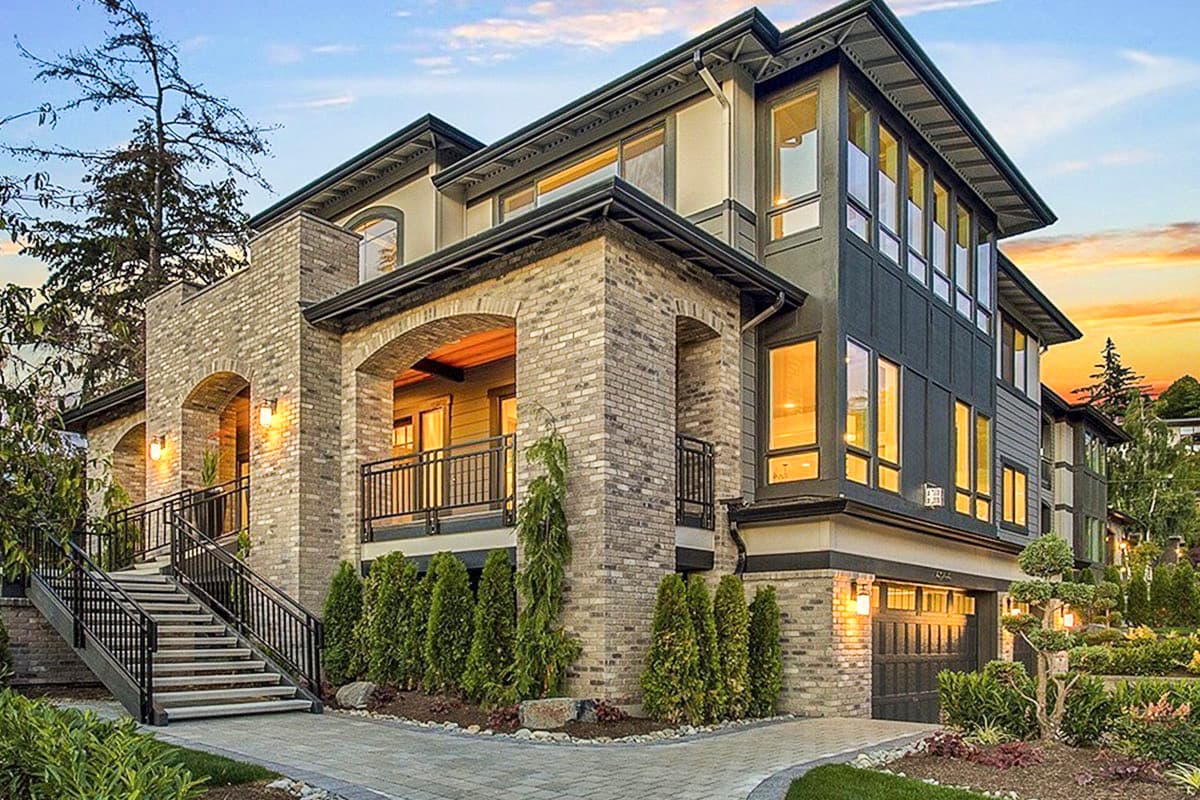

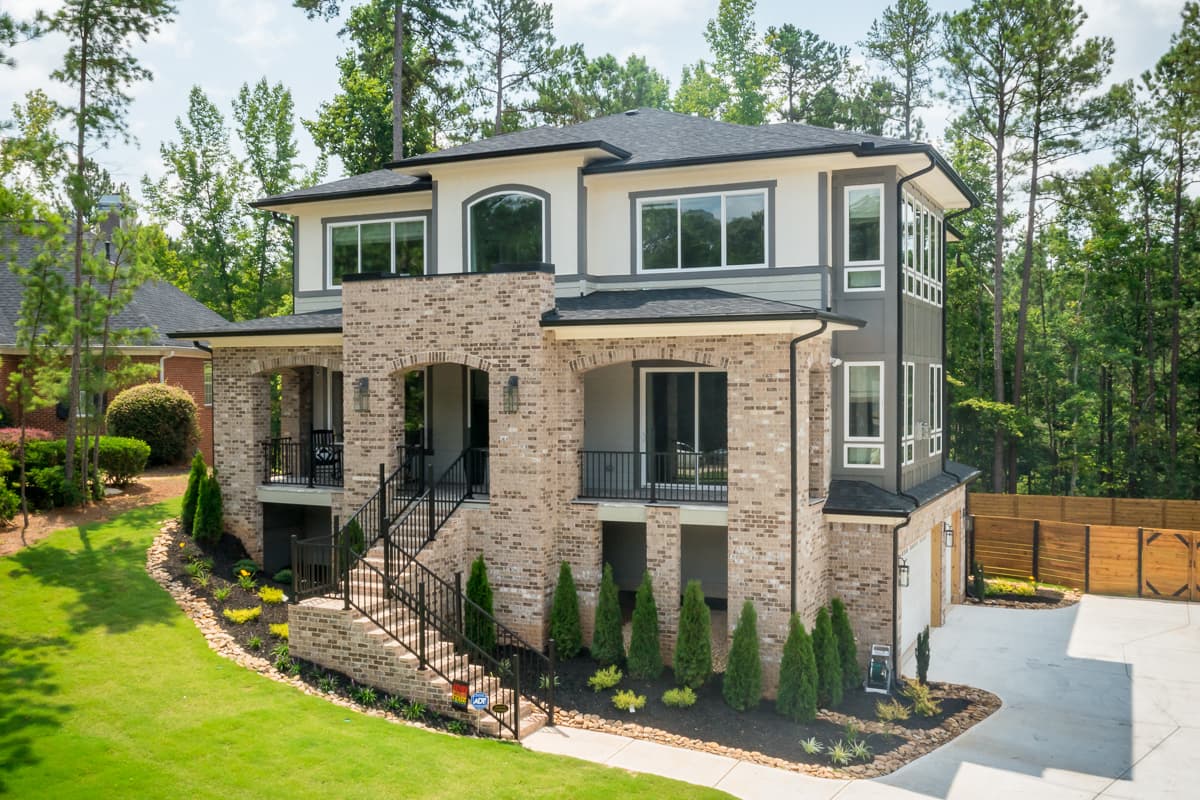

  • Lots of glass and three levels of living space add to the livability of this gorgeous Northwest house plan.

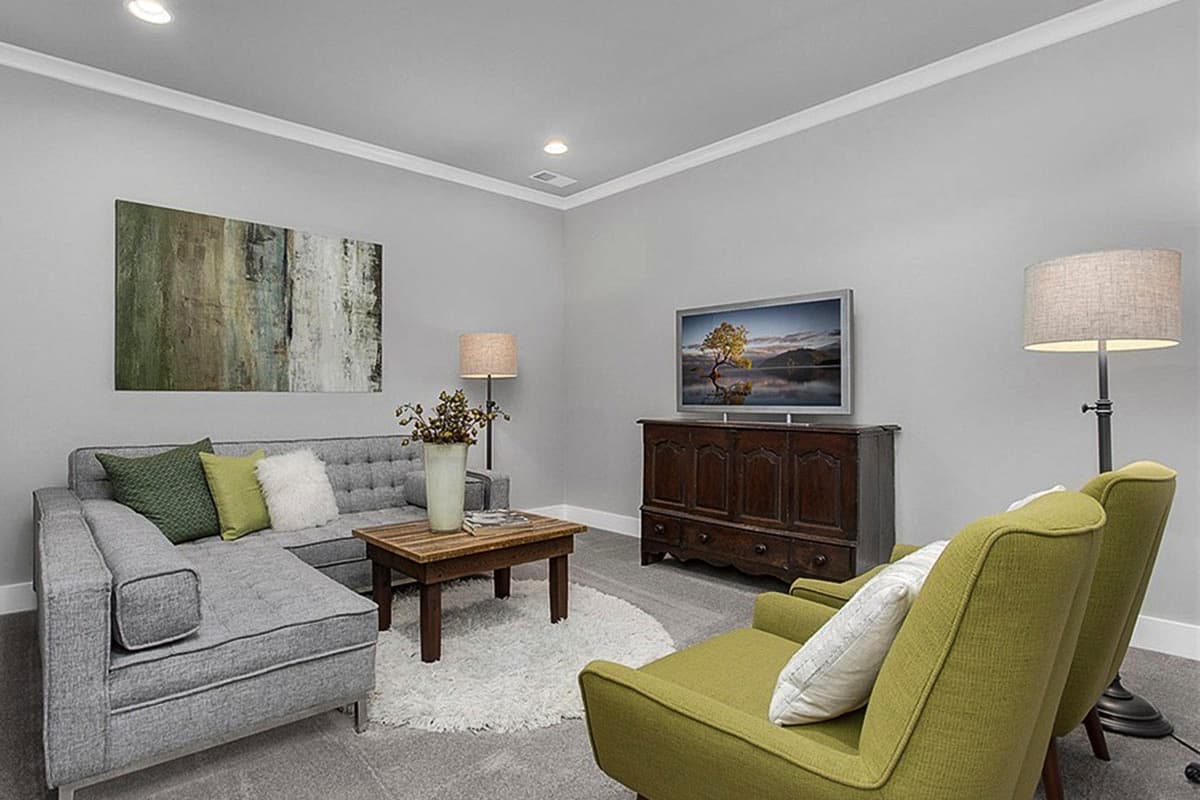

  • Designed to sit on a sloping lot, there's a three car drive-under garage that opens to the lower level media room ready for entertaining with a wine closet.

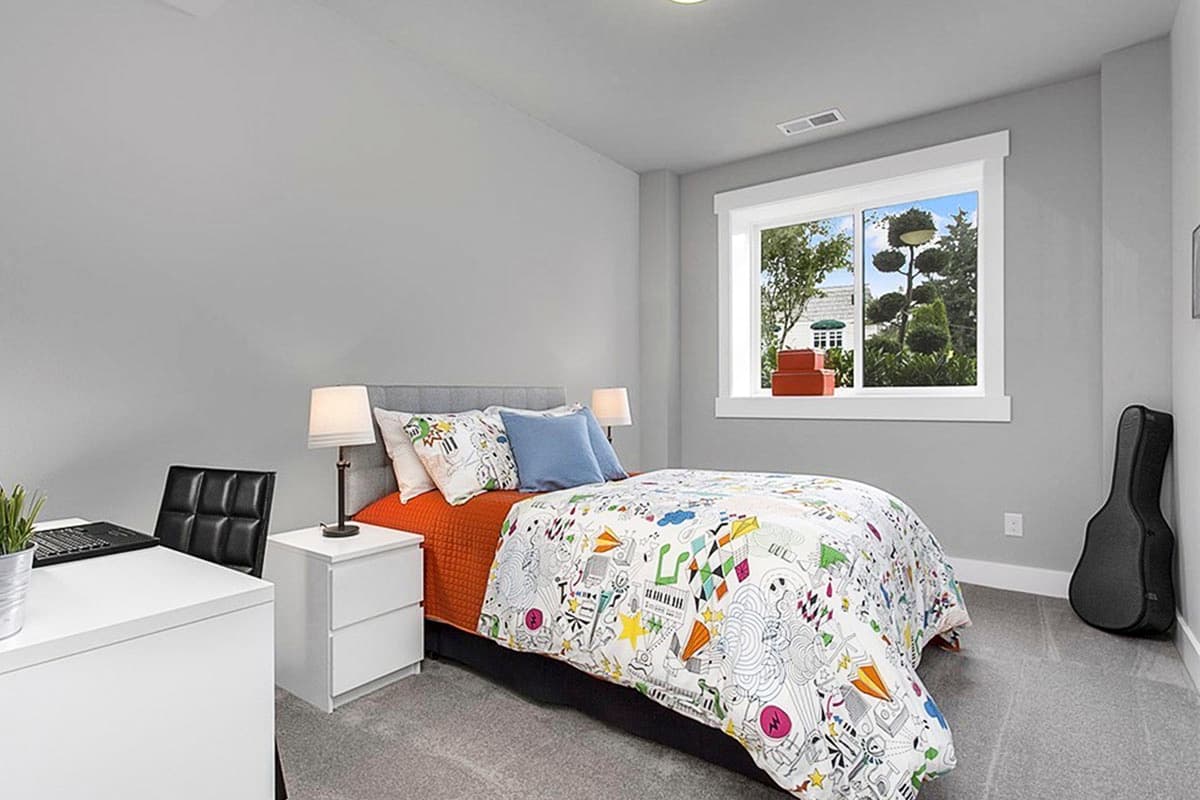

  • Bedroom 5 gets lots of privacy as the only bedroom on this level.

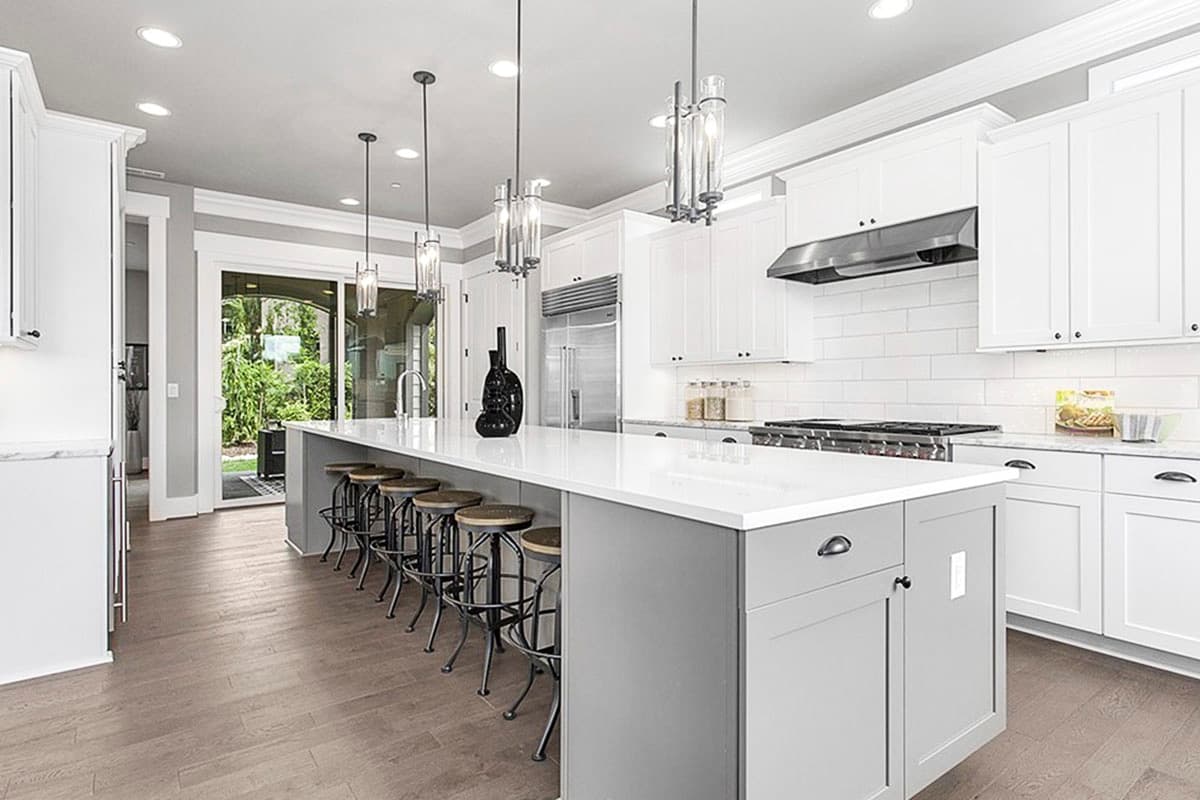

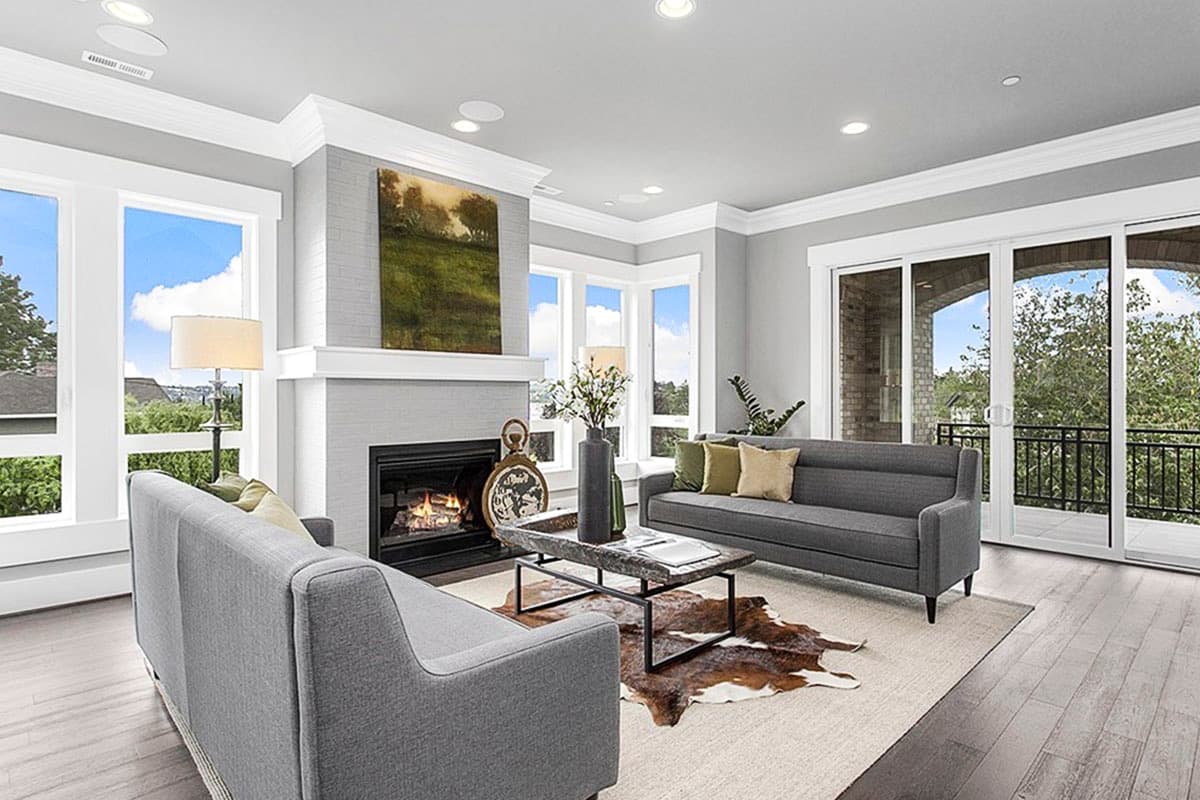

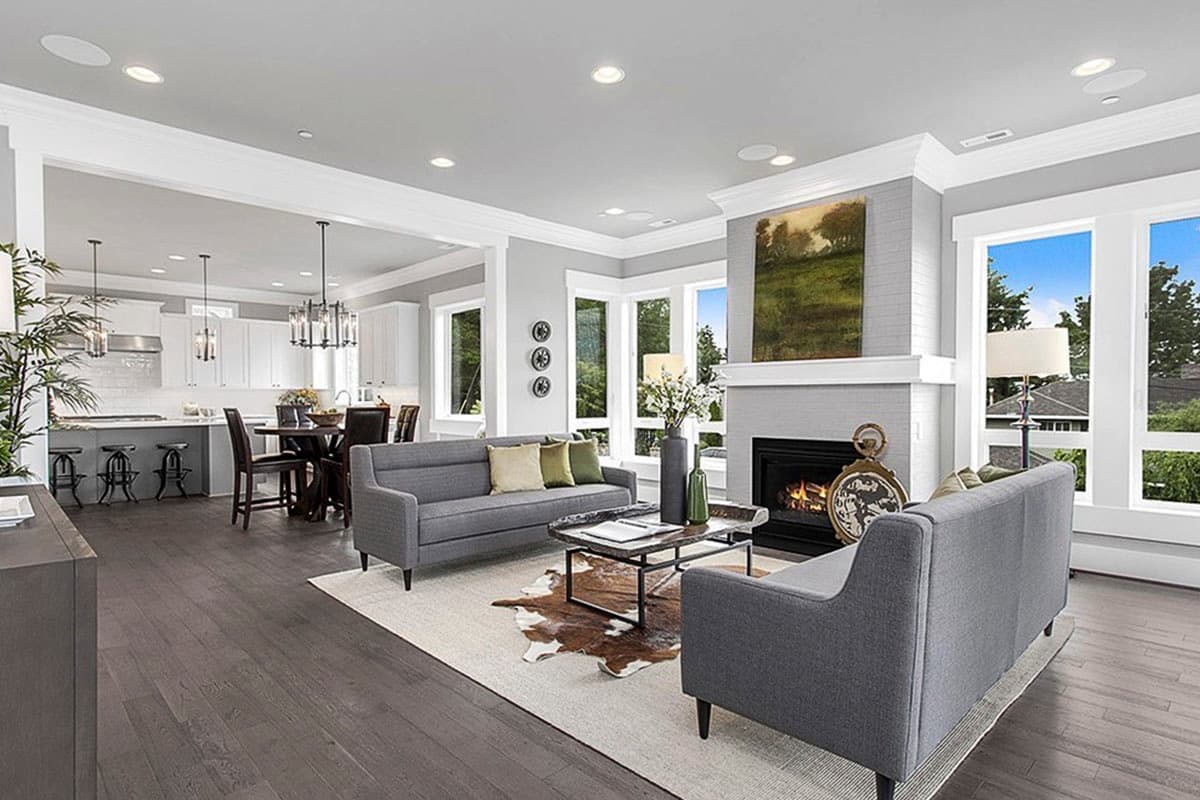

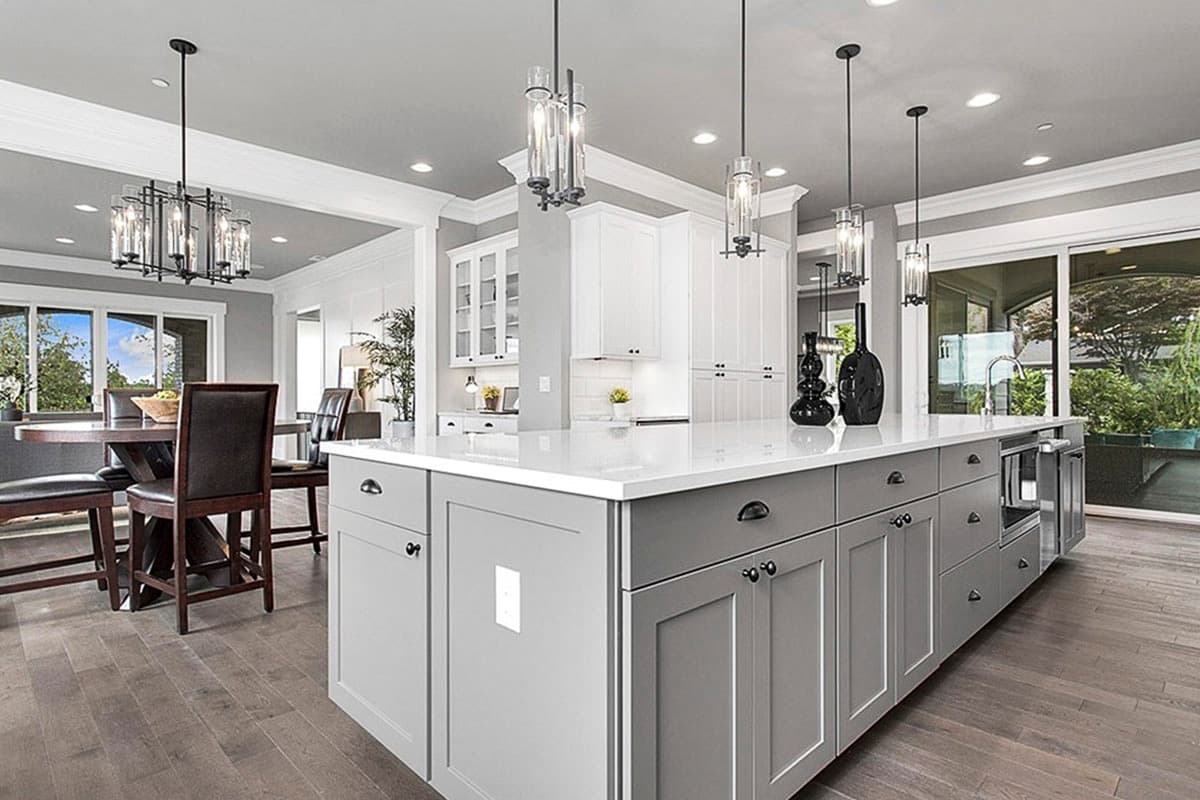

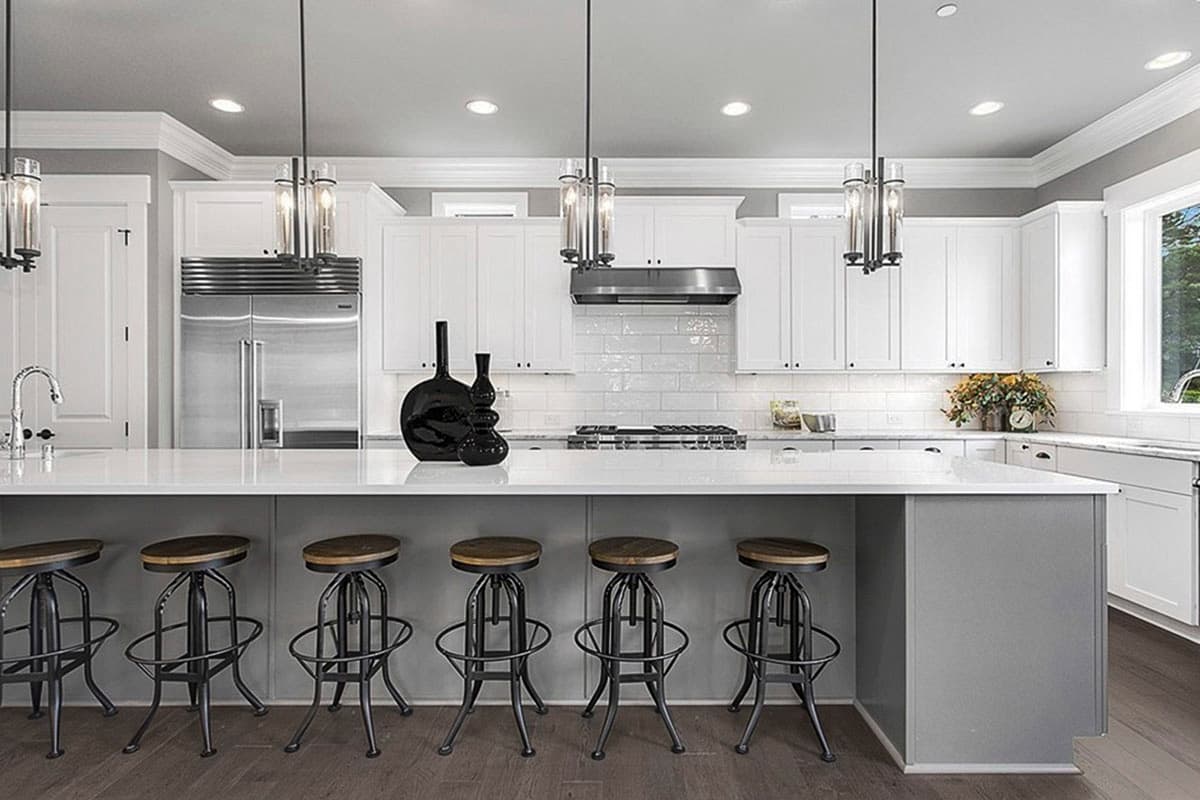

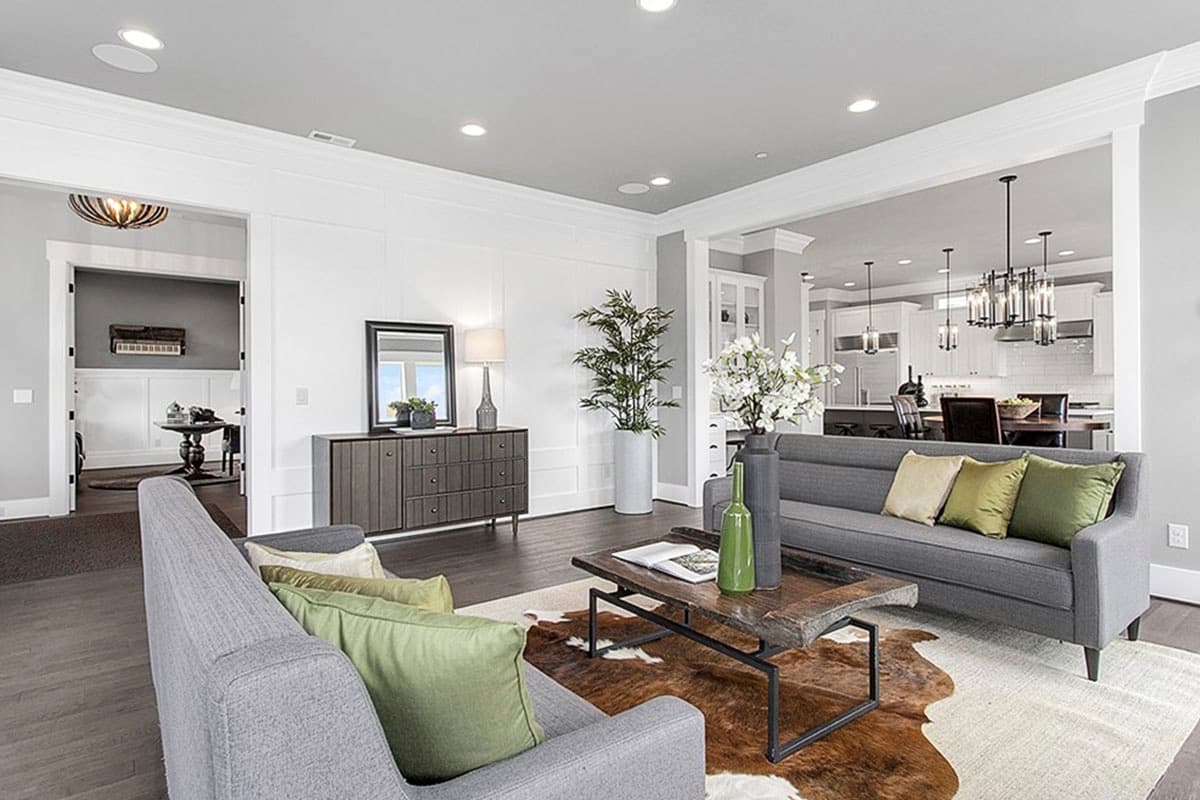

  • Sight lines on the main floor run front to back in the huge great room, nook and kitchen with its massive island.
  • Gourmet touches include two sinks and an eight burner cook top plus a walk-in pantry.

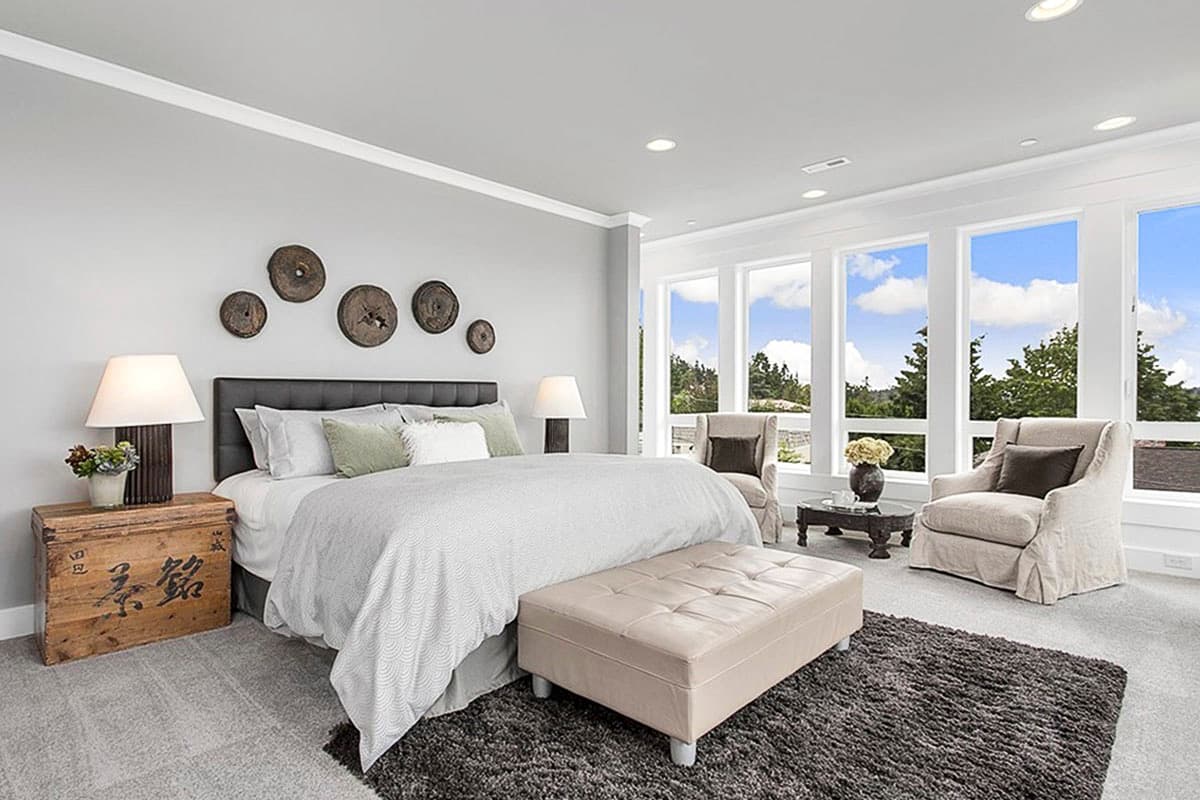

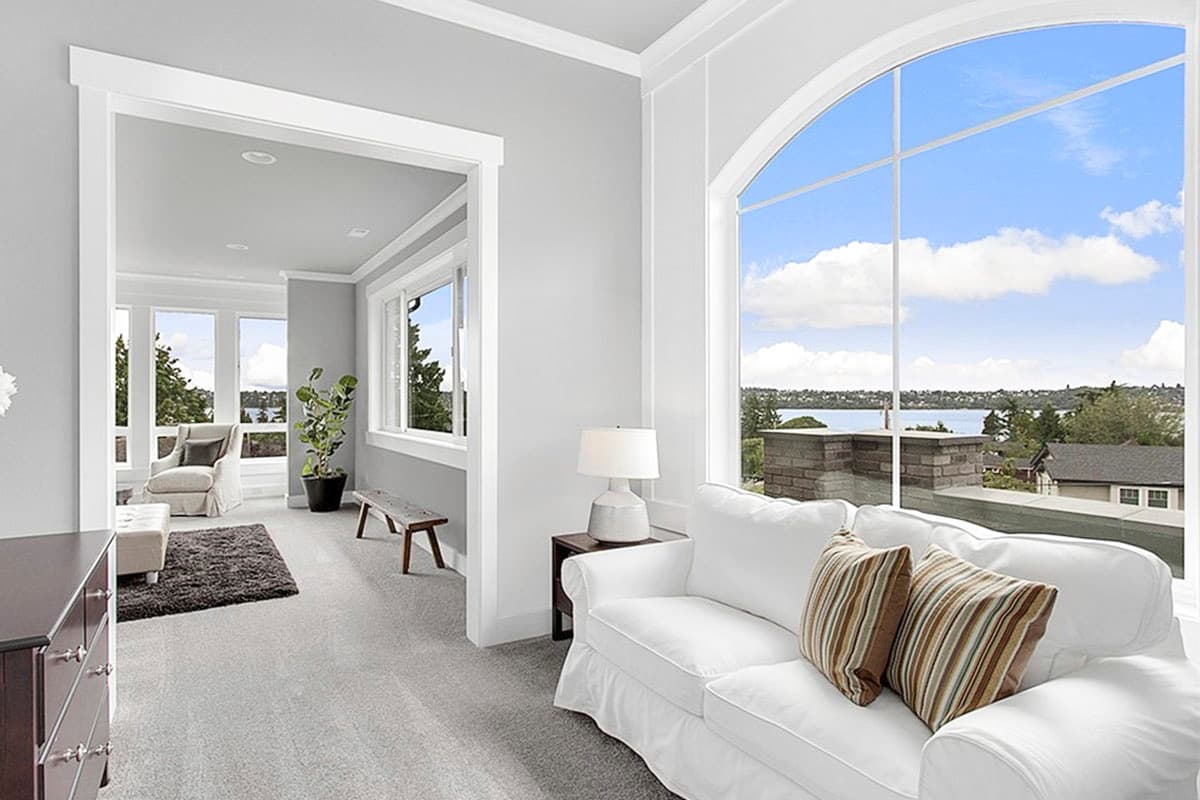

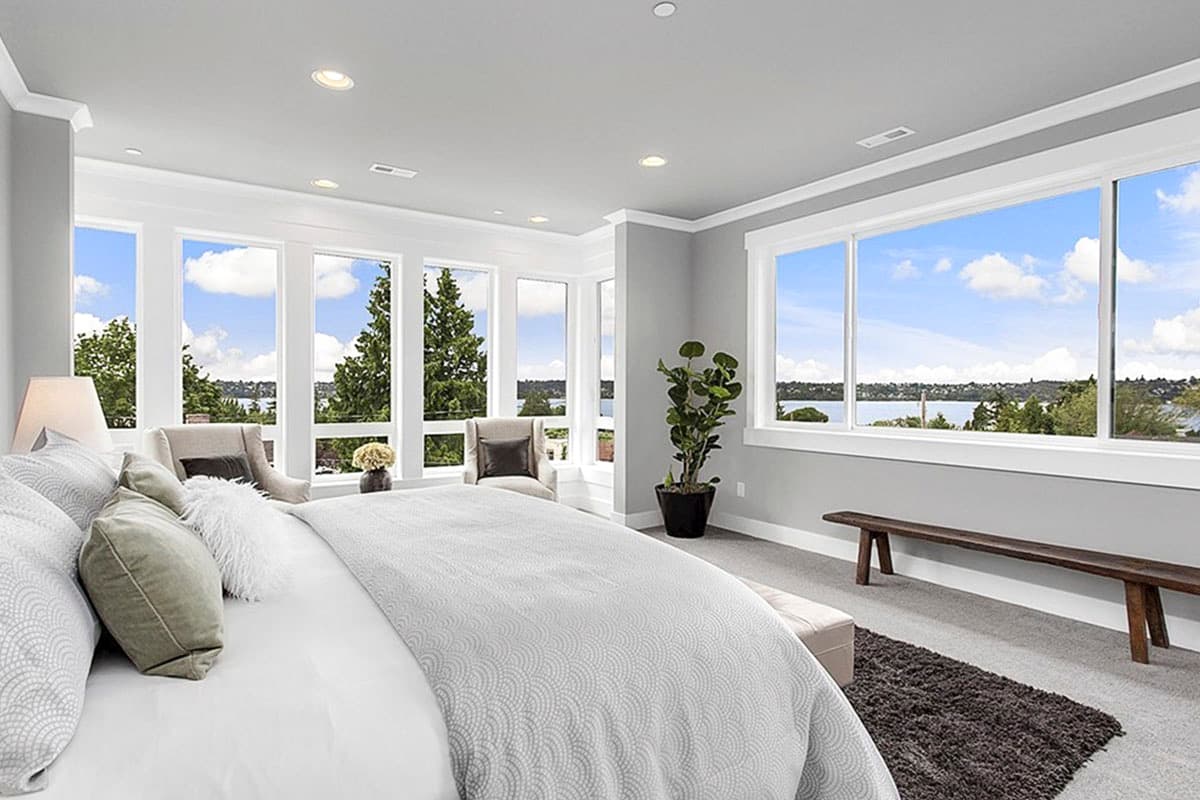

  • Enter the second floor master suite through a separate sitting room and then take the double doors to the sleeping area where walls of glass give you beautiful views.
  • The second floor laundry room is easily accessible to all four bedroom on this level.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

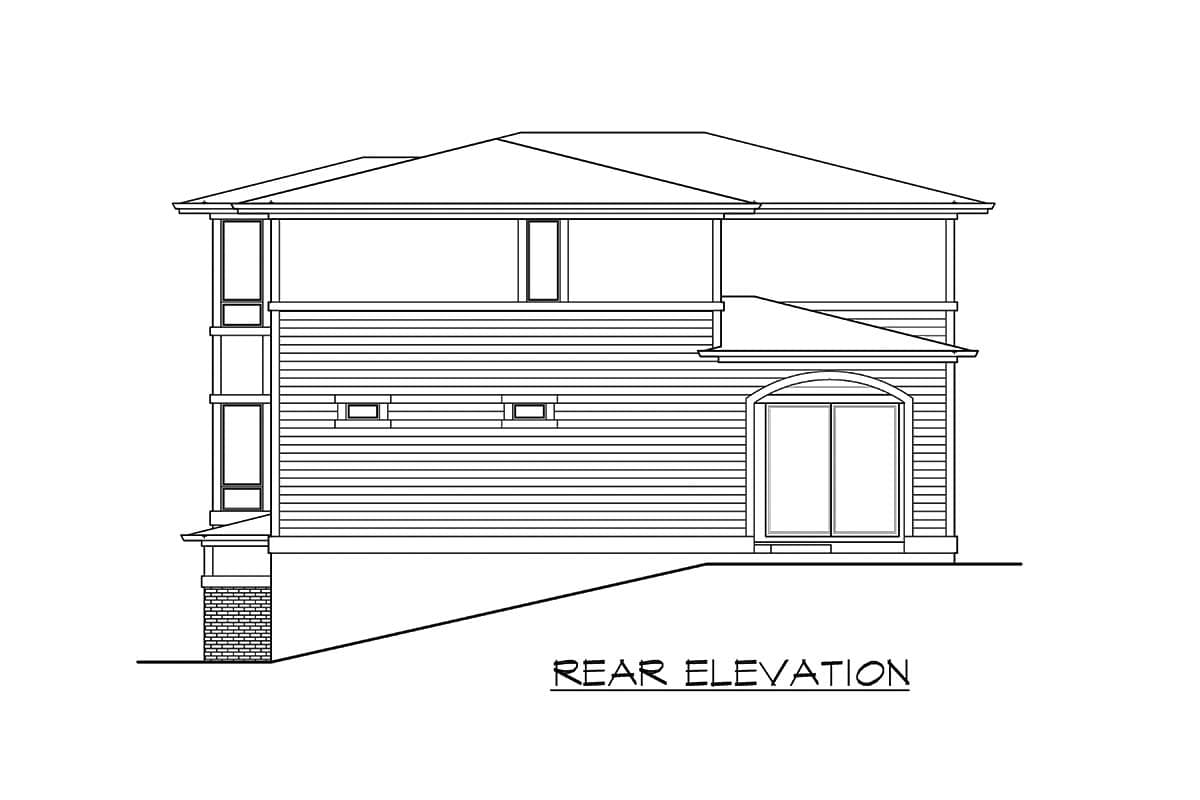

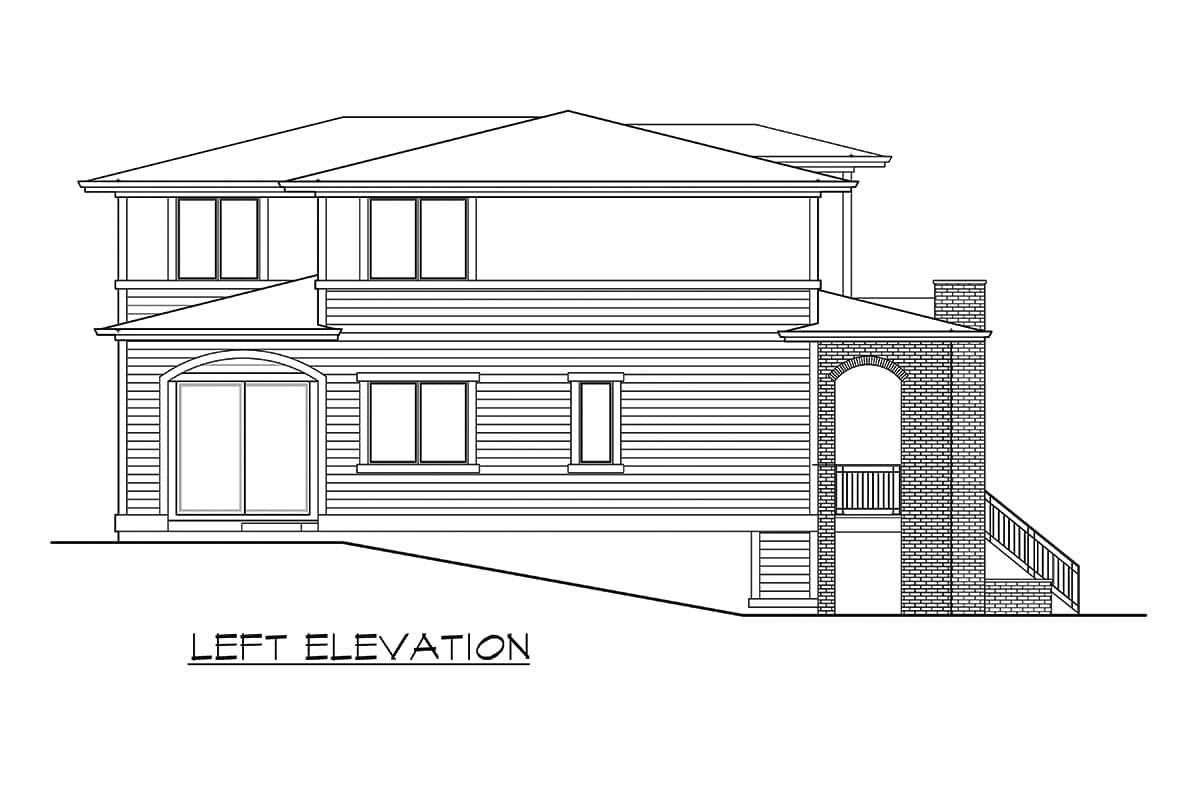

Elevation Sheet

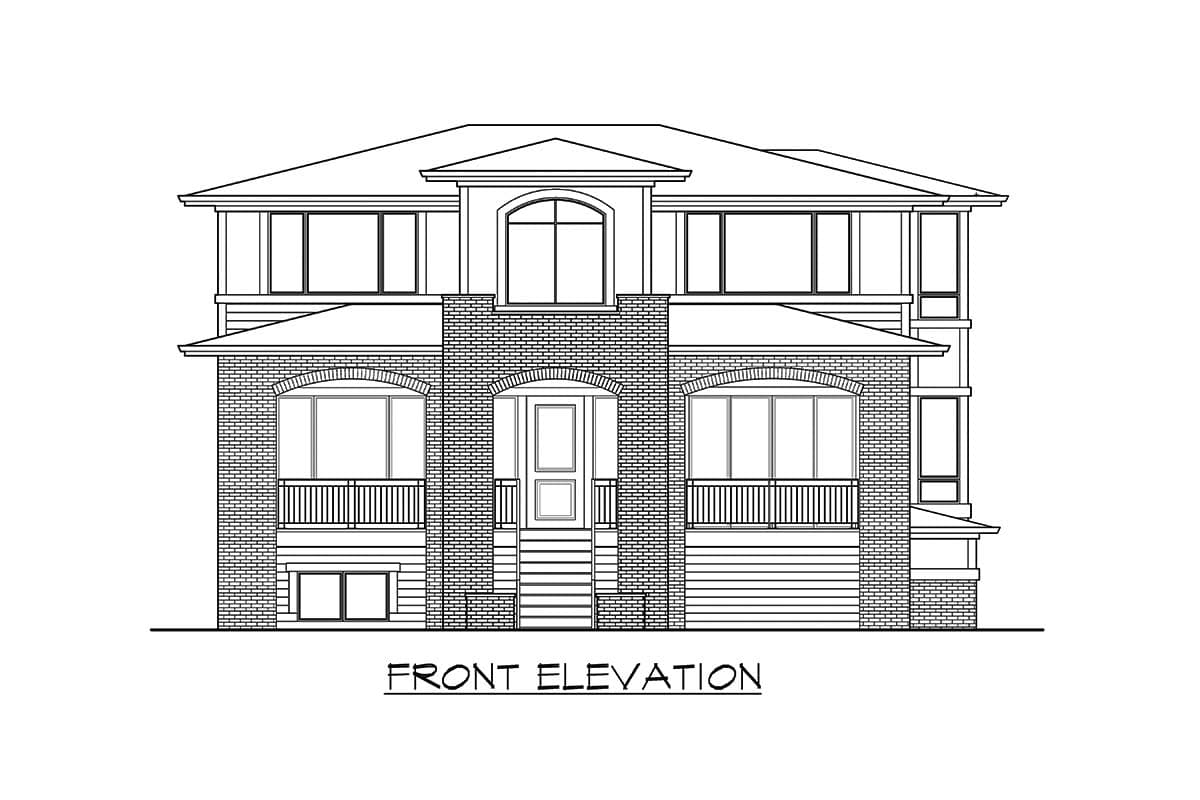

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

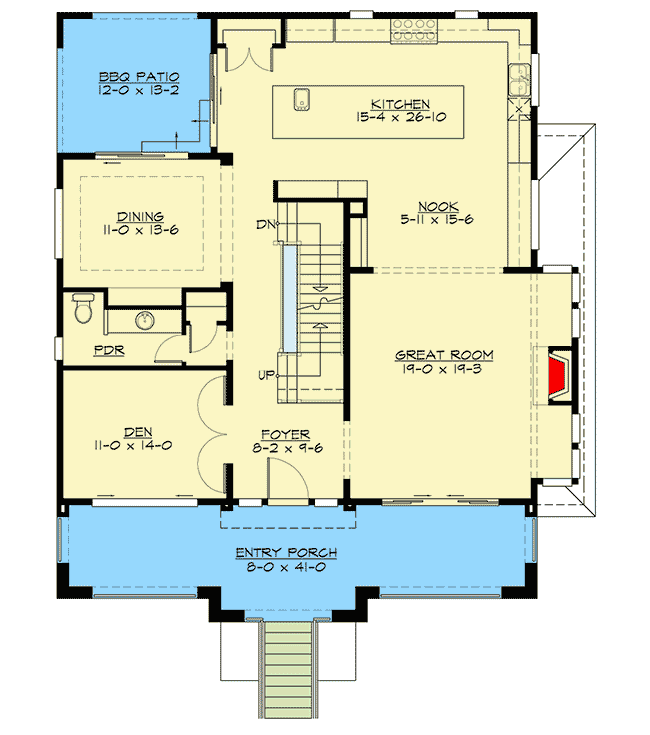

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Three-Story Northwest House Plan Ideal for a Side-sloping Lot - 23743JD floor plan - Main Level

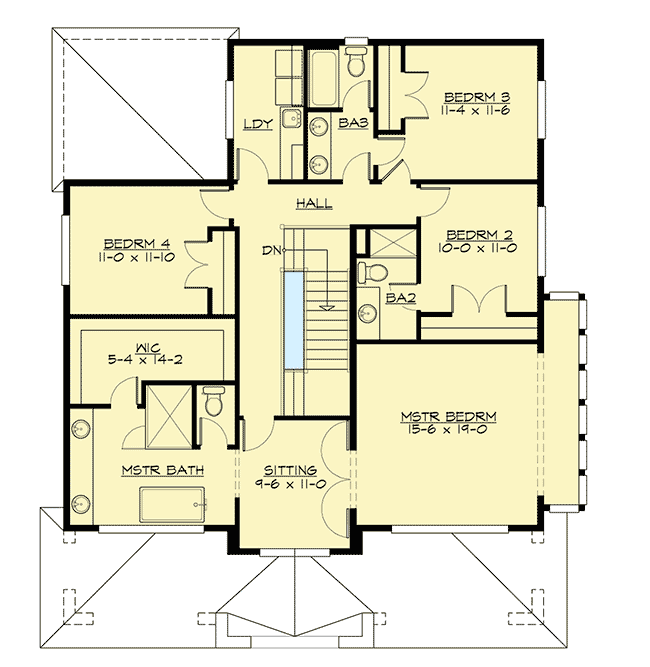

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Three-Story Northwest House Plan Ideal for a Side-sloping Lot - 23743JD floor plan - Second Level

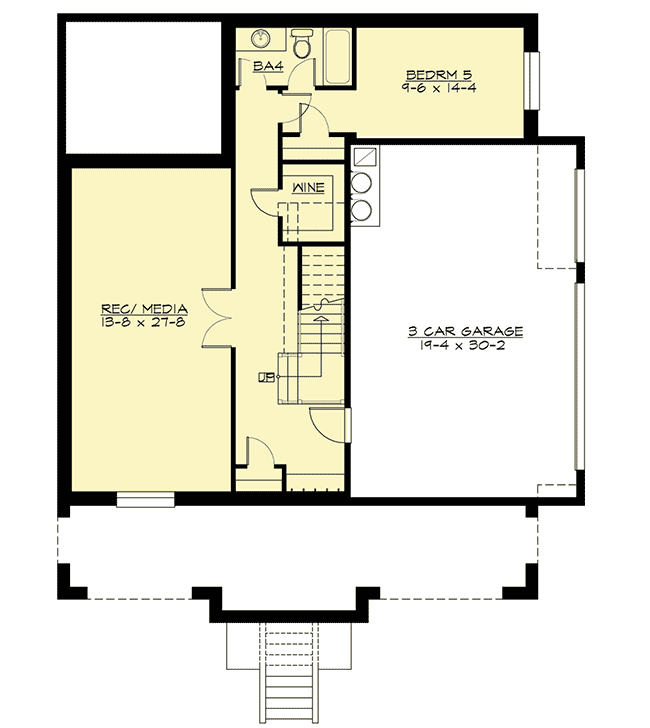

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Three-Story Northwest House Plan Ideal for a Side-sloping Lot - 23743JD floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,101 sq. ft.
  • Lower Level: 1,060 sq. ft.
  • 1st Floor: 1,554 sq. ft.
  • 2nd Floor: 1,487 sq. ft.
  • Covered Patio: 158 sq. ft.
  • Porch, Front: 328 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 6"
  • Depth: 52' 0"
  • Max ridge height: 24' 3"

Garage

  • Type: Drive Under
  • Area: 619 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Three-Story Northwest House Plan Ideal for a Side-sloping Lot

  • 4,101

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,400
  • CAD + PDF - Unlimited Build $3,900
  • View all purchase option online

About This Plan

  • Lots of glass and three levels of living space add to the livability of this gorgeous Northwest house plan.
  • Designed to sit on a sloping lot, there's a three car drive-under garage that opens to the lower level media room ready for entertaining with a wine closet.
  • Bedroom 5 gets lots of privacy as the only bedroom on this level.
  • Sight lines on the main floor run front to back in the huge great room, nook and kitchen with its massive island.
  • Gourmet touches include two sinks and an eight burner cook top plus a walk-in pantry.
  • Enter the second floor master suite through a separate sitting room and then take the double doors to the sleeping area where walls of glass give you beautiful views.
  • The second floor laundry room is easily accessible to all four bedroom on this level.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • Second Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,101 sq. ft.
  • Lower Level: 1,060 sq. ft.
  • 1st Floor: 1,554 sq. ft.
  • 2nd Floor: 1,487 sq. ft.
  • Covered Patio: 158 sq. ft.
  • Porch, Front: 328 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 6"
  • Depth: 52' 0"
  • Max ridge height: 24' 3"

Garage

  • Type: Drive Under
  • Area: 619 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 3 on 12
  • Framing Type: Truss
