Three Story Tuscan Abode

Plan 82152KA

  • 4,868

    Heated s.f.

  • 3

    Beds

  • 3.5+

    Baths

  • 3

    Stories

  • 2

    Cars

  • High end amenities can be found on every level of this luxurious Tuscan house plan.
  • Long and narrow, the home is less than 38' wide, suitable for a deep narrow lot.
  • 12' high ceilings on the main floor give you a feeling of spaciousness.
  • Both the study and the huge kitchen have views of a terrace and garden while the vaulted and beamed family room, or sala, has a folding door system that takes you out to the covered outdoor living area with its fireplace.
  • Use the stairs or the residential elevator to take you from floor to floor.
  • The second floor holds two large guest suites and an activity room with balcony plus a second floor laundry room.
  • The entire third floor is devoted to the master suite that has two balconies, one on each side, a wet bar and a reading alcove.
  • The enormous his and her closet has a built-in island for extra storage.
  • There's still one more level - a sunken media room on the basement level with a wet bar and handy half bath.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

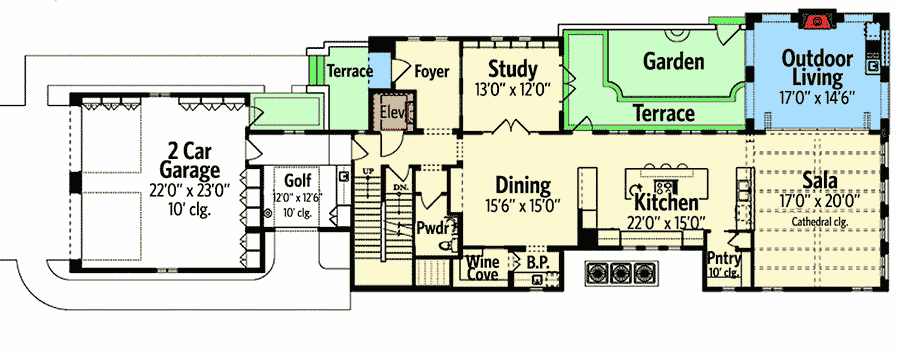

Three Story Tuscan Abode - 82152KA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

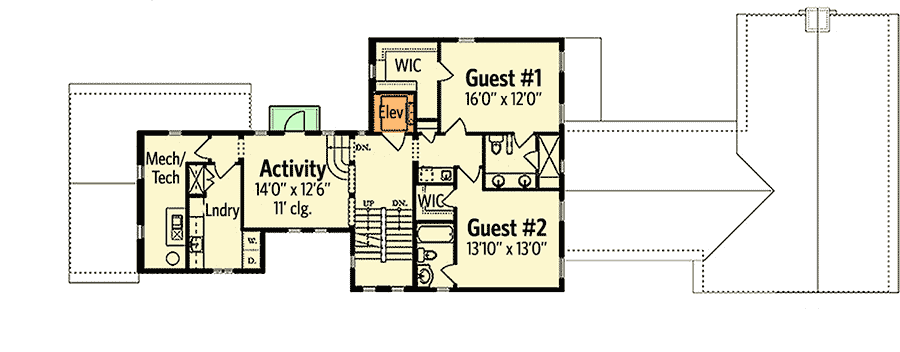

Three Story Tuscan Abode - 82152KA floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

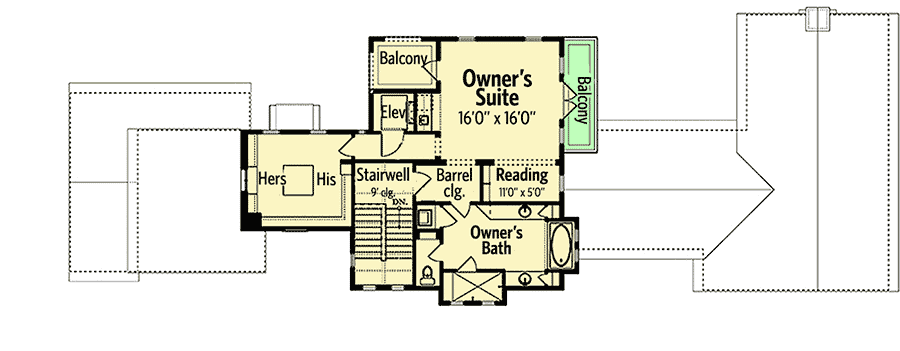

Three Story Tuscan Abode - 82152KA floor plan - 3rd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

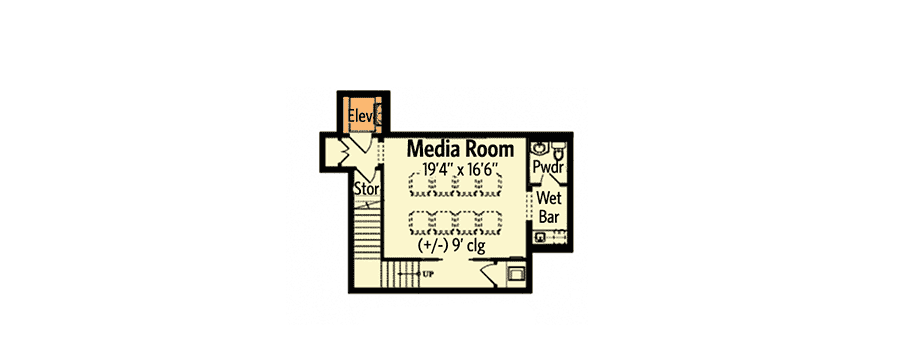

Three Story Tuscan Abode - 82152KA floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,868 sq. ft.
  • Lower Level: 563 sq. ft.
  • 1st Floor: 1,903 sq. ft.
  • 2nd Floor: 1,416 sq. ft.
  • 3rd Floor: 986 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 37' 8"
  • Depth: 109' 6"
  • Max ridge height: 40' 0"

Garage

  • Type: Attached
  • Area: 597 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 12' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Three Story Tuscan Abode

  • 4,868

    Heated s.f.

  • 3

    Beds

  • 5

    Baths

  • 3

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $3,195
  • PDF - Single-Build $3,495
  • CAD - Single-Build $3,495
  • View all purchase option online

About This Plan

  • High end amenities can be found on every level of this luxurious Tuscan house plan.
  • Long and narrow, the home is less than 38' wide, suitable for a deep narrow lot.
  • 12' high ceilings on the main floor give you a feeling of spaciousness.
  • Both the study and the huge kitchen have views of a terrace and garden while the vaulted and beamed family room, or sala, has a folding door system that takes you out to the covered outdoor living area with its fireplace.
  • Use the stairs or the residential elevator to take you from floor to floor.
  • The second floor holds two large guest suites and an activity room with balcony plus a second floor laundry room.
  • The entire third floor is devoted to the master suite that has two balconies, one on each side, a wet bar and a reading alcove.
  • The enormous his and her closet has a built-in island for extra storage.
  • There's still one more level - a sunken media room on the basement level with a wet bar and handy half bath.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,868 sq. ft.
  • Lower Level: 563 sq. ft.
  • 1st Floor: 1,903 sq. ft.
  • 2nd Floor: 1,416 sq. ft.
  • 3rd Floor: 986 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 37' 8"
  • Depth: 109' 6"
  • Max ridge height: 40' 0"

Garage

  • Type: Attached
  • Area: 597 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 12' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
Plan 82152KA
View this and more for this plan by visiting www.architechtecturaldesigns.com/82152KA
|
Need Help? 800-854-7852
|
Plan 82152KA
