  • This inviting 3-bedroom house plan features a clapboard exterior with shingle accent, a covered entry porch and a 2-car garage.
  • Inside, the open-concept main floor design offers clean sightlines, ample natural light, and versatile gathering spaces.
  • A wraparound kitchen boasts an island with breakfast bar, spacious walk-in pantry, and easy access to optional outdoor living space.
  • Guests will enjoy the privacy and convenience of a separate main-floor apartment with an exterior entry, full kitchen, and full bath.
  • On the second level, you’ll discover a large master suite with an elegant tray ceiling, generously sized walk-in closet, and 4-piece bath with an oversized walk-in shower.
  • Related Plans: Add an in-law apartment behind the garage with house plan 42546DB. Get an alternate exterior with house plans 42559DB and 42560DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

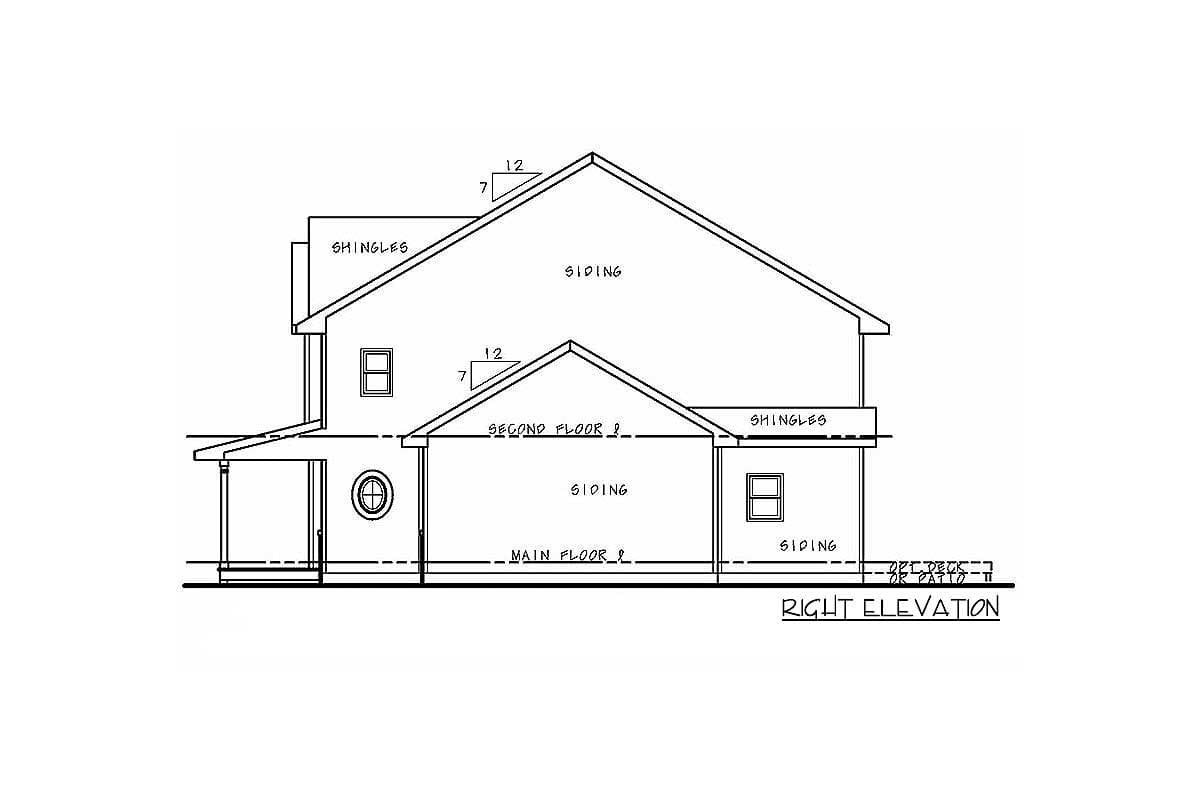

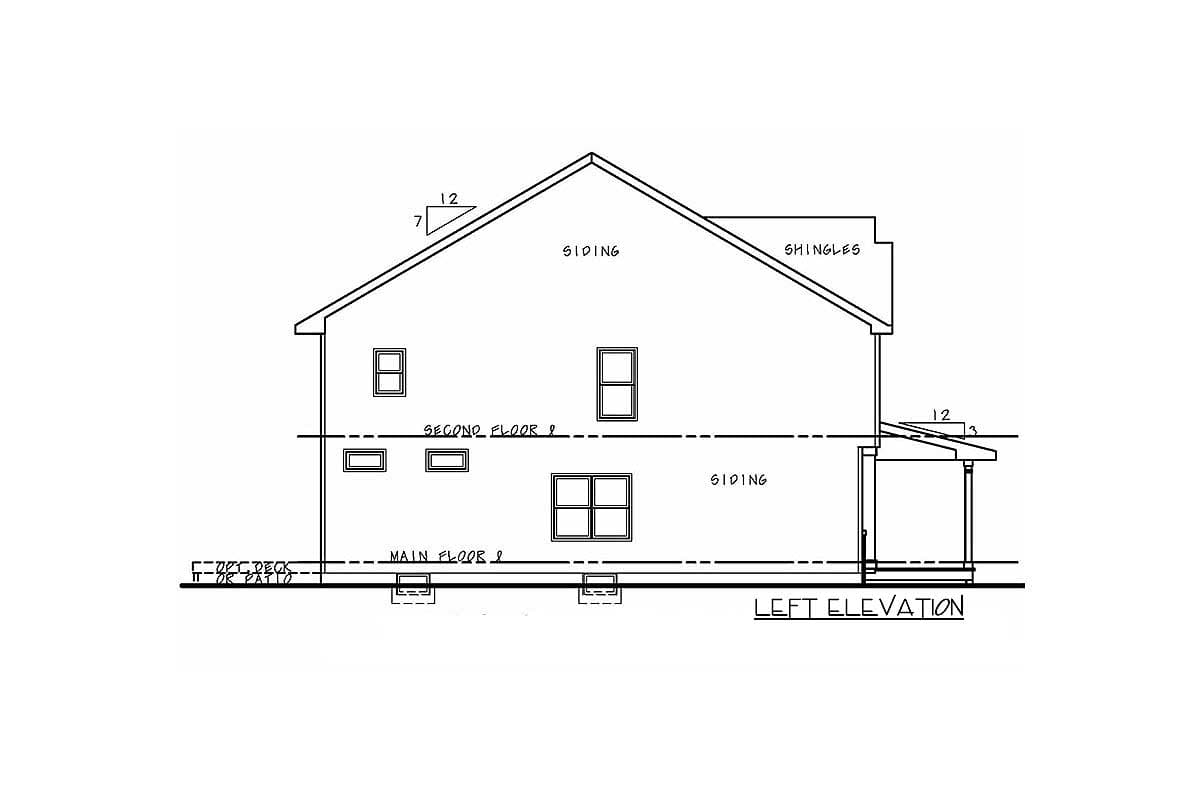

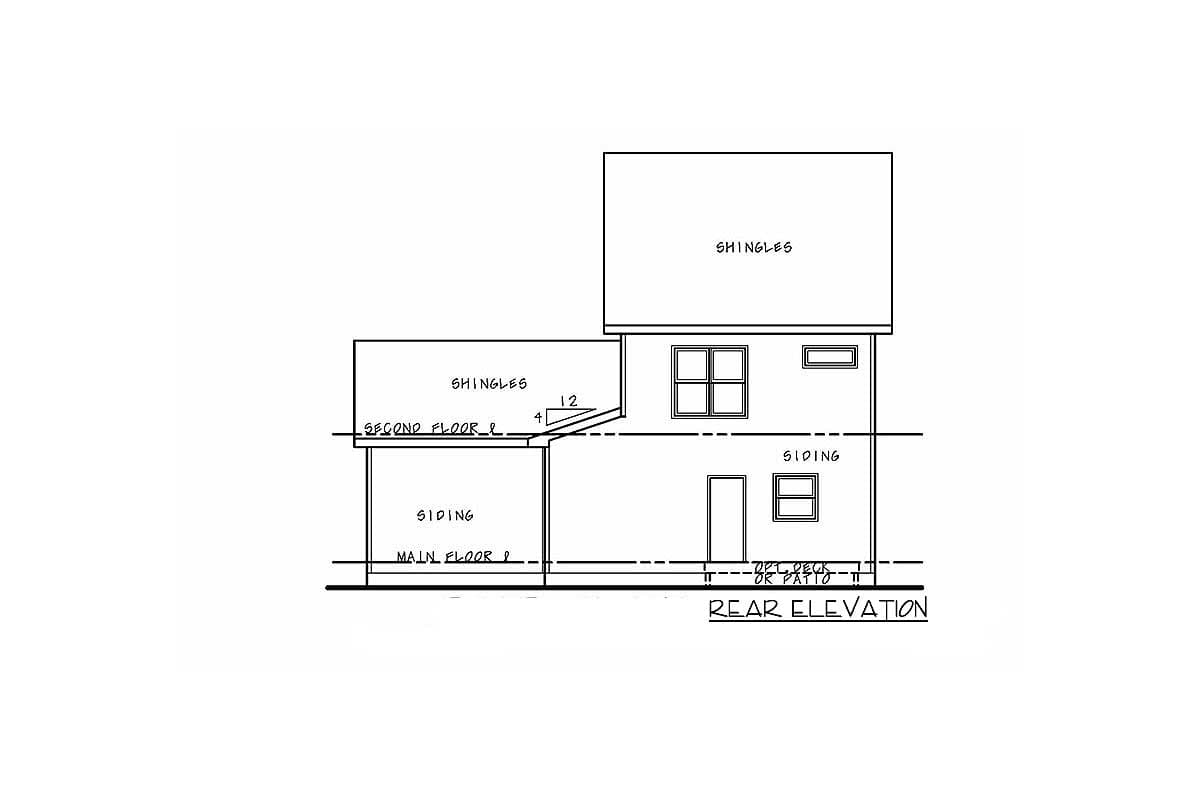

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Tidy 3-Bed House Plan with Master-On-Main

  • 1,751

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $630
  • PDF - single-use $955
  • 5 Sets $1,080
  • 5 Sets PLUS $1,125
  • 8 Sets $1,150
  • PDF - multi-use $1,455
  • CAD $1,671
  • CAD - multi-use $2,171
  • View all purchase option online

About This Plan

  • This inviting 3-bedroom house plan features a clapboard exterior with shingle accent, a covered entry porch and a 2-car garage.
  • Inside, the open-concept main floor design offers clean sightlines, ample natural light, and versatile gathering spaces.
  • A wraparound kitchen boasts an island with breakfast bar, spacious walk-in pantry, and easy access to optional outdoor living space.
  • Guests will enjoy the privacy and convenience of a separate main-floor apartment with an exterior entry, full kitchen, and full bath.
  • On the second level, you’ll discover a large master suite with an elegant tray ceiling, generously sized walk-in closet, and 4-piece bath with an oversized walk-in shower.
  • Related Plans: Add an in-law apartment behind the garage with house plan 42546DB. Get an alternate exterior with house plans 42559DB and 42560DB.

Floor Plans

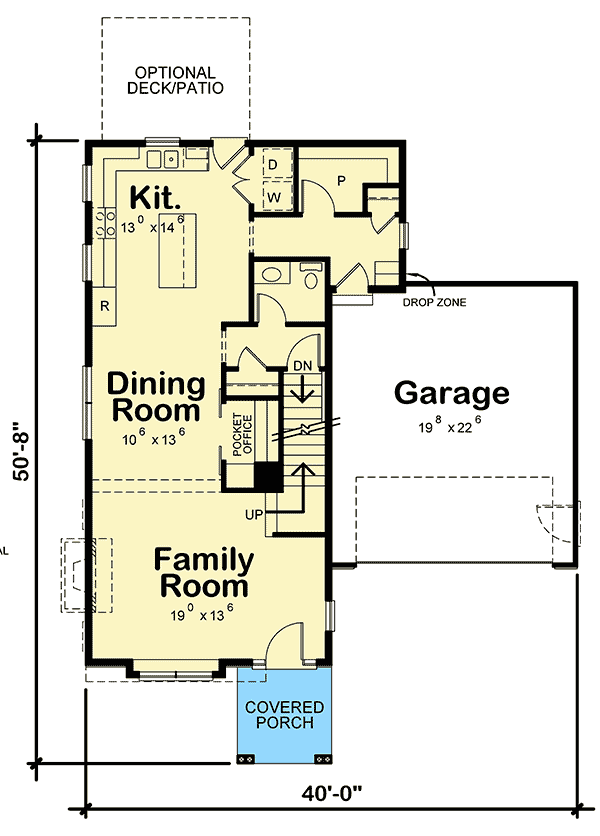

  • Main Level

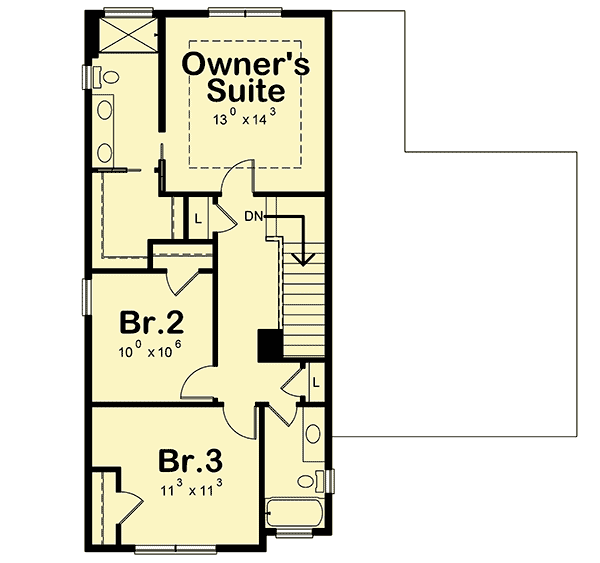

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,751 sq. ft.
  • 1st Floor: 927 sq. ft.
  • 2nd Floor: 816 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 50' 8"

Garage

  • Type: Attached
  • Area: 458 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
