Plan 710096BTZ

Tidy Traditional House Plan with Optional Third Floor

Tidy Traditional House Plan with Optional Third Floor

Plan 710096BTZ

  • 2,044

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2-3

    Stories

  • 2

    Cars

  • Even with a narrow footprint, this house plan accommodates 4 bedrooms.
  • The front-loading two-car garage conveniently accesses the kitchen for easy unloading of groceries.
  • The kitchen is open to the dining room and great room and has direct access to the rear deck.
  • Upstairs placement of all the bedrooms allows for energy-efficient heating and cooling. The master suite includes a walk-in closet and close proximity to the centrally-located laundry room.
  • An optional third floor bonus room offers expansion or storage space and could be used as a bedroom or study.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

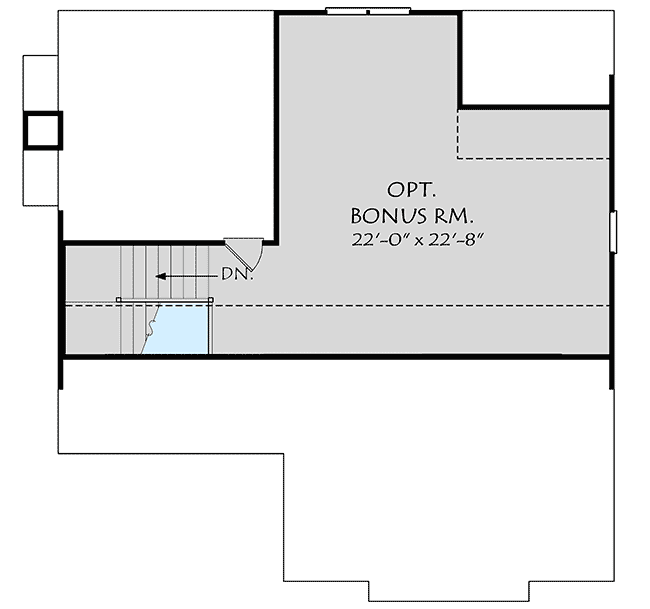

Optional Third Level Bonus Room

Tidy Traditional House Plan with Optional Third Floor - 710096BTZ floor plan - Optional Third Level Bonus Room

Plan details



Tidy Traditional House Plan with Optional Third Floor

  • 2,044

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2-3

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,280
  • 8 Sets $1,380
  • PDF - multi-use $1,380
  • Reproducible Set $1,445
  • CAD - multi-use $2,630
  • View all purchase option online

About This Plan

  • Even with a narrow footprint, this house plan accommodates 4 bedrooms.
  • The front-loading two-car garage conveniently accesses the kitchen for easy unloading of groceries.
  • The kitchen is open to the dining room and great room and has direct access to the rear deck.
  • Upstairs placement of all the bedrooms allows for energy-efficient heating and cooling. The master suite includes a walk-in closet and close proximity to the centrally-located laundry room.
  • An optional third floor bonus room offers expansion or storage space and could be used as a bedroom or study.

Floor Plans

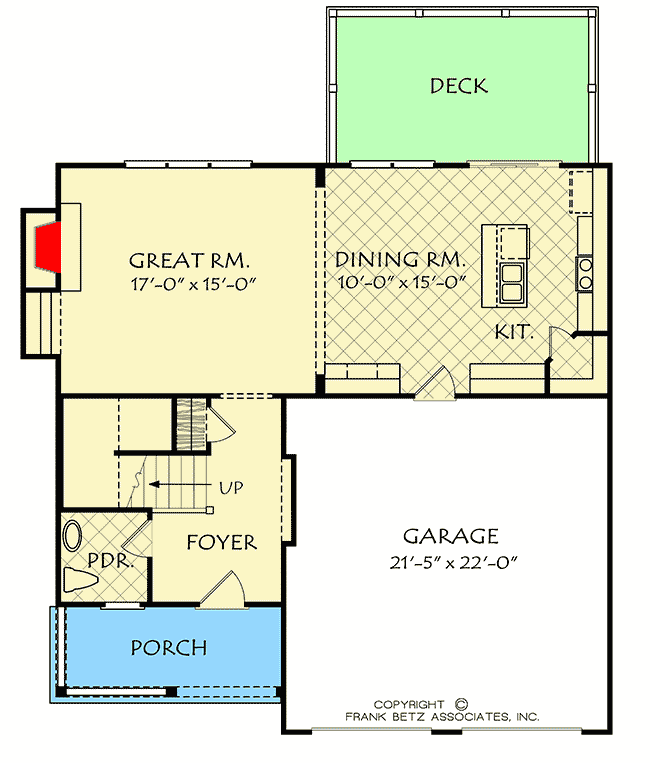

  • Main Level

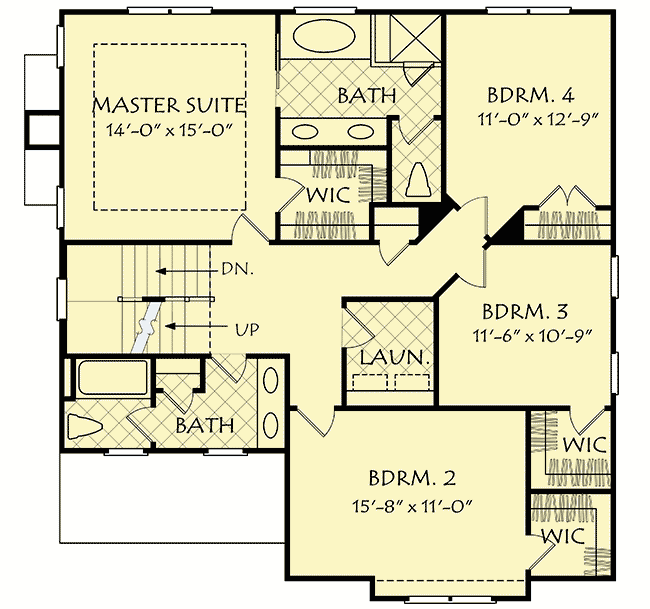

  • 2nd Floor

  • Optional Third Level Bonus Room

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,044 sq. ft.
  • 1st Floor: 818 sq. ft.
  • 2nd Floor: 1,226 sq. ft.
  • Bonus: 575 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 39' 4"
  • Depth: 38' 0"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
