Timber-Framed 2-Car Garage Workshop Barn Plan with 709 Sq Ft Loft - 1468 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
2

Floor Plan

Plan 373002TMB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 373002TMB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

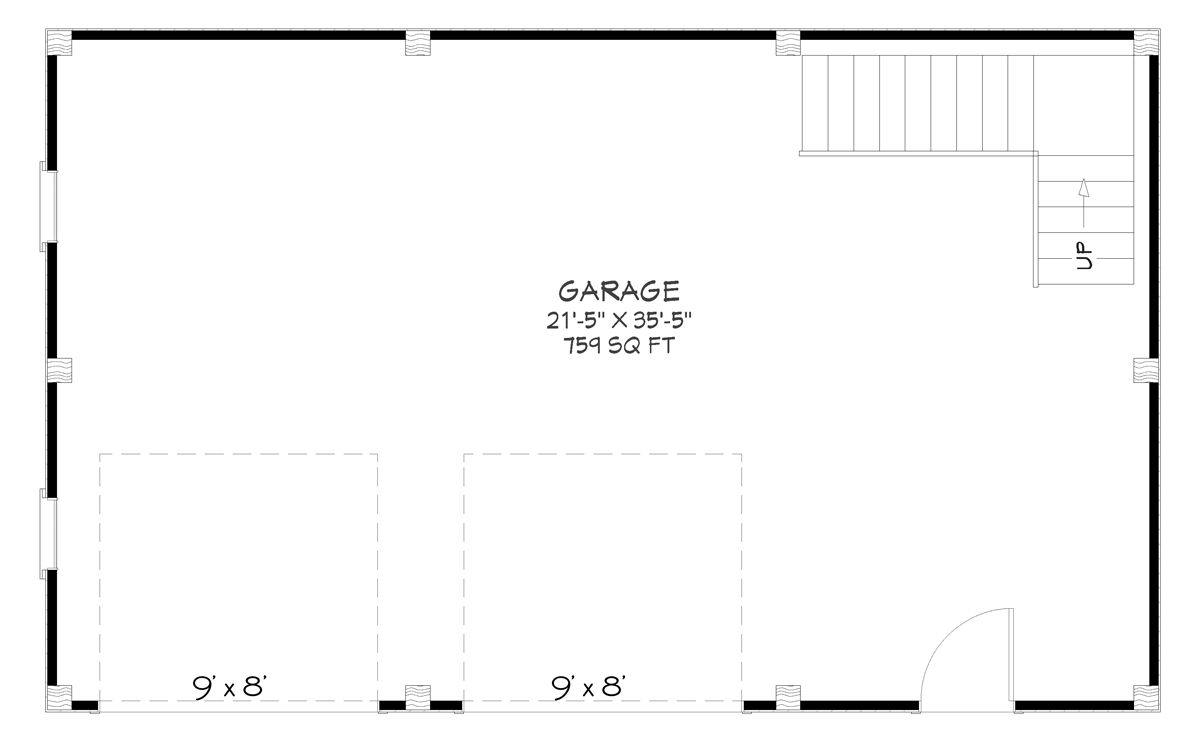

Plan 373002TMB: Timber-Framed 2-Car Garage Workshop Barn Plan with 709 Sq Ft Loft - 1468 Sq Ft - Floor Plan - Main Level - Barndominium, Country, Rustic, Traditional

2nd Floor

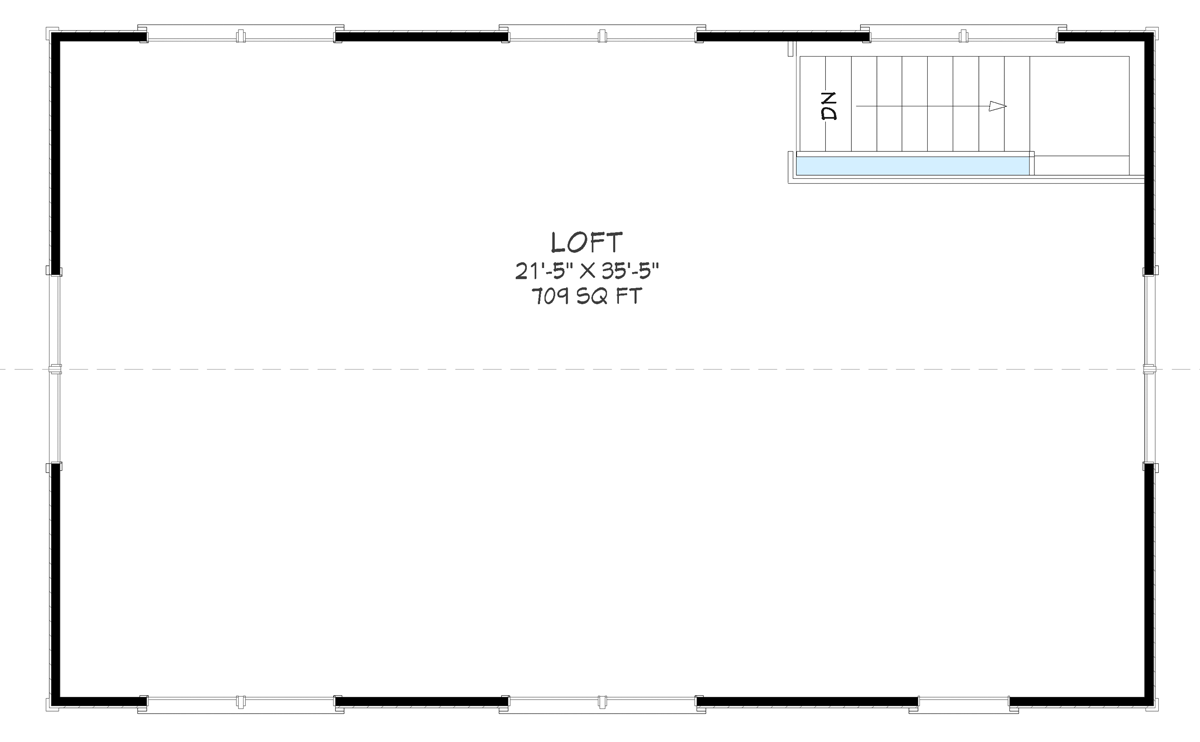

Plan 373002TMB: Timber-Framed 2-Car Garage Workshop Barn Plan with 709 Sq Ft Loft - 1468 Sq Ft - Floor Plan - 2nd Floor - Barndominium, Country, Rustic, Traditional

Plan Details

  • Introducing our expansive 22' x 36' timber-framed barn garage workshop plan, a versatile masterpiece designed to enhance any property.
  •  The main level is a 2-bay garage with 759 square feet of space, offering flexible functionality. Use as a workshop, storage area, or a garage with its two 9'x8' overhead doors and a standard man door across from the loft stairs.
  •  The second-level loft offers an additional 709 square feet of flexible space.
  • This plan is complete with a cross-section detail, precise staircase specifications, and a comprehensive timber, fastener, connector list, all wall layouts, beam layouts, rafter layout, and fastening details, ensuring nothing is overlooked.
  • This barn with loft features 8x8 posts, 8x12 plate beams, 10x12 and 10x18 girders, 6x10 joists, 4x6 knee braces, 3x14 ridge boards, and 4x8 and 4x10 rafters. Every element is carefully chosen to blend aesthetics with robust construction.
