Timeless Bungalow Plan with Screened Porch and Home Office

Plan 50196PH

  • 2,988

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • Classic Craftsman features consume the front elevation of this timeless Bungalow house plan; inside, modern updates make this the perfect home for families or empty nesters.
  • A home office and guest bedroom frame the foyer, while a few steps further you will find a media room across from the mudroom.
  • The rear is reserved for the kitchen, dining, and living areas, completely open to one another and extending onto a screened porch for outdoor living. The kitchen boasts an oversized island and walk-in pantry, along with plenty of workspace.
  • The master is located on the second level, conveniently located next to the laundry room. The walk-in closet and 5-fixture bathroom complete the master suite.
  • Bedrooms 2 and 3 can be found down the hall, across from a shared bath with two sinks.

Each plan set includes the following:

  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

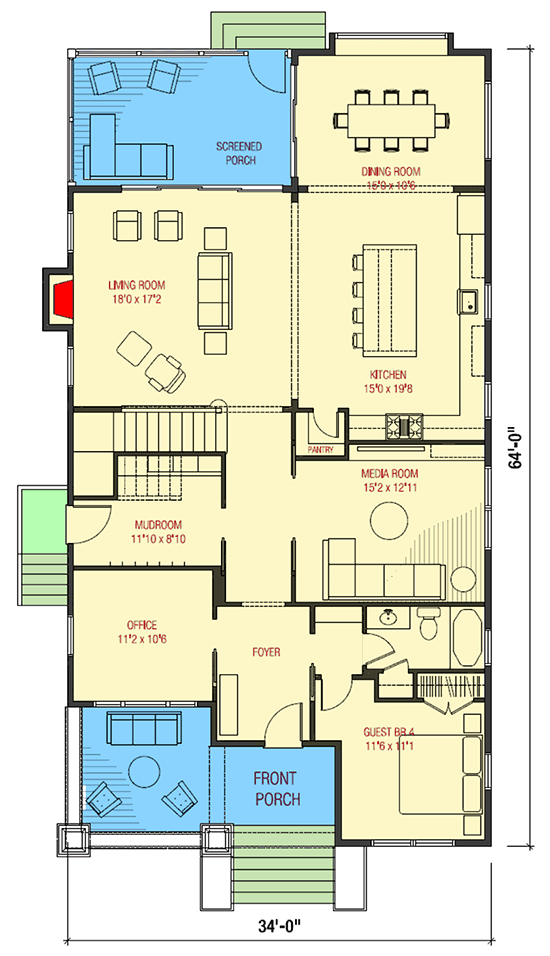

Timeless Bungalow Plan with Screened Porch and Home Office - 50196PH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

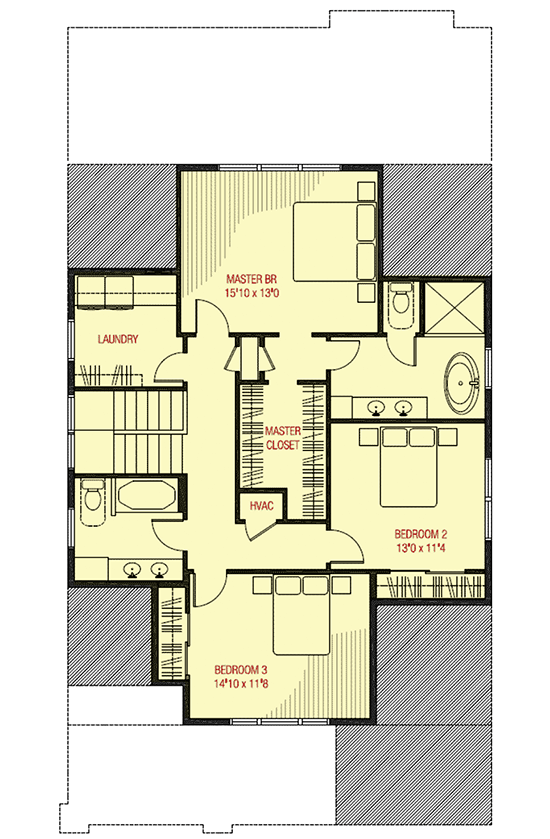

Timeless Bungalow Plan with Screened Porch and Home Office - 50196PH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,988 sq. ft.
  • 1st Floor: 1,792 sq. ft.
  • 2nd Floor: 1,206 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 64' 0"
  • Max ridge height: 28' 6"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12

Architectural Style

Special features

Timeless Bungalow Plan with Screened Porch and Home Office

  • 2,988

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $2,225
  • 5 Sets + PDF $2,425
  • 5 Sets $2,500
  • CAD - Single-Build $4,500
  • View all purchase option online

About This Plan

  • Classic Craftsman features consume the front elevation of this timeless Bungalow house plan; inside, modern updates make this the perfect home for families or empty nesters.
  • A home office and guest bedroom frame the foyer, while a few steps further you will find a media room across from the mudroom.
  • The rear is reserved for the kitchen, dining, and living areas, completely open to one another and extending onto a screened porch for outdoor living. The kitchen boasts an oversized island and walk-in pantry, along with plenty of workspace.
  • The master is located on the second level, conveniently located next to the laundry room. The walk-in closet and 5-fixture bathroom complete the master suite.
  • Bedrooms 2 and 3 can be found down the hall, across from a shared bath with two sinks.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,988 sq. ft.
  • 1st Floor: 1,792 sq. ft.
  • 2nd Floor: 1,206 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 64' 0"
  • Max ridge height: 28' 6"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
