Plan 52284WM Tiny Cottage or Guest Quarters

597 1 1 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Tiny Cottage or Guest Quarters

Plan 52284WM

  • 597

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

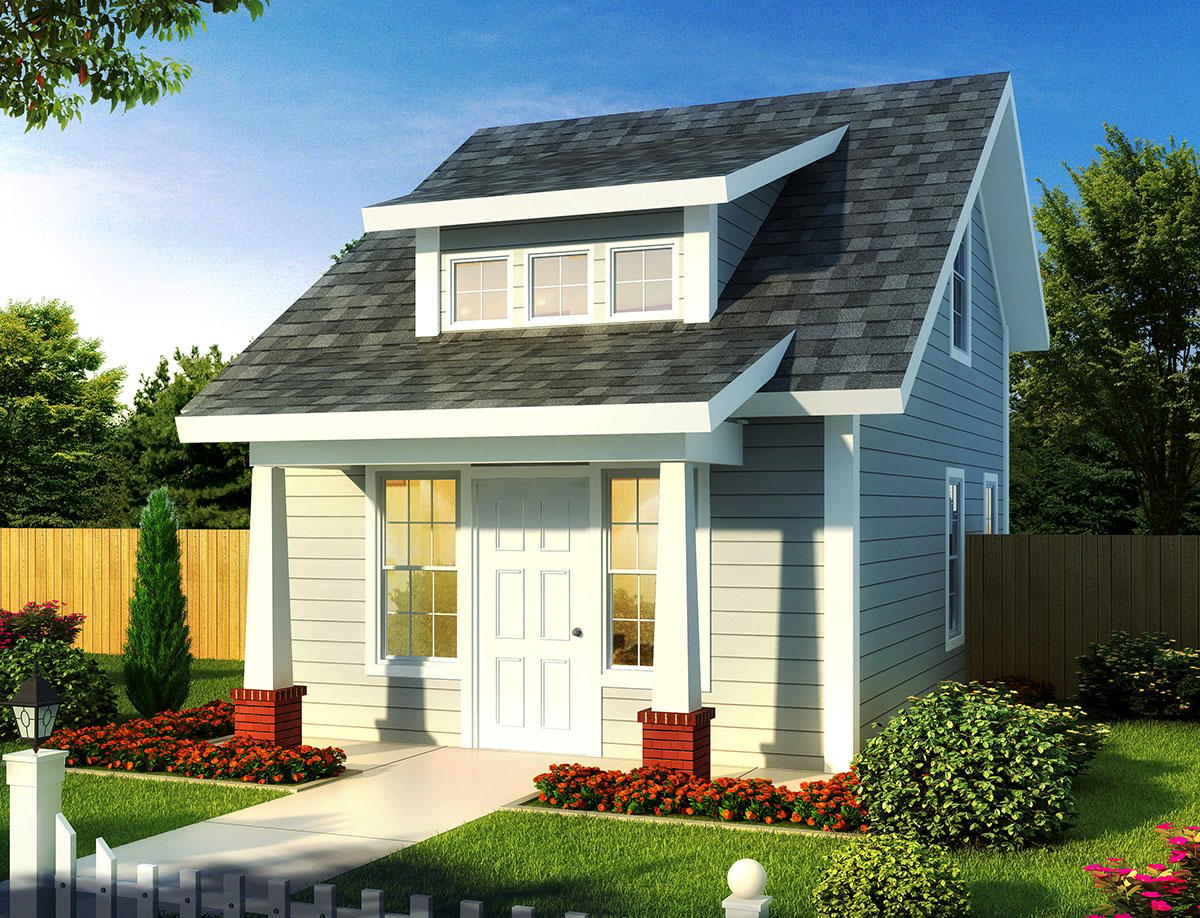

  • Just 16' wide, this Tiny Cottage can serve as a full home or as guest quarters on your lot.
  • A big front porch brings you right into the main living space where the sloped ceilings expand the room.
  • With its open floor plan, you can see all the way from the kitchen to the front of the house.
  • There are two places to eat - at the peninsula eating bar or on a table in the dining area.
  • A stack washer/dryer give you the most room in a small space.
  • Upstairs, the bedroom ceiling slopes up from a 4' knee wall to 8' at the center.
  • The walk-in closet is an added bonus.

  • Front elevation and construction notes

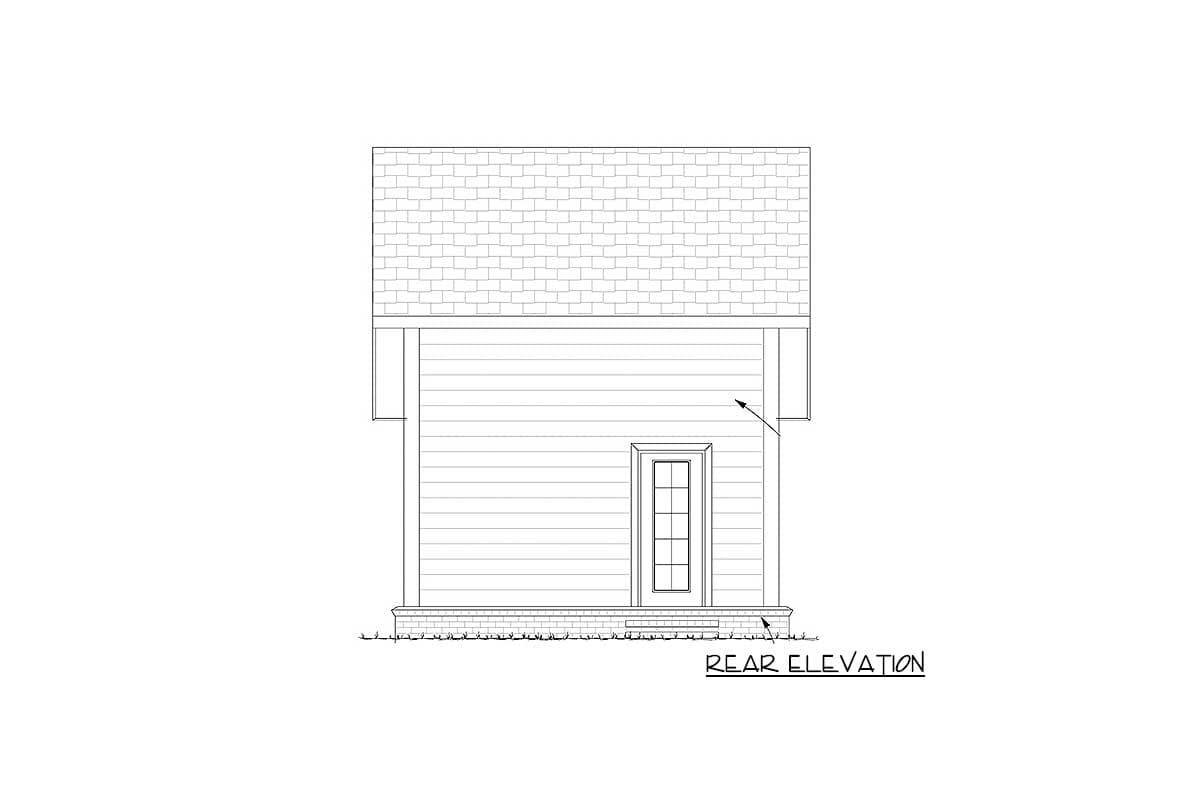

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

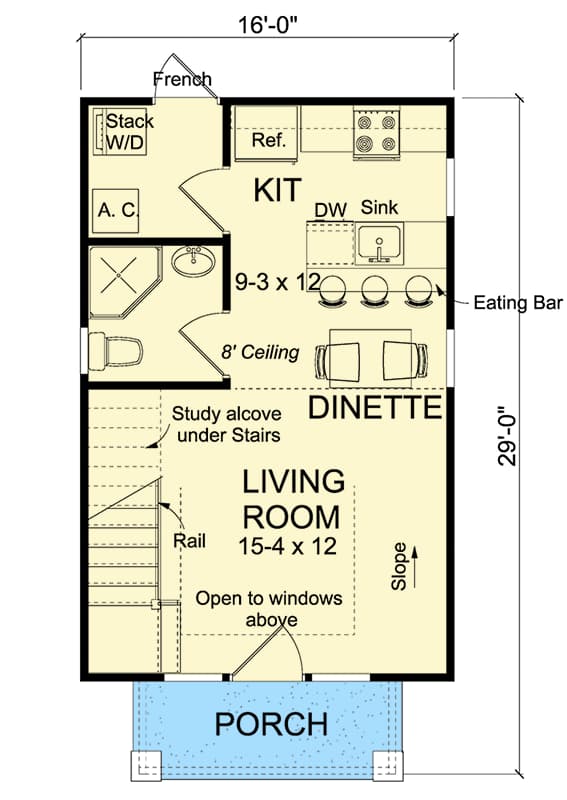

Tiny Cottage or Guest Quarters - 52284WM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

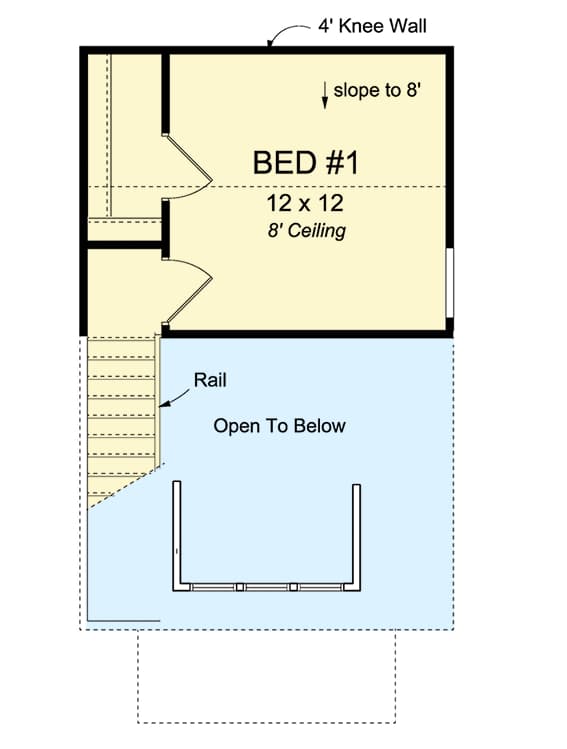

Tiny Cottage or Guest Quarters - 52284WM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 597 sq. ft.
  • 1st Floor: 400 sq. ft.
  • 2nd Floor: 197 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 16' 0"
  • Depth: 29' 0"
  • Max ridge height: 20' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Living Room Cathedral
Bedroom 1 Vaulted

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Tiny Cottage or Guest Quarters

  • 597

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 597 sq. ft.
  • 1st Floor: 400 sq. ft.
  • 2nd Floor: 197 sq. ft.

Dimensions

  • Width: 16' 0"
  • Depth: 29' 0"
  • Max ridge height: 20' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
