Tiny Country Cottage with Loft

Plan 430811SNG

  • 548

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • A smart-sized home ideal for a single or couple who need a small loft area for guests, or to use as a home office.
  • A 100 square foot unfinished bonus room has a window that meets egress requirements and can be finished into a small bedroom or any of many other purposes.
  • A kitchen with a street-facing window is a great feature that many plans lack. The kitchen is wide open to the living area with 11' high walls and a vaulted ceiling.
  • The bedroom, with enough space for a queen bed, 4-1/2 ft. of closet space and room for a small chest of drawers is "just right!"
  • A closet between the bedroom and bath offers additional storage.
  • Space for a traditional washer and dryer (side by side) is neatly tucked away under the stairs and conveniently accessible from the bathroom.
  • DELIVERY NOTE: Please allow 4 to 6 business days for delivery.

The plan set includes the following:

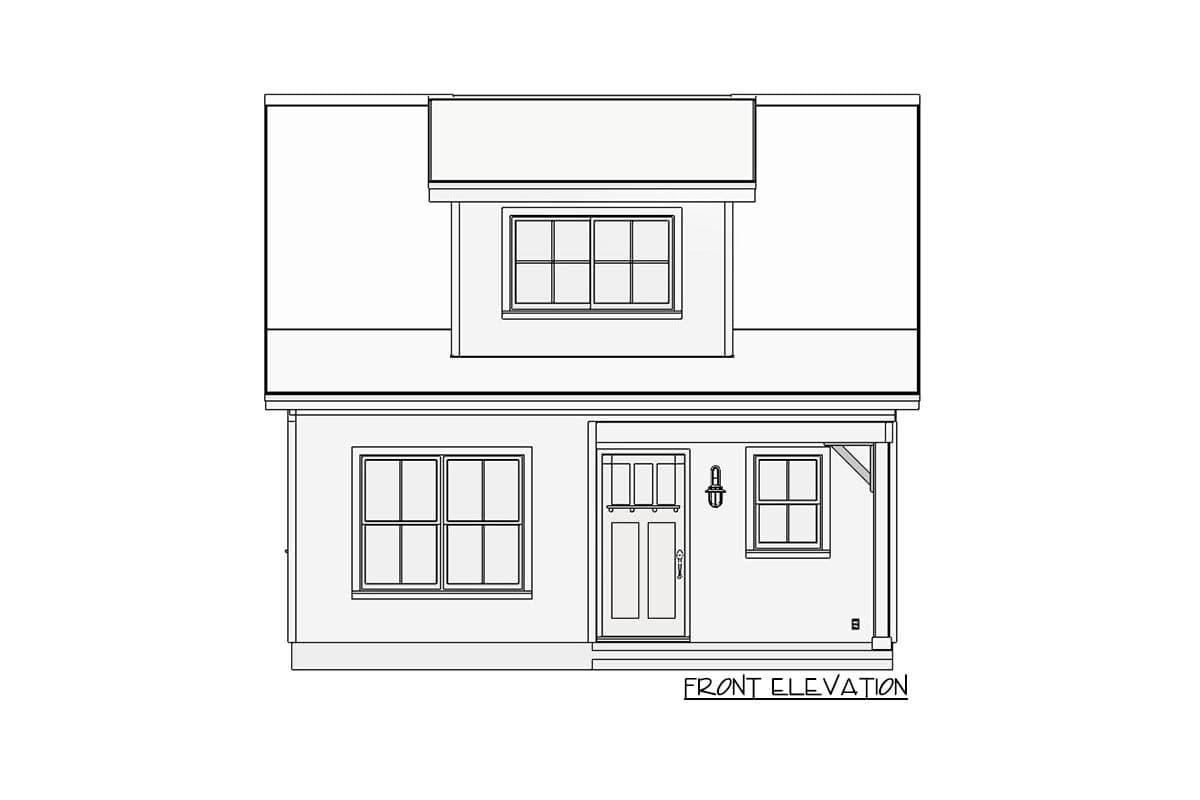

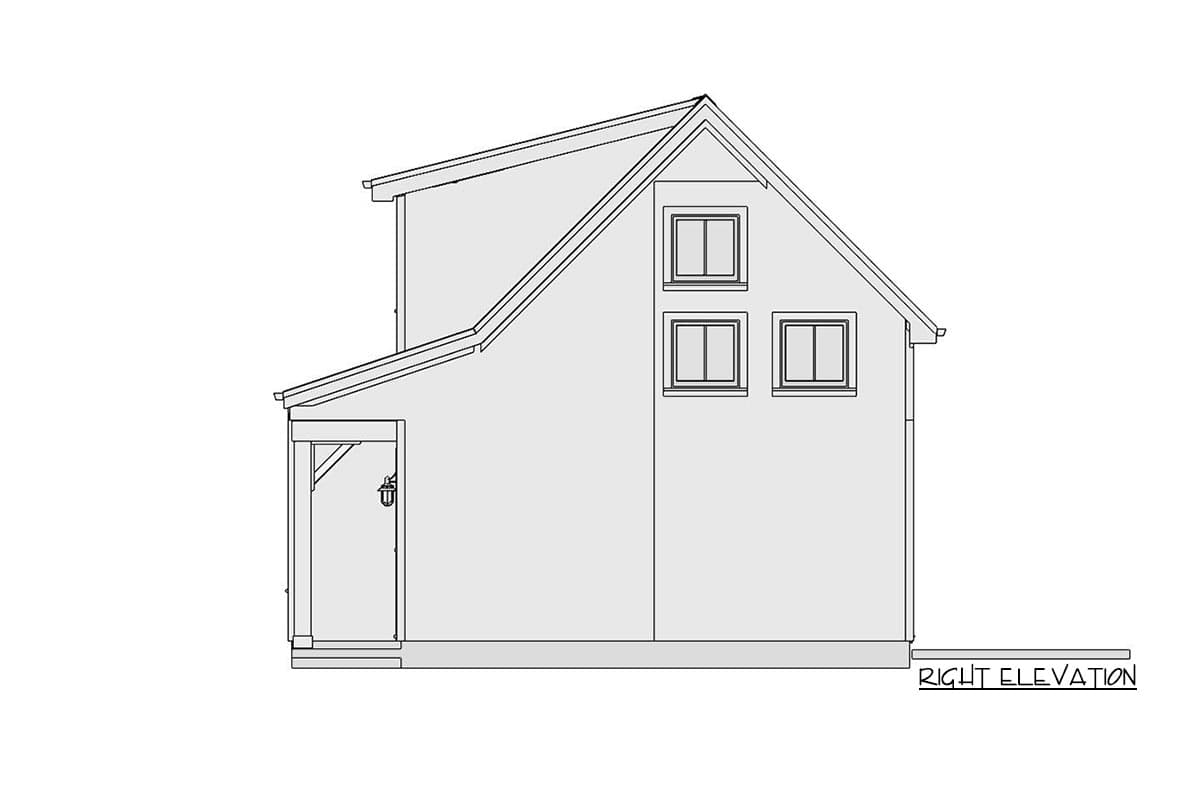

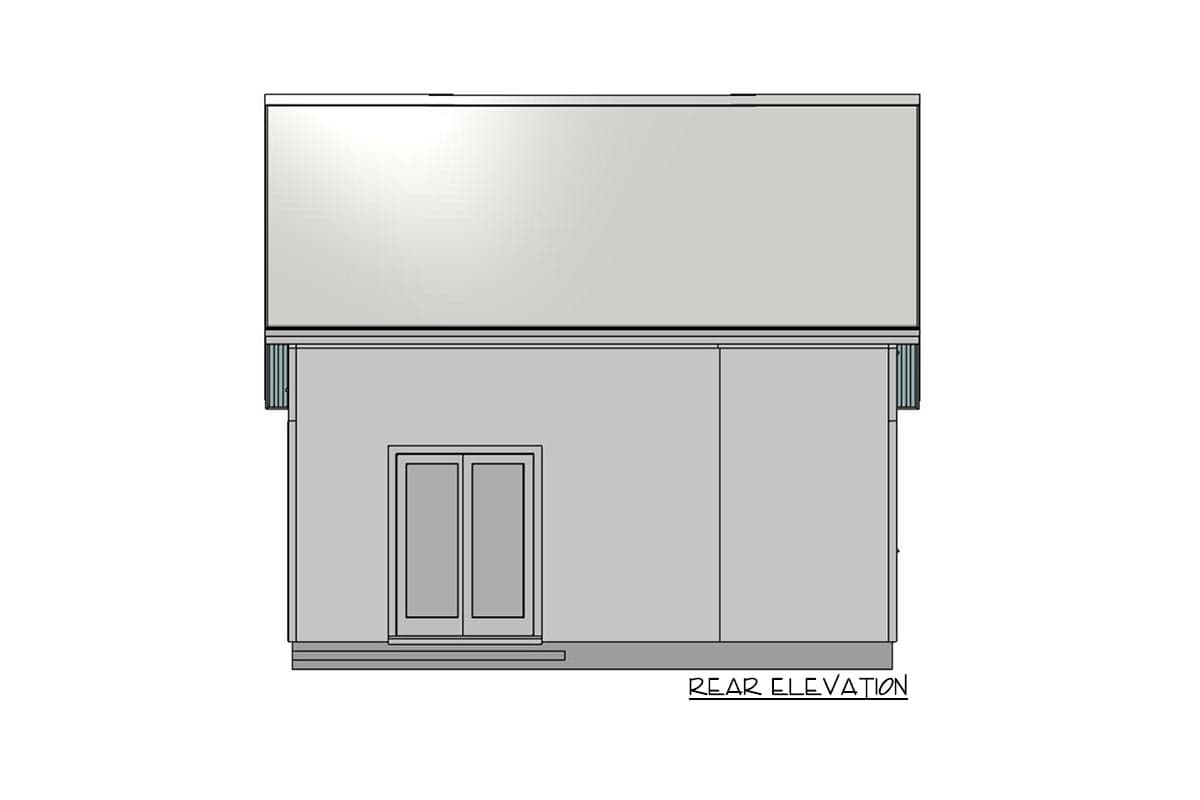

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

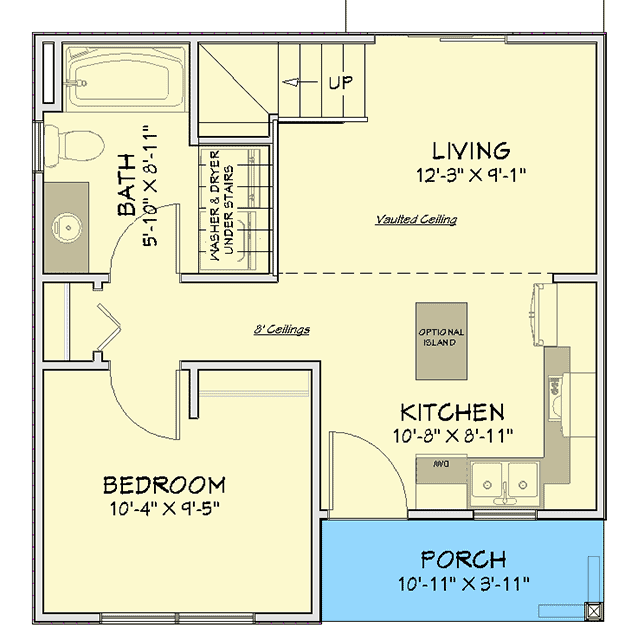

Tiny Country Cottage with Loft - 430811SNG floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

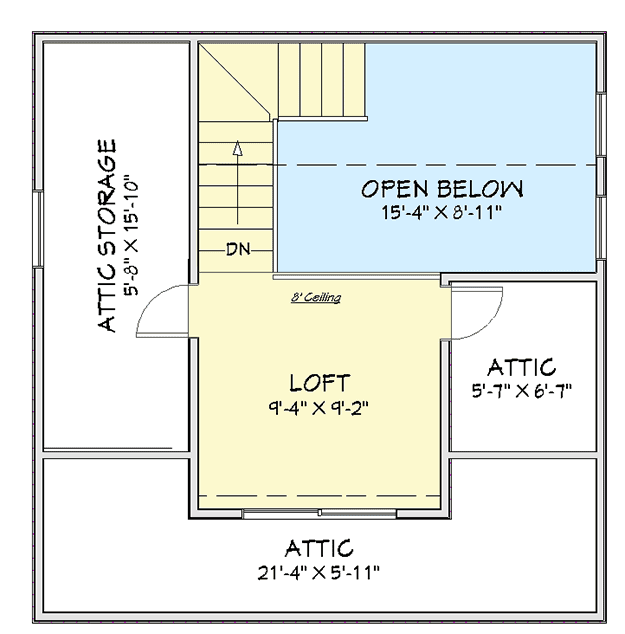

Tiny Country Cottage with Loft - 430811SNG floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 548 sq. ft.
  • 1st Floor: 455 sq. ft.
  • 2nd Floor: 93 sq. ft.
  • Storage: 12 sq. ft.
  • Attic: 40 sq. ft.
  • Porch, Front: 44 sq. ft.
  • Loft: 93 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Monolithic Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 22' 0"
  • Depth: 22' 8"
  • Max ridge height: 20' 2"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Bedroom 1 Flat 8' 0"
Kitchen Flat 8' 0"
Master Bath Flat 8' 0"
Bonus Slope 2' 0" to 8' 0"
Loft Flat 8' 0"
Living Room Volume 11' 8" to 16' 5"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Tiny Country Cottage with Loft

  • 548

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $750
  • CAD - Unlimited Build $1,150
  • View all purchase option online

About This Plan

  • A smart-sized home ideal for a single or couple who need a small loft area for guests, or to use as a home office.
  • A 100 square foot unfinished bonus room has a window that meets egress requirements and can be finished into a small bedroom or any of many other purposes.
  • A kitchen with a street-facing window is a great feature that many plans lack. The kitchen is wide open to the living area with 11' high walls and a vaulted ceiling.
  • The bedroom, with enough space for a queen bed, 4-1/2 ft. of closet space and room for a small chest of drawers is "just right!"
  • A closet between the bedroom and bath offers additional storage.
  • Space for a traditional washer and dryer (side by side) is neatly tucked away under the stairs and conveniently accessible from the bathroom.
  • DELIVERY NOTE: Please allow 4 to 6 business days for delivery.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 548 sq. ft.
  • 1st Floor: 455 sq. ft.
  • 2nd Floor: 93 sq. ft.
  • Storage: 12 sq. ft.
  • Attic: 40 sq. ft.
  • Porch, Front: 44 sq. ft.
  • Loft: 93 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 22' 0"
  • Depth: 22' 8"
  • Max ridge height: 20' 2"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
Plan 430811SNG
