Tiny House Living

Plan 52281WM

This plan plants 3 trees

664
Heated s.f.
1
Beds
1.5
Baths
2
Stories

Just 664 square feet of finished, heated living space makes this a wonderful Tiny House option.
The open layout and vaulted ceiling of the living room makes the house feel much larger.
The kitchen holds full size appliances and an island for extra storage.
Sliding glass doors in the dinette bring in light and take you out to the back yard.
The bedroom is on the second floor and has a sloped ceiling along with a full bathroom.

Front elevation and construction notes

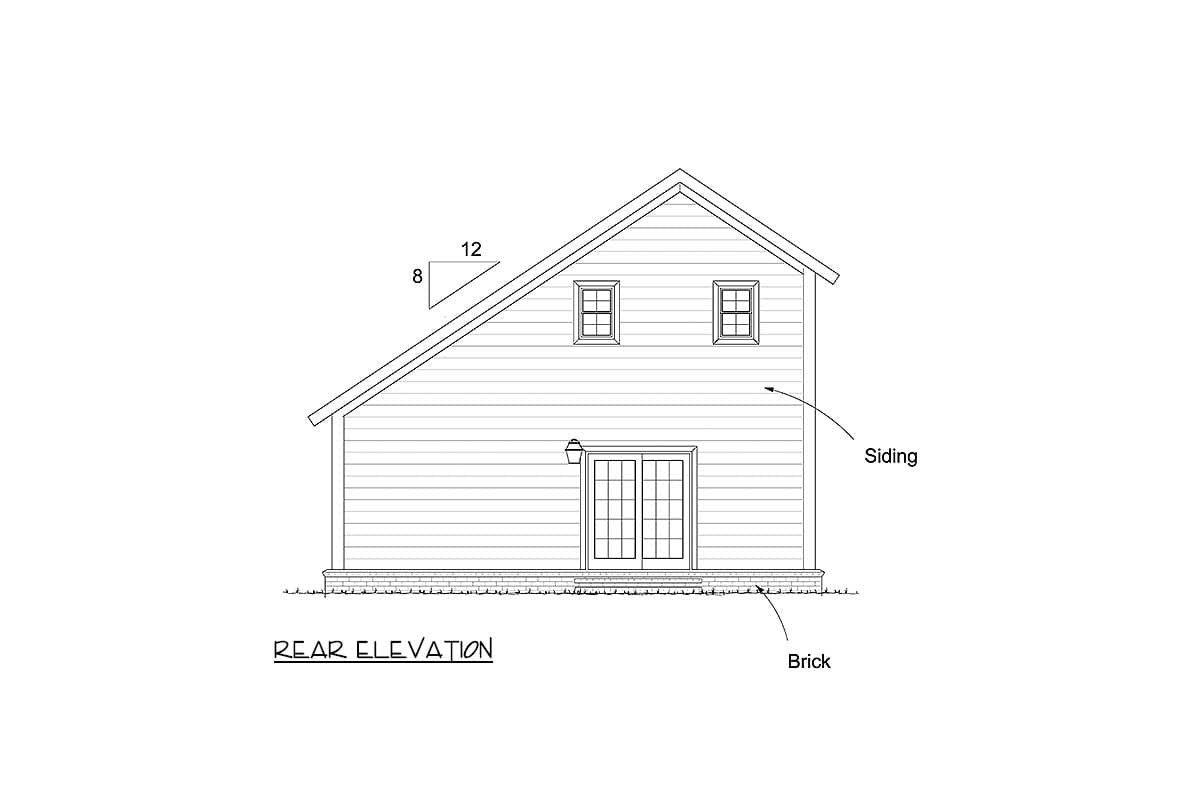

Rear and side elevations
Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
Second floor plan (if applicable) with the same details as the first level floor plan
Typical wall section
Typical foundation details
Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
Foundation plan
Most plans have an optional full building section--only available upon request--at no extra cost. This section is not typically required in the US but can be a requirement in Canada

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

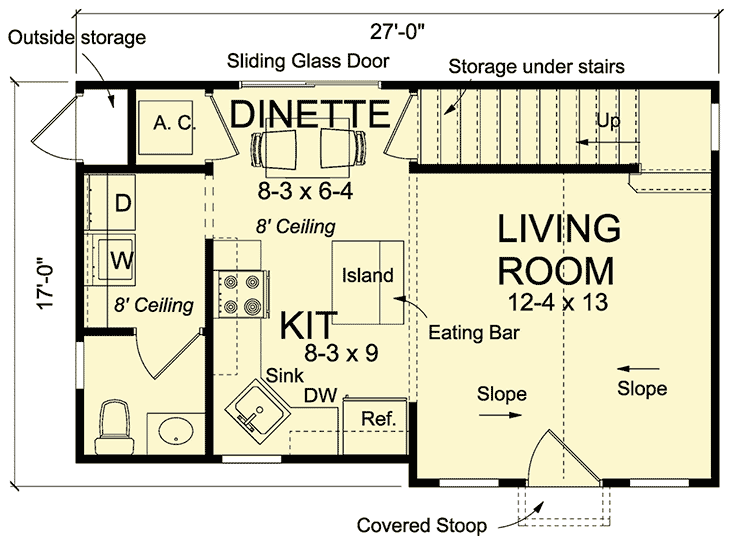

Tiny House Living - 52281WM floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

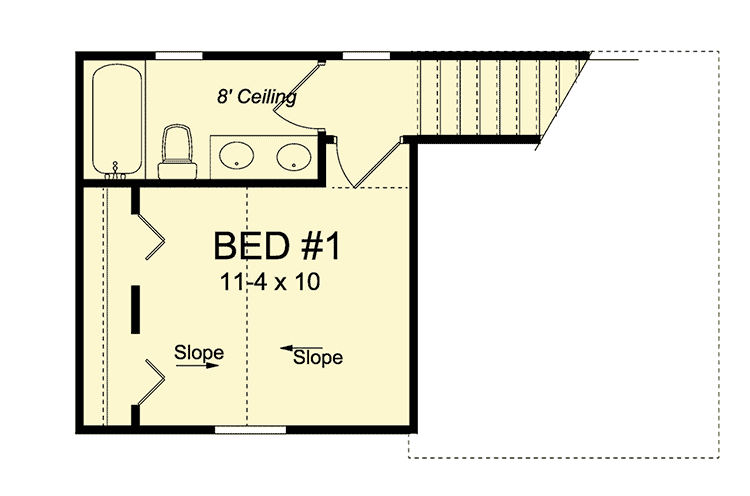

Tiny House Living - 52281WM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 664 sq. ft.
1st Floor: 435 sq. ft.
2nd Floor: 229 sq. ft.

Beds/Baths

Bedrooms: 1

Full bathrooms: 1
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Optional Foundations: Crawl, Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 27' 0"
Depth: 17' 0"
Max ridge height: 22' 8"

Ceiling Heights

Room Details	Ceiling Type	Width	Depth	Height
Living Room	Vaulted
Bedroom 1	Vaulted

Roof Details

Primary Pitch: 8 on 12

Framing Type: Stick
