Plan 530018UKD Tiny House Plan with Flexible Layout

723 1 1 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Tiny House Plan with Flexible Layout

Plan 530018UKD

  • 723

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

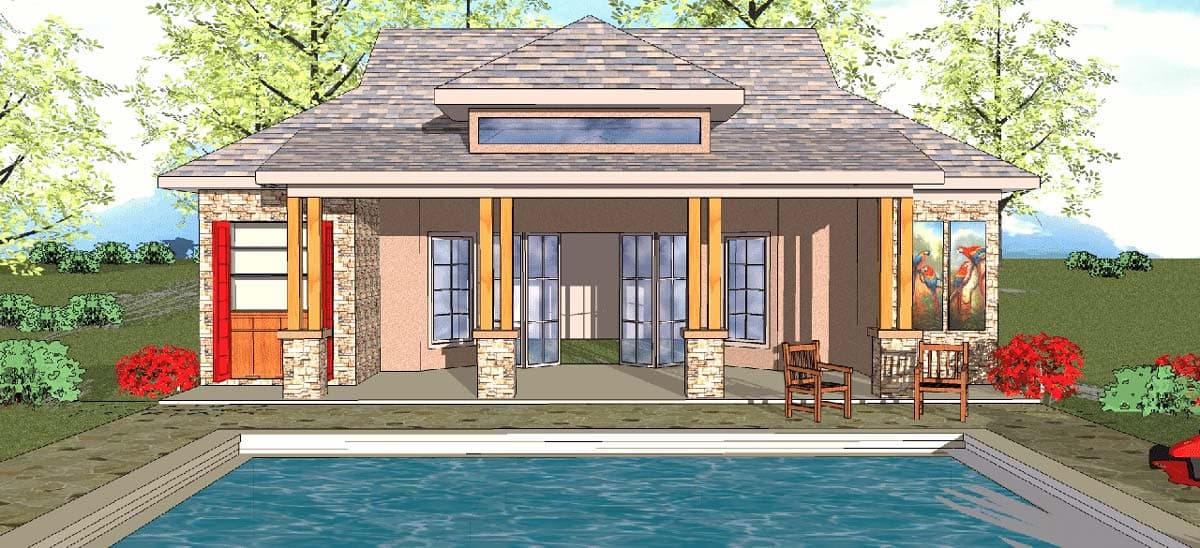

  • This house can function as guest quarters or give you tiny house living and comes in several different versions.
  • Enjoy the open floor plan with the kitchen open to the living area. French doors open to the covered porch and the walls to either side of the doors collapse giving you a great indoor-outdoor flow.
  • The bedroom has access to the bath which is also accessible from the main portion of the home and from the porch.
  • Close off the outdoor wet bar with folding shutters when the party's over.
  • Related Plans: Convert the bedroom to a sleeping area with house plan 530011UKD. And get alternate exteriors with house plans 530013UKD and 530015UKD.

Below is a listing of sheets typically included in our plans:

1.      Title Sheet -  Isometric of Front Elevation

2.      Foundation Plan ‐ shows the foundation plan and details.  ¼” = 1’-0

3.      Floor Plan ‐ shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.  ¼” = 1’-0 scale

4.      Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches.  ¼” = 1’-0

5.      Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the construction of the home, insulation, flooring and roofing.

6.      Interior Elevations ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.

7.      Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers.

8.      Roof Framing Plan - provides guideline for rafters, ridges, hip framing

9.      Electrical Plan ‐ shows the suggested locations for fixtures, outlets, switches, etc.

10.  Notes & Details ‐ per IRC 2015


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

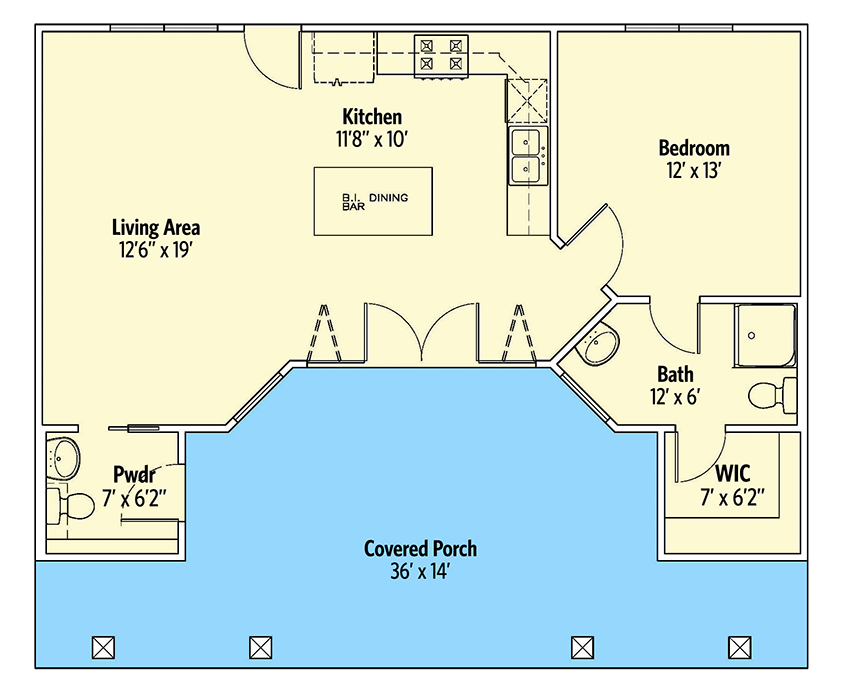

Tiny House Plan with Flexible Layout - 530018UKD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 723 sq. ft.
  • 1st Floor: 723 sq. ft.
  • Covered Patio: 357 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 30' 0"
  • Max ridge height: 19' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Tiny House Plan with Flexible Layout

  • 723

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $600
  • CAD - Single-Build $1,300
  • View all purchase option online

About This Plan

  • This house can function as guest quarters or give you tiny house living and comes in several different versions.
  • Enjoy the open floor plan with the kitchen open to the living area. French doors open to the covered porch and the walls to either side of the doors collapse giving you a great indoor-outdoor flow.
  • The bedroom has access to the bath which is also accessible from the main portion of the home and from the porch.
  • Close off the outdoor wet bar with folding shutters when the party's over.
  • Related Plans: Convert the bedroom to a sleeping area with house plan 530011UKD. And get alternate exteriors with house plans 530013UKD and 530015UKD.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 723 sq. ft.
  • 1st Floor: 723 sq. ft.
  • Covered Patio: 357 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 30' 0"
  • Max ridge height: 19' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
Plan 530018UKD
View this and more for this plan by visiting www.architechtecturaldesigns.com/530018UKD
|
