Tiny House Plan with Vaulted Interior and Covered Porch

Plan 530020UKD

This plan plants 3 trees

1,013
Heated s.f.
1
Beds
1.5
Baths
1
Stories

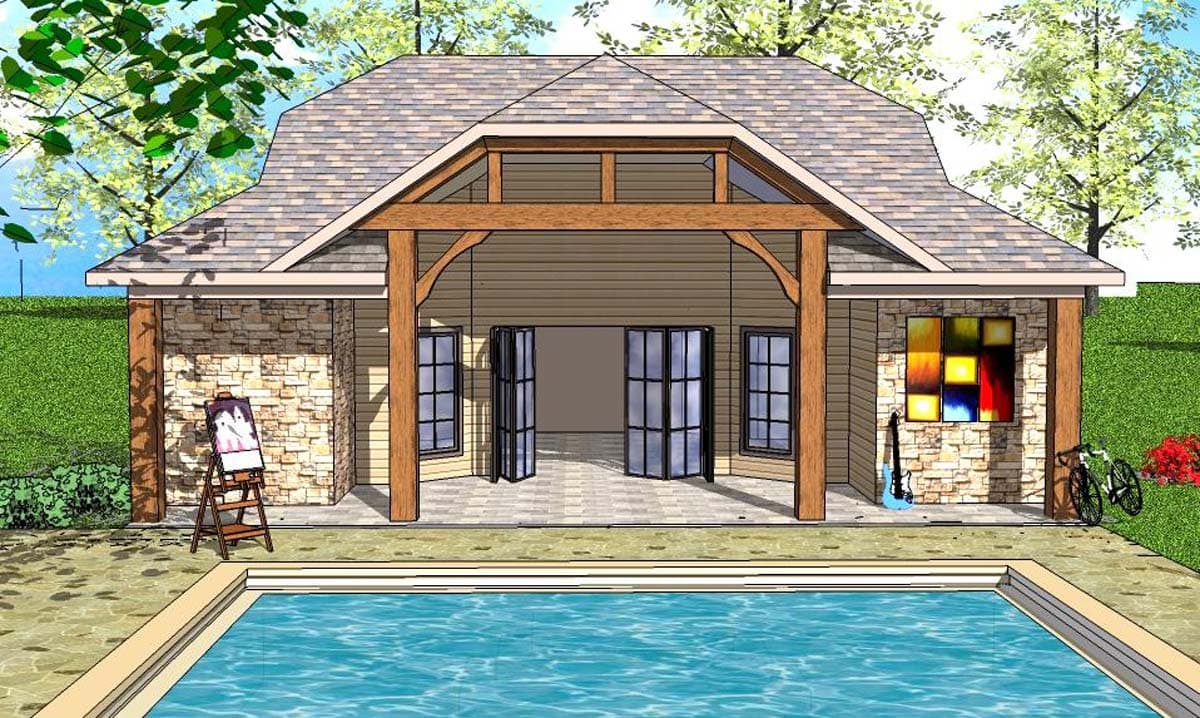

This house can function as guest quarters or give you tiny house living and comes in several different sizes.
Enjoy the open floor plan with the kitchen open to the vaulted living area. French doors open to the covered porch and the walls to either side of the doors collapse giving you a great indoor-outdoor flow.
The bedroom has convenient access to the bath with walk-in closet.
Related Plans: Get 2 bedrooms with house plan 530022UKD (1,389 sq. ft.) and smaller versions with house plans 530015UKD (701 sq. ft.) and 530017UKD (681 sq. ft.).

Below is a listing of sheets typically included in our plans:

1. Title Sheet - Isometric of Front Elevation

2. Foundation Plan ‐ shows the foundation plan and details. ¼” = 1’-0

3. Floor Plan ‐ shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house. ¼” = 1’-0 scale

4. Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches. ¼” = 1’-0

5. Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the construction of the home, insulation, flooring and roofing.

6. Interior Elevations ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.

7. Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers.

8. Roof Framing Plan - provides guideline for rafters, ridges, hip framing

9. Electrical Plan ‐ shows the suggested locations for fixtures, outlets, switches, etc.

10. Notes & Details ‐ per IRC 2015

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

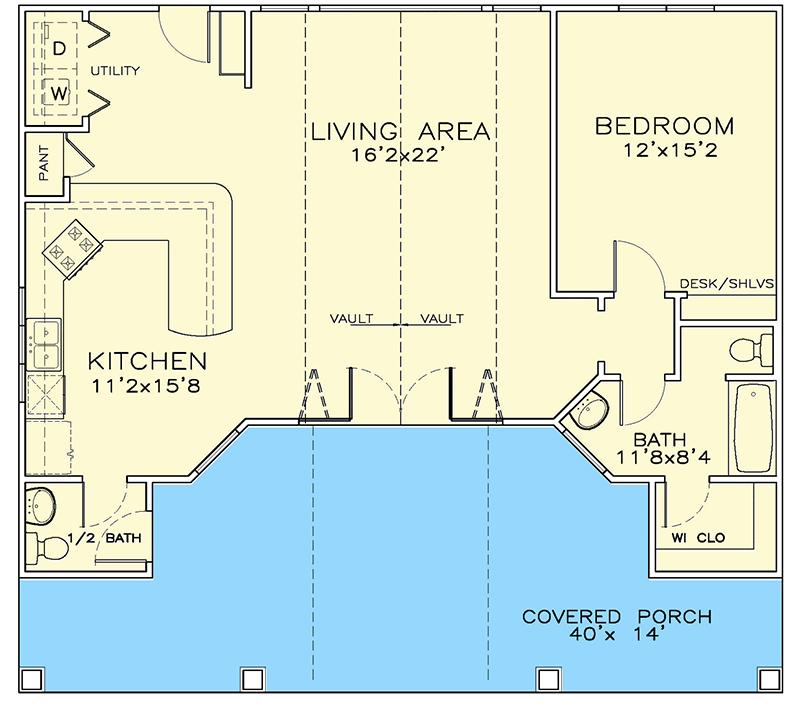

Tiny House Plan with Vaulted Interior and Covered Porch - 530020UKD floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 1,013 sq. ft.
1st Floor: 1,013 sq. ft.

Covered Patio: 400 sq. ft.

Beds/Baths

Bedrooms: 1

Full bathrooms: 1
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Optional Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 40' 0"
Depth: 36' 0"
Max ridge height: 20' 0"

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Roof Details

Primary Pitch: 8 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections
