Tiny Mountain House Plan

Plan 530014UKD

  • 701

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • With its rustic exterior and metal roof, this design can function as guest quarters or tiny house living.
  • All the basics are there in one big open layout.
  • A vaulted ceiling expands the feel of the kitchen and dining area.
  • The sleeping area could easily hold a pull-down murphy bed or a regular bed.
  • Built-ins line one wall of the living room area.
  • Close off the outdoor wet bar with folding shutters when the party's over.
  • Related Plans: Get more room with house plan 530019UKD (932 sq. ft.) and a different exterior with house plan 530011UKD.

Below is a listing of sheets typically included in our plans:

1.      Title Sheet -  Isometric of Front Elevation

2.      Foundation Plan ‐ shows the foundation plan and details.  ¼” = 1’-0

3.      Floor Plan ‐ shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.  ¼” = 1’-0 scale

4.      Exterior Elevations ‐ shows the front, rear and sides of the house, including exterior materials, details, applicable dimensions and roof pitches.  ¼” = 1’-0

5.      Building Cross Section ‐ shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections shows the construction of the home, insulation, flooring and roofing.

6.      Interior Elevations ‐ show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior/exterior features.

7.      Roof Plan ‐ provides a bird’s eye view of the roof's valleys, ridges and dormers.

8.      Roof Framing Plan - provides guideline for rafters, ridges, hip framing

9.      Electrical Plan ‐ shows the suggested locations for fixtures, outlets, switches, etc.

10.  Notes & Details ‐ per IRC 2015

Floor Plan

Plan details

Architectural Style

Plan Collections



Tiny Mountain House Plan

  • 701

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - single-use $600
  • CAD $1,300
  • View all purchase option online

About This Plan

  • With its rustic exterior and metal roof, this design can function as guest quarters or tiny house living.
  • All the basics are there in one big open layout.
  • A vaulted ceiling expands the feel of the kitchen and dining area.
  • The sleeping area could easily hold a pull-down murphy bed or a regular bed.
  • Built-ins line one wall of the living room area.
  • Close off the outdoor wet bar with folding shutters when the party's over.
  • Related Plans: Get more room with house plan 530019UKD (932 sq. ft.) and a different exterior with house plan 530011UKD.

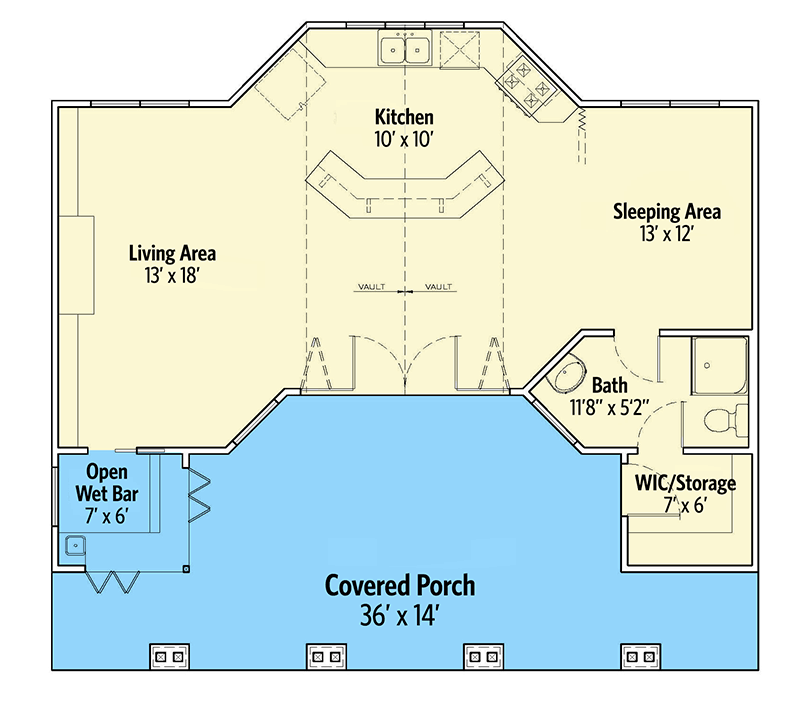

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 701 sq. ft.
  • 1st Floor: 701 sq. ft.
  • Covered Patio: 400 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 33' 0"
  • Max ridge height: 19' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
