Plan 9317EL Tradition at its Best

4,542 4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Tradition at its Best

Plan 9317EL

  • 4,542

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

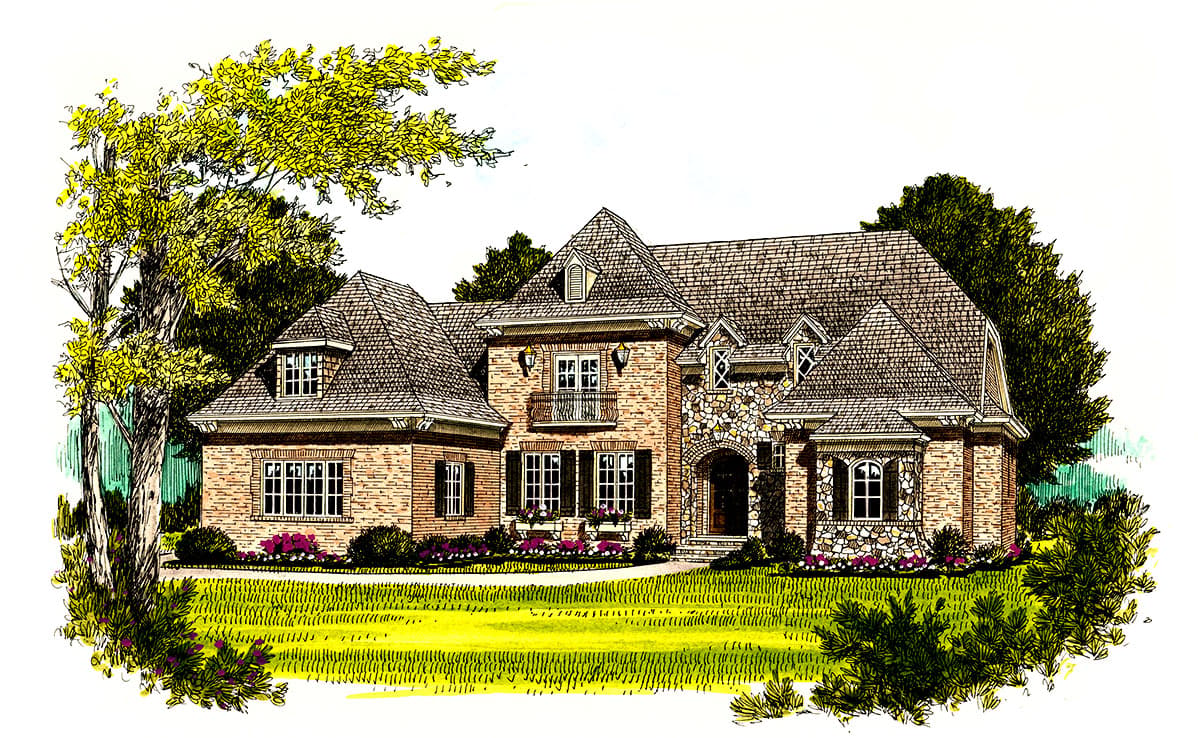

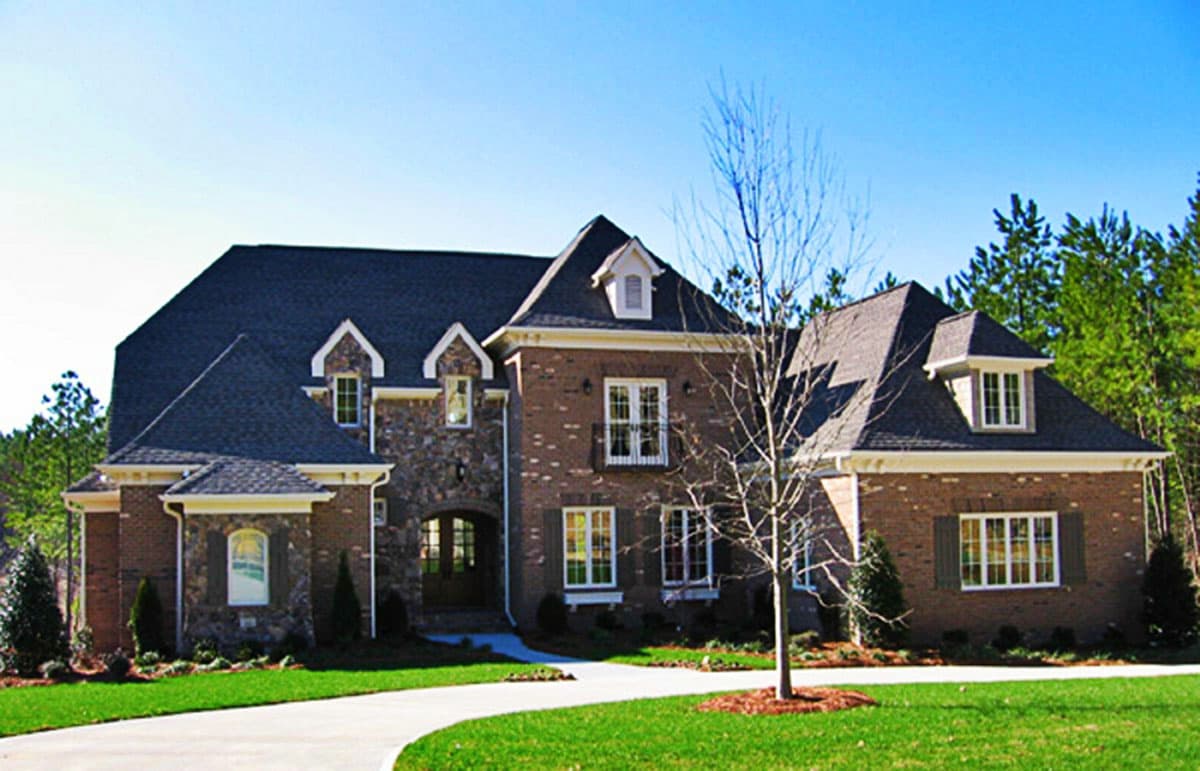

  • Stone and brick grace the exterior of this traditional home with a steep hipped roof.
  • An arched entry opens to the foyer leading to the family gathering room with a fireplace flanked by built-ins. The breakfast nook and kitchen with island flow into the family room. A butler's pantry lies near the large formal dining room.
  • Privately situated along the right wing of the house, the master suite boasts a heavenly bath with double sinks, his-and-her walk-in closets and a large walk-in shower.
  • The large second floor offers both an adult game room and a children's playroom plus three bedrooms and two baths.
  • Ceilings: 10' first floor; 8' second floor.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

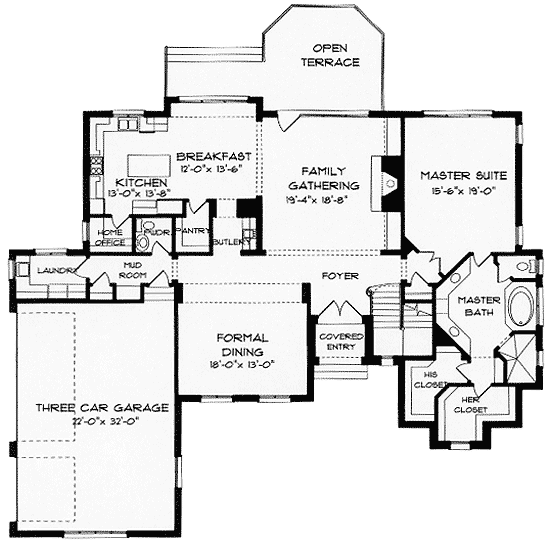

Tradition at its Best - 9317EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

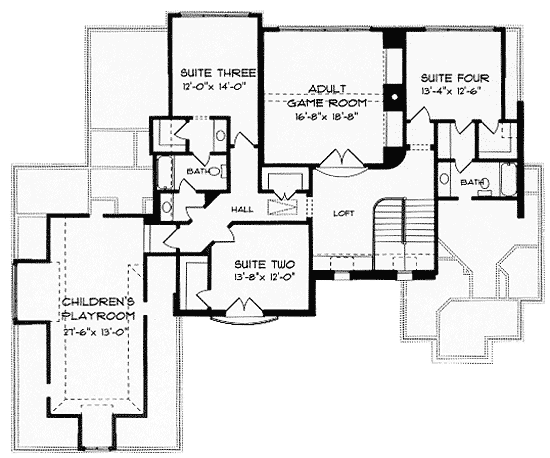

Tradition at its Best - 9317EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,542 sq. ft.
  • 1st Floor: 2,464 sq. ft.
  • 2nd Floor: 2,078 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 73' 6"
  • Depth: 74' 6"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 704 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 14 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Tradition at its Best

  • 4,542

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • CAD+PDF - Single-Build $3,280
  • PDF - Unlimited Build $3,345
  • CAD - Unlimited Build $4,130
  • View all purchase option online

About This Plan

  • Stone and brick grace the exterior of this traditional home with a steep hipped roof.
  • An arched entry opens to the foyer leading to the family gathering room with a fireplace flanked by built-ins. The breakfast nook and kitchen with island flow into the family room. A butler's pantry lies near the large formal dining room.
  • Privately situated along the right wing of the house, the master suite boasts a heavenly bath with double sinks, his-and-her walk-in closets and a large walk-in shower.
  • The large second floor offers both an adult game room and a children's playroom plus three bedrooms and two baths.
  • Ceilings: 10' first floor; 8' second floor.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,542 sq. ft.
  • 1st Floor: 2,464 sq. ft.
  • 2nd Floor: 2,078 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 73' 6"
  • Depth: 74' 6"
  • Max ridge height: 34' 0"

Garage

  • Type: Attached
  • Area: 704 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Stick
Plan 9317EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/9317EL
|
