Plan 135277GRA

Traditional 2-Car Garage with Loft - 768 Sq Ft

Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
2

Floor Plan

Plan 135277GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135277GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

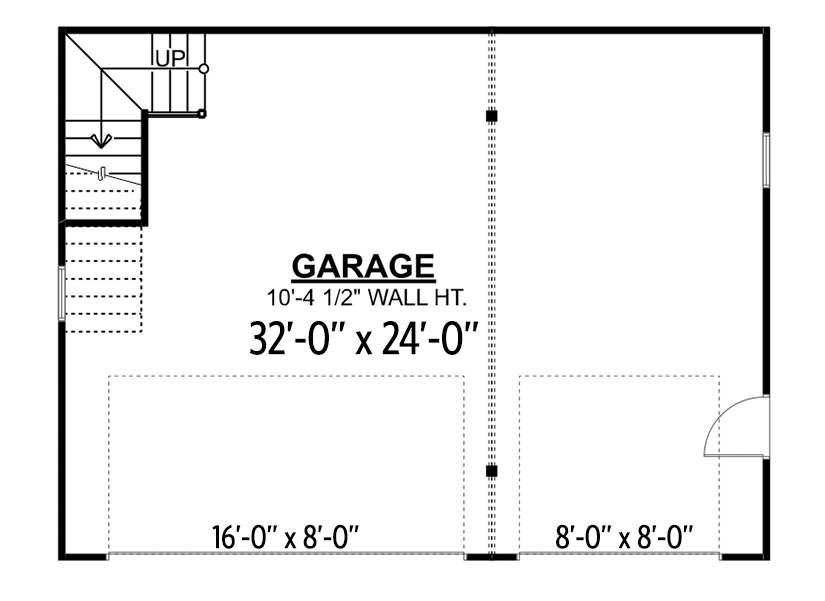

Plan 135277GRA: Traditional 2-Car Garage with Loft - 768 Sq Ft - Floor Plan - Main Level - Traditional

2nd Floor

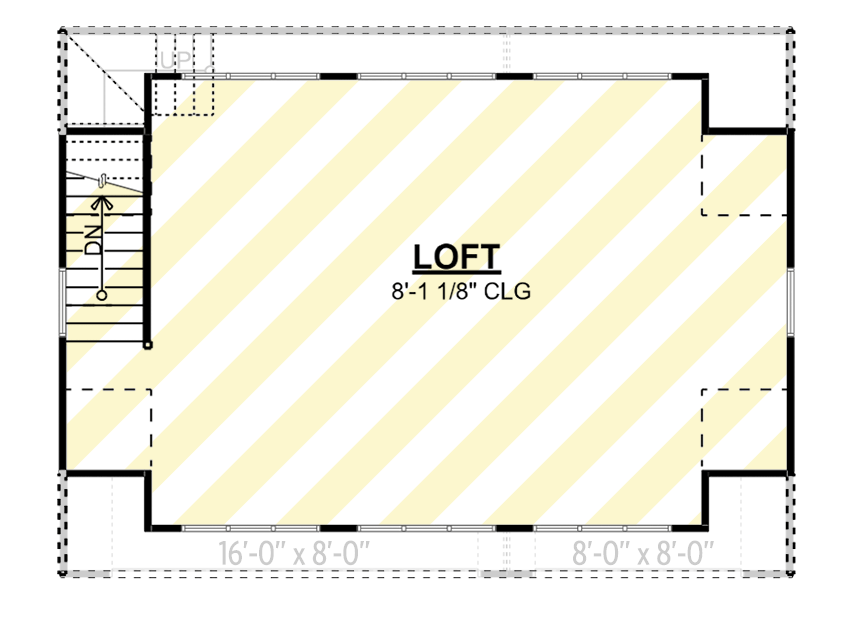

Plan 135277GRA: Traditional 2-Car Garage with Loft - 768 Sq Ft - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This traditional-style detached garage plan features a spacious 768 sq ft, 2-car garage, complemented by a versatile 569 sq ft finished loft space above.
  • The ground level provides ample room for two vehicles, with a generous 10'-4 1/2" wall height allowing for additional vertical storage or the creation of a dedicated workshop area for projects and repairs.
  • A private staircase from the garage leads directly to the upper level, ensuring convenient access to the expansive and adaptable loft.
  • While designed for utility and flexible use, this plan does not include dedicated residential bedrooms or bathrooms, focusing instead on robust storage and adaptable overhead space.
  • The 569 sq ft loft, featuring an 8'-1 1/8" ceiling, offers a bright and open environment ideal for a home office, art studio, gym, or an extensive hobby and storage area.

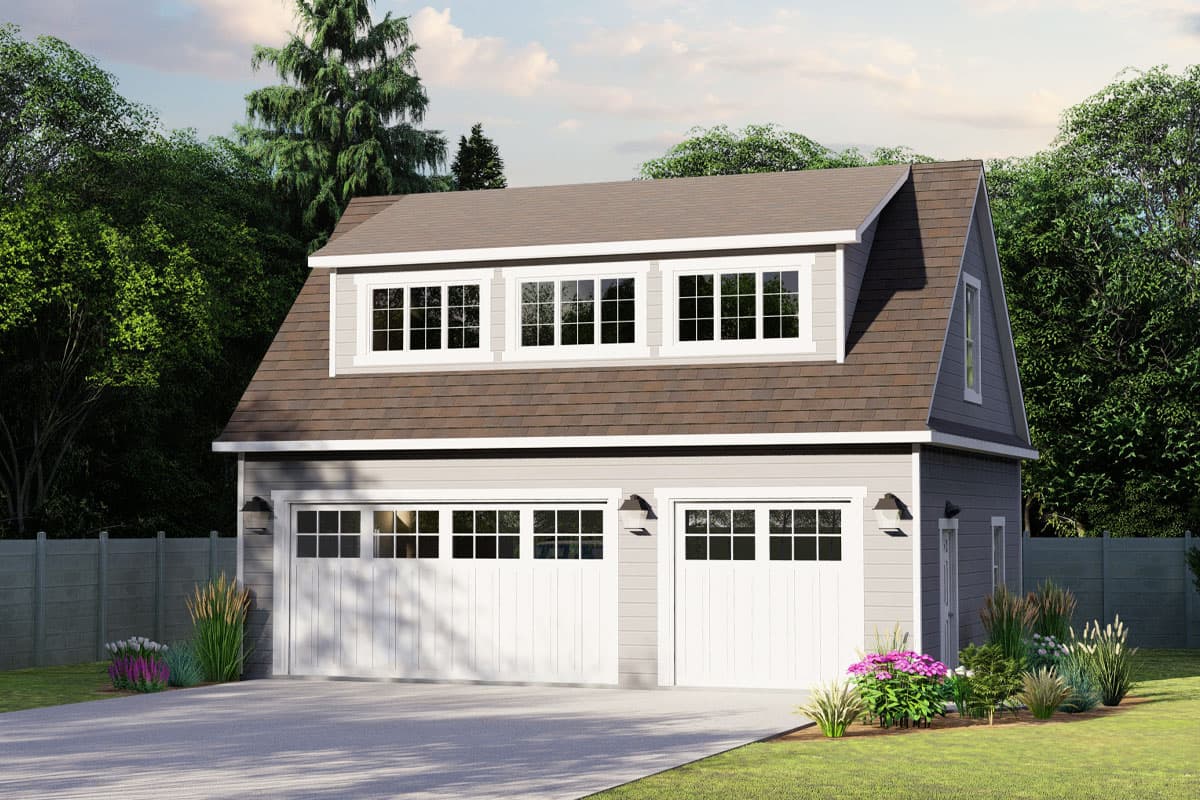

  • The charming traditional exterior, complete with dormer windows and classic siding, provides a timeless aesthetic that effortlessly enhances any property.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

569 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

24' 0"

Max Ridge Height

24' 3"

Garage

Type

Detached

Area

768 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Traditional

Special Features

Loft

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

569 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

32' 0"

Depth

24' 0"

Max Ridge Height

24' 3"

Garage

Type

Detached

Area

768 sq. ft.

Count

2 Cars

Entry Location

Front

Architectural Style

Traditional

Special Features

Loft
