Plan 48630FM

EXCLUSIVE

Traditional 2-Story Duplex House Plan with Detached Garage - 1473 Per Unit

Heated S.F.

2,946

Units

2

Width

40'

Depth

49'

Cars

4

Floor Plan

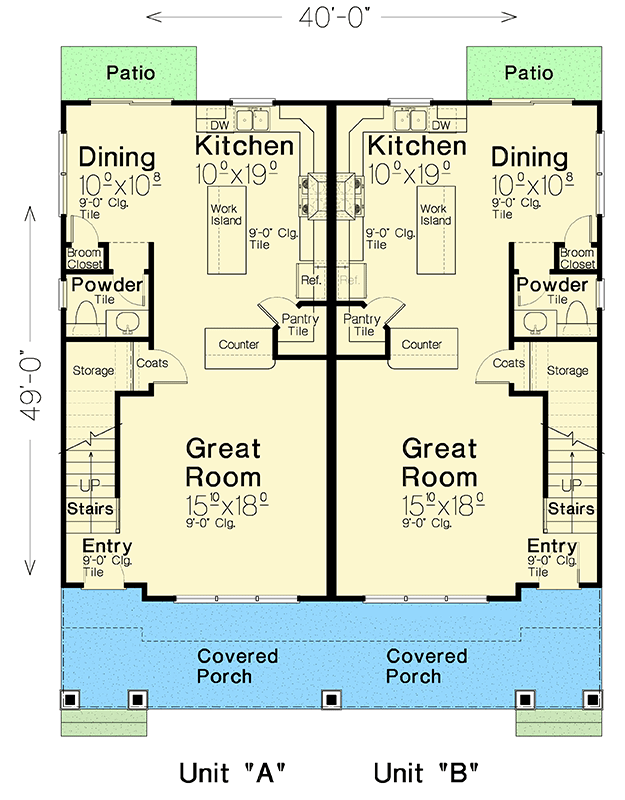

Main Level

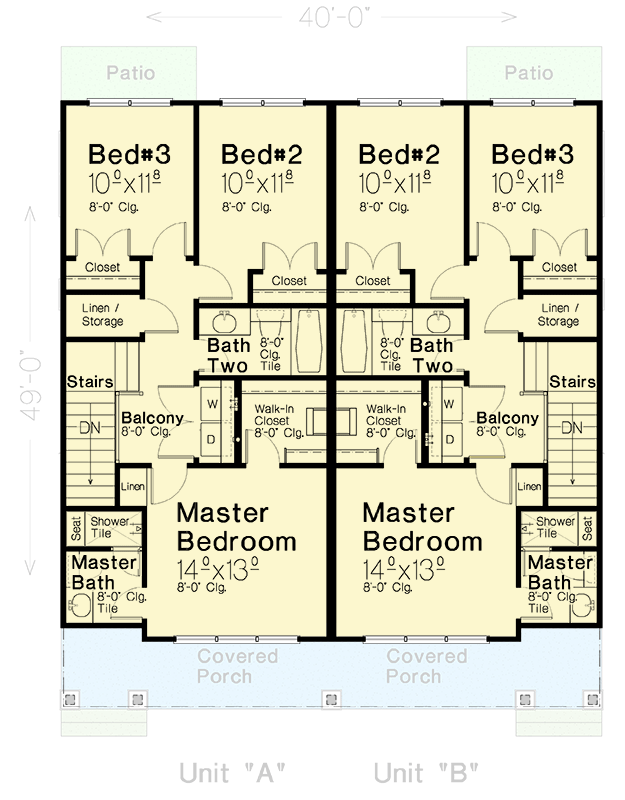

2nd Floor

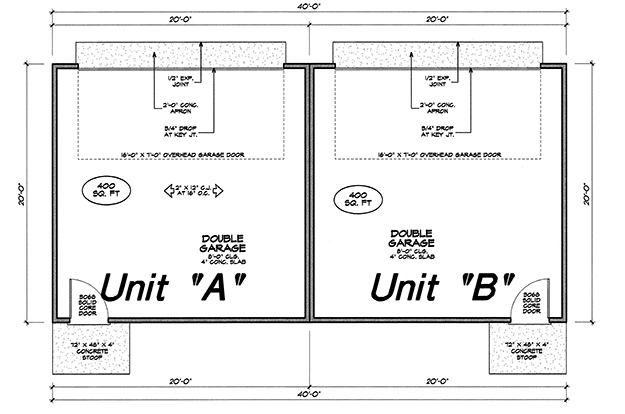

Detached Garage

Plan Details

This two-story duplex-family house plan gives you 2 units each with 1,473 square feet of heated living space (739 sq. ft. on the first floor, 734 sq. ft. on the second floor), 3 beds, 2.5 baths and a detached 400 square foot 2-car garage with a 16' by 7' overhead door.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.
Related Plan: Get an alternate elevation with duplex-family house plans 48631FM (2,946 sq ft) and 48632FM (2,946 sq ft).

Unit A

1,473 Sq. Ft.

739 Sq. Ft. 1st Floor

734 Sq. Ft. 2nd Floor

3 Beds

2 Full Baths

1 Half Bath

2 Vehicle

Detached

400 Sq. Ft.

20' w 49' d 29' h

Unit B

1,473 Sq. Ft.

739 Sq. Ft. 1st Floor

734 Sq. Ft. 2nd Floor

3 Beds

2 Full Baths

1 Half Bath

2 Vehicle

Detached

400 Sq. Ft.

20' w 49' d 29' h

What's Included

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan

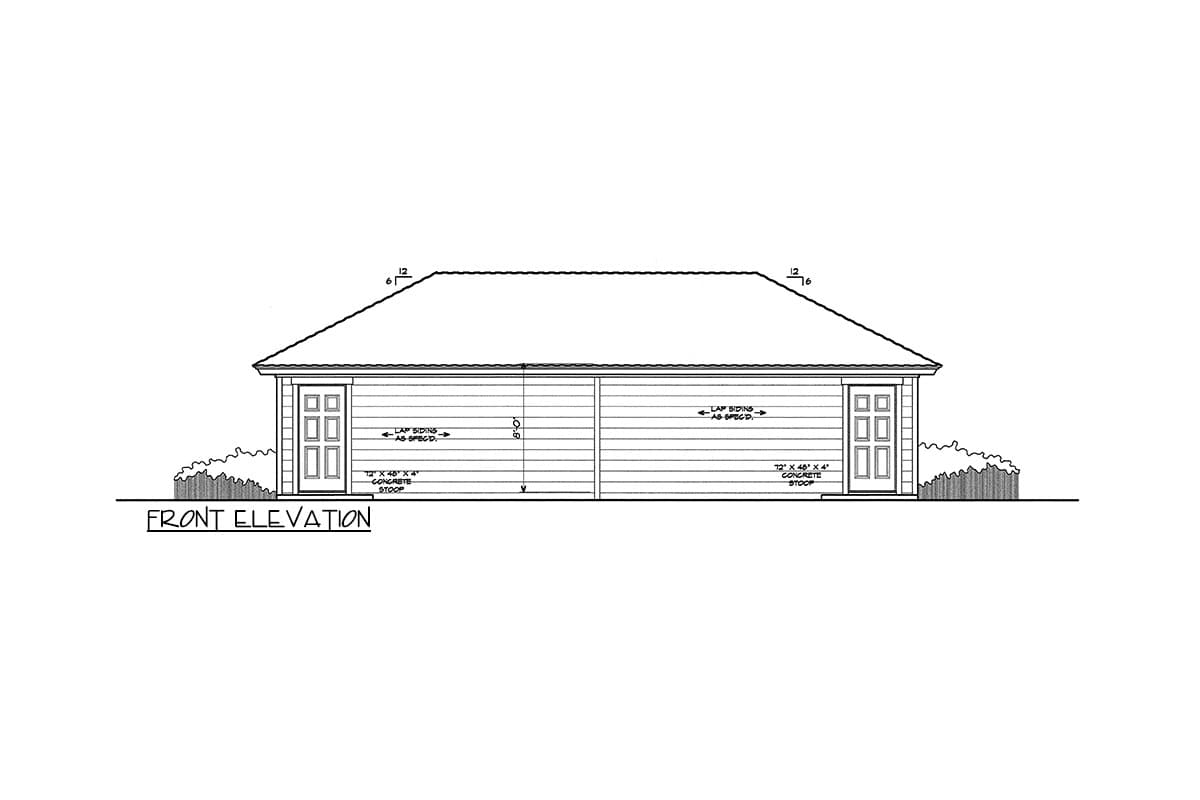

Front and Left Elevation

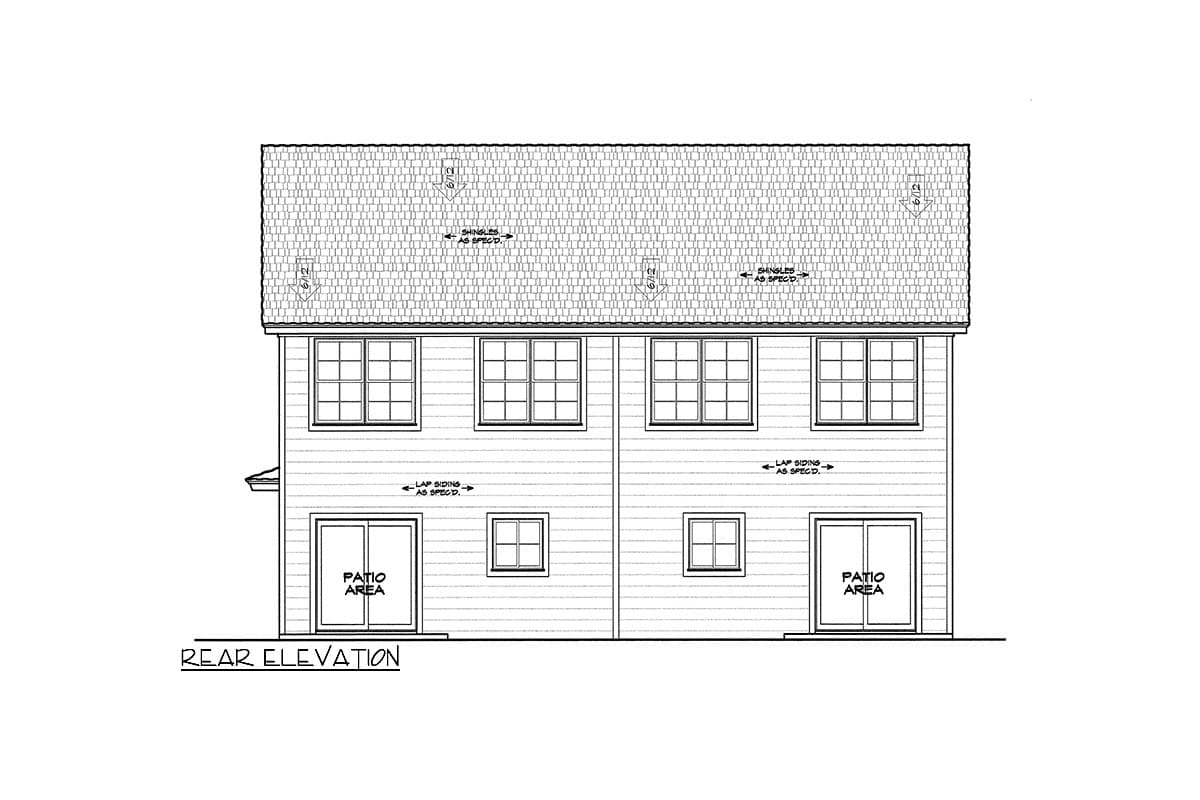

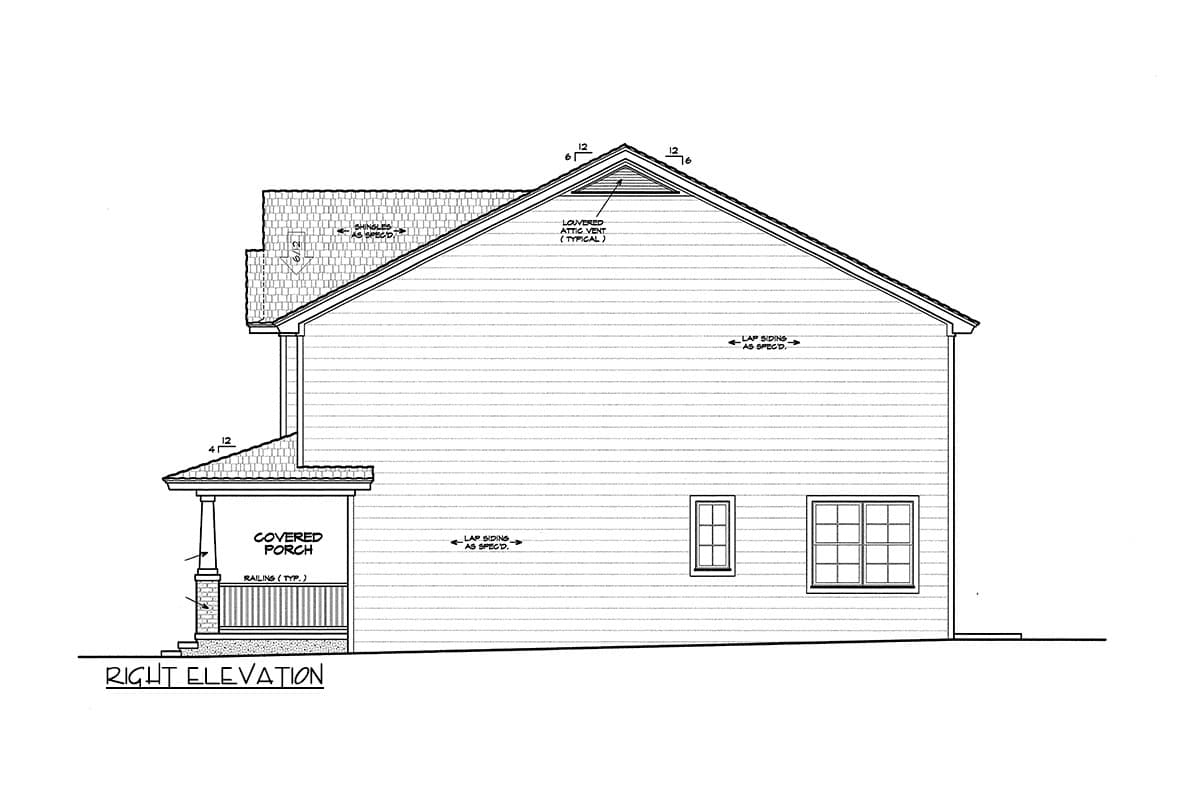

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

PRINT DETAILS

Square Footage Breakdown

Total Heated Area:

2,946 sq. ft.

1st Floor:

1,478 sq. ft.

2nd Floor:

1,468 sq. ft.

Balcony / Veranda:

80 sq. ft.

Porch, Front:

332 sq. ft.

Beds/Baths

Bedrooms:

6

Full bathrooms:

4

Half bathrooms:

2

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote
