Traditional 3 Bed Ranch House Plan

Heated S.F.
2,146
Beds
3
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 77609FB

Main Level
Main Level
Lower Level
Lower Level

Plan 77609FB

M-F 9am-5pm EST |

1-203-761-8500

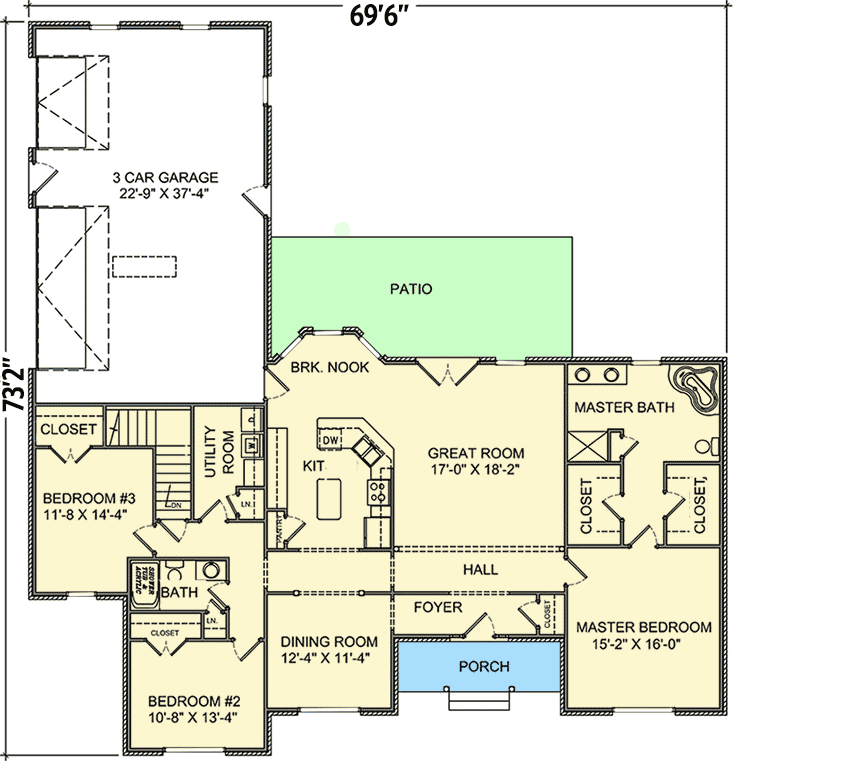

Main Level

Plan 77609FB: Traditional 3 Bed Ranch House Plan - Floor Plan - Main Level - Ranch, Traditional

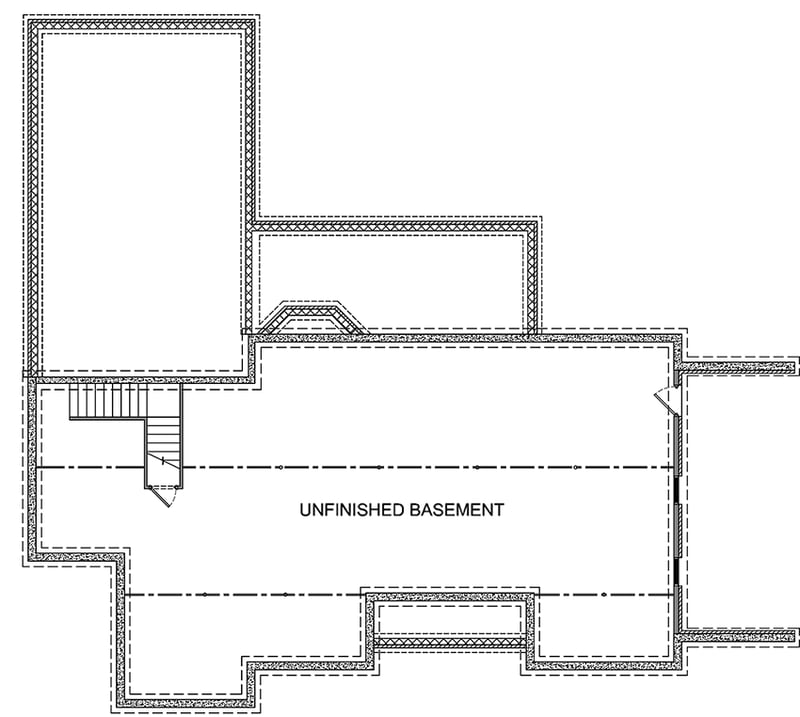

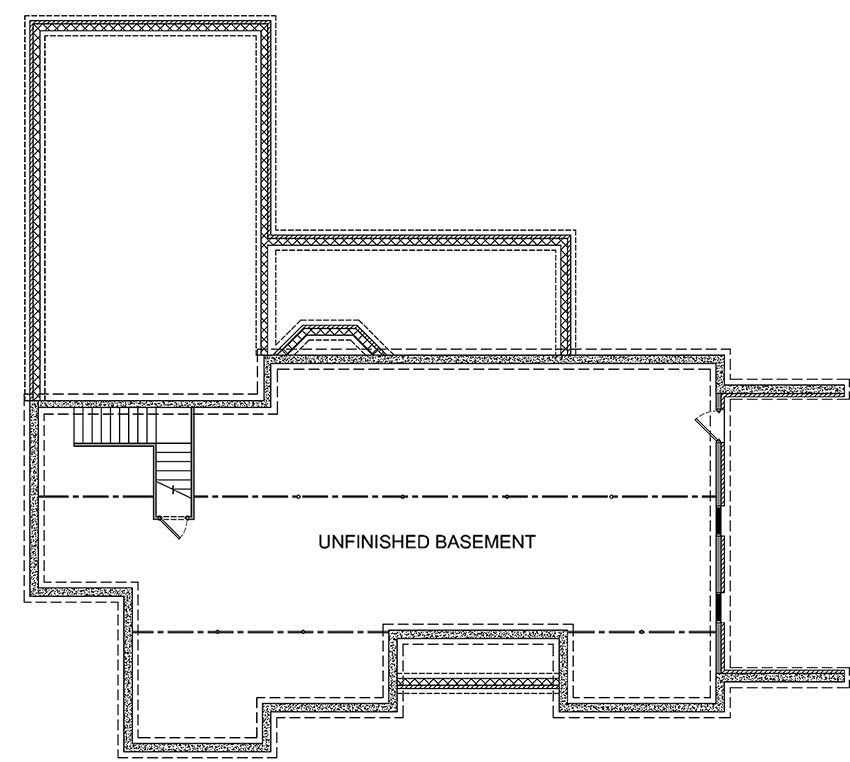

Lower Level

Plan 77609FB: Traditional 3 Bed Ranch House Plan - Floor Plan - Lower Level - Ranch, Traditional

Plan Details

  • Live all on one floor in this attractive Ranch house plan. The hip roof and stately columns on the front porch boost the curb appeal.
  • Two interior columns frame the entrance to the formal dining room, located close by the efficient kitchen.
  • A bay window extends the breakfast nook, giving you more room for table and chairs.
  • Split bedrooms separate the master suite with its twin walk-in closets, both a good size.
  • The corner soaking tub in the master bathroom is perfect for unwinding at the end of a long day.
  • The three car garage is side load making this great for a corner lot.
  • The roof has a 6:12 pitch.
  • NOTE: Please allow 5 business days for delivery.

What's Included

  • Cover page
  • Foundation plan
  • Floor Plan
  • Elevations
  • Section View
  • Construction details
  • Electrical Layout
  • Roof Plan (if needed)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,146 sq. ft.

1st Floor

2,146 sq. ft.

Porch, Front

81 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

69' 6"

Depth

73' 1"

Max Ridge Height

18' 4"

Garage

Type

Attached

Area

878 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Master Suite - 1st Floor

Plan Collections

Exclusive

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,146 sq. ft.

1st Floor

2,146 sq. ft.

Porch, Front

81 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

69' 6"

Depth

73' 1"

Max Ridge Height

18' 4"

Garage

Type

Attached

Area

878 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Master Suite - 1st Floor

Plan Collections

Exclusive

Photo Gallery
