Plan 40394DB Traditional 3-family House Plan with 1300 Sq Ft Units

4,271 3 67' 8" 45'
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Traditional 3-family House Plan with 1300 Sq Ft Units

Plan 40394DB

  • 4,271

    Heated s.f.

  • 3

    Units

  • 67' 8"

    Width

  • 45'

    Depth

  • This traditional 3-family house plan gives you 3 side-by-side units.
  • The end units are each unit has 1300 square feet of heated living and the middle unit gives you 1471 square feet of heated living space.
  • Each unit has 3 bedrooms, 1 full and 1 half bath with the bedrooms all upstairs along with laundry.

This house plan set has the following details:

  • General Notes

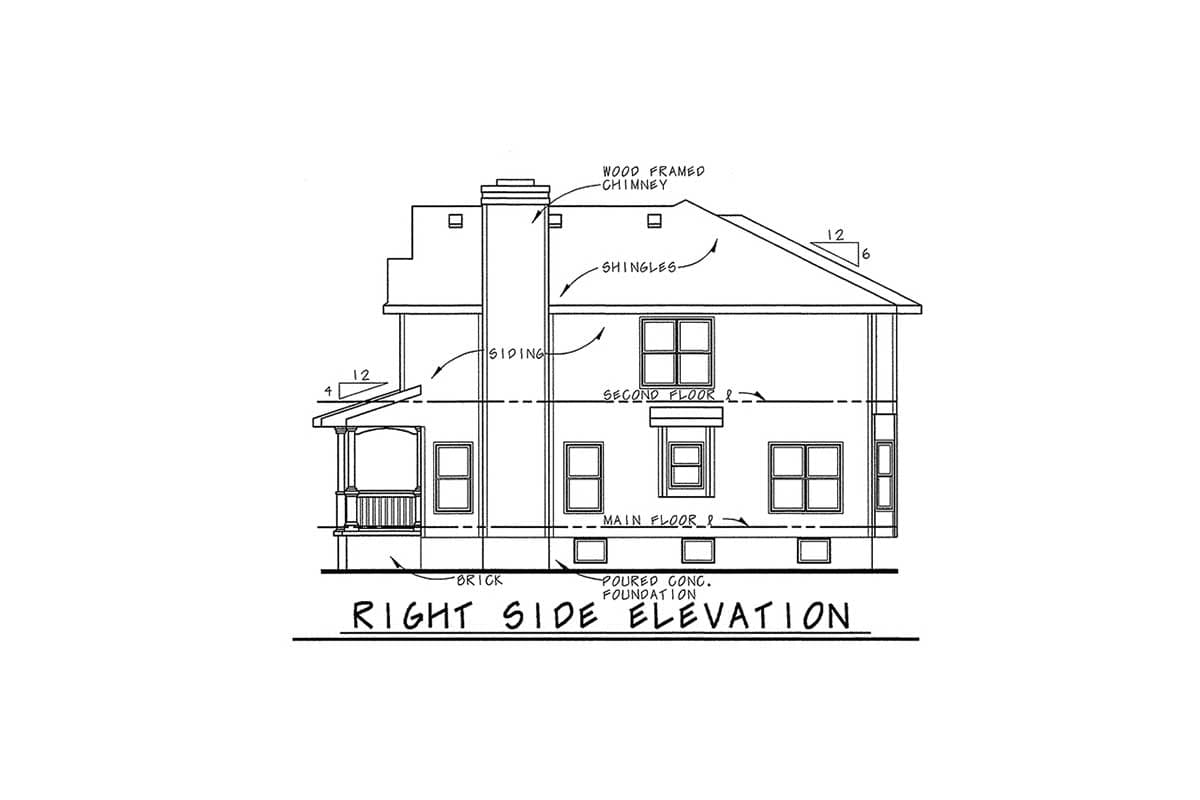

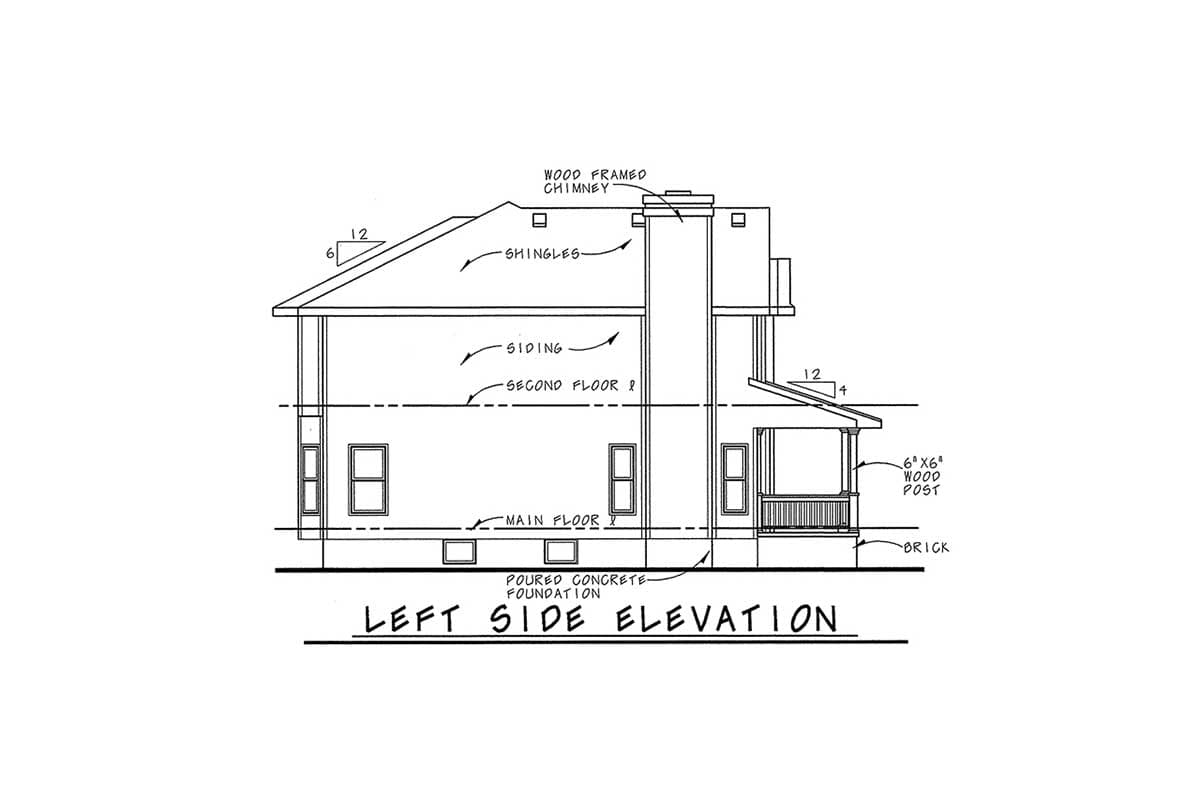

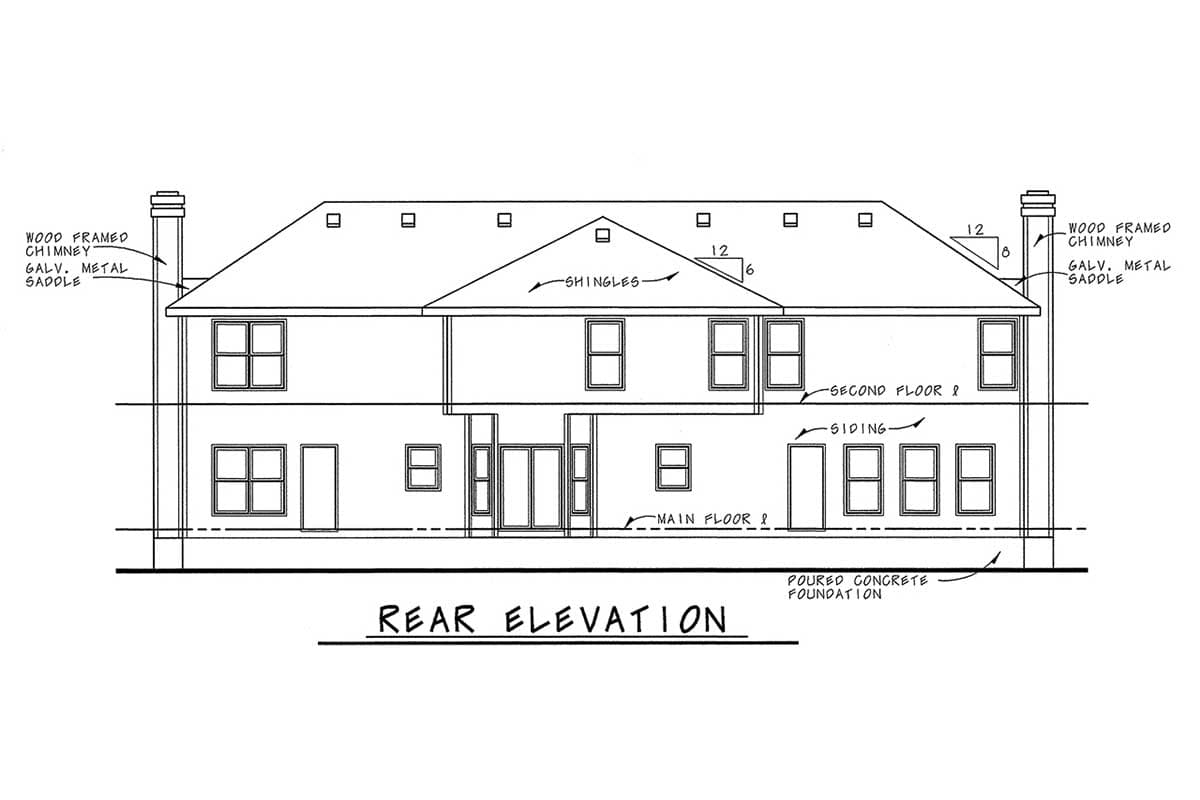

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Unit Details

A
1,300 Sq. Ft.
620 Sq. Ft. 1st Floor
2205 Sq. Ft. 2nd Floor
3 Beds
1 Full Bath
1 Half Bath
None
22' 5" w 48' d 28' h
B
1,471 Sq. Ft.
702 Sq. Ft. 1st Floor
769 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
22' 5" w 48' d 28' h
C
1,495 Sq. Ft.
744 Sq. Ft. 1st Floor
748 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
22' 6" w 48' d 28' h

Floor Plan

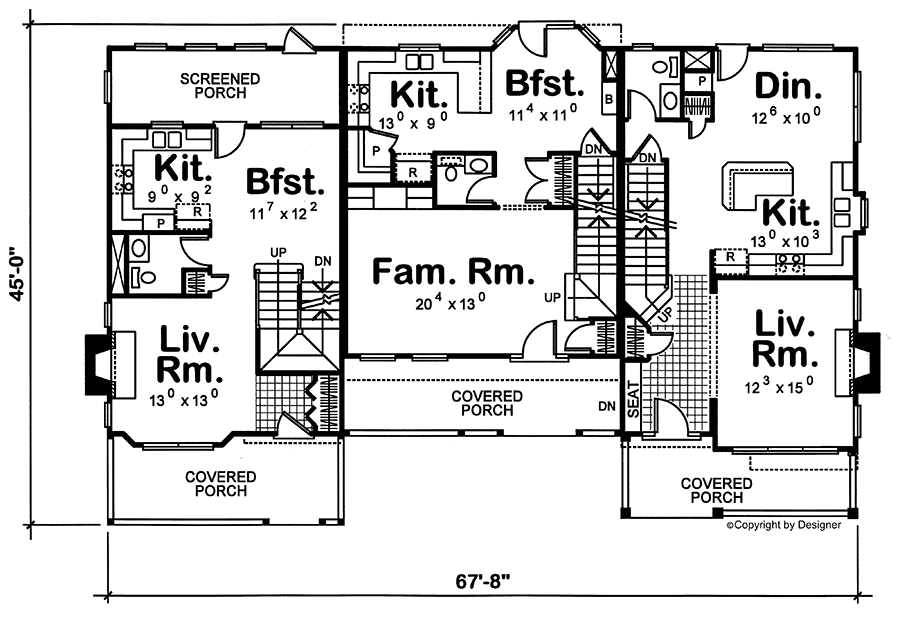

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Traditional 3-family House Plan with 1300 Sq Ft Units - 40394DB floor plan - Main Level

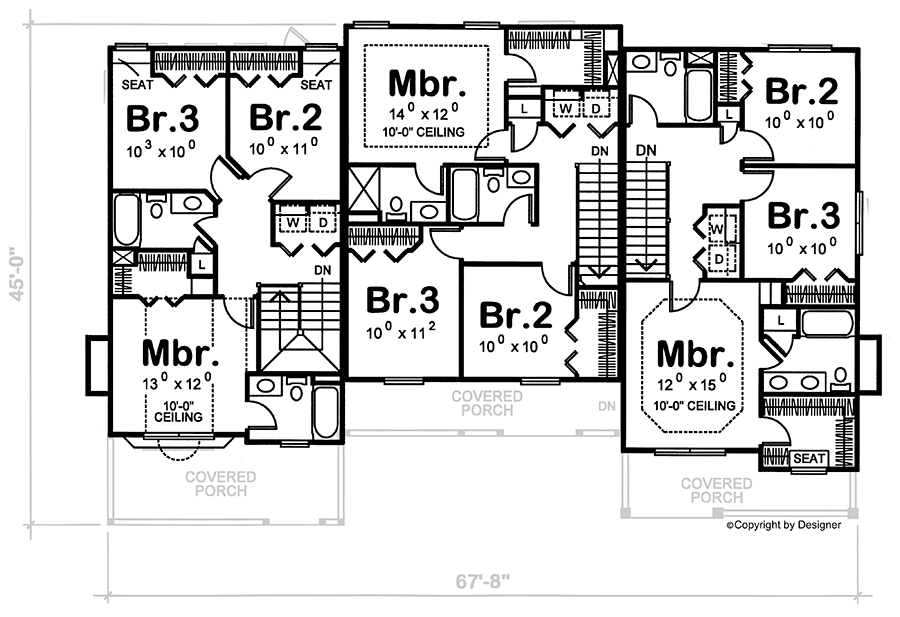

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Traditional 3-family House Plan with 1300 Sq Ft Units - 40394DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,271 sq. ft.
  • 1st Floor: 2,066 sq. ft.
  • 2nd Floor: 2,205 sq. ft.

Beds/Baths

  • Bedrooms: 9
  • Full bathrooms: 5
  • Half bathrooms: 3

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 67' 8"
  • Depth: 45' 0"
  • Max ridge height: 28' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Architectural Style

Special features

Traditional 3-family House Plan with 1300 Sq Ft Units

  • 4,271

    Heated s.f.

  • 3

    Units

  • 67' 8"

    Width

  • 45'

    Depth

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,271 sq. ft.
  • 1st Floor: 2,066 sq. ft.
  • 2nd Floor: 2,205 sq. ft.

Dimensions

  • Width: 67' 8"
  • Depth: 45' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 9
  • Full bathrooms: 5
  • Half bathrooms: 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
