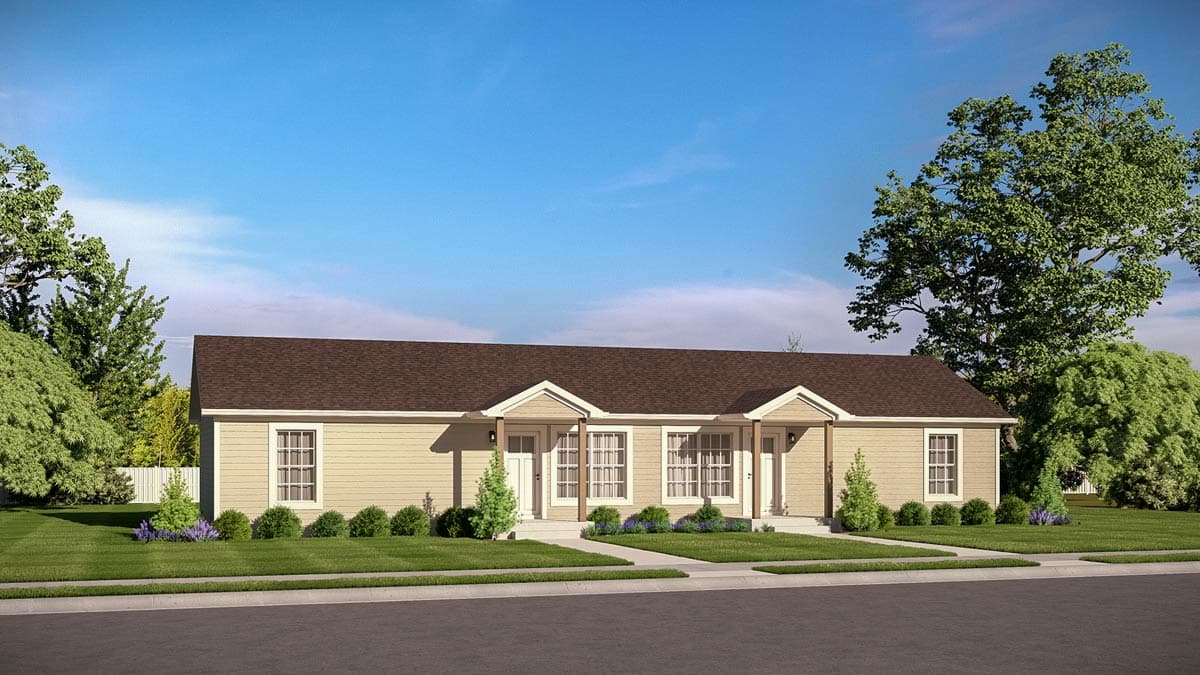

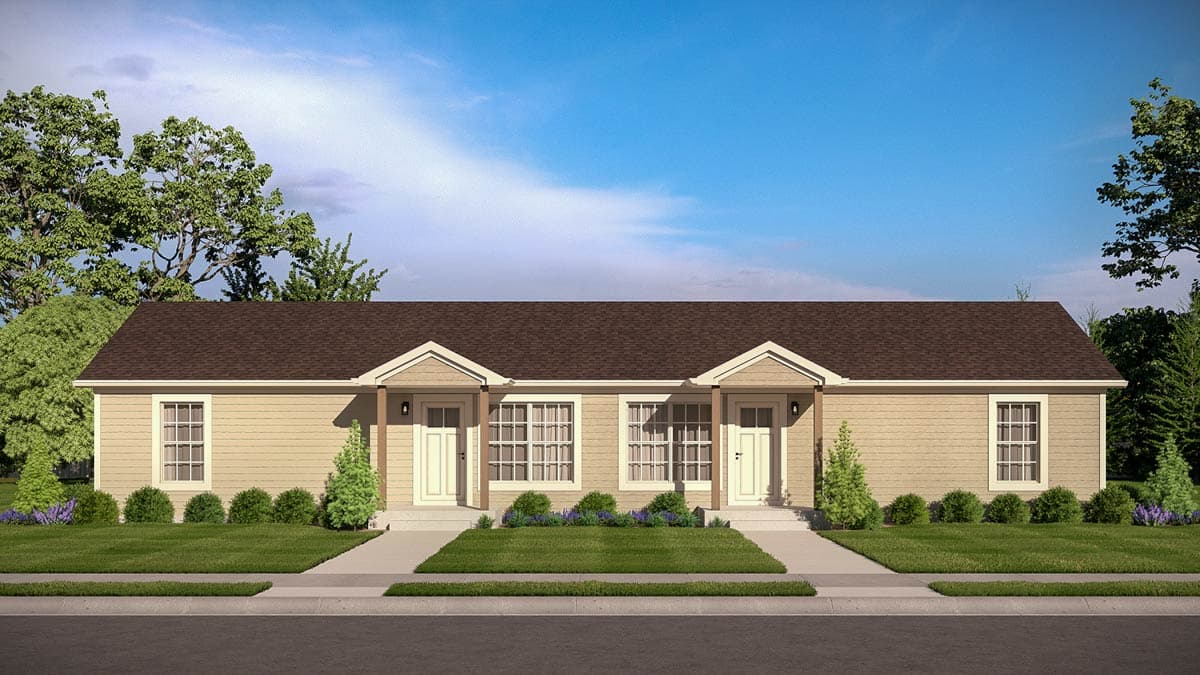

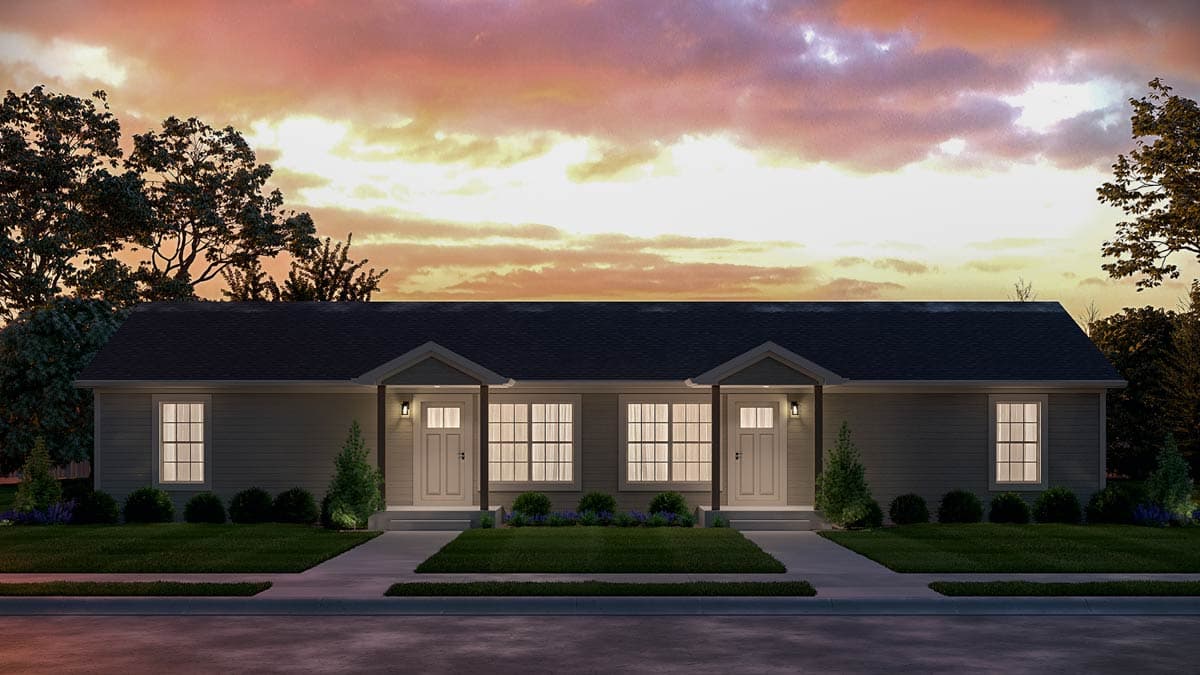

Traditional 4 Bed Duplex Plan with Open-Concept Living

Heated S.F.
1,632
Width
Depth

Floor Plan

Plan 57243HA

Main Level
Main Level
Optional Basement Stairs
Optional Basement Stairs

Plan 57243HA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

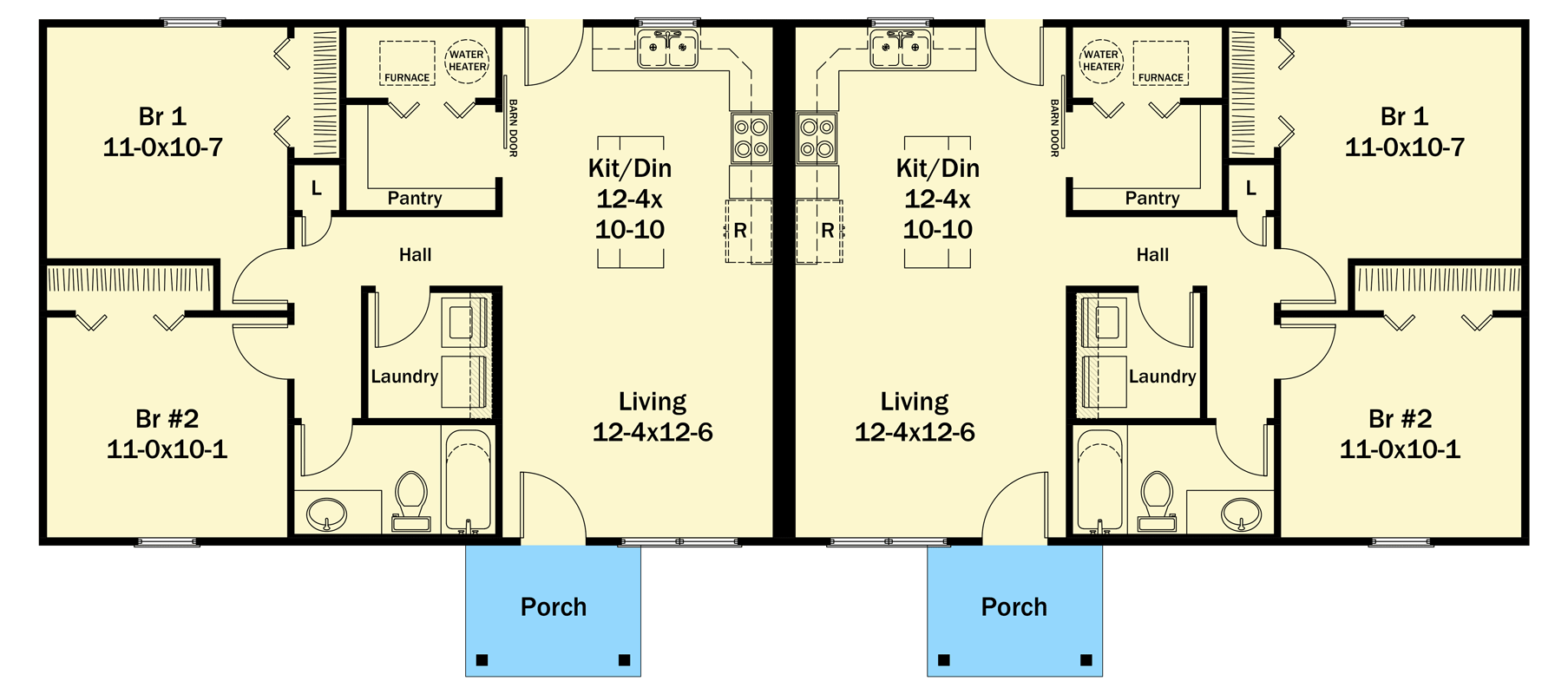

Plan 57243HA: Traditional 4 Bed Duplex Plan with Open-Concept Living - Floor Plan - Main Level - Ranch, Traditional

Optional Basement Stairs

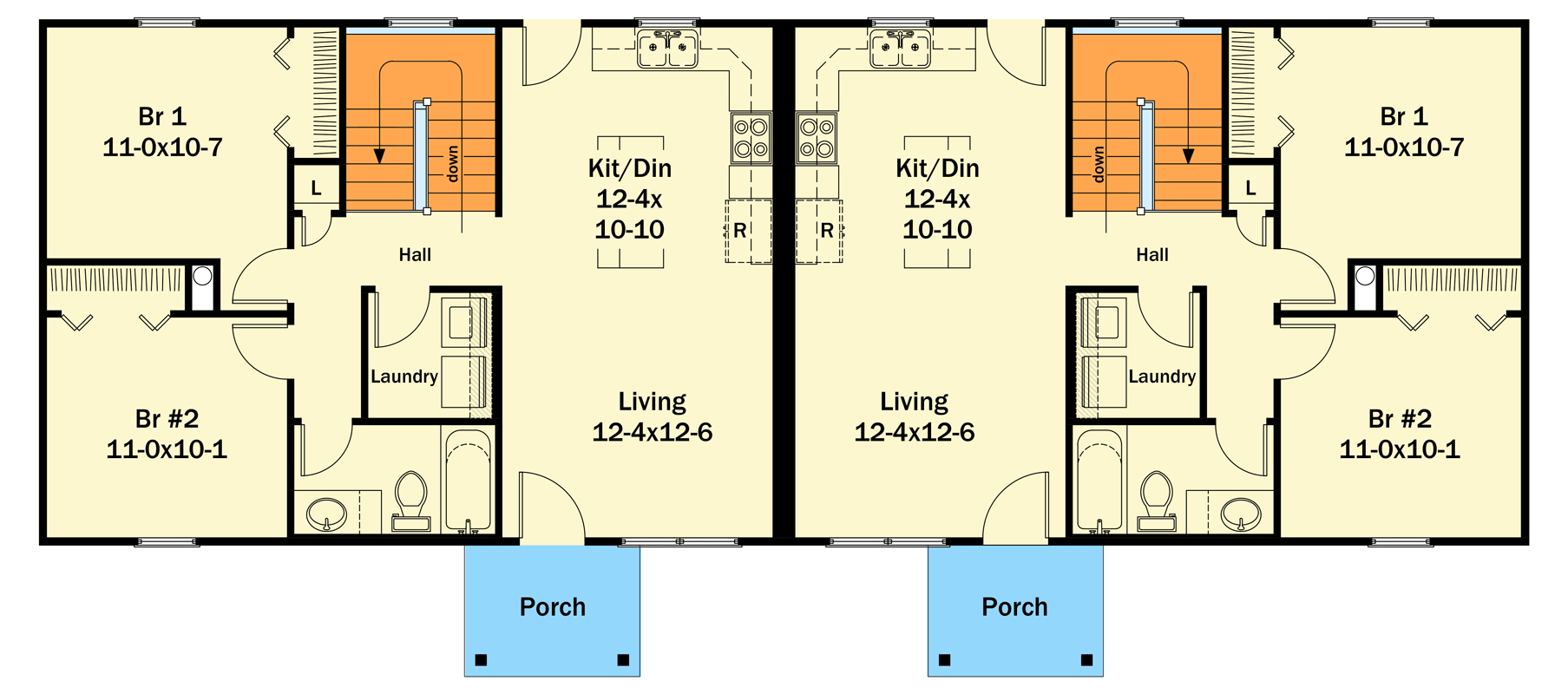

Plan 57243HA: Traditional 4 Bed Duplex Plan with Open-Concept Living - Floor Plan - Optional Basement Stairs - Ranch, Traditional

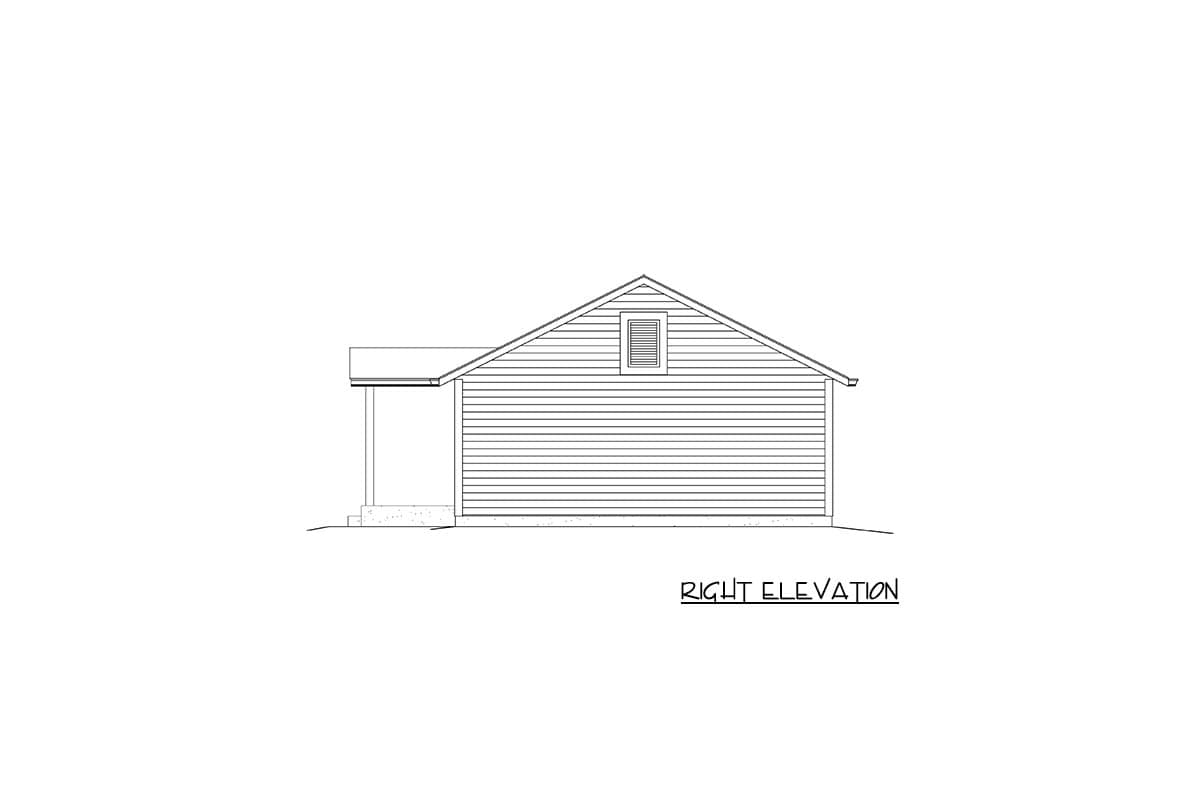

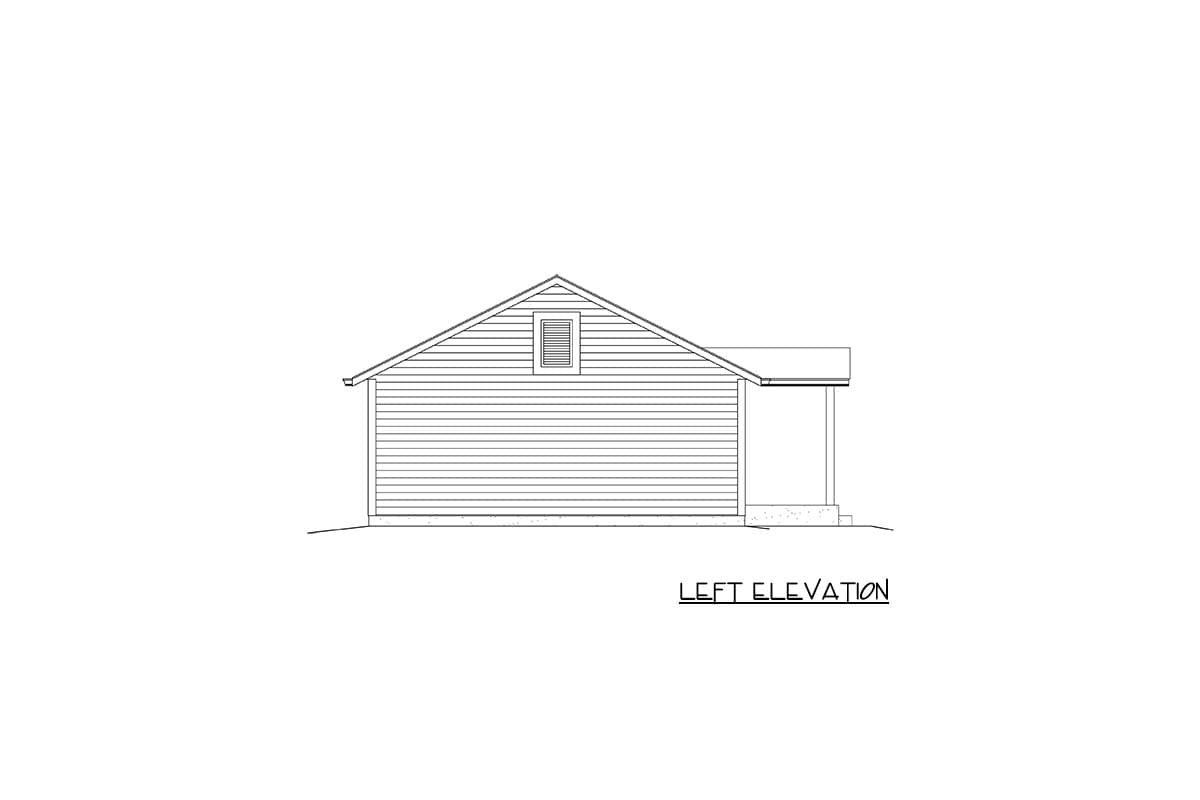

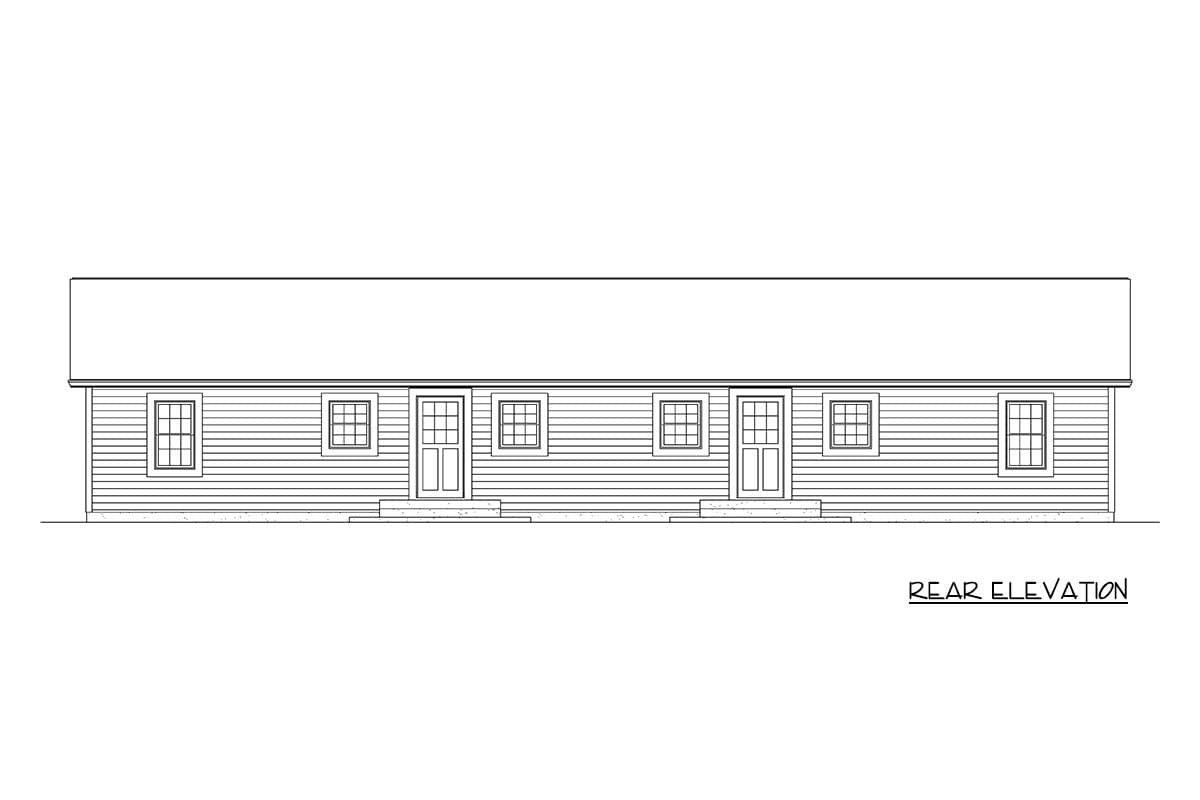

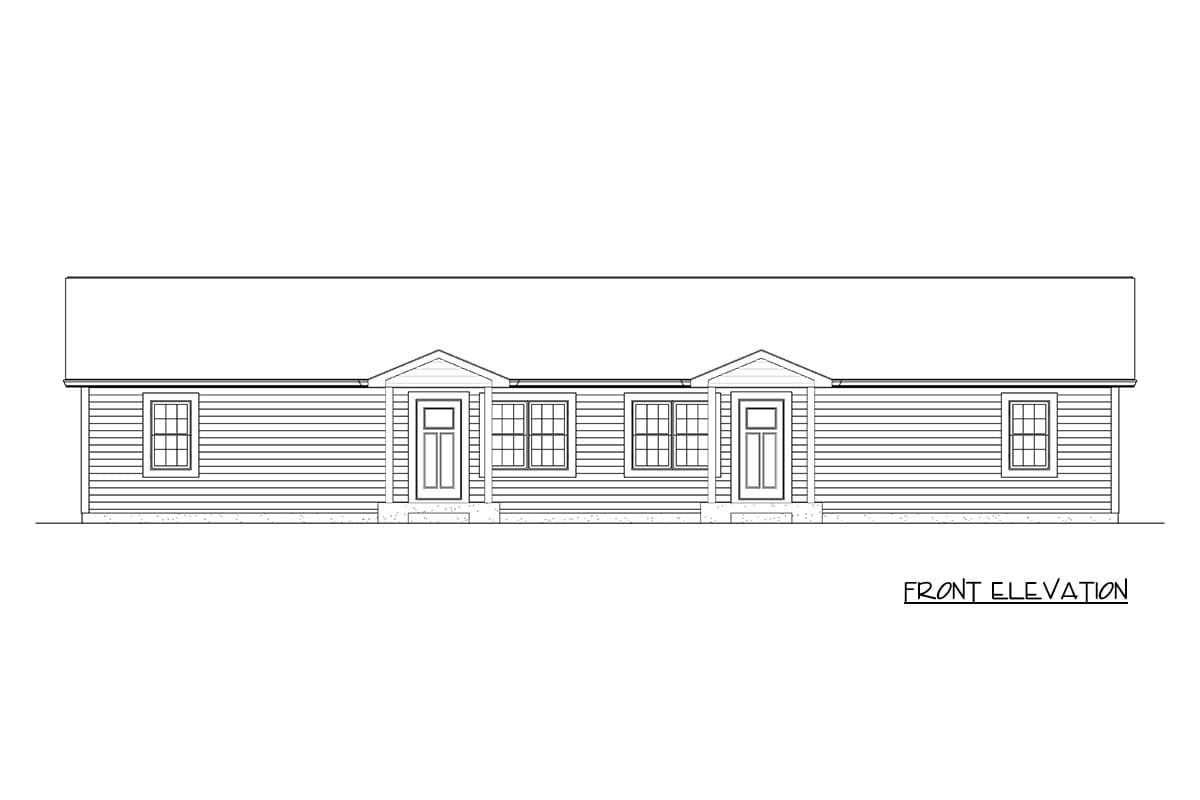

Plan Details

  • This efficient 1,632 sq. ft. duplex house plan presents two identical, charming ranch-style units, collectively offering 4 bedrooms and 2 full bathrooms, designed for versatile living.
  • Step into each unit through its inviting front porch, where an open-concept living area immediately greets you, creating a bright and connected space ideal for relaxation and daily activities.
  • The heart of each home centers around the combined kitchen and dining area, efficiently designed for meal preparation and casual dining. A notable feature is the convenient butler walk-in pantry, providing ample storage and organization for culinary essentials.
  • Each unit features two well-proportioned bedrooms, thoughtfully clustered together for ease of access to the shared full bathroom. Both bedrooms enjoy natural light, creating serene private retreats on the main level.
  • Each unit boasts its own charming front porch, offering a delightful spot for morning coffee or evening relaxation, enhancing the curb appeal and providing a welcoming outdoor transition.
  • For those seeking expanded living possibilities, the plan includes an optional basement foundation, providing significant additional square footage that can be customized to include extra bedrooms, a family room, or a dedicated utility space, accessed by the discreetly placed interior stairs.
Unit A
Heated Area
816Sq. Ft.
816 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Dimensions
34'width
24'depth
Unit B
Heated Area
816Sq. Ft.
1632 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Dimensions
34'width
24'depth

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,632 sq. ft.

1st Floor

1,632 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 0"

Depth

24' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,632 sq. ft.

1st Floor

1,632 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 0"

Depth

24' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
