Plan 849135PGE

Traditional Craftsman House Plan with Five Bedrooms and Three-Car Garage

Heated S.F.
2,775
Beds
5
Baths
2.5
Stories
2
Cars
3

Floor Plan

Plan 849135PGE

Main Level
Main Level
2nd Level
2nd Level

Plan 849135PGE

M-F 9am-5pm EST |

1-203-761-8500

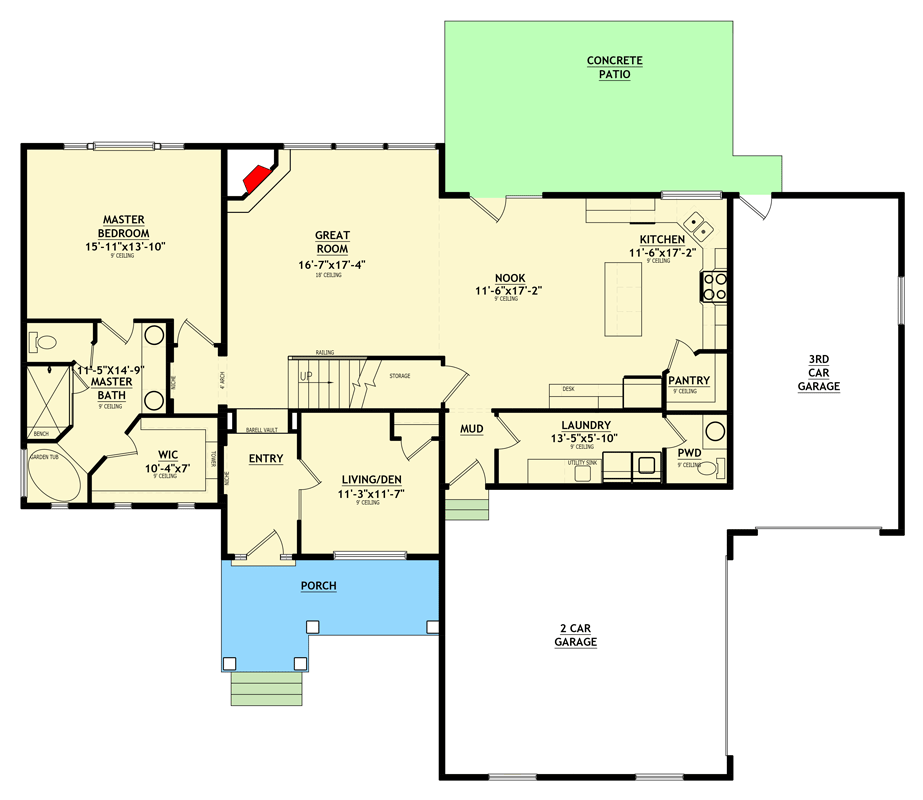

Main Level

Plan 849135PGE: Traditional Craftsman House Plan with Five Bedrooms and Three-Car Garage - Floor Plan - Main Level - Craftsman, European, Traditional

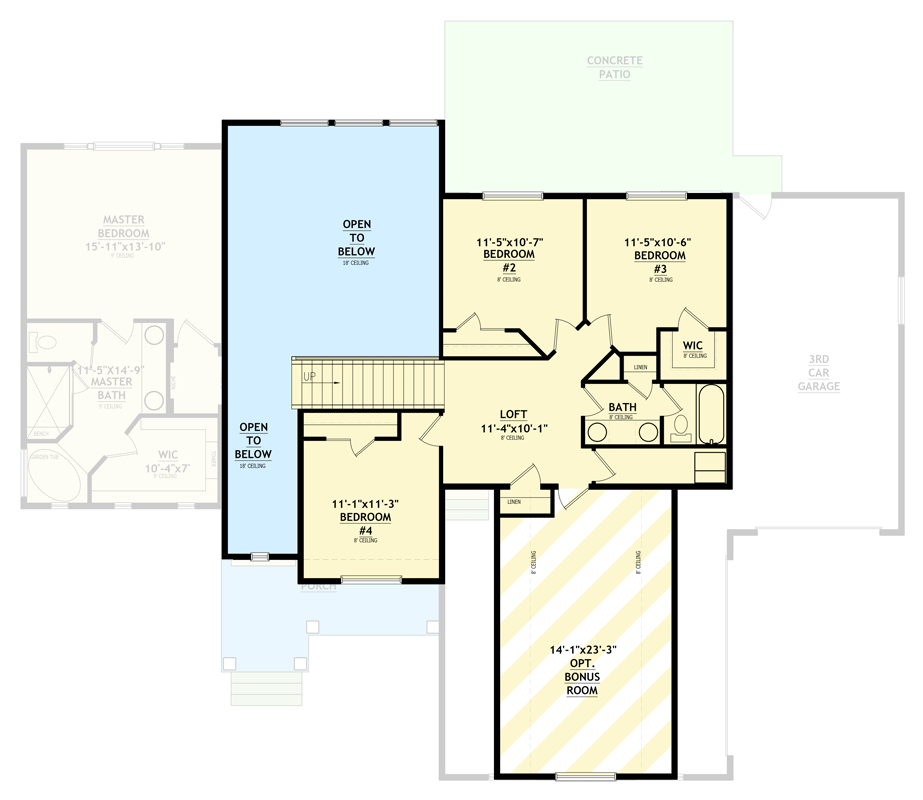

2nd Level

Plan 849135PGE: Traditional Craftsman House Plan with Five Bedrooms and Three-Car Garage - Floor Plan - 2nd Level - Craftsman, European, Traditional

Plan Details

  • This 2,775 square foot residence blends traditional and craftsman elements, offering five bedrooms, two full bathrooms, a half bathroom, and an expansive 905 square foot three-car garage.
  • The welcoming front entrance leads into a thoughtful main level layout that features a dedicated home office and den for quiet work or study.
  • The heart of the home centers on an open and airy living area designed for seamless daily flow and family gathering.
  • A private primary suite is conveniently located on the first floor, providing a tranquil retreat separated from the four secondary bedrooms situated upstairs.
  • The second level includes a versatile loft space that serves as an ideal play area, media room, or secondary living zone for the household.
  • An additional 327 square foot bonus room offers flexible square footage that can be customized to suit your specific lifestyle needs.

What's Included

  • Cover Sheet
  • Elevations
  • Foundation Plan
  • Floor Plan
  • Electrical Plan
  • Details and Schedules
  • Upper Floor Framing Plan
  • Roof Flaming Plan
  • Details
  • Sections and Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,775 sq. ft.

1st Floor

1,680 sq. ft.

2nd Floor

1,095 sq. ft.

Bonus

327 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 2"

Depth

52' 0"

Max Ridge Height

30' 8"

Garage

Type

Standard

Area

905 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

European

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Den

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Square Footage Breakdown

Total Heated Area

2,775 sq. ft.

1st Floor

1,680 sq. ft.

2nd Floor

1,095 sq. ft.

Bonus

327 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

72' 2"

Depth

52' 0"

Max Ridge Height

30' 8"

Garage

Type

Standard

Area

905 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Craftsman

European

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Den

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room
