Traditional Craftsman Plan with Spacious Lower Level

Plan 22620DR

  • 2,926

    Heated s.f.

  • 5

    Beds

  • 2

    Baths

  • 1

    Stories

  • This Traditional Craftsman home plan is rich in character, and features a spacious lower level that brings the bedroom count to five.
  • Inside, a mudroom rests behind a barn door, while the heart of the home greets you a few steps further. An eating bar at the kitchen island breeds conversation in this gourmet cooking space, complete with a roomy walk-in pantry.
  • The open dining and living room is filled with light and provides access to a back patio through a pair of sliding doors.
  • Three bedrooms and a 5-fixture bathroom share the right side of the home, and close proximity to the laundry room encourages all family members to pitch in.
  • Downstairs, the rec room offers enough space for a lounging area, exercise space, and home office. Two bedrooms share a Jack-and-Jill bath with a separate tub and shower.

Each plan includes the following:

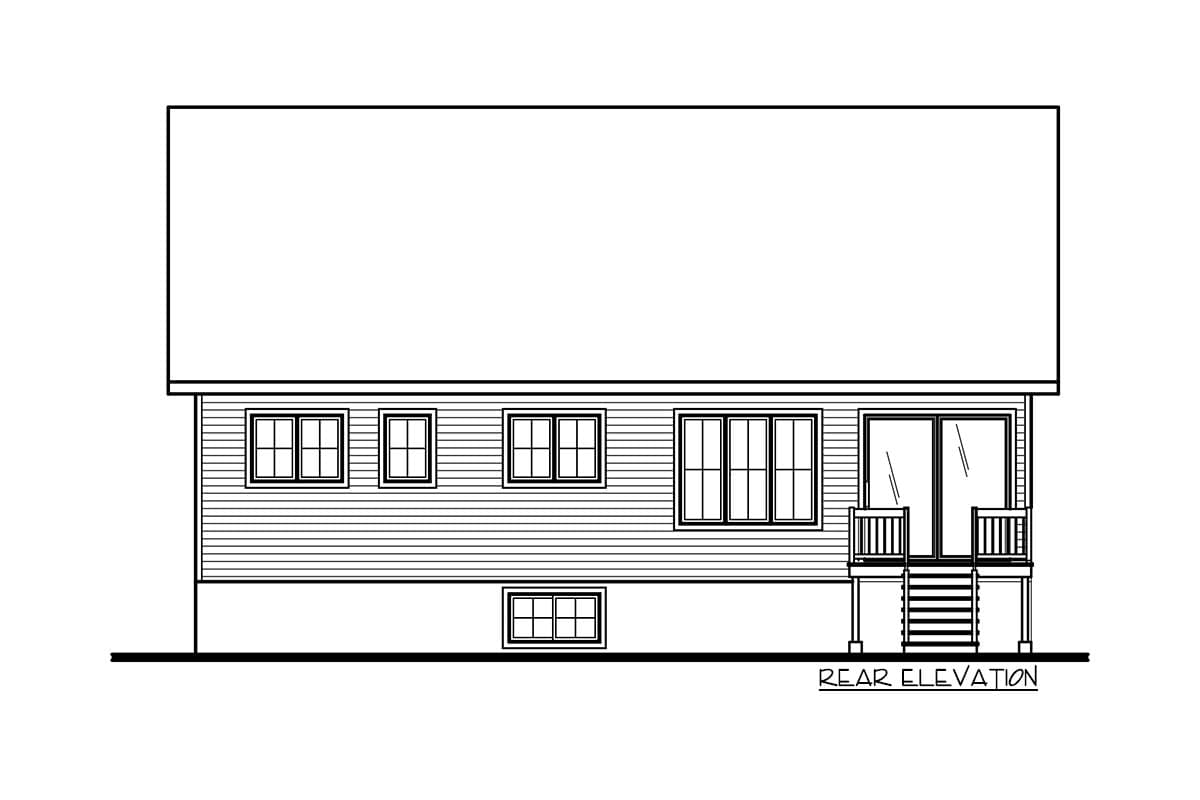

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

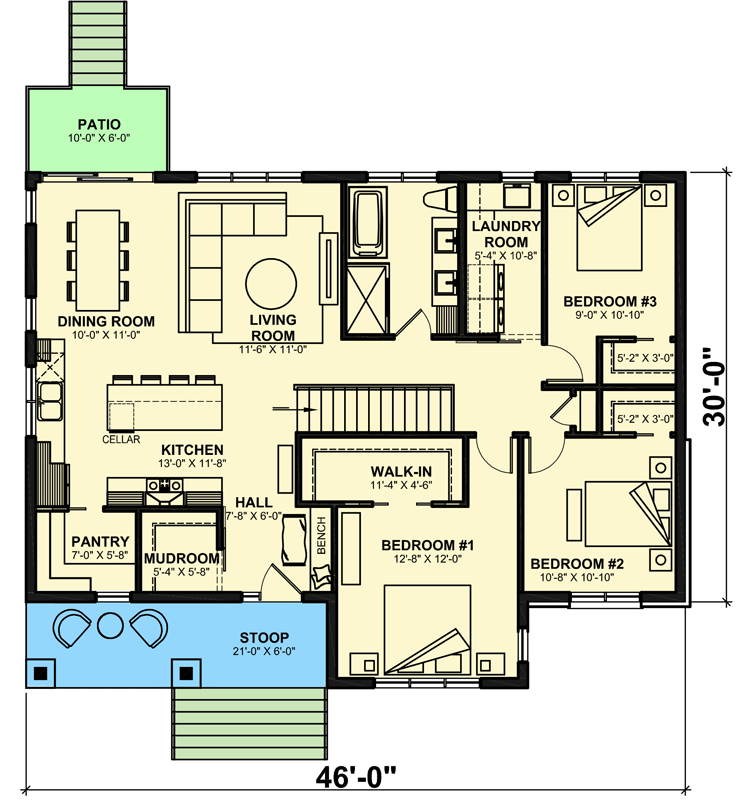

Traditional Craftsman Plan with Spacious Lower Level - 22620DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

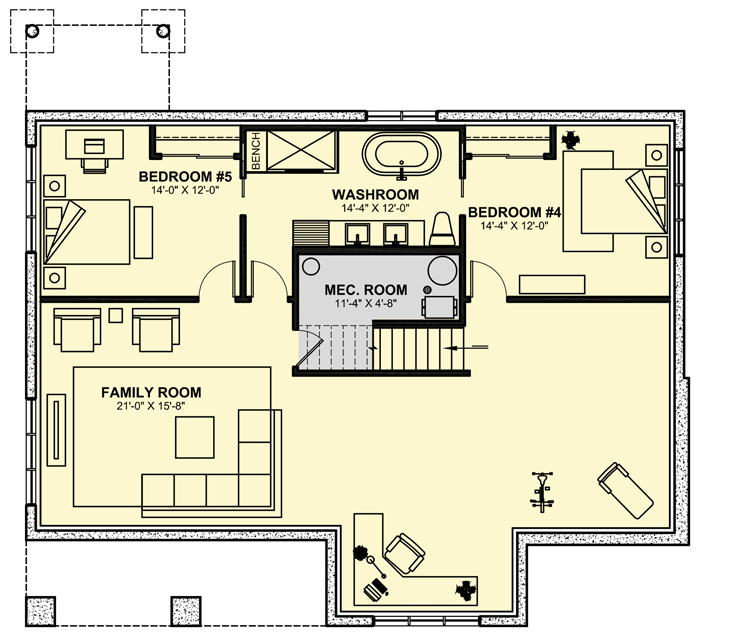

Traditional Craftsman Plan with Spacious Lower Level - 22620DR floor plan - Lower Level

Traditional Craftsman Plan with Spacious Lower Level

  • 2,926

    Heated s.f.

  • 5

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,926 sq. ft.
  • Lower Level: 1,463 sq. ft.
  • 1st Floor: 1,463 sq. ft.

Dimensions

  • Width: 46' 0"
  • Depth: 30' 0"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Monolithic Slab, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
