Plan 72419DA

Traditional Duplex-Family Home Plan with Vaulted Living Rooms - 1814 Sq Ft Per Unit

Heated S.F.
3,628
Units
2
Width
Depth

Floor Plan

Plan 72419DA

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 72419DA

M-F 9am-5pm EST |

1-203-761-8500

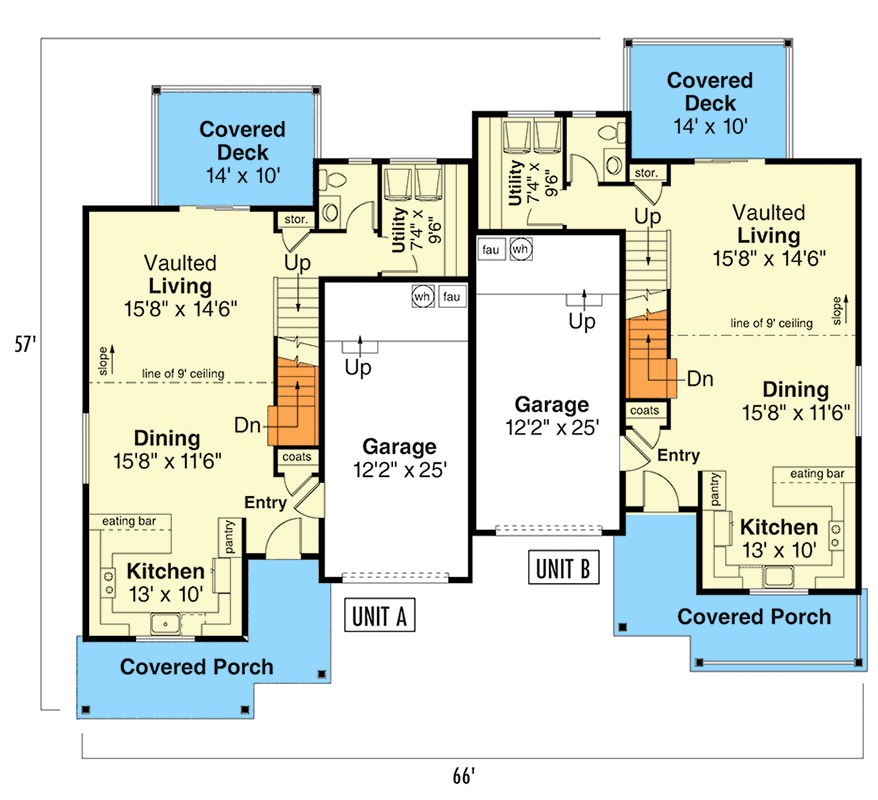

Main Level

Plan 72419DA: Traditional Duplex-Family Home Plan with Vaulted Living Rooms - 1814 Sq Ft Per Unit - Floor Plan - Main Level - Traditional

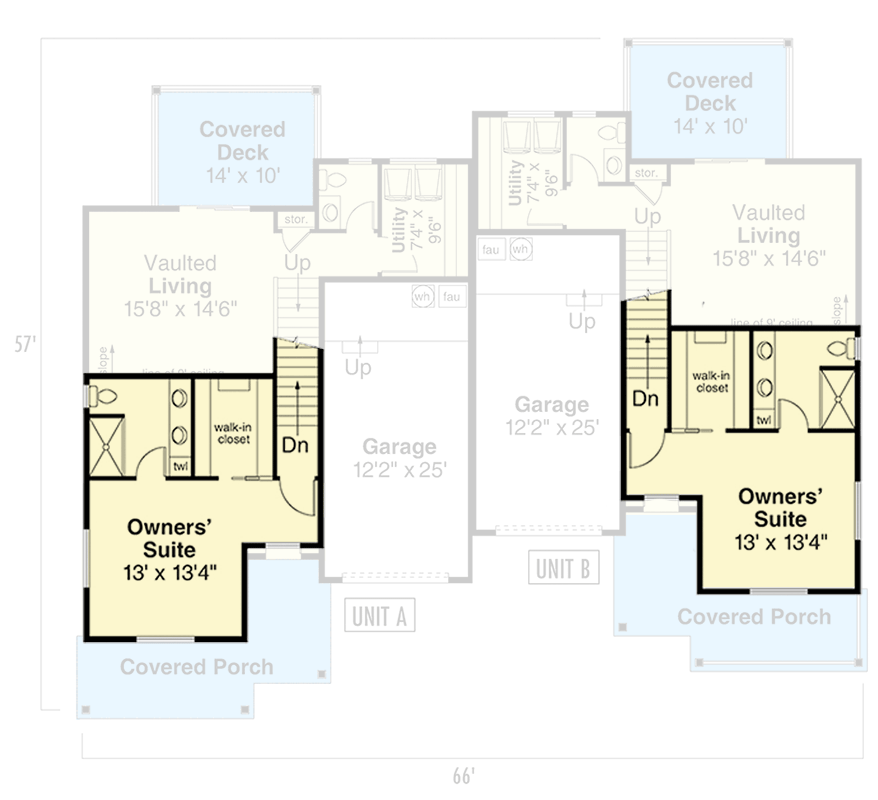

2nd Floor

Plan 72419DA: Traditional Duplex-Family Home Plan with Vaulted Living Rooms - 1814 Sq Ft Per Unit - Floor Plan - 2nd Floor - Traditional

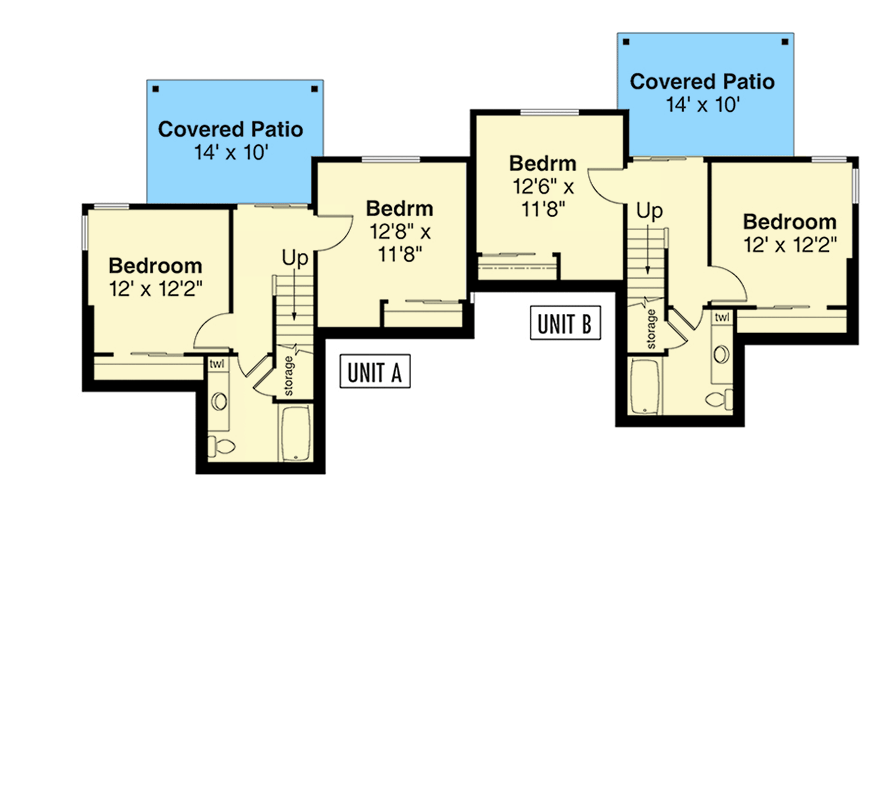

Lower Level

Plan 72419DA: Traditional Duplex-Family Home Plan with Vaulted Living Rooms - 1814 Sq Ft Per Unit - Floor Plan - Lower Level - Traditional

Plan Details

  • This duplex-family home plan gives you 2 units each with 1,814 square feet of heated living space (848 sq. ft. on the first floor, 402 sq. ft. on the second floor and 564 sq. ft. on the lower level), 3 beds, 2.5 baths and a 320 sq. ft. 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,814Sq. Ft.
564 Sq. Ft. LL
848 Sq. Ft. 1st
402 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
320 Sq. Ft.
Dimensions
33'width
57'depth
25' 2"height
Unfinished Areas
320 Sq. Ft. Garage
Unit B
Heated Area
1,814Sq. Ft.
1128 Sq. Ft. LL
848 Sq. Ft. 1st
402 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
320 Sq. Ft.
Dimensions
33'width
57'depth
25' 2"height
Unfinished Areas
320 Sq. Ft. Garage

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,628 sq. ft.

Lower Level

1,128 sq. ft.

1st Floor

1,696 sq. ft.

2nd Floor

804 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

57' 0"

Max Ridge Height

25' 2"

Garage

Type

Attached

Area

320 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,628 sq. ft.

Lower Level

1,128 sq. ft.

1st Floor

1,696 sq. ft.

2nd Floor

804 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

57' 0"

Max Ridge Height

25' 2"

Garage

Type

Attached

Area

320 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - Upstairs

Plan Collections

Sloping Lot
