Plan 59315ND

Traditional Duplex Home Plan

Heated S.F.
2,910
Units
2
Width
Depth

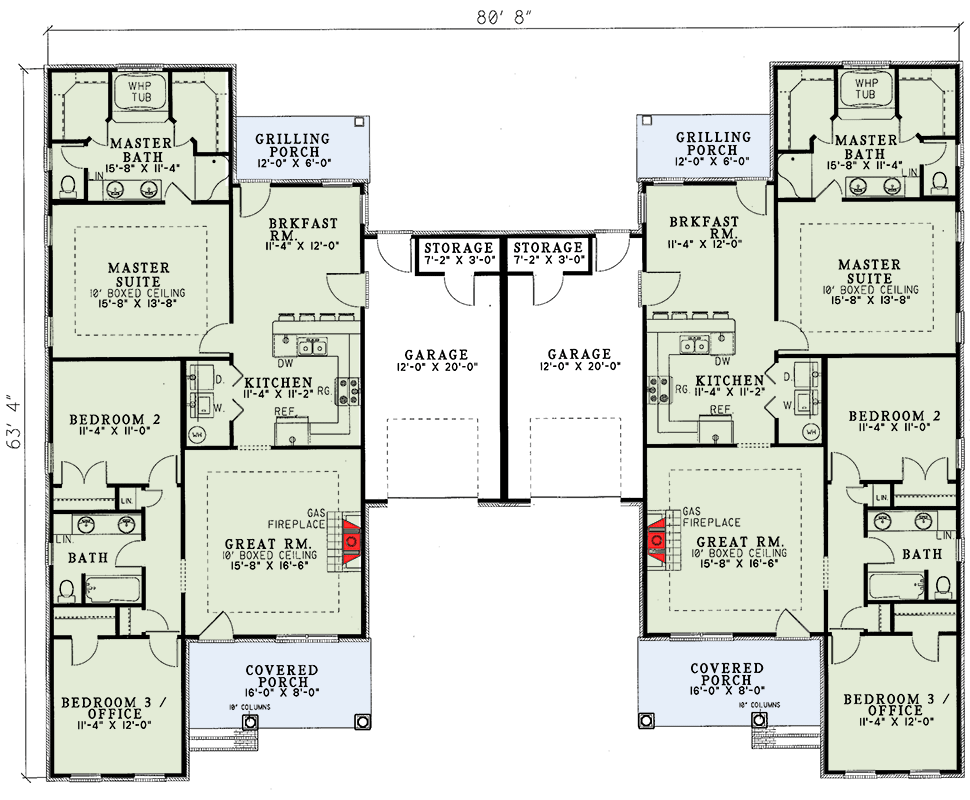

Floor Plan

Plan 59315ND

Main Level
Main Level

Plan 59315ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59315ND: Traditional Duplex Home Plan - Floor Plan - Main Level - Ranch, Southern, Traditional

Plan Details

  • After greeting guests on the covered porch, guide them into the spacious great room.
  • Conveniently accessible to the kitchen, you can slip away to check on the excellent cuisine you are preparing.
  • A connecting breakfast room can serve as more space for guests or a quiet place just for you.
  • A door opening to a grilling porch allows you to prepare grilled meats with ease.
  • When all the excitement is over, enjoy the privacy of the master suite or relax in the whirlpool bath.
Unit A
Heated Area
1,455Sq. Ft.
1455 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
240 Sq. Ft.
Dimensions
40' 4"width
63' 4"depth
23'height
Unfinished Areas
240 Sq. Ft. Garage
182 Sq. Ft. Porch, Combined
Unit B
Heated Area
1,455Sq. Ft.
1455 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
240 Sq. Ft.
Dimensions
40' 4"width
63' 4"depth
23'height
Unfinished Areas
240 Sq. Ft. Garage

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,910 sq. ft.

1st Floor

2,910 sq. ft.

Porch, Front

292 sq. ft.

Porch, Rear

72 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 8"

Depth

63' 4"

Max Ridge Height

23' 8"

Garage

Type

Attached

Area

480 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,910 sq. ft.

1st Floor

2,910 sq. ft.

Porch, Front

292 sq. ft.

Porch, Rear

72 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 8"

Depth

63' 4"

Max Ridge Height

23' 8"

Garage

Type

Attached

Area

480 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Ranch

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
