Traditional Duplex House Plan with Efficient 945 Sq Ft Units

Heated S.F.
1,890
Units
2
Width
Depth

Floor Plan

Plan 51242MM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 51242MM

M-F 9am-5pm EST |

1-203-761-8500

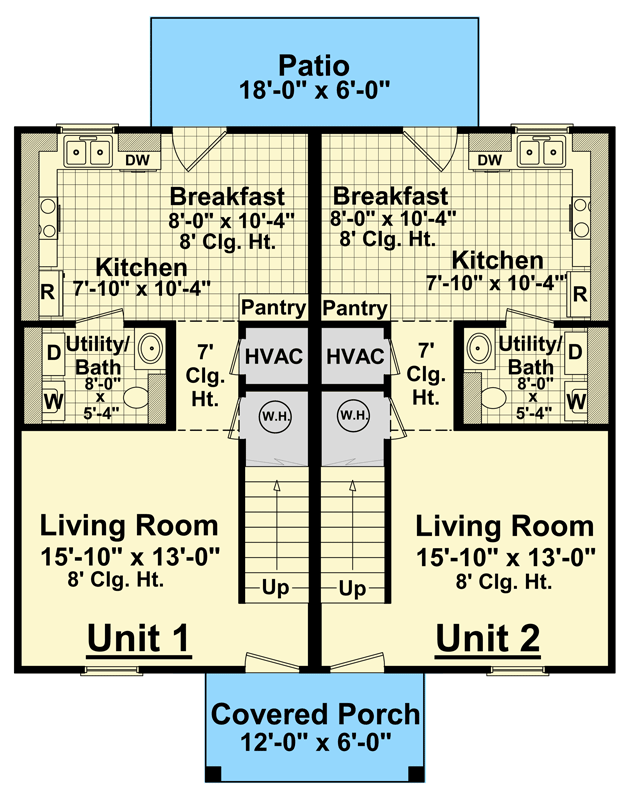

Main Level

Plan 51242MM: Traditional Duplex House Plan with Efficient 945 Sq Ft Units - Floor Plan - Main Level - Traditional

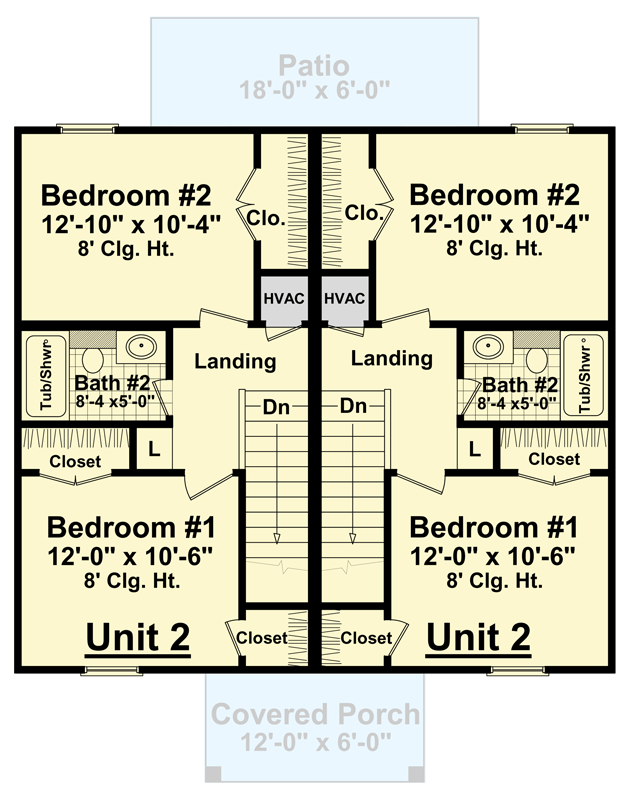

2nd Floor

Plan 51242MM: Traditional Duplex House Plan with Efficient 945 Sq Ft Units - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This traditional duplex house plan features a total of 1,890 sq ft, comprising two 945 sq ft units each with 2 bedrooms and 1 bathroom.
  • Entry to each unit is through a welcoming covered porch, leading directly into a spacious living room.
  • The main floor includes a well-designed kitchen with an adjacent breakfast area, maximizing space and functionality.
  • Upstairs, each unit offers two comfortable bedrooms and a shared bathroom.
  • The two units share a 18' x 6' patio at the back, ideal for outdoor relaxation and grilling.
Unit A & B
Heated Area
945Sq. Ft.
495 Sq. Ft. 1st
450 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
1Half Bath
Dimensions
16'width
30'depth

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,890 sq. ft.

1st Floor

990 sq. ft.

2nd Floor

900 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

33' 0"

Depth

30' 0"

Max Ridge Height

25' 3"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Laundry - Main Level

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,890 sq. ft.

1st Floor

990 sq. ft.

2nd Floor

900 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

33' 0"

Depth

30' 0"

Max Ridge Height

25' 3"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Laundry - Main Level

Master Suite - Upstairs
