Plan 405031FDC

Traditional Duplex House Plan with Main Floor Master Suites

Heated S.F.
2,968
Units
2
Width
Depth

Floor Plan

Plan 405031FDC

Main Level
Main Level
2nd Floor
2nd Floor

Plan 405031FDC

M-F 9am-5pm EST |

1-203-761-8500

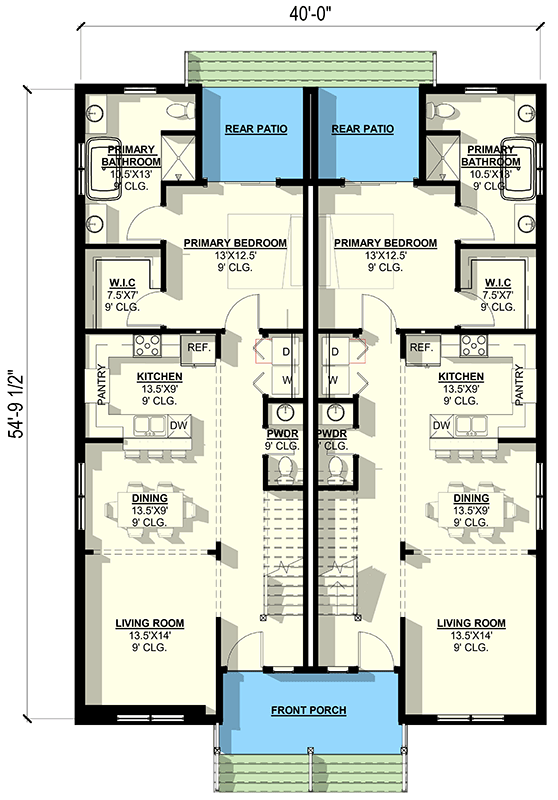

Main Level

Plan 405031FDC: Traditional Duplex House Plan with Main Floor Master Suites - Floor Plan - Main Level - Traditional

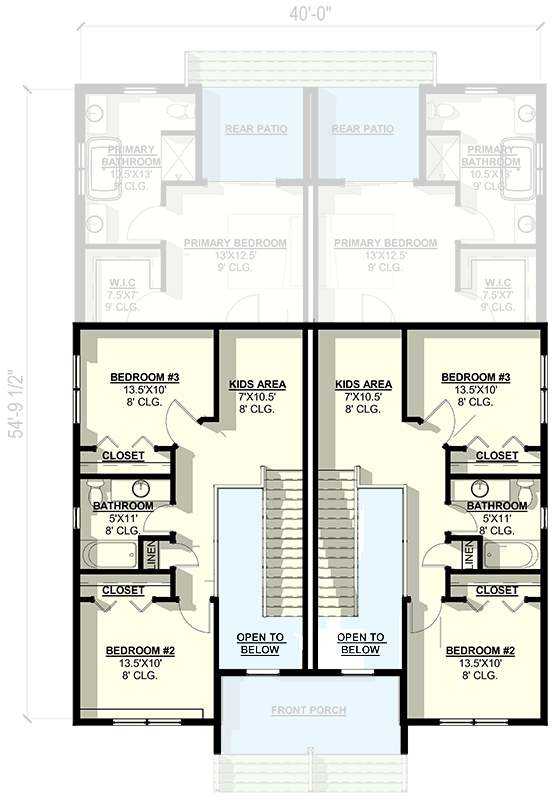

2nd Floor

Plan 405031FDC: Traditional Duplex House Plan with Main Floor Master Suites - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This 2,968 sq. ft. modern duplex house plan showcases a striking traditional exterior, offering a total of six bedrooms, four full bathrooms, and two half bathrooms across two distinct units.
  • Upon entering each unit, guests are welcomed into an inviting open-concept living room that flows seamlessly into the dining area and a well-appointed kitchen, all beneath a soaring 9-foot ceiling on the first floor.
  • The thoughtfully designed main floor of each unit places the kitchen at the heart of the home, complete with a breakfast nook for casual meals and a convenient main-level laundry room. A discreet powder room is also provided for guests.
  • Each unit boasts a private primary bedroom suite on the first floor, featuring a spacious walk-in closet and an elegant primary bathroom. Upstairs, two additional bedrooms share a full bathroom, alongside a versatile "Kids Area" perfect for play or study.
  • The second floor of each unit includes a dedicated kids area, offering a flexible space for children to play or learn, enhancing the home's family-friendly appeal.
  • Each unit extends its living space outdoors with a welcoming front porch, ideal for morning coffee, and a private covered patio at the rear, perfect for al fresco dining or relaxation.
Unit A & B
Heated Area
1,484Sq. Ft.
973 Sq. Ft. 1st
511 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
20'width
54'depth
Unfinished Areas
511 Sq. Ft. Porch, Front
159 Sq. Ft. Covered Patio

What's Included

  • Cover Sheet - General Notes
  • Foundation
  • Floor Plan (s)
  • Electrical
  • Roof
  • Exterior Elevation
  • Building Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,968 sq. ft.

1st Floor

1,946 sq. ft.

2nd Floor

1,022 sq. ft.

Porch, Front

236 sq. ft.

Covered Patio

318 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

54' 9"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick Or Truss

Architectural Style

Traditional

Special Features

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,968 sq. ft.

1st Floor

1,946 sq. ft.

2nd Floor

1,022 sq. ft.

Porch, Front

236 sq. ft.

Covered Patio

318 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

54' 9"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick Or Truss

Architectural Style

Traditional

Special Features

Breakfast Nook

Laundry - Main Level

Loft

Master Suite - 1st Floor
