Plan 267065SPK

Traditional Duplex House Plan with Matching 3-Bed Units - Under 1500 Sq Ft Per Unit

Heated S.F.
2,852
Units
2
Width
Depth

Floor Plan

Plan 267065SPK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 267065SPK

M-F 9am-5pm EST |

1-203-761-8500

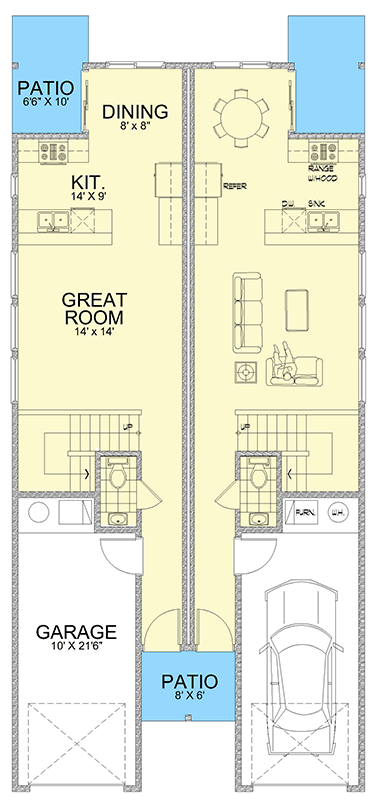

Main Level

Plan 267065SPK: Traditional Duplex House Plan with Matching 3-Bed Units - Under 1500 Sq Ft Per Unit - Floor Plan - Main Level - Traditional

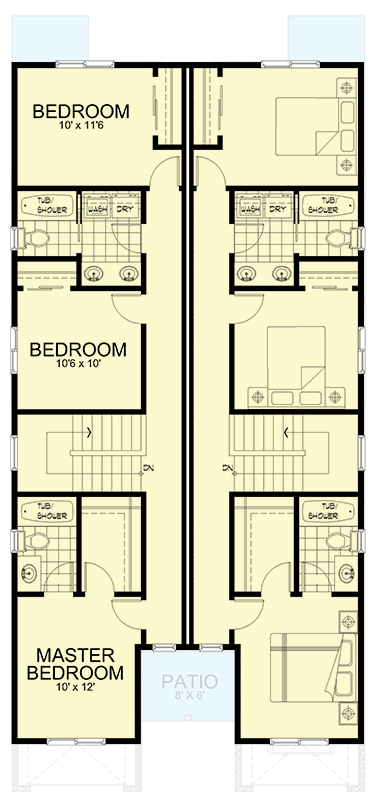

2nd Floor

Plan 267065SPK: Traditional Duplex House Plan with Matching 3-Bed Units - Under 1500 Sq Ft Per Unit - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This duplex house plan gives you 2 units each with 1,426 square feet of heated living space (588 sq. ft. on the first floor, 838 sq. ft. on the second floor), 3 beds, 2.5 baths and a 258 sq. ft. 1-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,426Sq. Ft.
588 Sq. Ft. 1st
838 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
258 Sq. Ft.
Dimensions
15'width
60'depth
Unfinished Areas
258 Sq. Ft. Garage
65 Sq. Ft. Porch, Rear
Unit B
Heated Area
1,426Sq. Ft.
588 Sq. Ft. 1st
838 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
258 Sq. Ft.
Dimensions
15'width
62'depth
Unfinished Areas
258 Sq. Ft. Garage
65 Sq. Ft. Porch, Rear

What's Included

  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
View Sample Plan

What's Not Included

  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
