Plan 36657TX Traditional European House Plan with Game / Media Rooms

Traditional European House Plan with Game / Media Rooms

Plan 36657TX

  • 4,048

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Stories

  • 3

    Cars

  • This traditional, European house plan offers elegance and luxury with all of the living area on the first floor, while the hip roofline, stone façade, and wood trim offer a welcome home appeal.
  • As you enter the covered porch into the stunning 12’ high foyer, flanked by family bedrooms, you immediately have a view of the overwhelming ceiling styles that lead into the family living center.
  • The dramatic fireplace in the family room sits perpendicular to a wall of windows with a view onto the covered lounge and patio, while the dining area is open, and has a built-in hutch and wine area.
  • The gourmet kitchen offers modern, state-of-the-art appliances, granite countertops, a pantry with built-in shelves, and an area with a desk for your computer to look up those recipes while preparing an exciting new meal.
  • Off the dining area is a game room with a powder bath, built-in display shelves, a storage closet, and a media room with an 8 foot area for a flat screen with built-ins, also accessible from the outdoor patio.
  • The master suite, with an 11-foot trey ceiling and a private patio, boasts a 48” x 78” garden tub, a separate glass shower, his and hers vanities, a linen closet, built-in safe, and a wardrobe with a 3’ x 6’ island.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

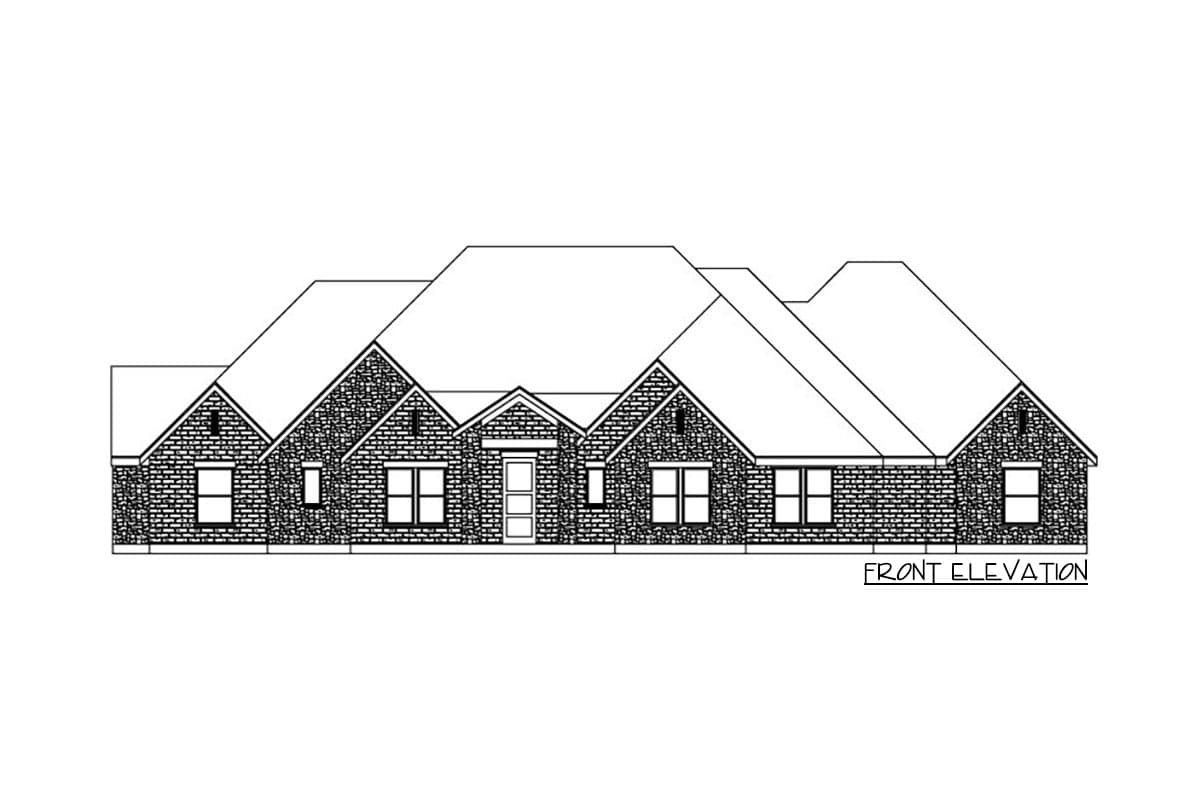

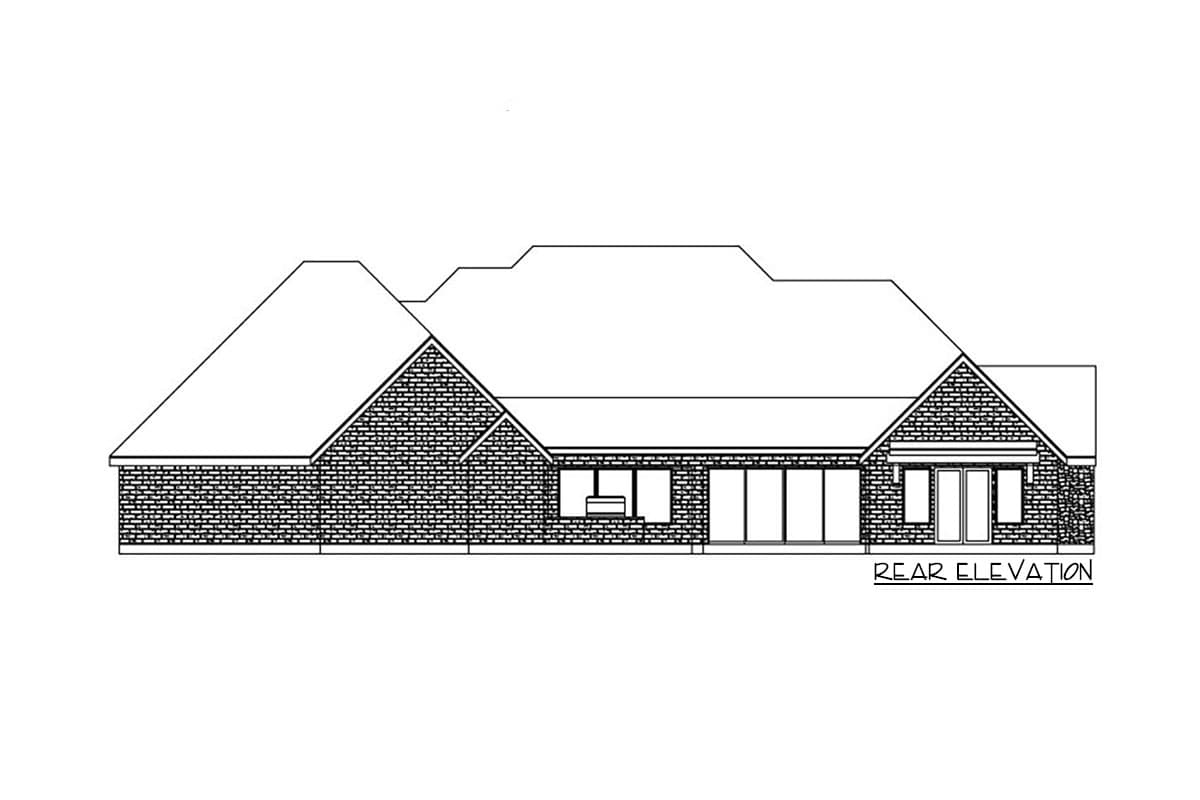

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

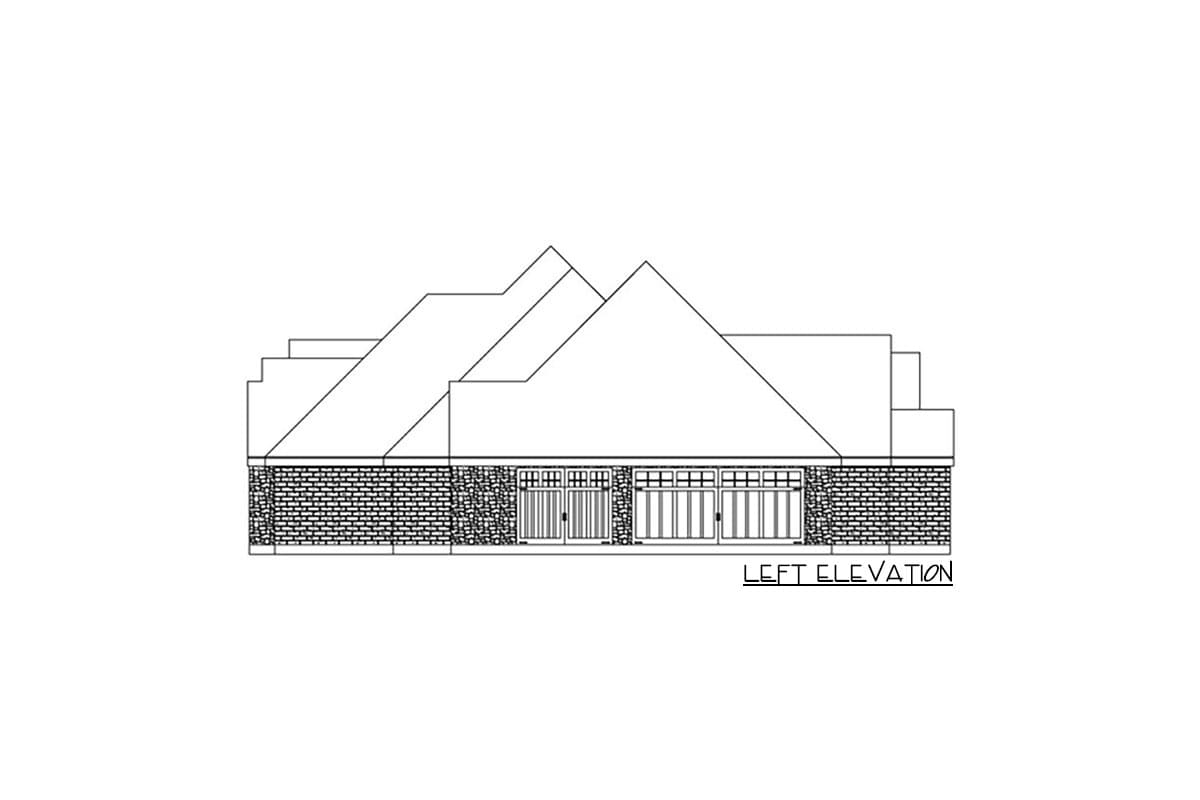

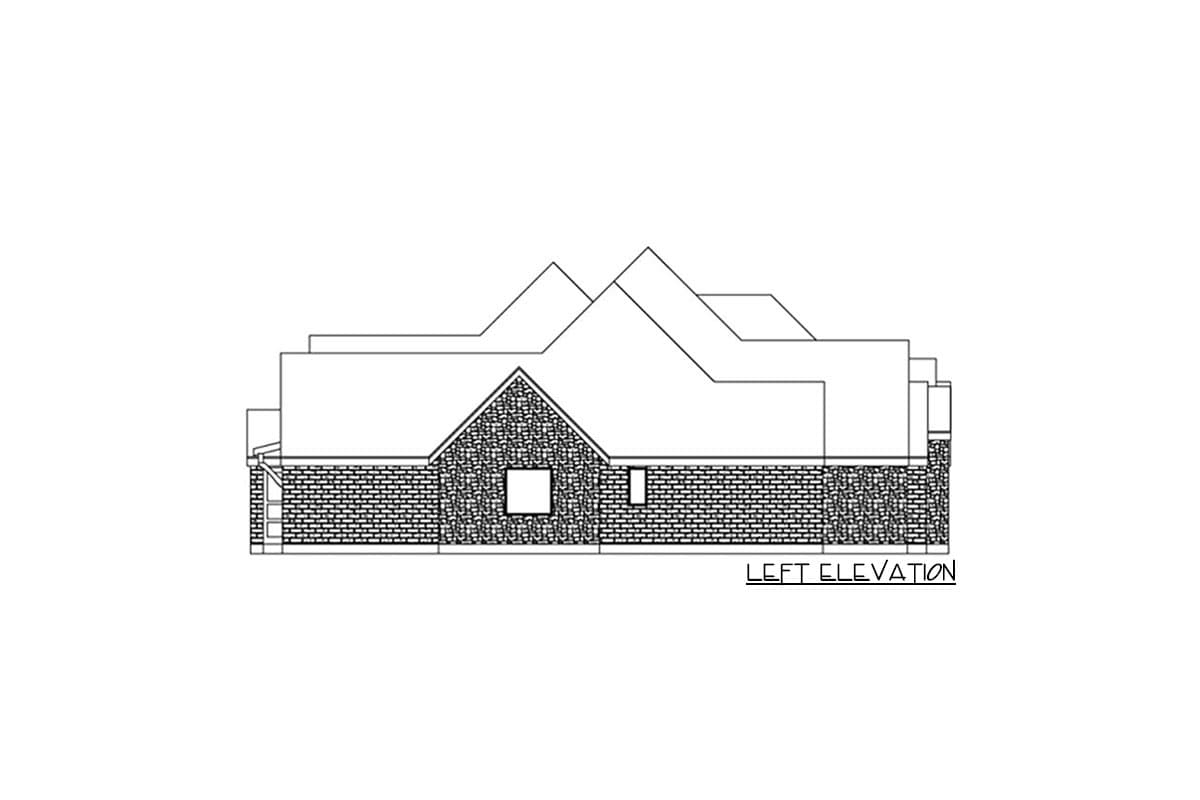

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

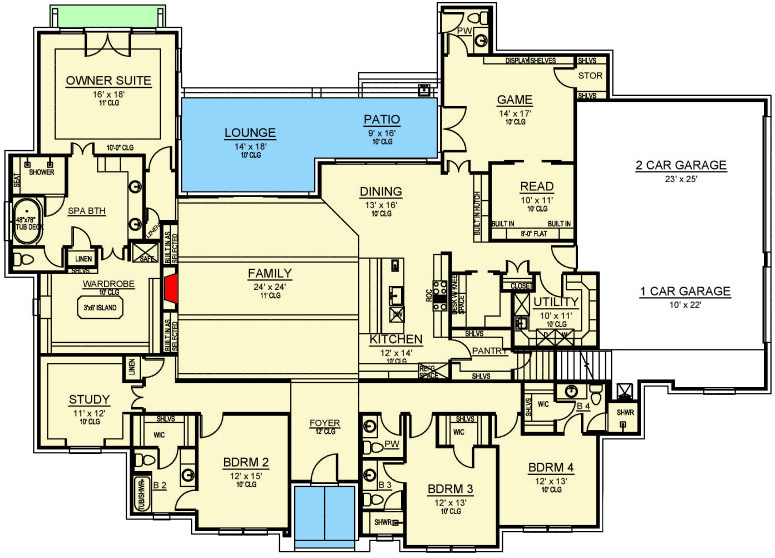

Traditional European House Plan with Game / Media Rooms - 36657TX floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

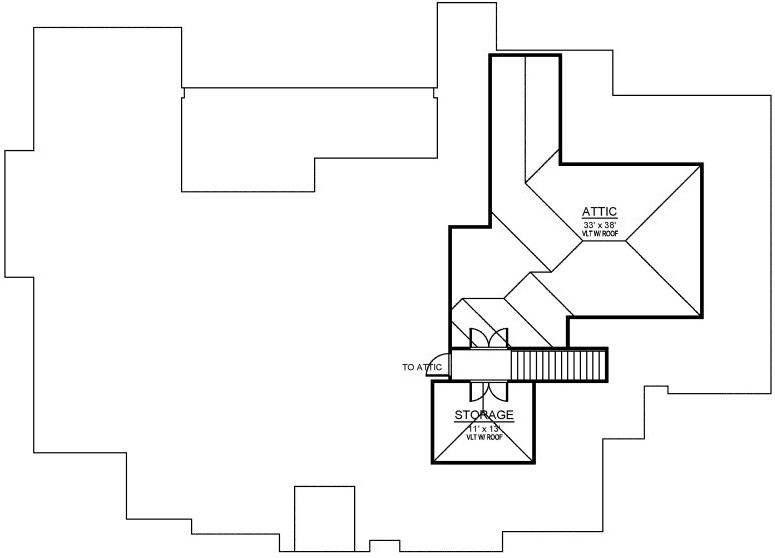

Traditional European House Plan with Game / Media Rooms - 36657TX floor plan - 2nd Floor

Plan details

Traditional European House Plan with Game / Media Rooms

  • 4,048

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,515
  • 5 Sets $1,715
  • CAD - Single-Build $2,275
  • View all purchase option online

About This Plan

  • This traditional, European house plan offers elegance and luxury with all of the living area on the first floor, while the hip roofline, stone façade, and wood trim offer a welcome home appeal.
  • As you enter the covered porch into the stunning 12’ high foyer, flanked by family bedrooms, you immediately have a view of the overwhelming ceiling styles that lead into the family living center.
  • The dramatic fireplace in the family room sits perpendicular to a wall of windows with a view onto the covered lounge and patio, while the dining area is open, and has a built-in hutch and wine area.
  • The gourmet kitchen offers modern, state-of-the-art appliances, granite countertops, a pantry with built-in shelves, and an area with a desk for your computer to look up those recipes while preparing an exciting new meal.
  • Off the dining area is a game room with a powder bath, built-in display shelves, a storage closet, and a media room with an 8 foot area for a flat screen with built-ins, also accessible from the outdoor patio.
  • The master suite, with an 11-foot trey ceiling and a private patio, boasts a 48” x 78” garden tub, a separate glass shower, his and hers vanities, a linen closet, built-in safe, and a wardrobe with a 3’ x 6’ island.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,048 sq. ft.
  • 1st Floor: 4,048 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 102' 0"
  • Depth: 73' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 978 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
