Traditional Gables and Optional Designs

Plan 59209ND

  • 2,296

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Traditional gables and a large front porch give this attractive home plan warmth and lovely street appeal. A well-planned kitchen with a handy work island and nearby powder room add convenience while a nearby grilling-porch just off the adjoining breakfast room gives the family a place of solitude and morning coffee.
  • The main level master suite has French doors that lead to the private bathroom complete with a whirlpool tub, separate shower and large walk-in closet.
  • Three upstairs bedrooms and a centrally-located game room with built-in computer center provide family a great place to gather.
  • Related Plans: See these related designs - 59205ND and 59207ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

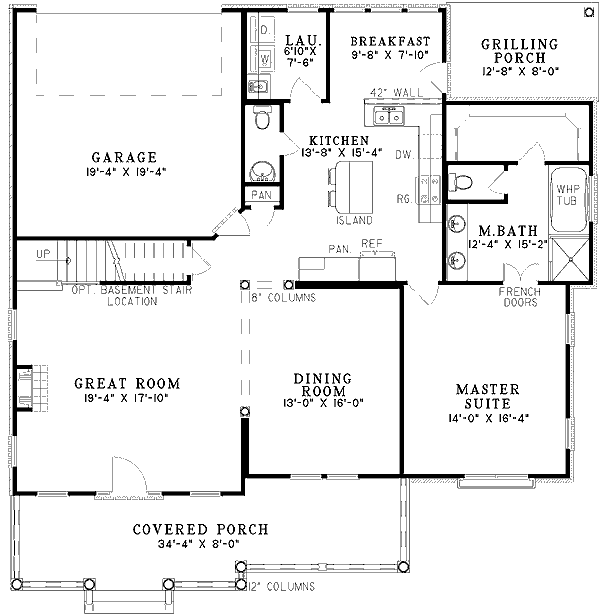

Traditional Gables and Optional Designs - 59209ND floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Traditional Gables and Optional Designs - 59209ND floor plan - 2nd Floor

Traditional Gables and Optional Designs

  • 2,296

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,296 sq. ft.
  • 1st Floor: 1,537 sq. ft.
  • 2nd Floor: 759 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 50' 0"
  • Max ridge height: 28' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 384 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
