Traditional Home Plan for a Narrow Lot
Heated S.F.
1,612
Beds
3
Baths
2.5
Stories
2
Cars
2
Videos
What's Included
Plan Details
  • Stone details, shingle siding and graceful columns adorn this traditional two-story home plan, giving it a great curb appeal.
  • The main floor provides the living area of the home where the kitchen, dining and great rooms flow together perfectly to create a space that's perfect for entertaining.
  • A covered porch off the back of the home provides additional living space that overlooks the back yard.
  • Upstairs you'll find a spacious master with private bath, two additional bedrooms, a full bath, and the laundry room.
  • A two-stall garage with extra storage completes the home plan.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.
What's Included
  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional Home Plan for a Narrow Lot

  • 1,612

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

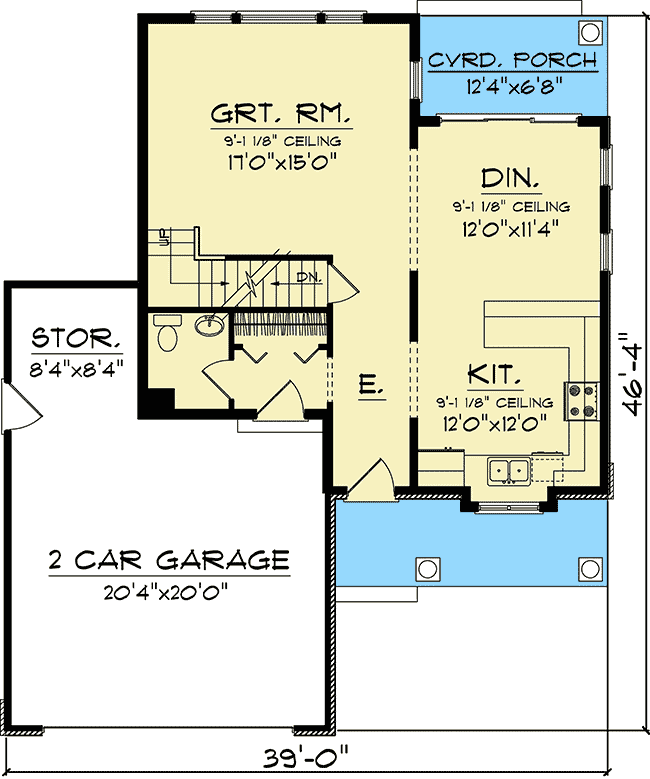

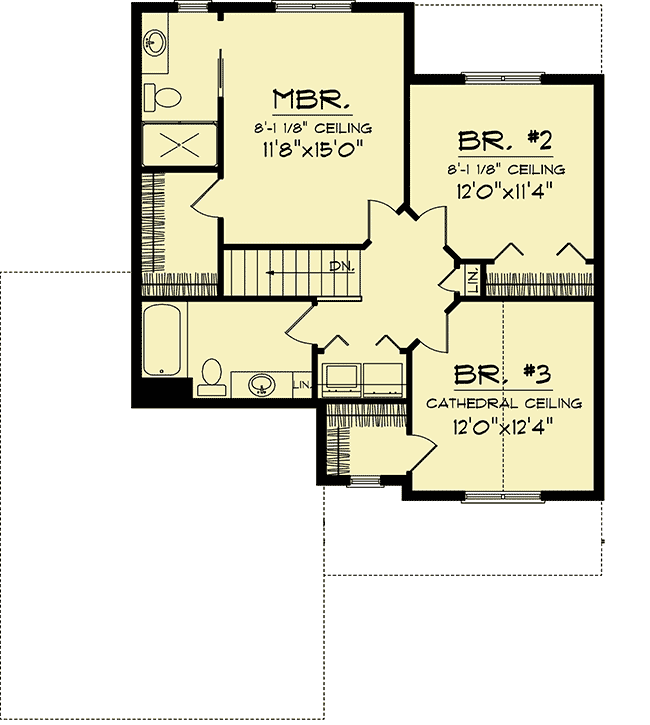

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,612 sq. ft.
  • 1st Floor: 804 sq. ft.
  • 2nd Floor: 808 sq. ft.

Dimensions

  • Width: 39' 0"
  • Depth: 46' 4"
  • Max ridge height: 30' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 502 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
