Plan 360054DK
Traditional Home Plan with Bonus Over Garage and Sweeping Front Porch
Heated S.F.
3,446
Beds
5
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • This 4 bedroom house plan - with a 5th bedroom option upstairs - has sister plan with alternate exteriors to suit a wide range of aesthetic tastes.
  • The foyer gives you views through to the back, including the family room with fireplace and built-ins.
  • The master is on the main and has beautiful double tray ceilings and his and her walk-ins. It also has access to the covered rear terrace.
  • The kitchen has great views to the back of the home and is centrally located to the formal dining room, the breakfast area and the screened porch for al fresco dining without the bugs. The outdoor kitchen is a nice touch.
  • Upstairs, there are two beds plus an optional third bedroom and media room. A bonus room option over the garage gives you a potential fifth bedroom.
  • The garage has parking for 3 cars. The doors are 9' wide and 8' tall and the garage has 9' ceilings, giving you great clearance for your vehicles.
  • Related Plans: Get alternate exteriors with house plans 36044DK and 360049DK.
What's Included

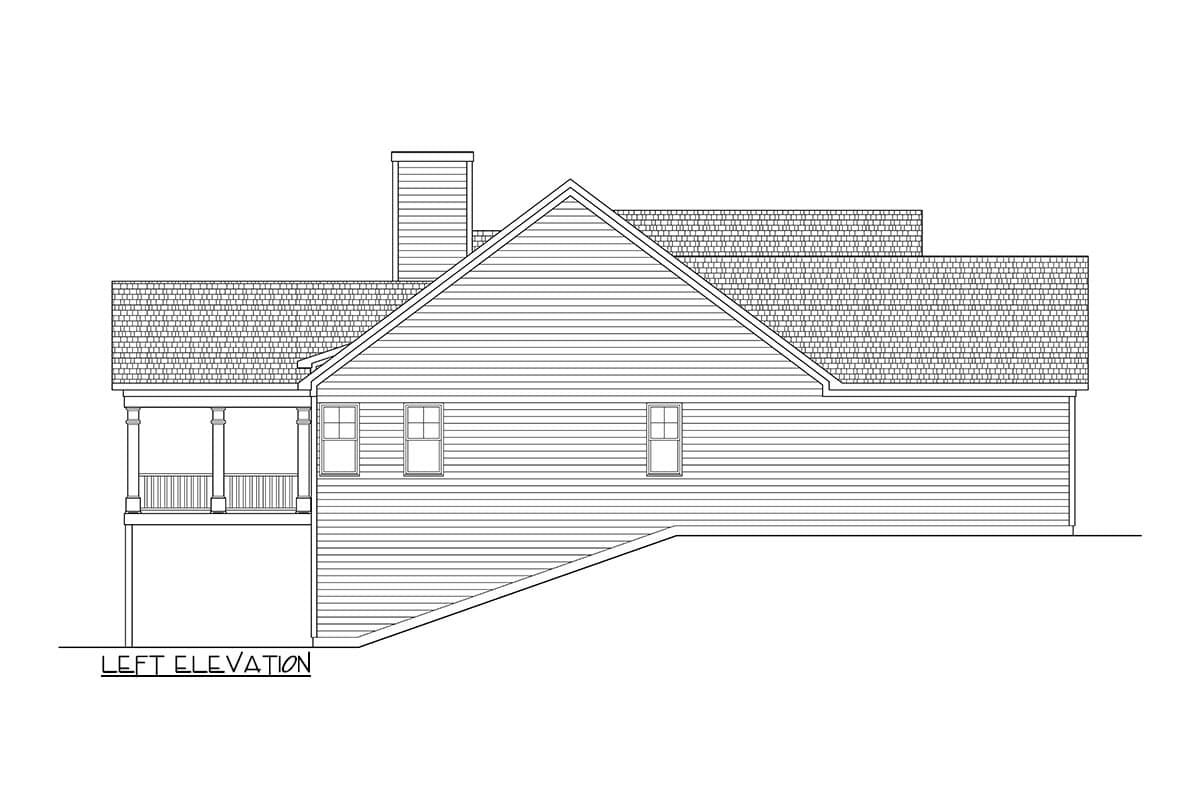

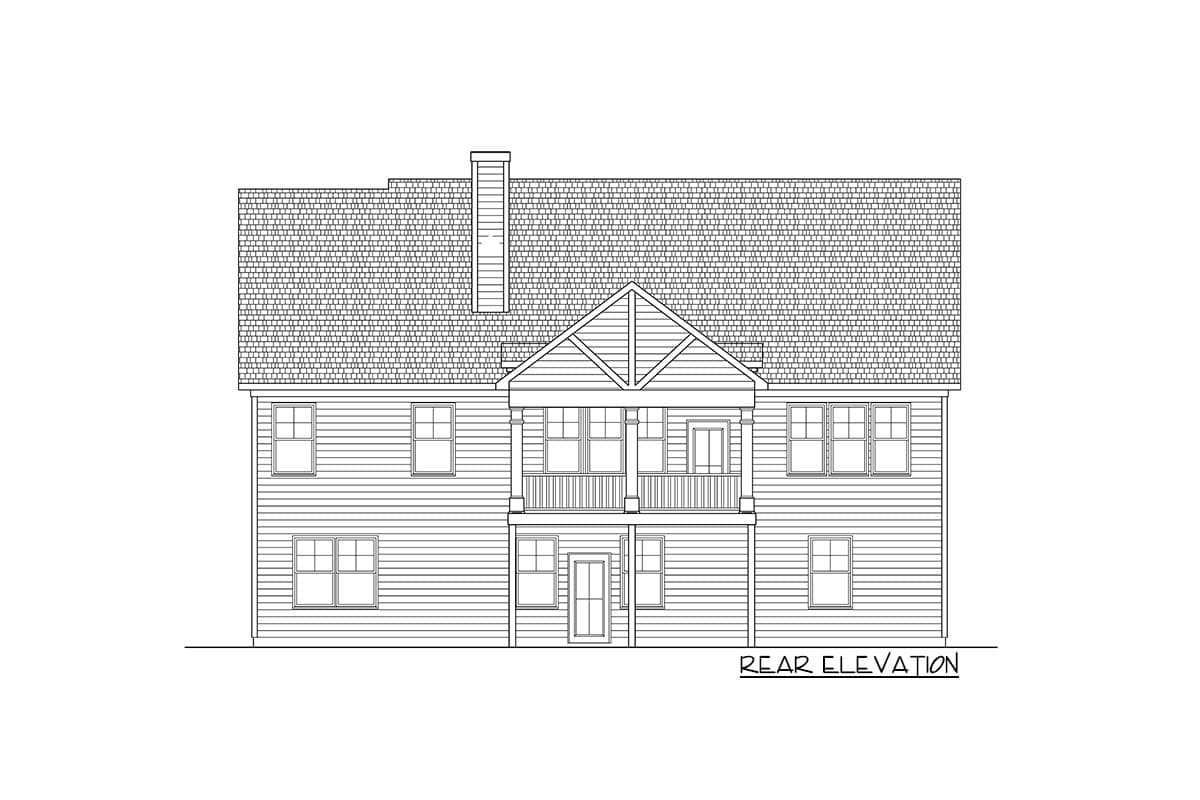

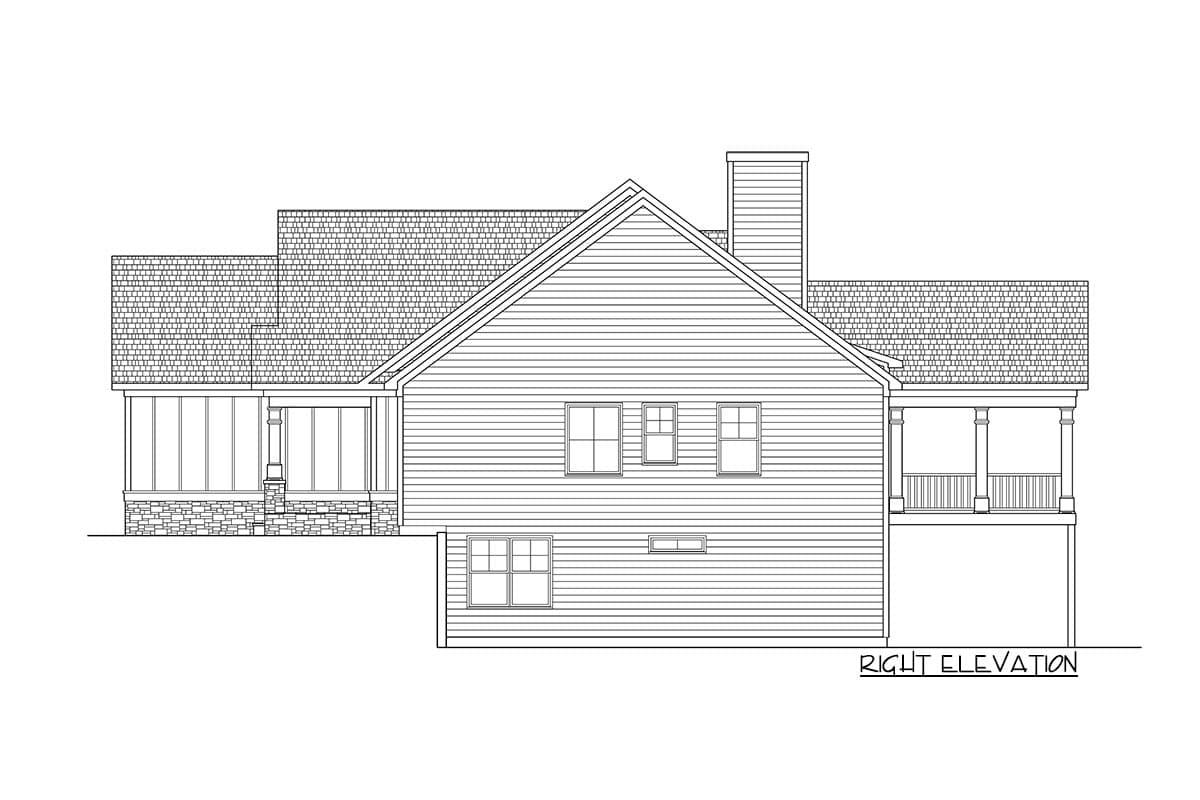

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional Home Plan with Bonus Over Garage and Sweeping Front Porch

  • 3,446

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

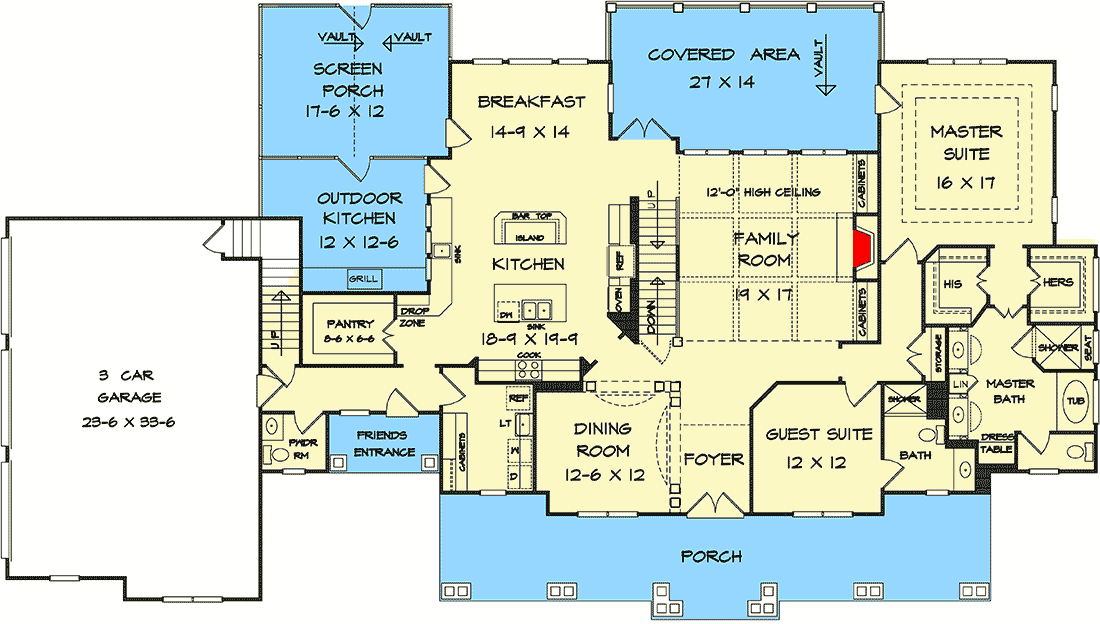

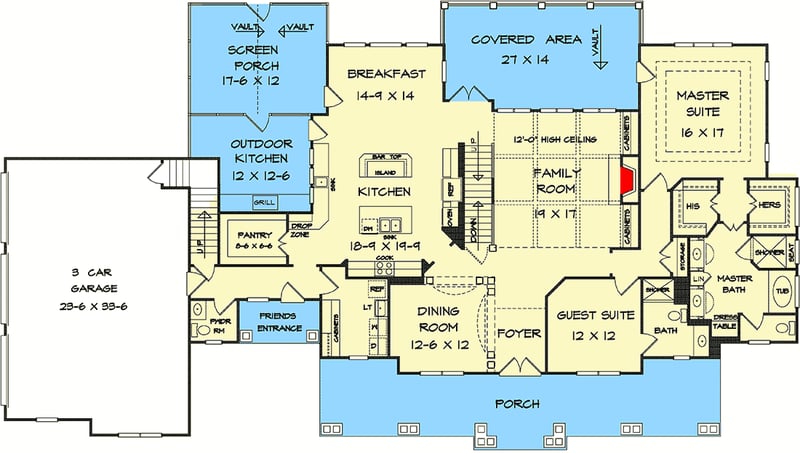

  • Main Level

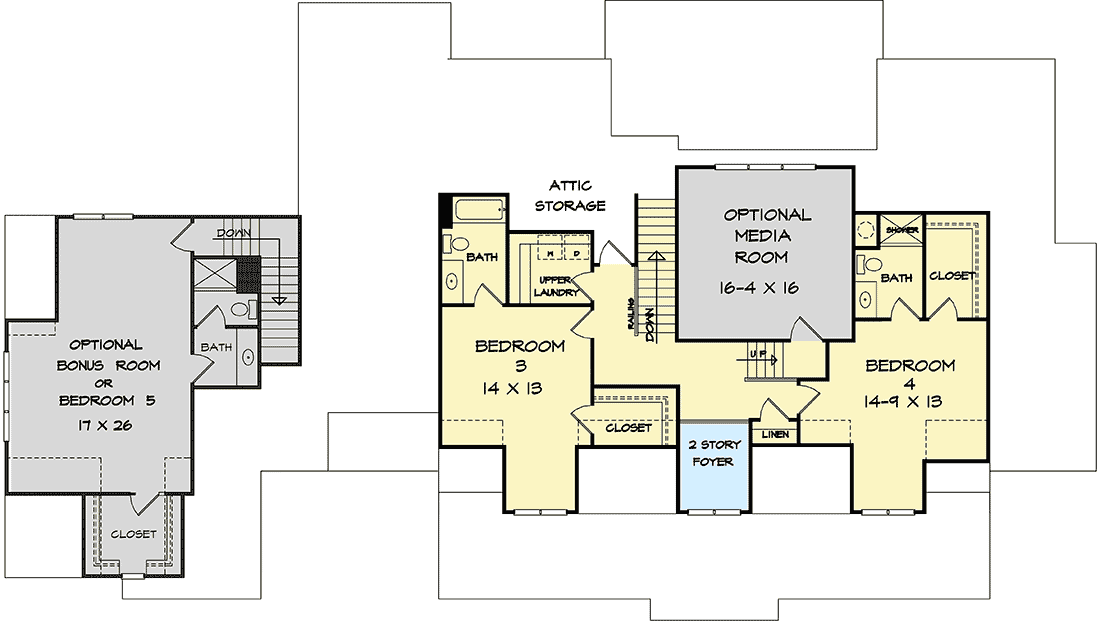

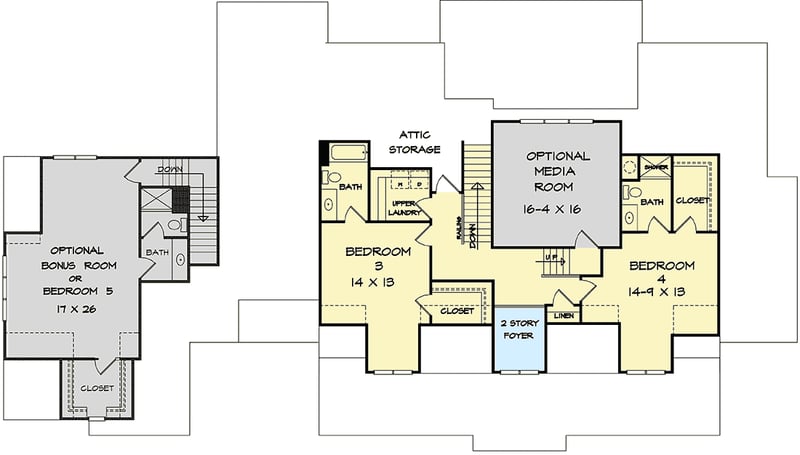

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,446 sq. ft.
  • 1st Floor: 2,492 sq. ft.
  • 2nd Floor: 954 sq. ft.

Dimensions

  • Width: 102' 4"
  • Depth: 57' 9"
  • Max ridge height: 29' 9"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 828 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Traditional Home Plan with Bonus Over Garage and Sweeping Front Porch

  • 3,446

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Traditional Home Plan with Bonus Over Garage and Sweeping Front Porch

  • 3,446

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,446 sq. ft.
  • 1st Floor: 2,492 sq. ft.
  • 2nd Floor: 954 sq. ft.

Dimensions

  • Width: 102' 4"
  • Depth: 57' 9"
  • Max ridge height: 29' 9"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 828 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

    Main Level

    2nd Floor
