Traditional House Plan with Bonus Over Garage and Sweeping Front Porch

Plan 360049DK

  • 3,277

    Heated s.f.

  • 4-5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 4 bedroom house plan - with a 5th bedroom option upstairs - has sister plan with alternate exteriors to suit a wide range of aesthetic tastes.
  • The foyer gives you views through to the back, including the family room with fireplace and built-ins.
  • The master is on the main and has beautiful double tray ceilings and his and her walk-ins. It also has access to the covered rear terrace.
  • The kitchen has great views to the back of the home and is centrally located to the formal dining room, the breakfast area and the screened porch for al fresco dining without the bugs. The outdoor kitchen is a nice touch.
  • Upstairs, there are two beds plus an optional third bedroom and media room. A bonus room option over the garage gives you a potential fifth bedroom.
  • The garage has parking for 3 cars. The doors are 9' wide and 8' tall and the garage has 9' ceilings, giving you great clearance for your vehicles.
  • Related Plans: Get alternate exteriors with house plans 36044DK and 360054DK.

This plan includes the following elements:

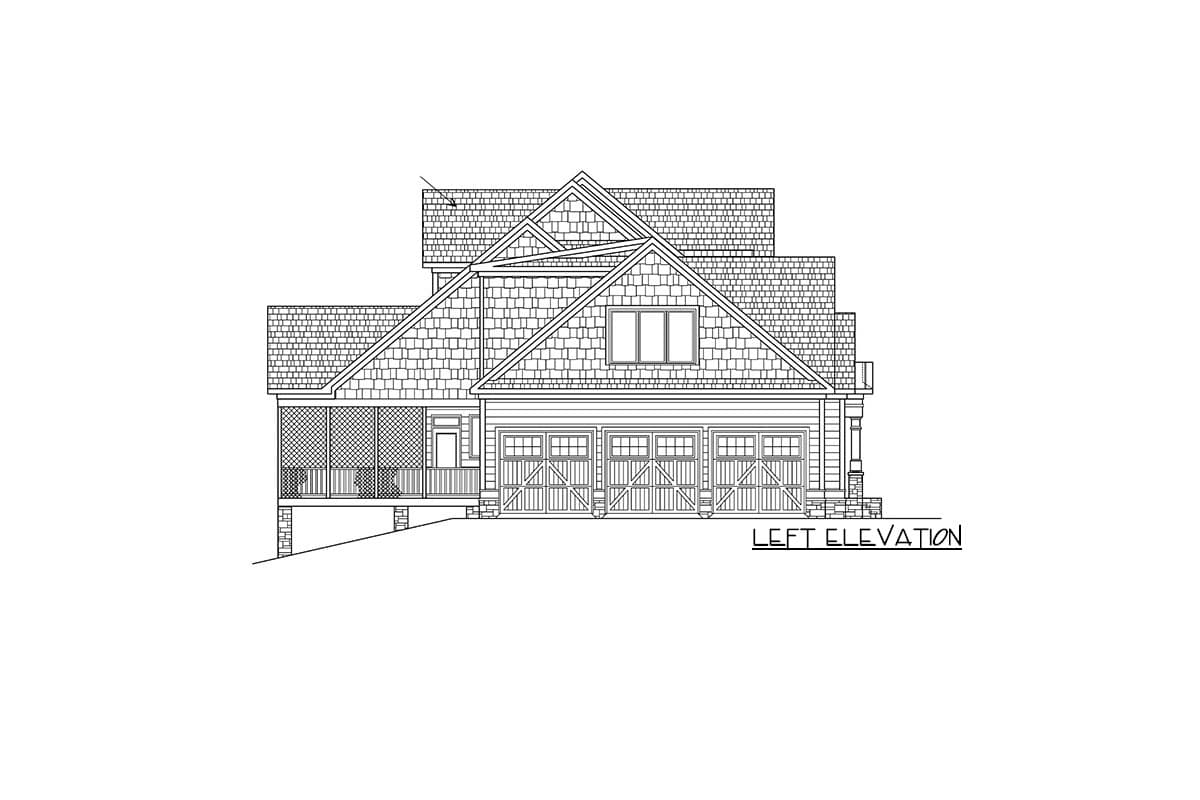

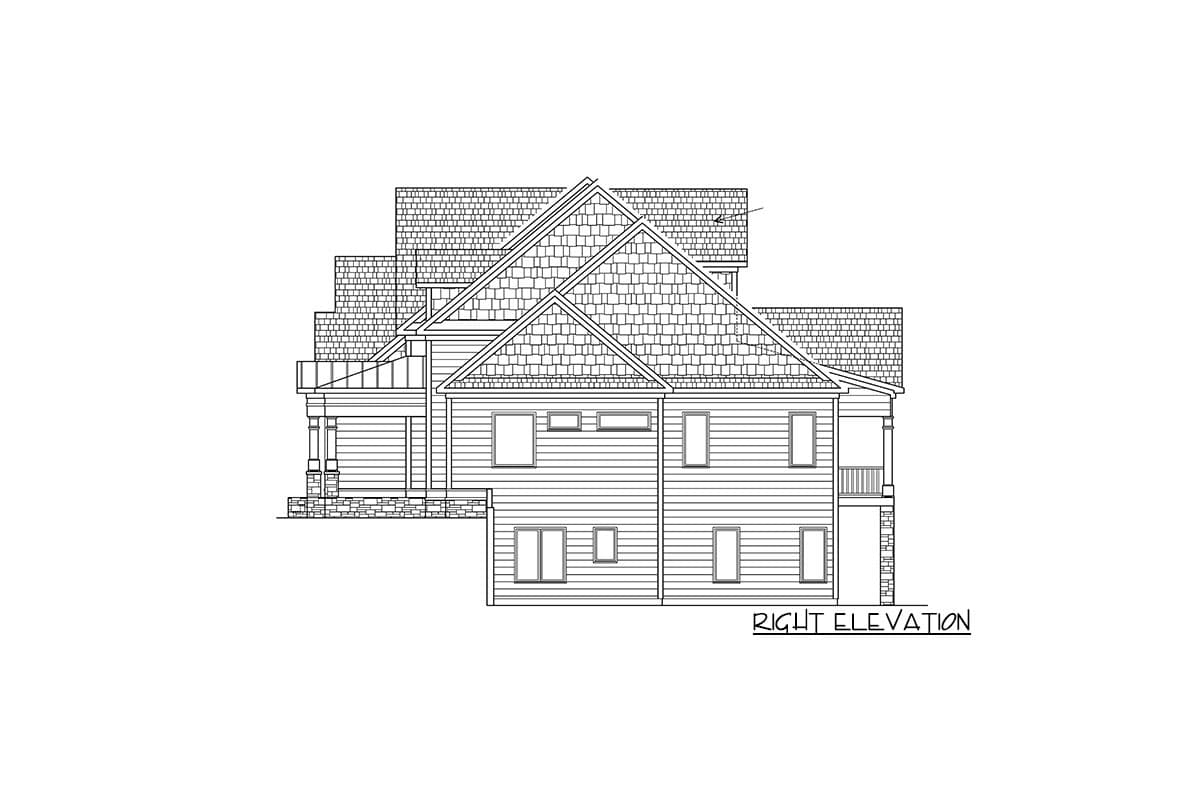

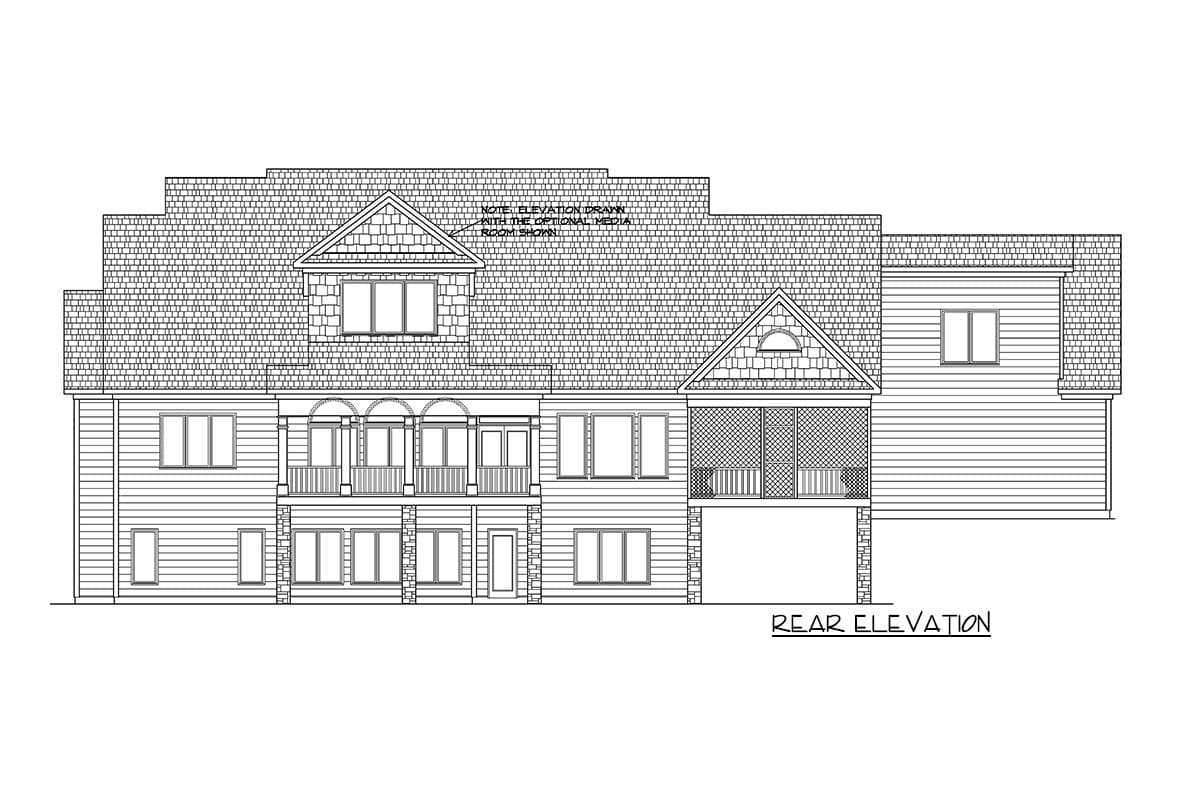

  • Front, Rear, Right Side and Left Side Elevational views with construction specification information
  • Roof Plan Quick View Floor Plans Foundation plan of choice specifying construction information
  • Floor Plan(s) with construction information
  • Electrical Plans
  • Construction Details for walls, Foundation, roof framing.
  • Some plans includes a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

Floor Plan

Plan details



Traditional House Plan with Bonus Over Garage and Sweeping Front Porch

  • 3,277

    Heated s.f.

  • 4 - 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,100
  • 8 Sets $1,425
  • PDF - single-use $1,925
  • CAD $2,350
  • View all purchase option online

About This Plan

  • This 4 bedroom house plan - with a 5th bedroom option upstairs - has sister plan with alternate exteriors to suit a wide range of aesthetic tastes.
  • The foyer gives you views through to the back, including the family room with fireplace and built-ins.
  • The master is on the main and has beautiful double tray ceilings and his and her walk-ins. It also has access to the covered rear terrace.
  • The kitchen has great views to the back of the home and is centrally located to the formal dining room, the breakfast area and the screened porch for al fresco dining without the bugs. The outdoor kitchen is a nice touch.
  • Upstairs, there are two beds plus an optional third bedroom and media room. A bonus room option over the garage gives you a potential fifth bedroom.
  • The garage has parking for 3 cars. The doors are 9' wide and 8' tall and the garage has 9' ceilings, giving you great clearance for your vehicles.
  • Related Plans: Get alternate exteriors with house plans 36044DK and 360054DK.

Floor Plans

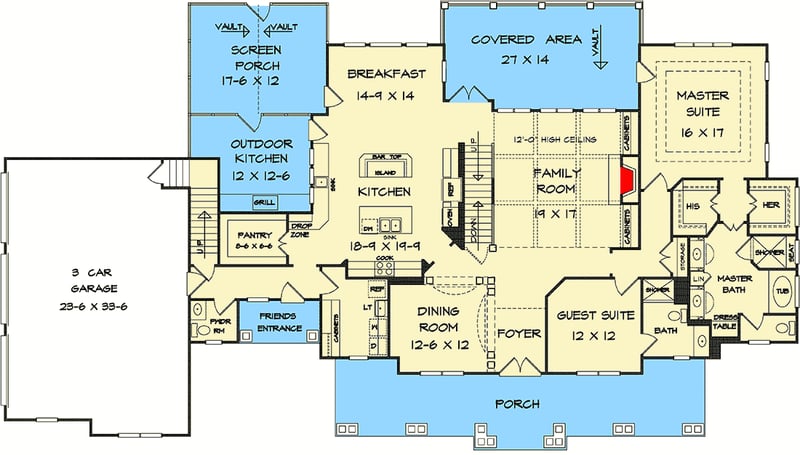

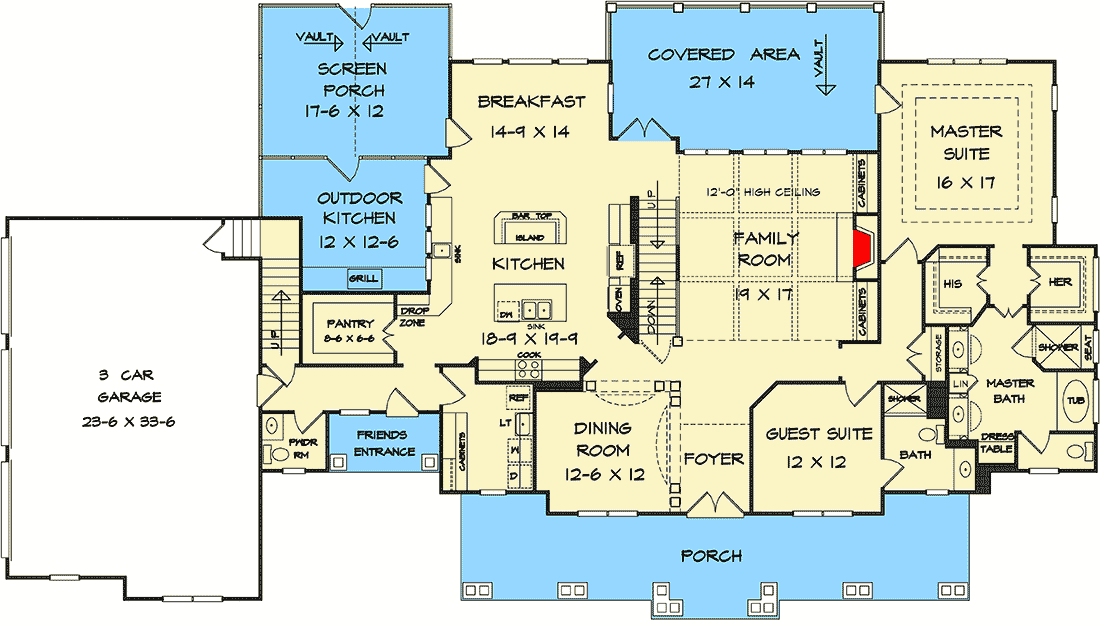

  • Main Level

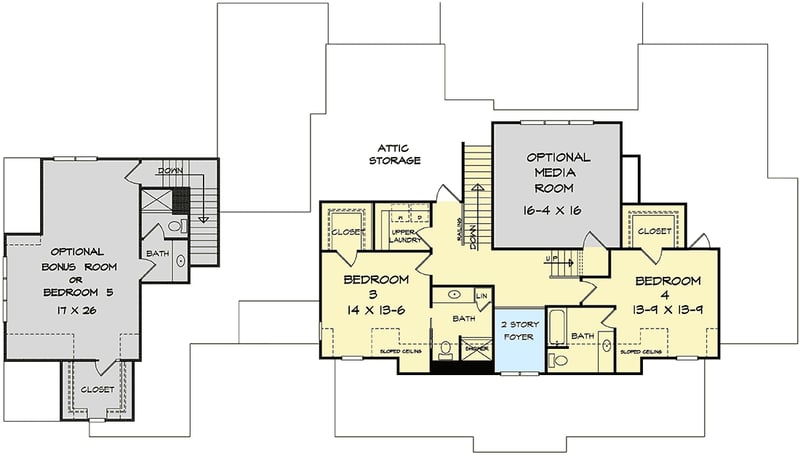

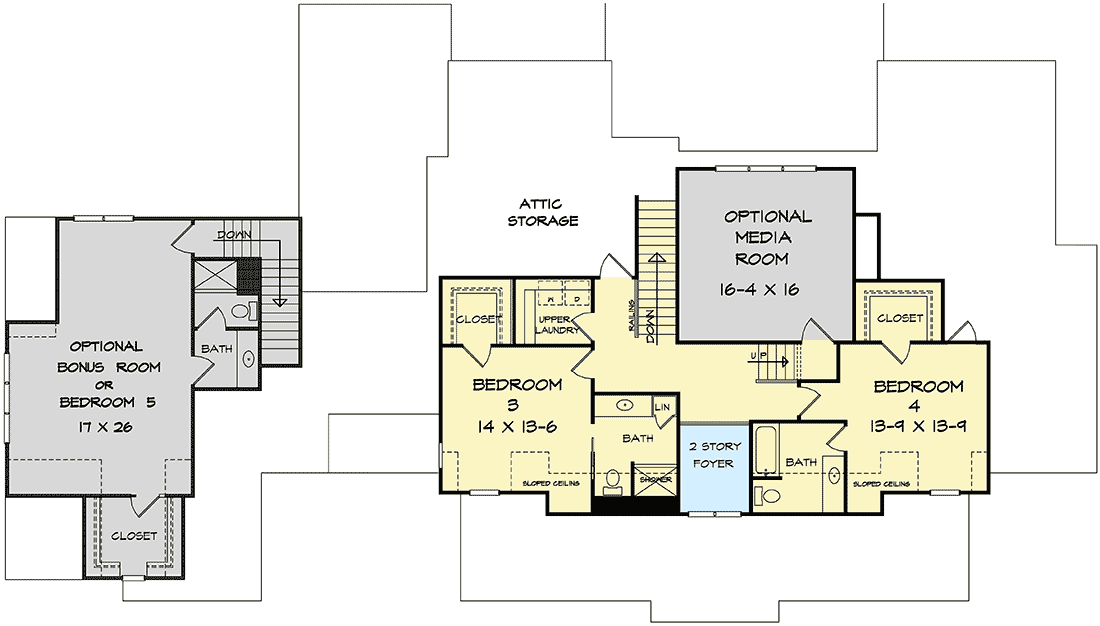

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,277 sq. ft.
  • 1st Floor: 2,507 sq. ft.
  • 2nd Floor: 770 sq. ft.
  • Bonus: 691 sq. ft.
  • Media Room: 325 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 102' 4"
  • Depth: 58' 0"
  • Max ridge height: 31' 9"

Garage

  • Type: Attached
  • Area: 855 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
