Plan 490044NAH
Traditional Home Plan with Flex Room and 3-car Garage
Heated S.F.
2,394
Beds
3-6
Baths
2.5 - 3.5
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS

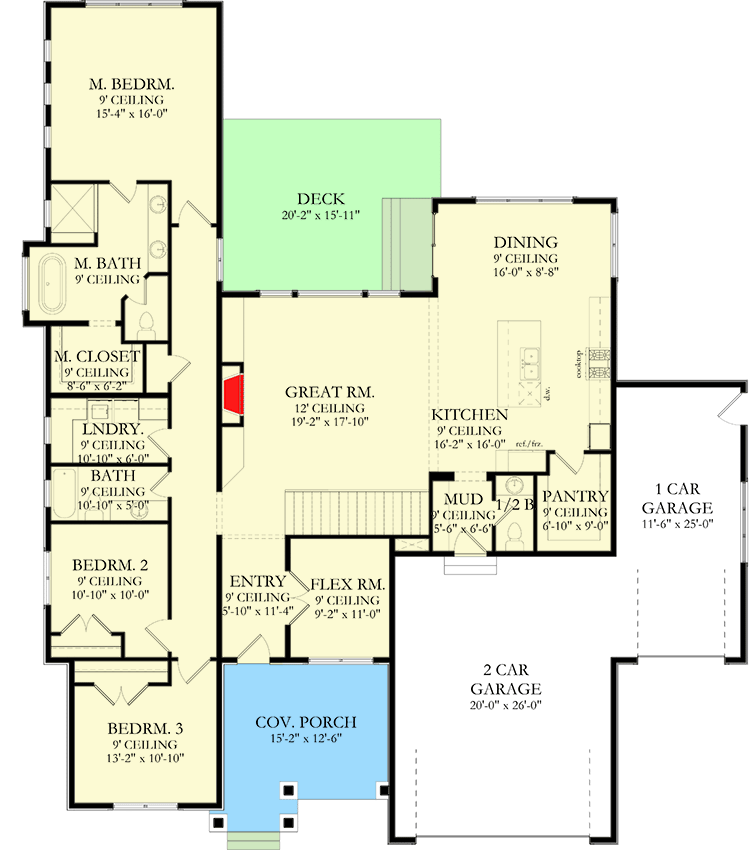

Main Level
Reverse Floor Plan
Traditional Home Plan with Flex Room and 3-car Garage - 490044NAH floor plan - Main Level

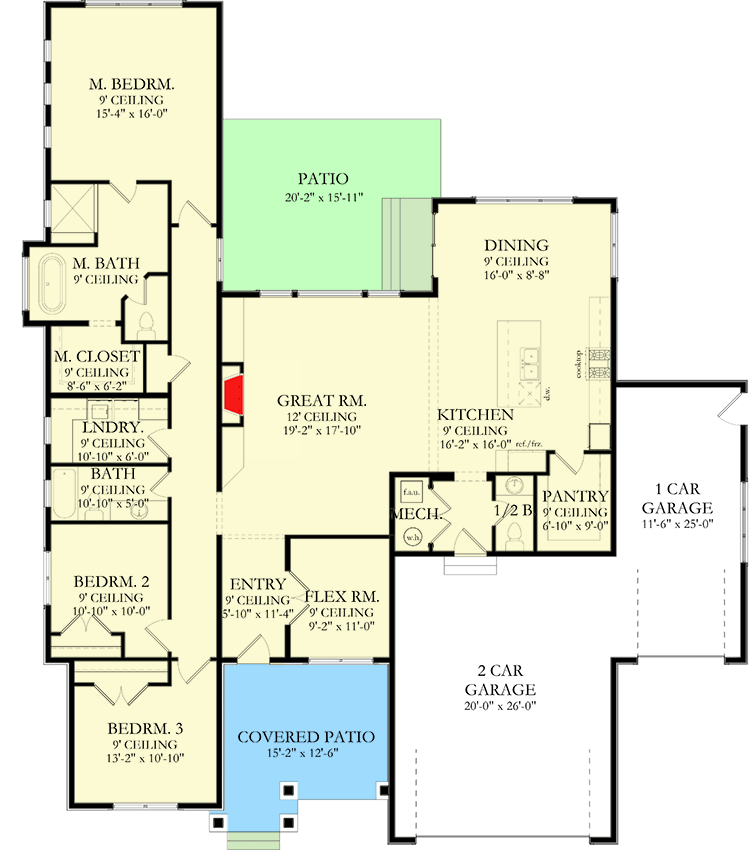

Main Level - Slab/Crawl Option
Reverse Floor Plan
Traditional Home Plan with Flex Room and 3-car Garage - 490044NAH floor plan - Main Level - Slab/Crawl Option

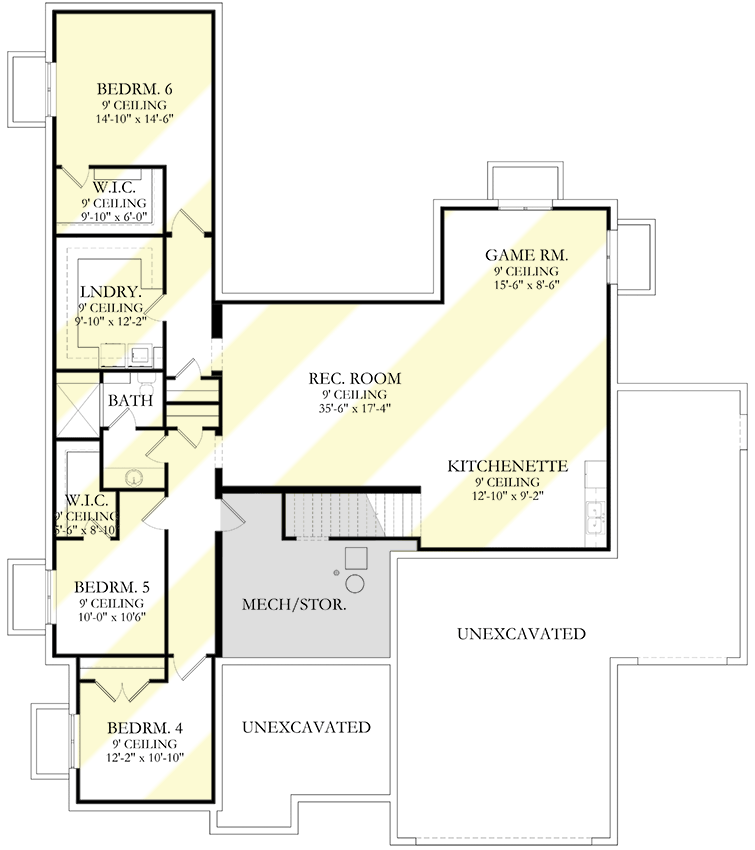

Optional Lower Level
Reverse Floor Plan
Traditional Home Plan with Flex Room and 3-car Garage - 490044NAH floor plan - Optional Lower Level

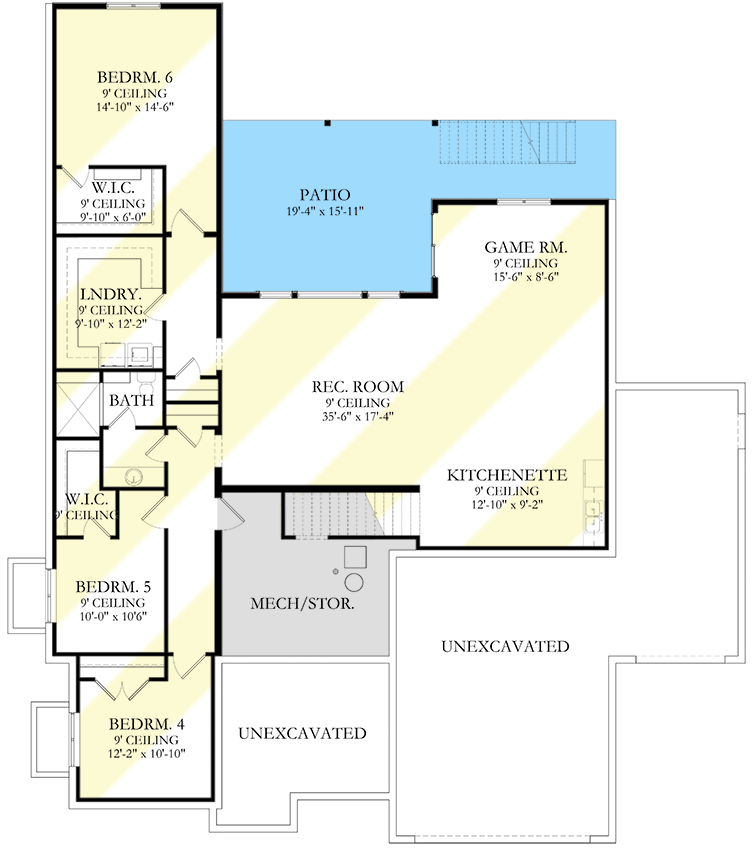

Optional Walkout Level
Reverse Floor Plan
Traditional Home Plan with Flex Room and 3-car Garage - 490044NAH floor plan - Optional Walkout Level
Plan Details
  • This traditional house plan offers main floor living with beautiful spaces designed to keep the gathering spaces open and the bedrooms private.
  • With the open concept design, the kitchen is centered across from the great room's fireplace with the dining room off to the side. The great room's 12' ceilings and tall windows give the home a luxurious feel. A flex room off the foyer can be used as a home office.
  • Off the foyer you'll find a privacy hallway leading to the bedrooms. The oversized primary suite with the amenity-filled bathroom and walk in closet is privately located and enjoys views to the back. Two additional bedrooms line the left side of the home, as does the laundry room.
  • This home plan offers basement expansion (1,985 square feet when finished as shown) with a recreation room, game room, kitchenette, bedrooms, laundry space, and plenty of storage.

What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional Home Plan with Flex Room and 3-car Garage

  • 2,394

    Heated s.f.

  • 3-6

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Main Level - Slab/Crawl Option

  • Optional Lower Level

  • Optional Walkout Level

Plan Details

Square Footage Breakdown

  • Total: 2,394 sq. ft.
  • 1st Floor: 2,394 sq. ft.

Dimensions

  • Width: 66' 10"
  • Depth: 77' 10"

Beds/Baths

  • Bedrooms: 3, 4, 5, or 6
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 876 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"
