Plan 59144ND

Traditional Home Plan with Large Open Kitchen

Heated S.F.
2,285
Beds
4
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59144ND

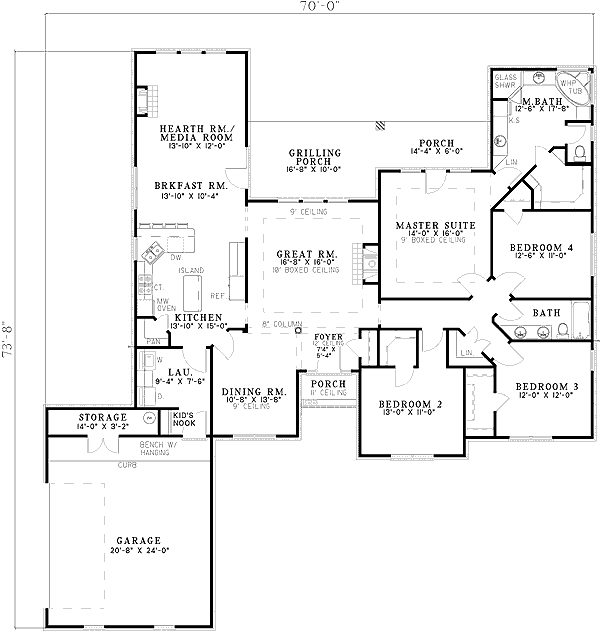

Main Level
Main Level

Plan 59144ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59144ND: Traditional Home Plan with Large Open Kitchen - Floor Plan - Main Level - Ranch

Plan Details

  • This traditional brick home has plenty space for your family.
  • The foyer opening into the dining room and great room where you will find a cozy fireplace perfect for those calm winter evenings.
  • The large kitchen offers an abundance of counter space along with a spacious pantry and uninterrupted access to the breakfast room and hearth room.
  • On the other side of the home is the master suite along with 3 additional bedrooms.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,285 sq. ft.

1st Floor

2,285 sq. ft.

Porch, Combined

281 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 0"

Depth

73' 8"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

582 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Square Footage Breakdown

Total Heated Area

2,285 sq. ft.

1st Floor

2,285 sq. ft.

Porch, Combined

281 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

70' 0"

Depth

73' 8"

Max Ridge Height

24' 7"

Garage

Type

Attached

Area

582 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Ranch

Special Features

Bedrooms - Clustered
