Traditional Home Plan with Magnificent Vaulted Family Room

Plan 4029DB

  • 2,715

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Wide, open spaces greet you as soon as you walk through the front door of this Traditional home plan.
  • Both the formal dining room and the living room are open to the foyer, creating an easy flow when entertaining.
  • The best feature of this attractive home plan is the huge vaulted and beamed family room with a big fireplace for friends and family to gather around.
  • In the kitchen, a cooktop island gives you extra counter space and storage.
  • All four bedrooms are up on the second floor, most with delightful ceiling treatments.
  • The master suite has a bay window and a sunken master bathroom with a vaulted ceiling. Bedroom 2 has a private bathroom and walk-in closet.
  • Related Plans: Get ICF exterior walls with house plan 40847DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

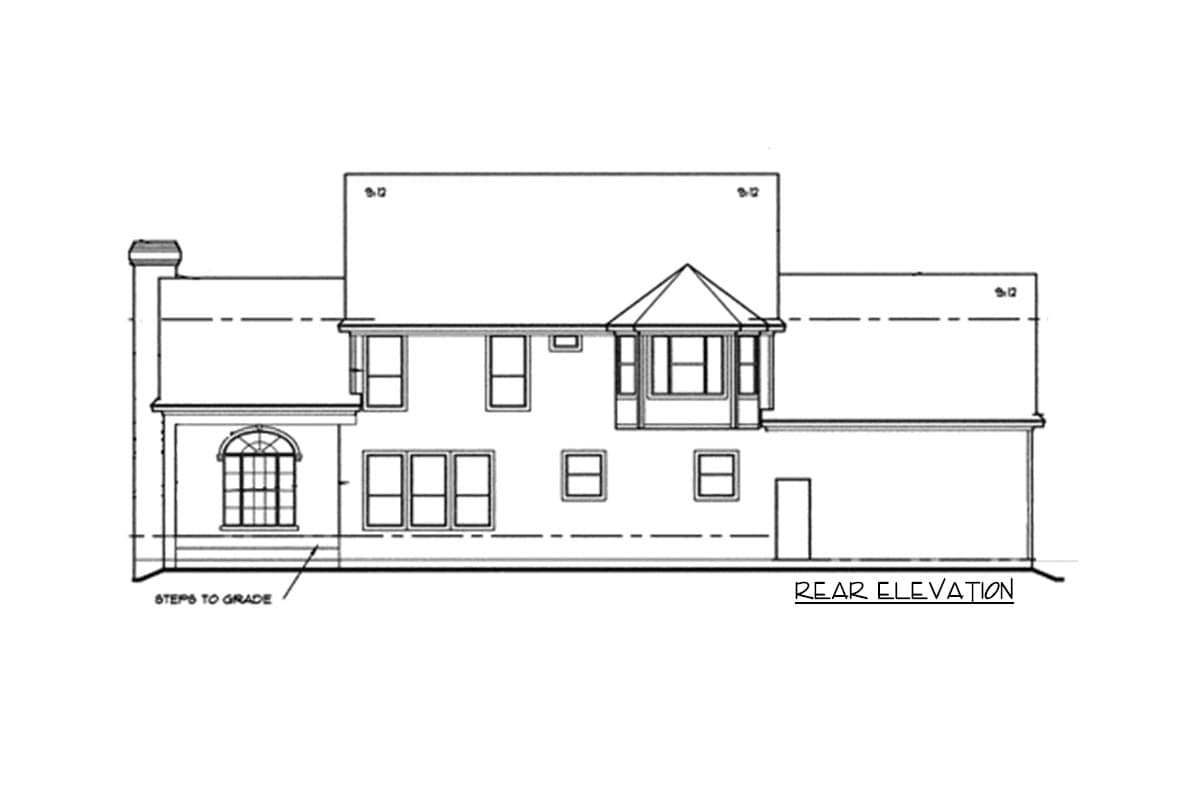

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details

Architectural Style

Plan Collections



Traditional Home Plan with Magnificent Vaulted Family Room

  • 2,715

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $690
  • PDF - single-use $1,055
  • 5 Sets $1,180
  • 5 Sets PLUS $1,225
  • 8 Sets $1,250
  • PDF - multi-use $1,555
  • CAD $1,846
  • CAD - multi-use $2,346
  • View all purchase option online

About This Plan

  • Wide, open spaces greet you as soon as you walk through the front door of this Traditional home plan.
  • Both the formal dining room and the living room are open to the foyer, creating an easy flow when entertaining.
  • The best feature of this attractive home plan is the huge vaulted and beamed family room with a big fireplace for friends and family to gather around.
  • In the kitchen, a cooktop island gives you extra counter space and storage.
  • All four bedrooms are up on the second floor, most with delightful ceiling treatments.
  • The master suite has a bay window and a sunken master bathroom with a vaulted ceiling. Bedroom 2 has a private bathroom and walk-in closet.
  • Related Plans: Get ICF exterior walls with house plan 40847DB.

Floor Plans

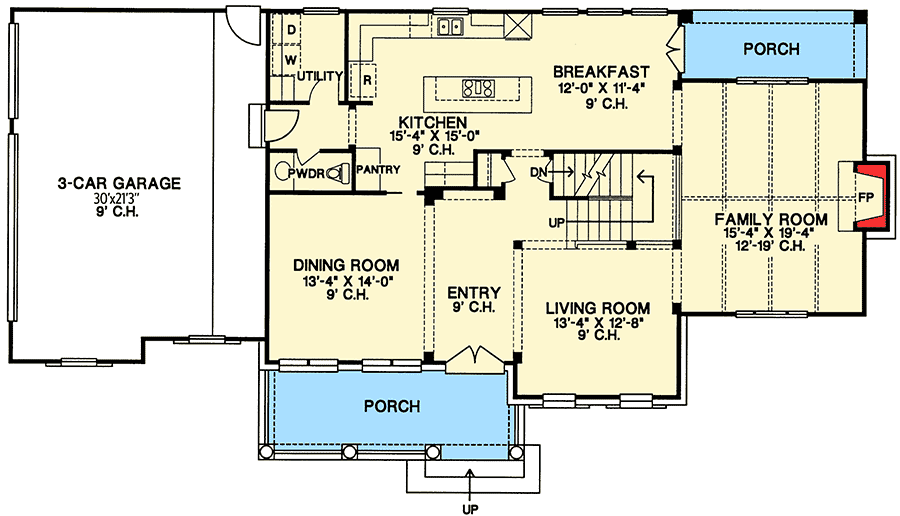

  • Main Level

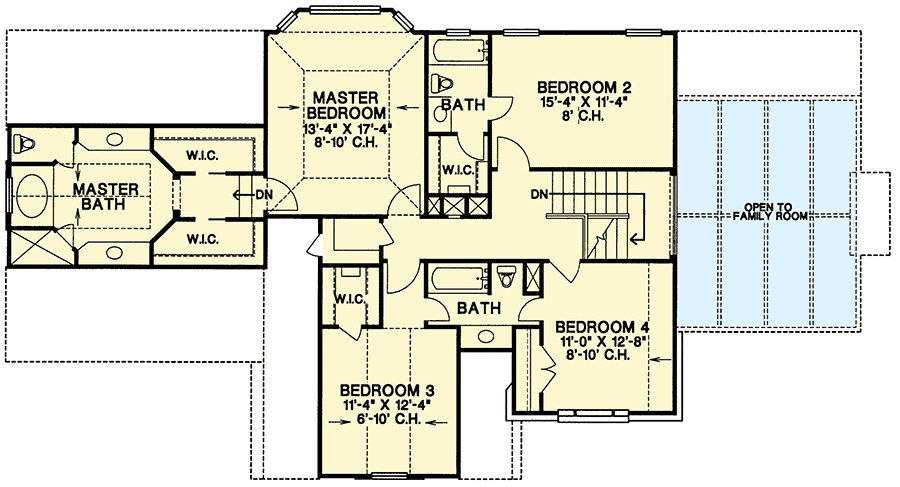

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,715 sq. ft.
  • 1st Floor: 1,400 sq. ft.
  • 2nd Floor: 1,315 sq. ft.
  • Porch, Combined: 253 sq. ft.
  • Basement Unfinished: 1,400 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 75' 2"
  • Depth: 38' 0"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 631 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
