Plan 59071ND

Traditional Home Plan with Split Beds

Heated S.F.
2,582
Beds
4
Baths
2.5
Stories
1
Cars
2

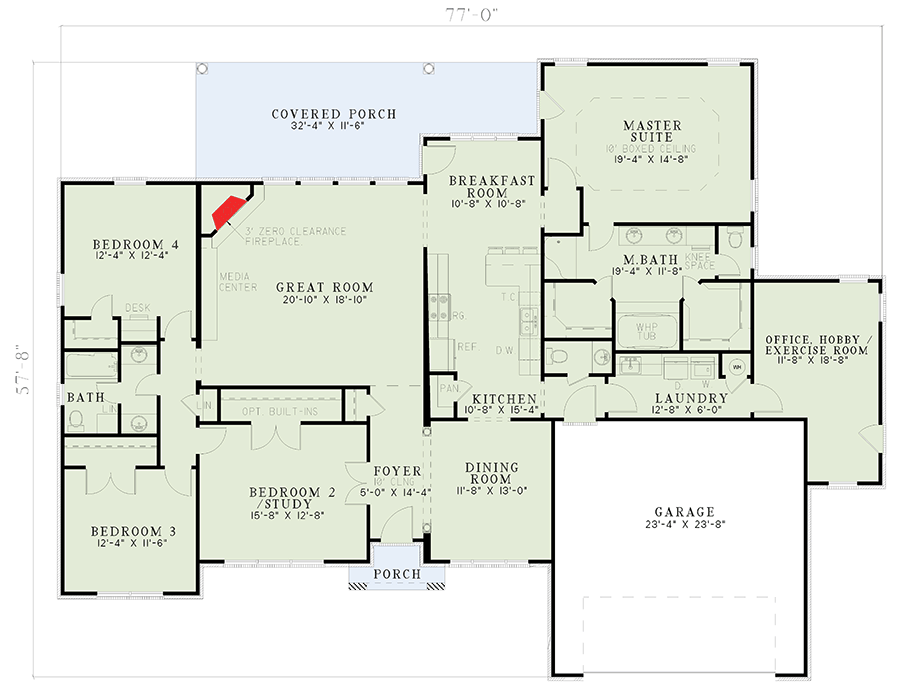

Floor Plan

Plan 59071ND

Main Level
Main Level

Plan 59071ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59071ND: Traditional Home Plan with Split Beds - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This magnificent home has a split bedroom design with amenities galore.
  • An arched entry welcomes you into a foyer with ten foot ceiling and through to a great room with built-in media center and corner fireplace.
  • The master suite is enhanced by a ten foot boxed ceiling and accesses the covered porch.
  • he master bathroom features a double vanity, separate shower and a whirlpool tub surrounded by ‘his and her’ walk-in closets.
  • The laundry room accesses either an exercise room or home office depending on your need.
  • On the opposite side of the home are three additional bedrooms-one perfect for a study with optional built-in and French doors.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

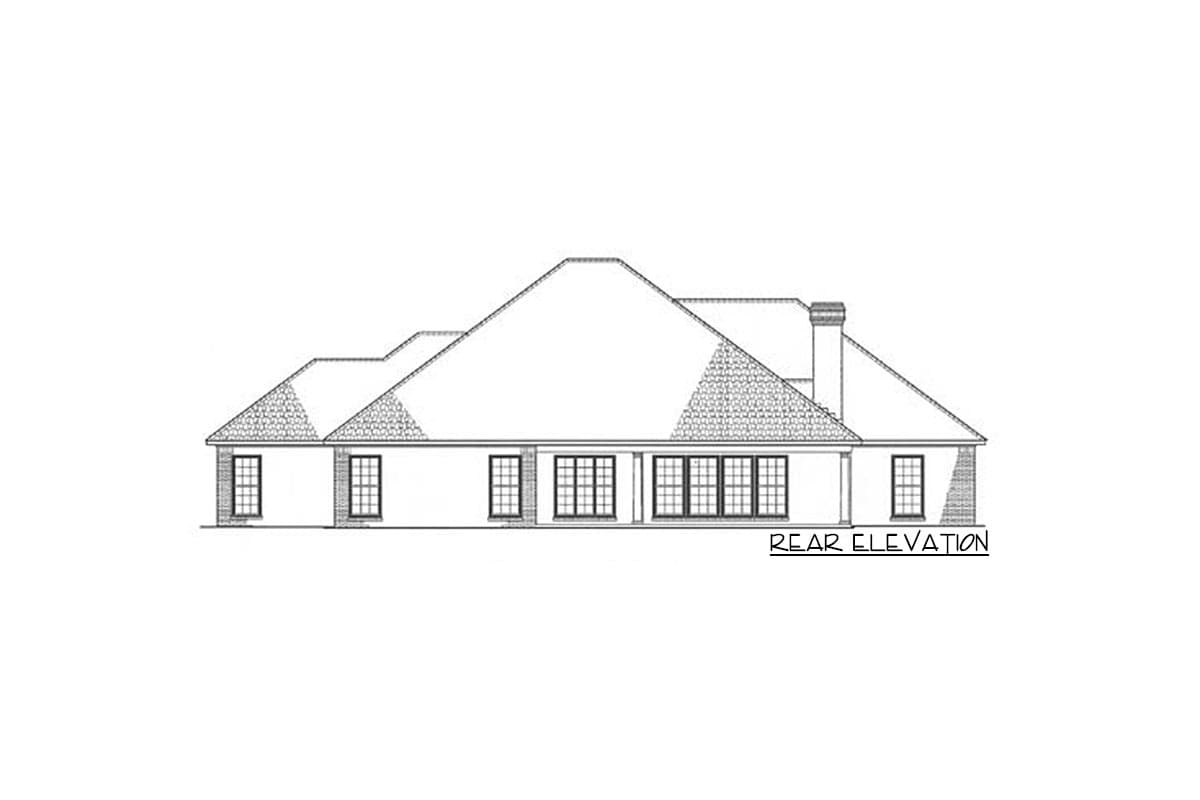

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,582 sq. ft.

1st Floor

2,582 sq. ft.

Porch, Combined

365 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

77' 0"

Depth

57' 8"

Max Ridge Height

27' 2"

Garage

Type

Attached

Area

552 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Home Office

Library/Study

Master Suite - 1st Floor

Plan Collections

Home Office

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,582 sq. ft.

1st Floor

2,582 sq. ft.

Porch, Combined

365 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

77' 0"

Depth

57' 8"

Max Ridge Height

27' 2"

Garage

Type

Attached

Area

552 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Home Office

Library/Study

Master Suite - 1st Floor

Plan Collections

Home Office

Photo Gallery
