Plan 42271WM Traditional Home with Master Down

2,060 3 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Traditional Home with Master Down

Plan 42271WM

  • 2,060

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A first floor master suite means no stairs to climb in this appealing Traditional home plan.
  • Two windows in the master sitting area makes for a great reading corner.
  • All the main living areas are open to each other making the space seem huge.
  • Two bedrooms share a bath on the second floor and an optional game room adds 273 square feet of living space.

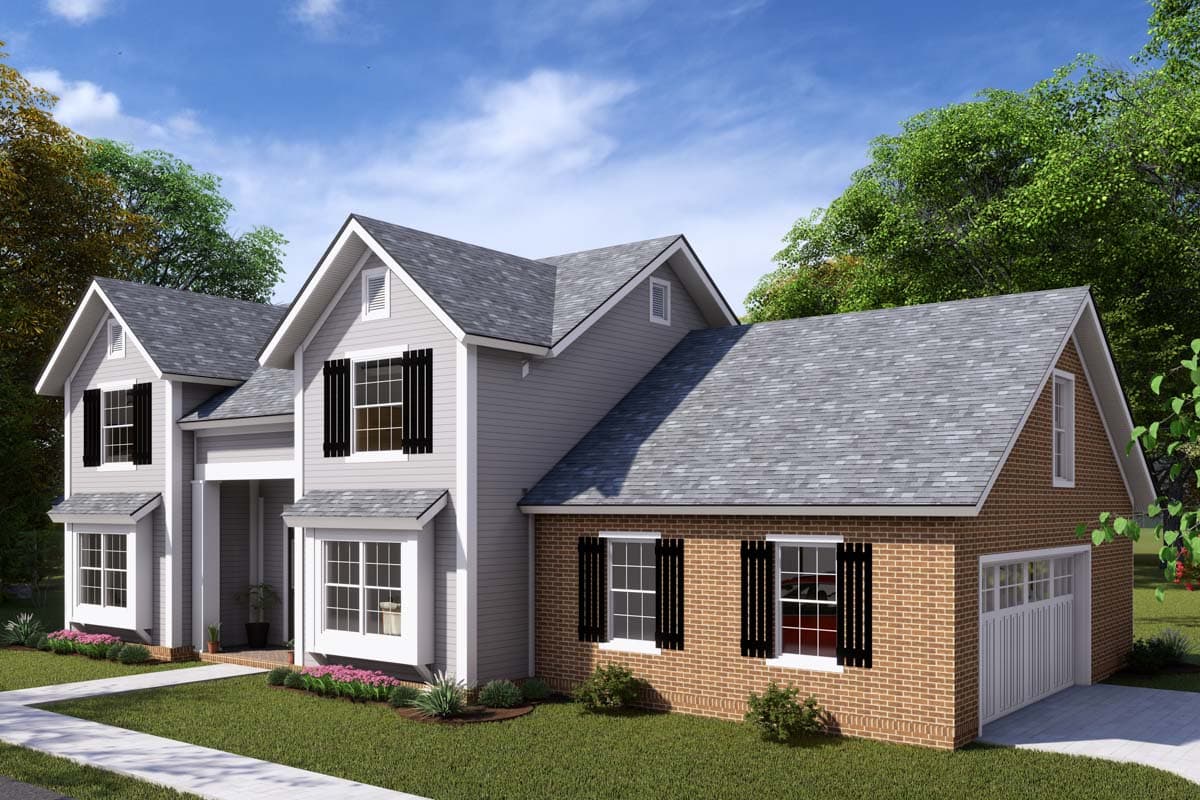

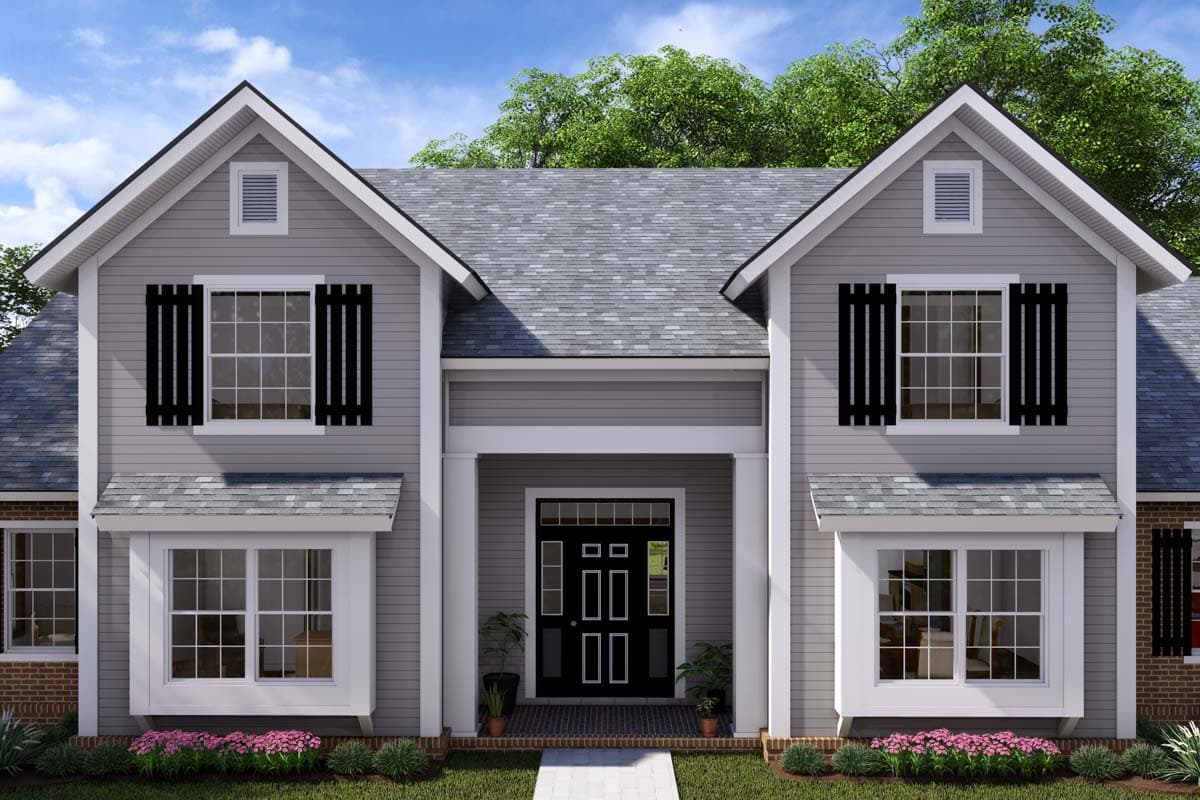

  • Front elevation and construction notes

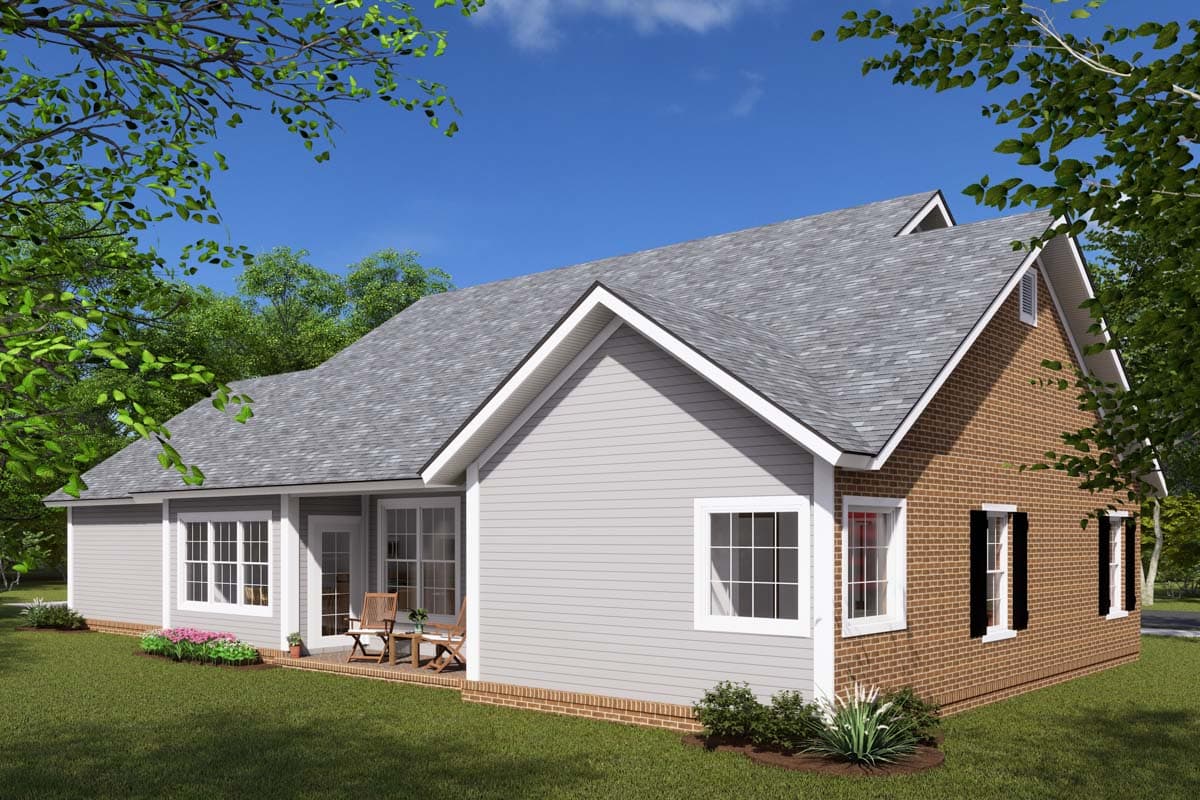

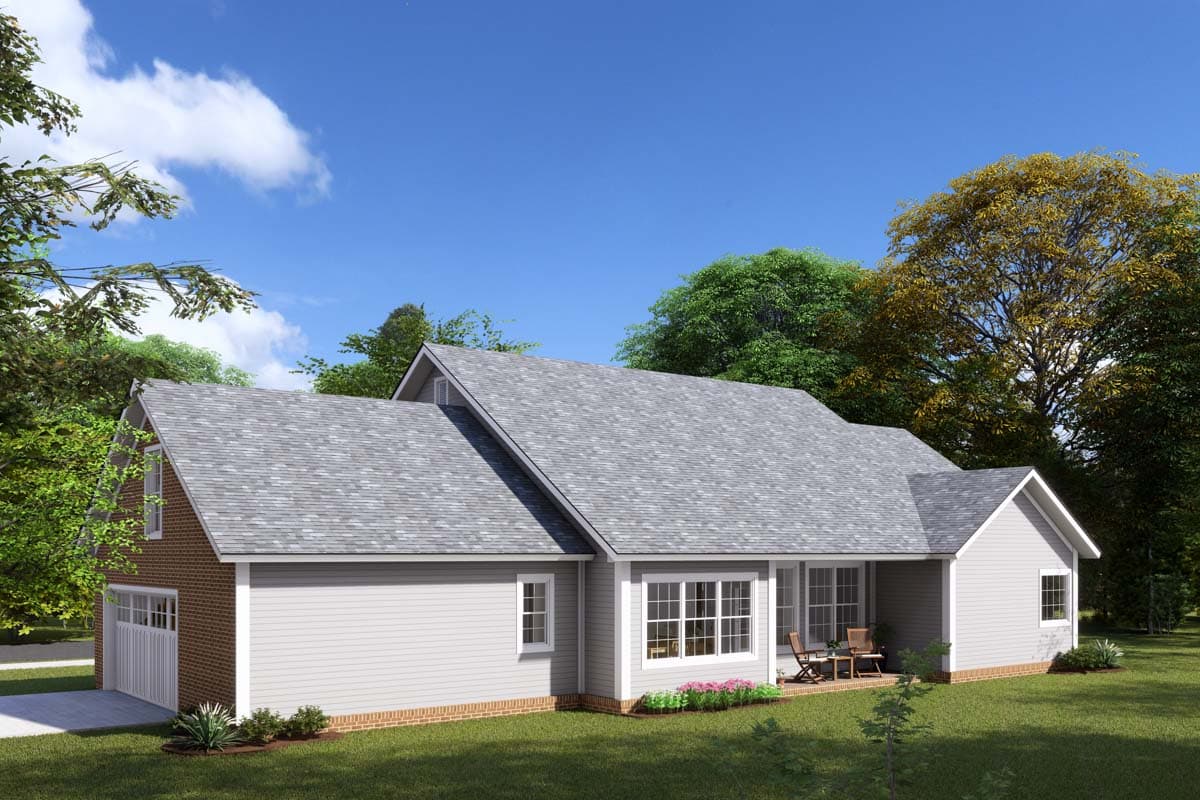

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

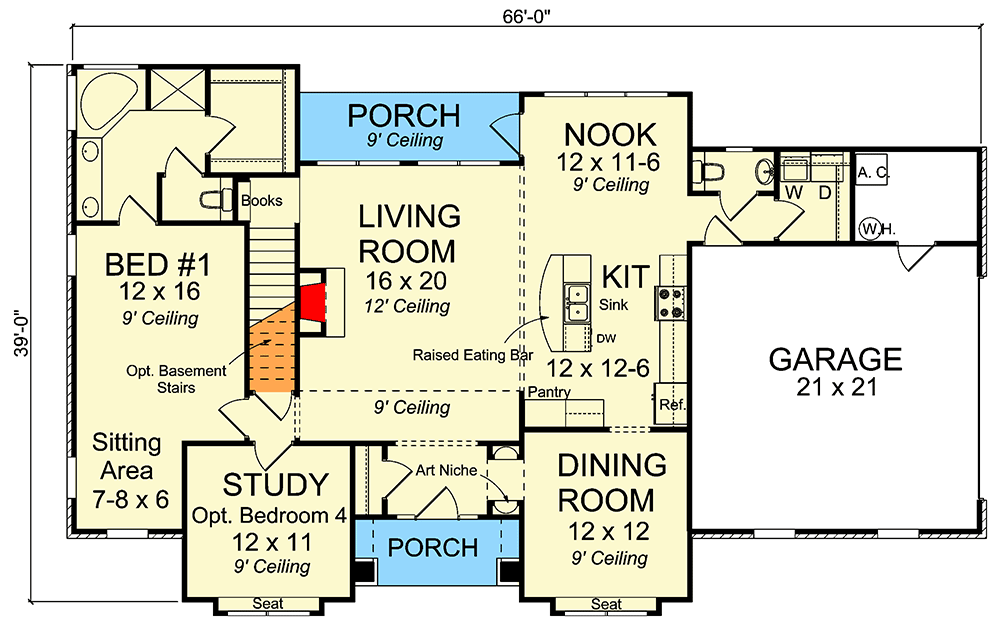

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

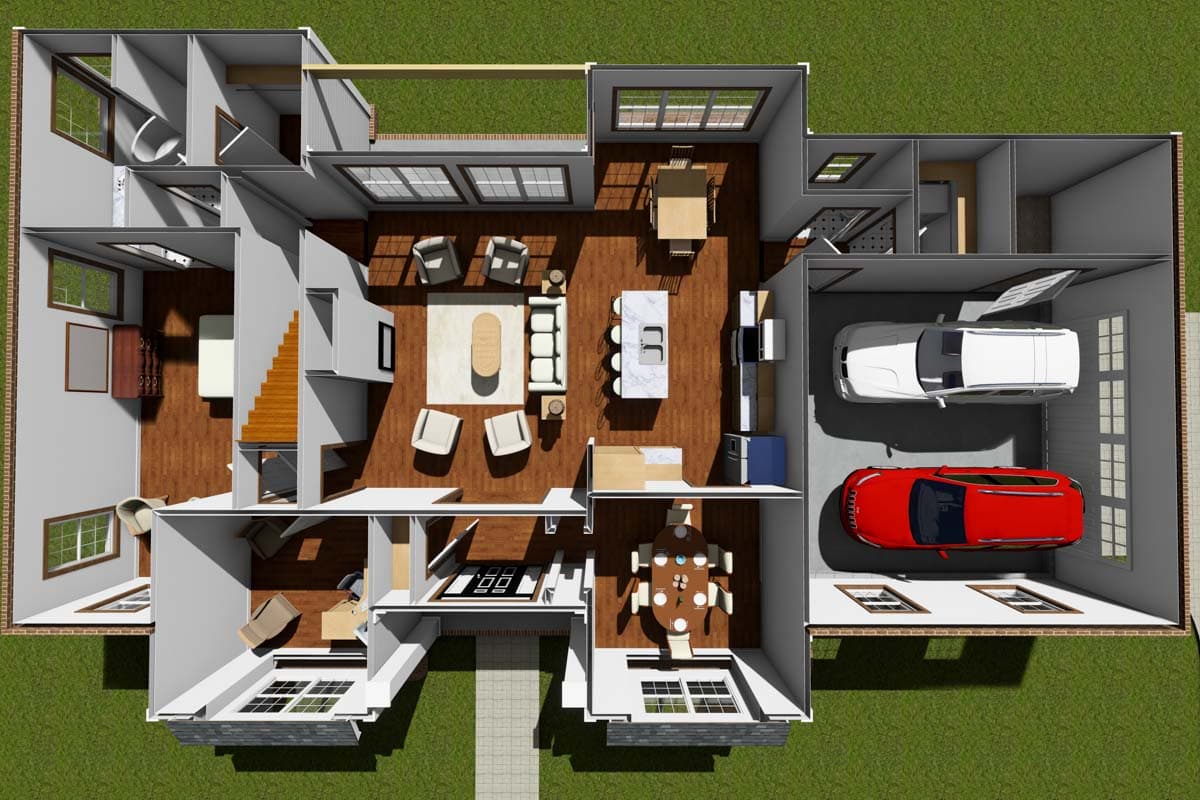

Traditional Home with Master Down - 42271WM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

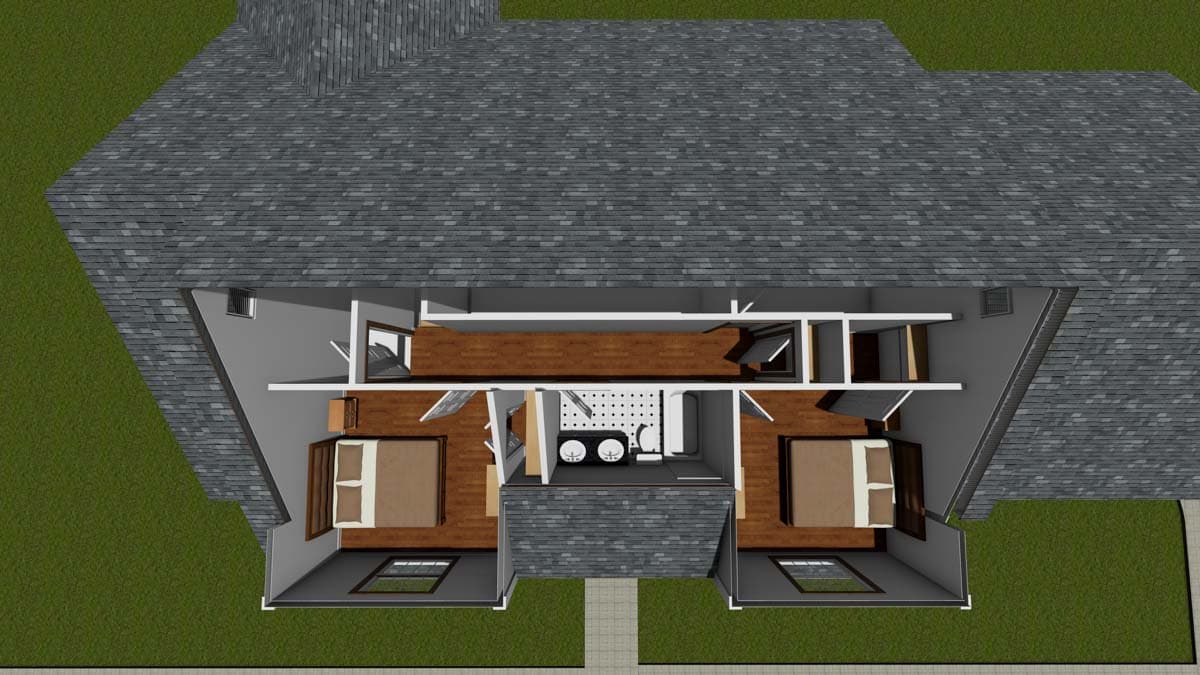

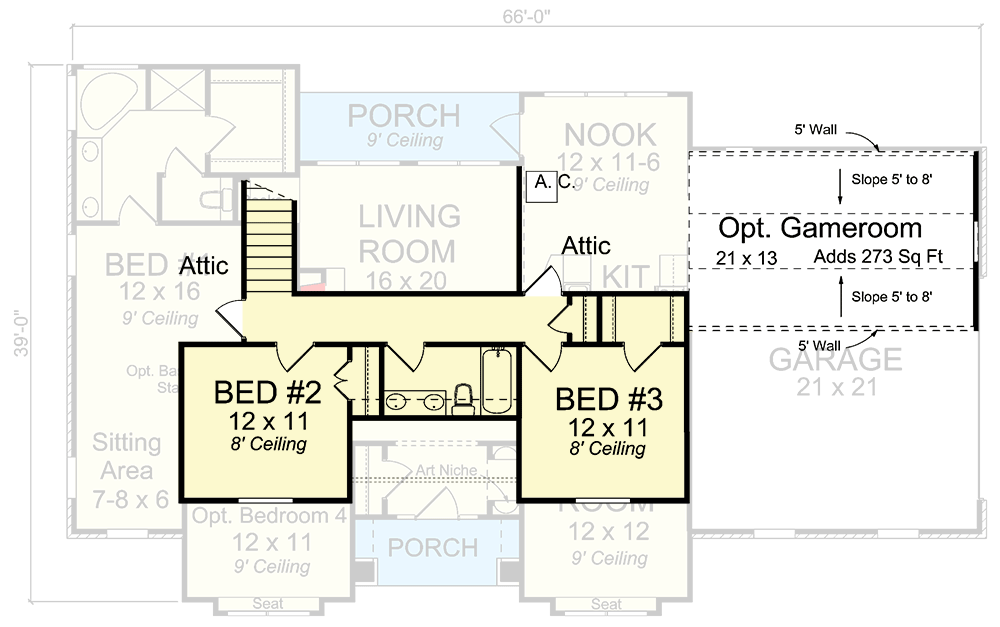

Traditional Home with Master Down - 42271WM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,060 sq. ft.
  • 1st Floor: 1,588 sq. ft.
  • 2nd Floor: 472 sq. ft.
  • Porch, Front: 54 sq. ft.
  • Porch, Rear: 80 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 39' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 506 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

Traditional Home with Master Down

  • 2,060

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Unlimited Build $1,025
  • CAD + PDF - Unlimited Build $1,320
  • View all purchase option online

About This Plan

  • A first floor master suite means no stairs to climb in this appealing Traditional home plan.
  • Two windows in the master sitting area makes for a great reading corner.
  • All the main living areas are open to each other making the space seem huge.
  • Two bedrooms share a bath on the second floor and an optional game room adds 273 square feet of living space.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,060 sq. ft.
  • 1st Floor: 1,588 sq. ft.
  • 2nd Floor: 472 sq. ft.
  • Porch, Front: 54 sq. ft.
  • Porch, Rear: 80 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 39' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 506 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
