Plan 31179D
Traditional Home with Twin Gables
Heated S.F.
2,562
Beds
3-5
Baths
2 - 3
Stories
2
Cars
2
What's Included
Plan Details
  • This beautiful Traditional home has a covered front porch and twin gables.
  • The formal dining room and living room are open to the foyer with views of the lovely fanned staircase.
  • The study is set in a big bay facing front and can also be used as a fourth bedroom.
  • The rear of the home holds the big informal area with its wonderful open floor plan.
  • On the second floor, a huge master suite sports a tray ceiling and bayed sitting area.
  • Use the game room as a fifth bedroom with the additional of a wall
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional Home with Twin Gables

  • 2,562

    Heated s.f.

  • 3-5

    Beds

  • 2 - 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

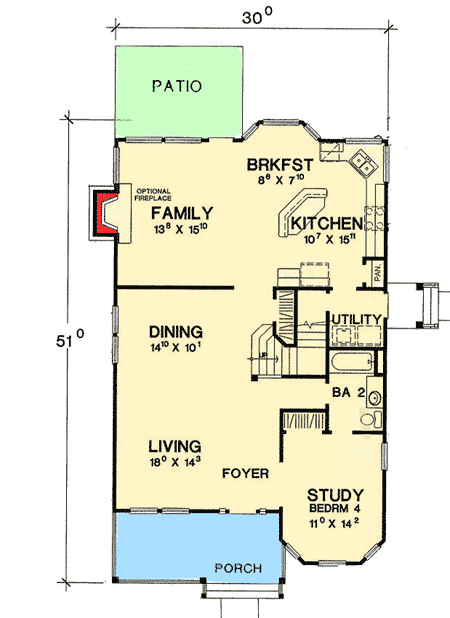

  • Main Level

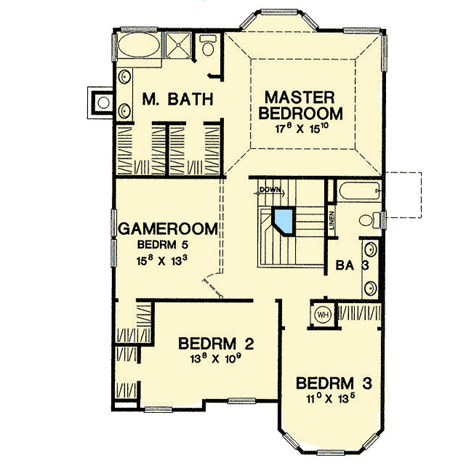

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,562 sq. ft.
  • 1st Floor: 1,319 sq. ft.
  • 2nd Floor: 1,243 sq. ft.

Dimensions

  • Width: 35' 10"
  • Depth: 51' 0"
  • Max ridge height: 34' 0"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3

Garage

  • Type: Detached
  • Area: 397 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
