Plan 790033GLV
EXCLUSIVE
Traditional House Plan with 3 Bedrooms and Bonus Over the Garage
Heated S.F.
2,100
Beds
3
Baths
2.5
Stories
2
Cars
2
Flyer
What's Included
Plan Details

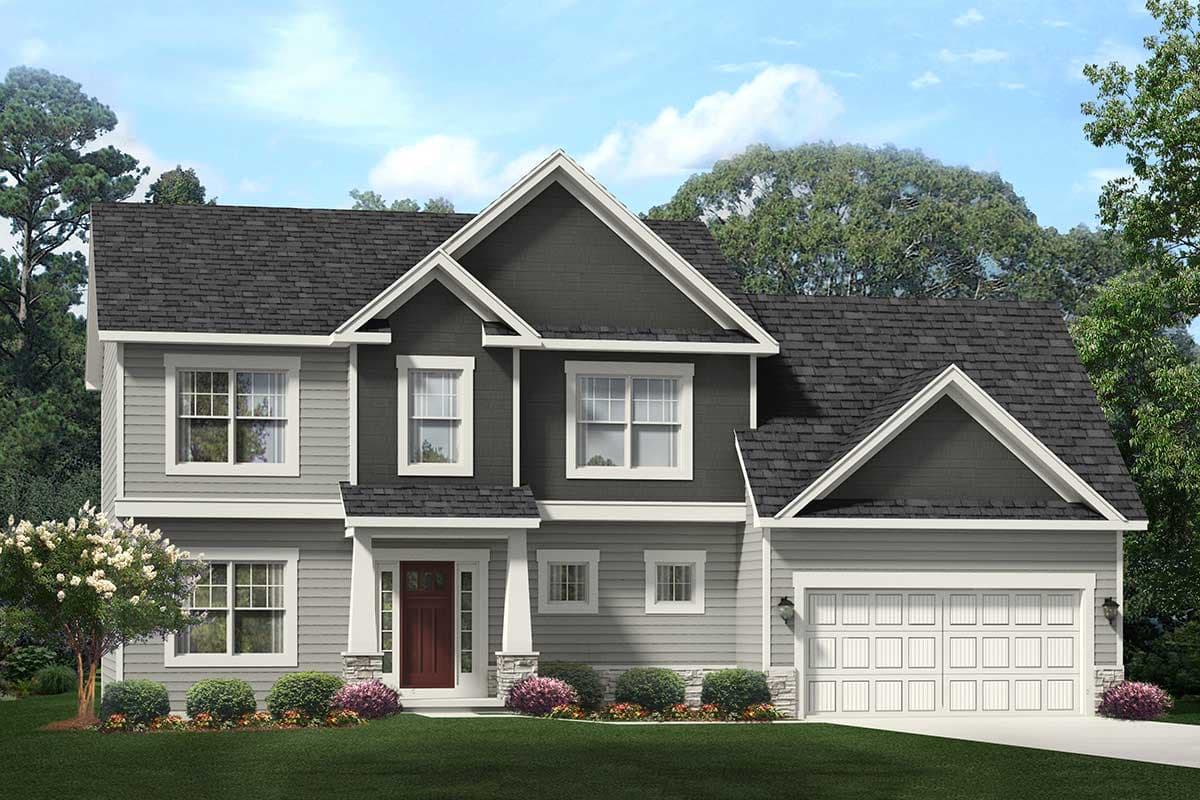

  • A classic facade with a covered entry and horizontal siding and shingles welcomes you to this 3-bed house plan.
  • With the stairs located towards the middle of the home and the garage entry have direct kitchen access for convenient grocery unloading, the home has a circular flow.
  • All bedrooms are upstairs - as is laundry for your convenience - leaving the main floor mostly open except for the study.
  • The kitchen snack bar has a double sink and dishwasher on one side and seating on the other.
  • A room over the garage gives you room for expansion as needed.
  • Related Plans: Get an alternate version with house plans 790032GLV (2,050 sq. ft.) and 790115GLV (2,333 sq. ft.).
What's Included
This plan set has 7 pages as follows:
  1. Cover sheet with notes

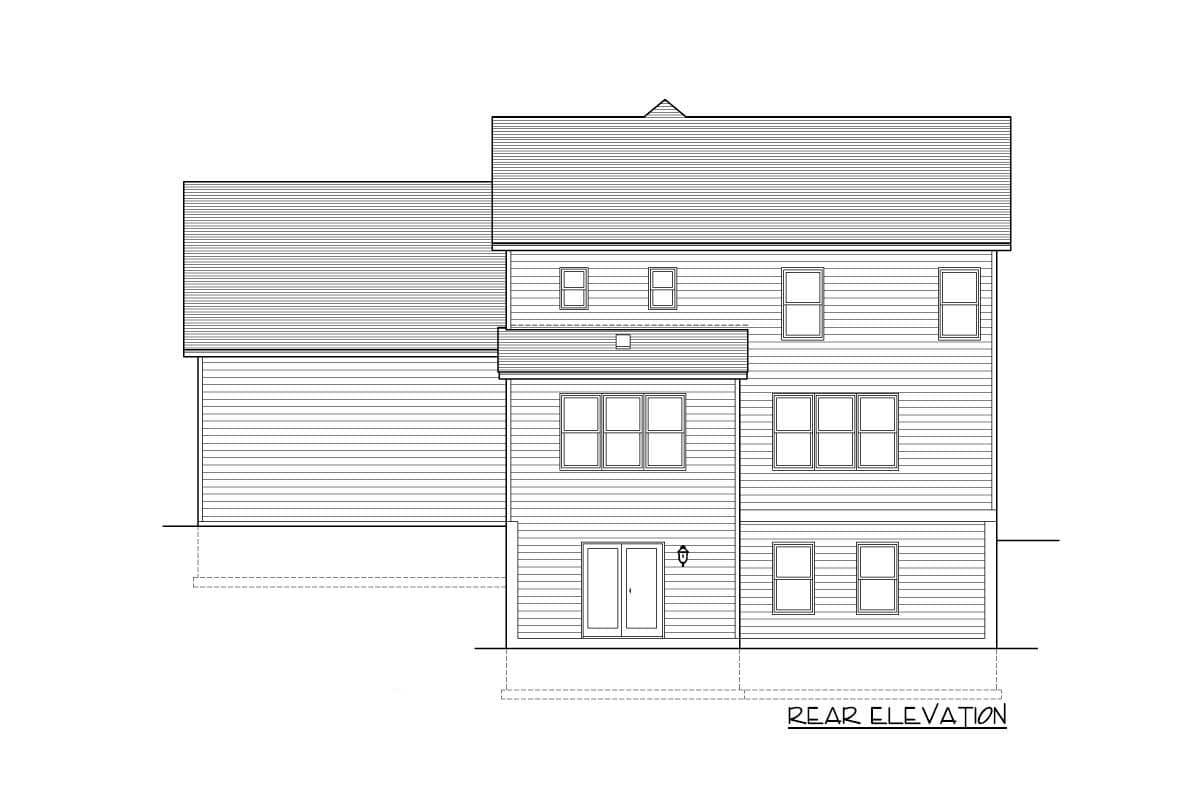

  2. Elevations
  3. Foundation plan and typical wall section
  4. First floor plan with; roof plan; stair section
  5. Second floor plan; building sections (3); truss profile
  6. Details
  7. Reinforcing notes
What's Not Included
  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional House Plan with 3 Bedrooms and Bonus Over the Garage

  • 2,100

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

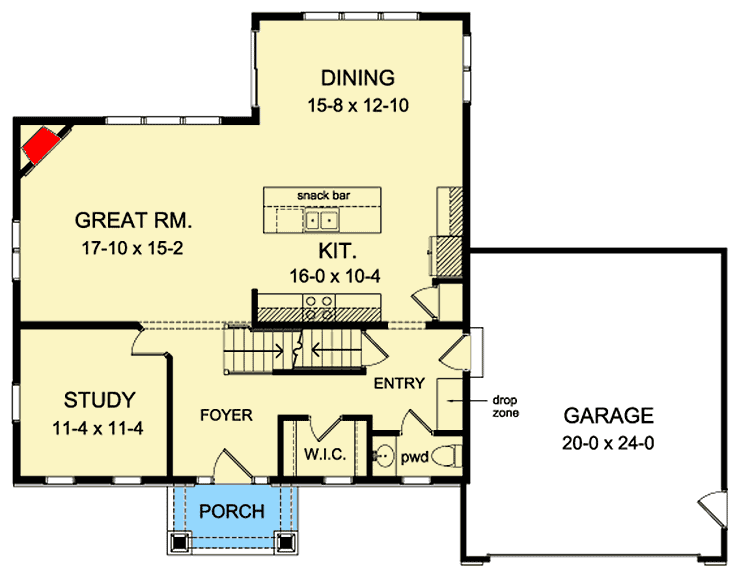

  • Main Level

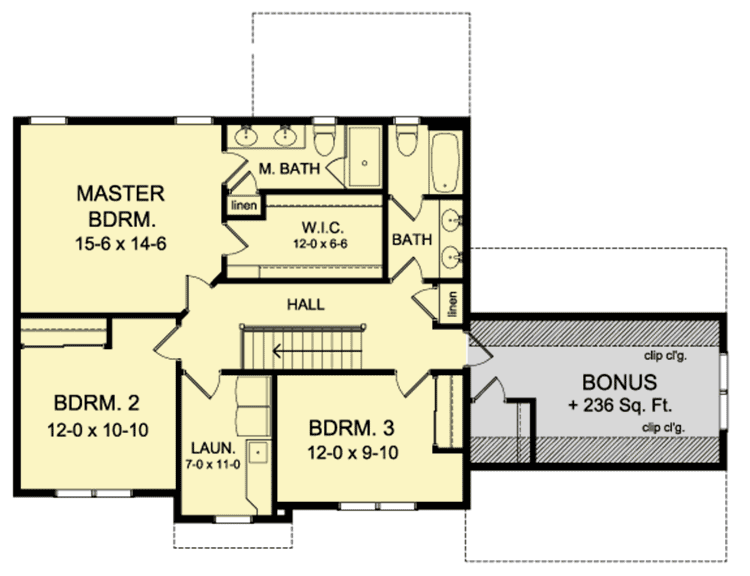

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,100 sq. ft.
  • 1st Floor: 1,083 sq. ft.
  • 2nd Floor: 1,017 sq. ft.

Dimensions

  • Width: 53' 8"
  • Depth: 42' 0"
  • Max ridge height: 30' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 480 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick And Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Traditional House Plan with 3 Bedrooms and Bonus Over the Garage

  • 2,100

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Traditional House Plan with 3 Bedrooms and Bonus Over the Garage

  • 2,100

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,100 sq. ft.
  • 1st Floor: 1,083 sq. ft.
  • 2nd Floor: 1,017 sq. ft.

Dimensions

  • Width: 53' 8"
  • Depth: 42' 0"
  • Max ridge height: 30' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 480 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick And Truss

    Main Level

    2nd Floor
